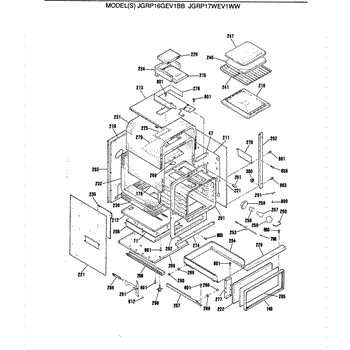

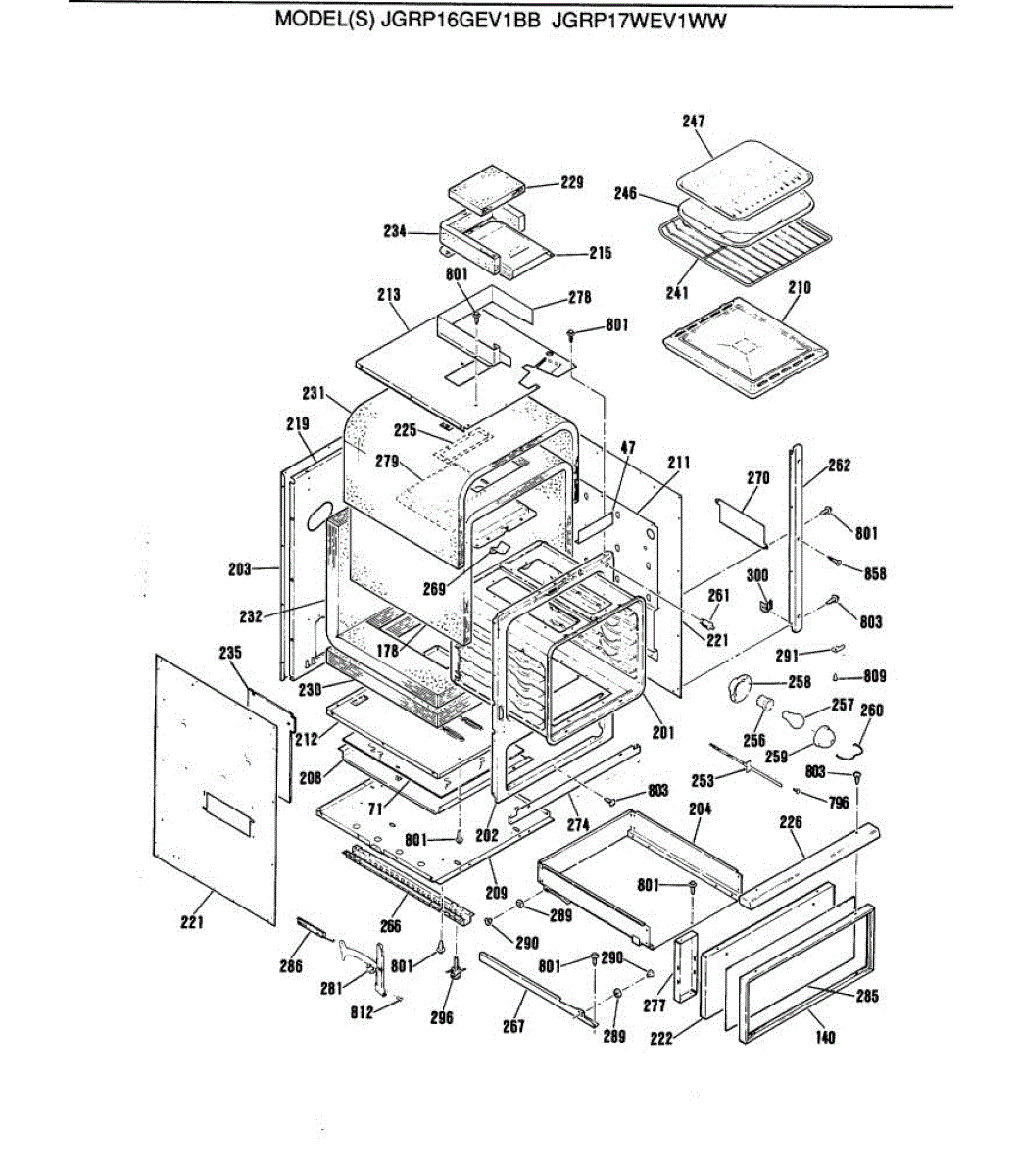

Parts for Ge JGRP17WEV1WW: 03 - Section3 Parts

Insulation panel that fits on top and sides of your oven cavity. Replace if torn, compressed, missing, or damaged to restore heat retention and efficiency.

Replace your range's main bottom panel if the structural base is cracked, damaged, or missing. This panel supports the chassis and cabinet framework.

Lower front panel for ovens and ranges. Replaces cracked, damaged, or missing front panels. Essential trim piece for a complete, finished appearance.

Insulation panel that installs on the top and side of your oven cavity. Replace if cracked, compressed, missing, or damaged to restore heat retention.

Thermal insulation panel for the back and bottom upper cavity of your oven. Replace if cracked, deteriorated, or missing to restore heat retention.

Replacement oven rack for GE electric and gas wall ovens and ranges. Installs inside oven cavity. Order when original rack is missing, warped, or worn.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Replace your oven light bulb socket to restore interior lighting. Fixes flickering or non-working oven lights. Confirm fit with your model number.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Structural support channel for gas range chassis. Secures frame components and maintains cabinet alignment. Replace if bent, cracked, or damaged.

Drawer glide assembly for oven storage or warming drawers. Replaces broken, worn, or damaged slide tracks that cause drawers to stick or fall off rails.

Drawer slide guide assembly for ovens and ranges. Replaces broken or worn drawer glides that cause drawers to stick, sag, or fall off track.

This light cup support secures the interior lighting assembly and helps position the light socket and lens for reliable illumination. It restores proper alignment and contact for the refrigerator or freezer interior light. What it does:

• Holds the light socket and lens in place to prevent shifting or detachment
• Ensures consistent light alignment so the bulb illuminates the interior correctly
• Addresses symptoms like a loose or hanging light, intermittent contact, or misaligned lens
• Compatible with common GE refrigerator interiors where the original cup support is used

• One light cup support

• Disconnect power before accessing the interior light assembly to avoid shock
• Remove the old cup support by unsnapping or unfastening retaining tabs as required
• Press the replacement into position until retaining tabs engage; test light function before reassembling shelves

This cover plate is a replacement console trim piece that restores the appliance's finished appearance and protects control components from dust and spills. It helps keep the control area clean while maintaining proper fit with surrounding panels. What it does:

• Covers and protects the control/module opening to prevent dirt, grease, and moisture intrusion
• Restores the appliance's exterior appearance after damage or wear
• Keeps buttons, switches and electronic components shielded from direct contact
• Provides a stable mounting surface for adjacent trim and hardware

• Disconnect power to the appliance before starting any repair
• Installation typically requires removing a few screws or clips; save fasteners for reassembly
• Handle with care to avoid scratching the finished surface; align tabs/holes before tightening

Right hand side. For left hand use WB14K5007

Replace your oven's broken or worn door hinge with this left-hand side hinge. Fixes a sagging, misaligned, or damaged oven door that won't close properly.

White lower overlay panel for range control area. Covers and protects internal components. Replace if cracked, discolored, worn, or damaged from use.

Control panel overlay for electric and gas ranges. Replaces worn, faded, or damaged overlay labels. Adheres over existing control panel surface.

Adjustable leveling leg that supports and stabilizes your range on uneven floors. Replace if broken, stripped, or missing to restore proper height.

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

Hex head mounting screw for ranges and ovens. Secures elements, panels, and internal components. Replace if stripped, missing, or damaged during repairs.

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Wood screw for securing range components and panels. Replaces lost, stripped, or damaged screws during repairs or reassembly of your oven or range.
