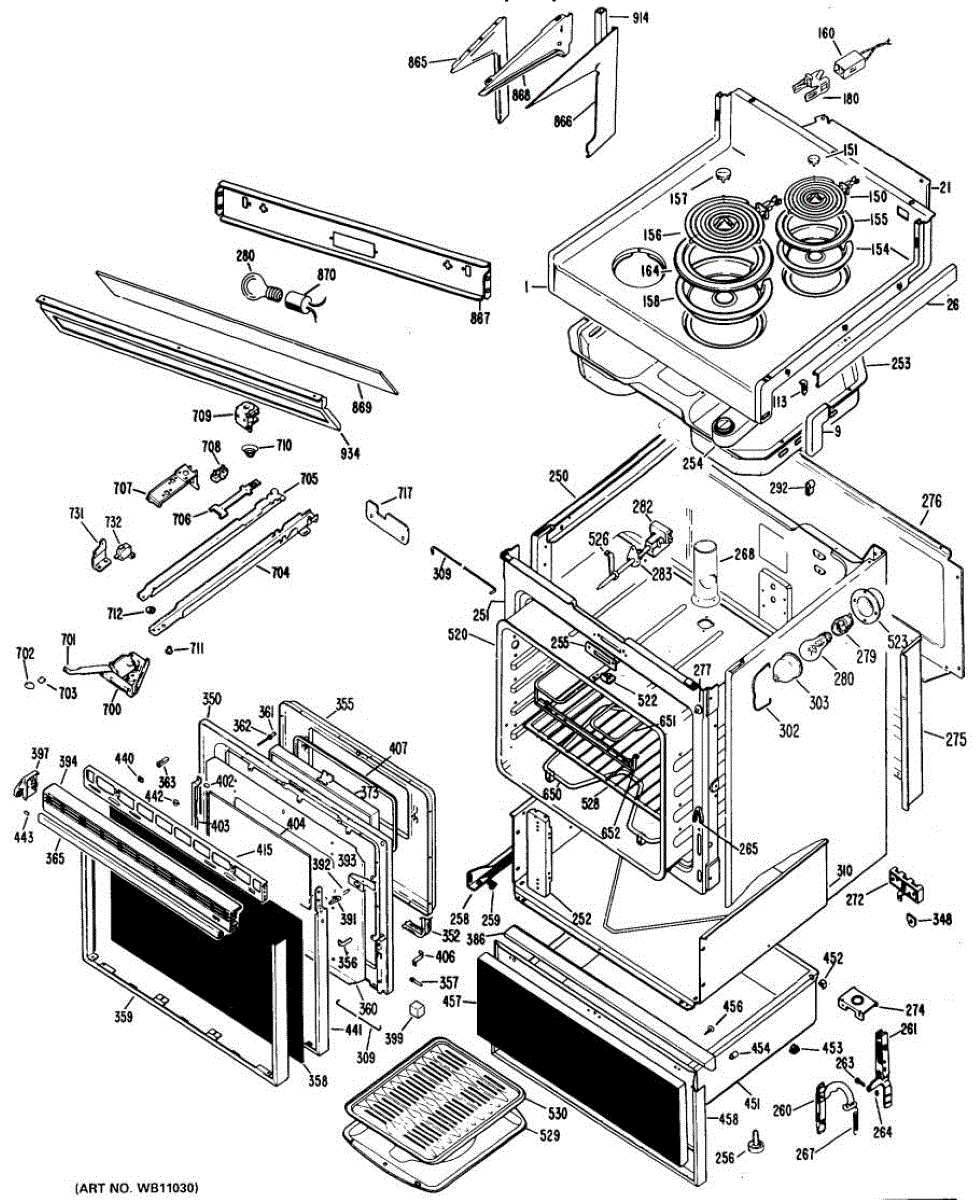

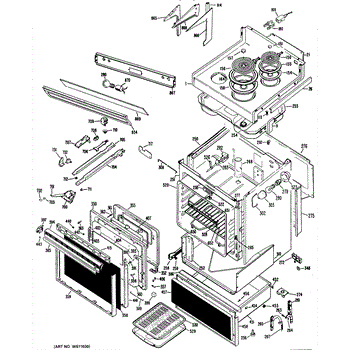

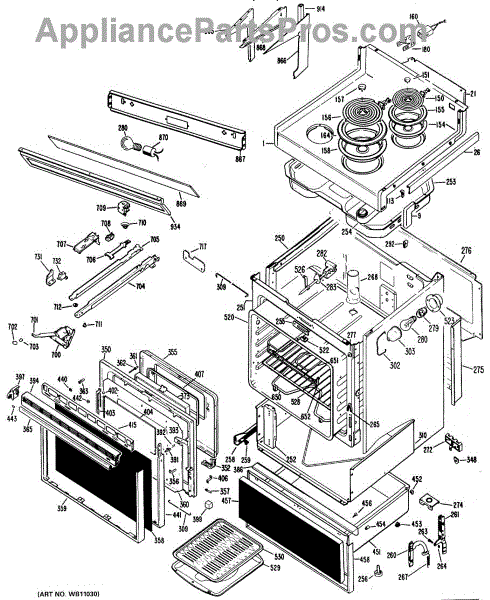

Parts for Ge JHP56VXK2: 03 - Section3 Parts

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

The 6 Inch Trim Ring is an OEM part for GE ranges and cooktops. It fits around the stove's burner, enhancing the appliance's aesthetic while also serving a functional purpose by catching spills and drips. This component helps keep the cooking surface clean and reduces the risk of burns or stains by containing minor spills.

Causes of a bad 6 Inch Trim Ring can include exposure to high temperatures leading to warping or discoloration, accidental damage such as dents or bending from cookware impact, and corrosion from frequent exposure to moisture and cleaning chemicals.

Symptoms of a bad 6 Inch Trim Ring include:

• Loose fit around the burner
• Noticeable rust or corrosion
• Discoloration or uneven surface
• Difficulty cleaning or removing debris from under the ring

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Compatible 6-inch drip pan: WB32X10012. Matching 8-inch drip pan: WB32X10013 and ring: WB31X5014.

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

This 8-inch porcelain drip pan sits beneath the surface coil to catch spills and help reflect heat toward the cookware. Replacing a stained or warped pan refreshes the cooktop's look and ensures the element seats correctly.

• Collects drips and debris under the 8-inch surface coil
• Helps reflect heat back toward the cookware
• Provides proper support so the coil element sits level and stable
• Replace if pan is stained, rusted, warped, or if the element wobbles or there are persistent odors/smoke from burned-on spills

• Disconnect power and allow the burner to cool completely
• Pull the surface coil straight out of the receptacle and set it aside
• Lift out the old pan, clean the recess, and align the notch on the new pan
• Seat the pan flat and fully reinstall the coil into the receptacle

The Surface Unit Receptacle is an OEM part for GE cooktops and ranges. It is designed to hold and connect the surface heating element to the cooktop’s electrical system, providing a secure and reliable connection for the element to receive power.

Causes of a bad surface unit receptacle can include wear and tear from regular use, exposure to high temperatures, or electrical arcing. A malfunctioning receptacle can lead to improper heating element performance or electrical hazards.

Symptoms of a bad surface unit receptacle include:

• The heating element not heating up or only heating intermittently
• Visible damage or burn marks on the receptacle
• Sparks or electrical arcing when the element is in use
• The heating element feeling loose or not fitting securely in the receptacle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

For the large 8-inch surface element order WB30M2. For the small 6-inch surface element order WB30M1.

The 8 Inch Trim Ring is an OEM part for GE ranges and cooktops. It fits around the 8-inch burner elements, providing a clean, finished look while also helping to contain spills and crumbs on the stovetop.

Symptoms of a bad 8 Inch Trim Ring include:

• Misalignment or improper fit around the burner, which can affect cooking performance and cleaning.
• Visible rusting, warping, or deterioration, which can detract from the appearance of the cooktop.
• Loose fitting that may cause the ring to move or rattle during use.

Causes of a bad trim ring can include frequent exposure to high temperatures, spills of acidic or sugary substances that cause corrosion or damage, and general wear and tear from cleaning and use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

If you’re looking to replace all of the trim rings and drip pans:

• 8” Drip Pan - WB32X10013
• 6” Drip Pan - WB32X10012
• 6” Trim Ring - WB31X5013

The Surface Unit Receptacle is an OEM part for GE cooktops and ranges. It is designed to hold and connect the surface heating element to the cooktop’s electrical system, providing a secure and reliable connection for the element to receive power.

Causes of a bad surface unit receptacle can include wear and tear from regular use, exposure to high temperatures, or electrical arcing. A malfunctioning receptacle can lead to improper heating element performance or electrical hazards.

Symptoms of a bad surface unit receptacle include:

• The heating element not heating up or only heating intermittently
• Visible damage or burn marks on the receptacle
• Sparks or electrical arcing when the element is in use
• The heating element feeling loose or not fitting securely in the receptacle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

For the large 8-inch surface element order WB30M2. For the small 6-inch surface element order WB30M1.

Right hand side

Left hand side

Clip for door hinge.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement refrigerator door gasket that restores a tight seal to help maintain proper cooling and reduce frost and moisture buildup. Fits the door channel to stop warm-air leaks and improve overall temperature stability. What it does:

• Seals the refrigerator door perimeter to keep cold air in and warm air out.
• Helps reduce frost and ice buildup inside the compartment.
• Can reduce condensation and uneven cooling caused by a worn or damaged seal.
• Common symptoms of a failing gasket: warm spots, excess frost, visible gaps around the door, or higher-than-normal energy use.

• Unplug the appliance and remove food from the door area before beginning work.
• Clean and dry the gasket channel and door surface; align the gasket and press it fully into the channel for an even seal.
• If the gasket is stiff, gently warming it can make installation easier—avoid excessive heat.
• Confirm this part number matches your appliance model before installing.

Includes 12 screws.

Includes 12 washers.

Part is no longer available

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

Includes 12 screws.

This is a oven rack, and it is made for ranges and ovens. This is a genuine replacement part made by General Electric. There are usually two oven racks in typical ranges or ovens. The oven rack is where dishes or sheet pans are placed so that the food is able to be cooked or baked completely. The oven racks provide a level and sturdy place for dishes.A new oven rack might be needed if the current ones are bend, dented, or broken in any way. Oven racks might become uneven or unlevel overtime and it is common that they might need replacing due to normal wear and tear. Be sure the oven is powered off and cooled down before replacing the oven rack.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with ranges or ovens made by General Electric.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Oven Bake Element is an OEM replacement part for GE ovens. It is a critical component responsible for generating the heat necessary for baking and cooking food in the oven cavity. Measuring 18 ¼ inches wide and 14 ½ inches deep to the mounting flange. It has an element extension of approximately 2 1/4 inches past the bracket to the terminals. This element is rated at 220 volts and 2300 watts.

Causes of needing to replace the bake element can include normal wear over time, electrical malfunctions, or physical damage from impact or excessive temperature fluctuations.

Symptoms of a faulty oven bake element include:

• Uneven baking or hot/cold spots within the oven
• The oven not heating up to the desired temperature
• Visible signs of damage or burnout on the bake element itself
• Unusual smells or burning odors coming from the oven

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models, ensuring a perfect fit and reliable heat generation for your specific appliance.

The Broil Element is an OEM part for GE ovens. It is designed to provide the high heat necessary for broiling food, such as meats and vegetables, allowing for a quick cooking process that seals in flavors and creates a deliciously crispy exterior.

Causes of a bad Broil Element can include failure due to internal coil damage, burnout from excessive use, or electrical issues such as short circuits or loose connections that prevent it from heating.

Symptoms of a bad Broil Element include:

• The oven not heating up to the set broil temperature.
• Uneven cooking or browning of food.
• No visible glow from the element during operation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This retainer is a small mounting clip that secures compatible appliance components in place to prevent movement and wear. It restores proper alignment so related parts stay seated and operate quietly and safely. What it does:

• Holds a specific component or harness firmly to the appliance frame or assembly
• Prevents rubbing, vibration noise, or parts shifting during operation
• Helps maintain correct part alignment for reliable function
• Common symptom: loose, rattling, or misaligned components where the retainer is missing or damaged

• One retainer

• Disconnect power and any fuel sources before starting work
• Inspect surrounding parts for damage before installing the retainer
• Typically installs with basic hand tools; avoid over-tightening nearby fasteners
