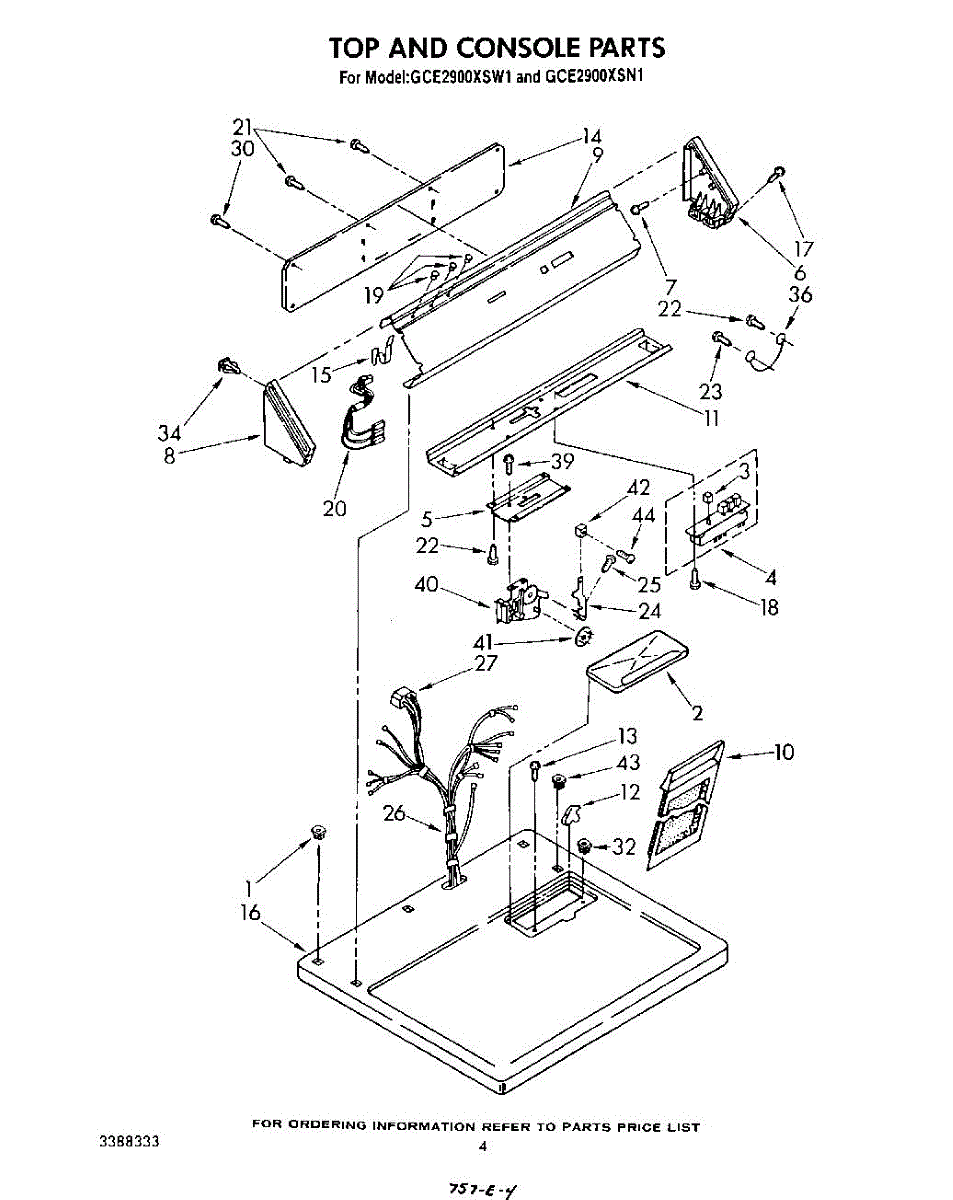

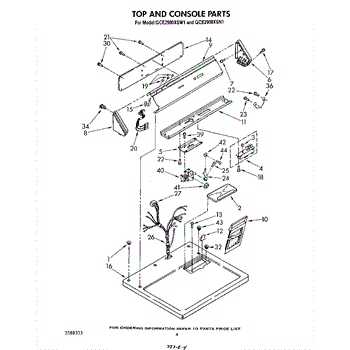

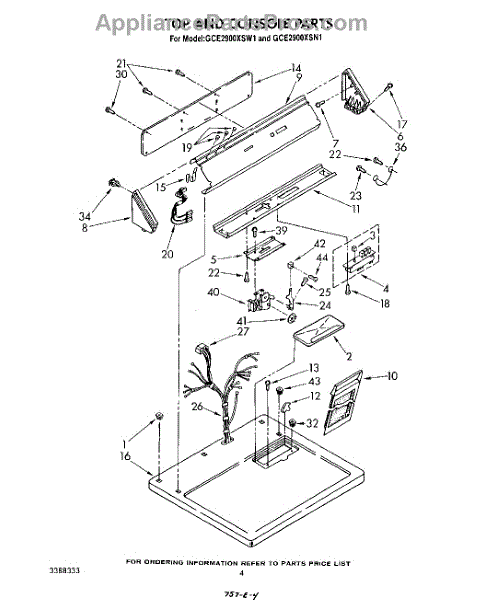

Parts for Whirlpool GCE2900XSN1: 03 - Section Parts

Color: Almond

The Push Button Switch is an OEM part for Whirlpool washing machines. This part activates various functions and cycles on the control panel of the washer. The switch is designed to ensure responsive and reliable operation when selecting wash settings.

Causes of a bad push button switch can include wear and tear from frequent use, exposure to moisture, or physical damage from impacts.

Symptoms of a bad push button switch include:

• Unresponsive buttons on the control panel
• Inability to start or change wash cycles
• Intermittent operation of washer functions
• Error codes related to control panel issues

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Captures lint and debris during drying to maintain airflow and prevent vent clogs. Replace if torn, frayed, or handle is broken. Verify fit by model number.

Connects lint screen lid to dryer, enabling smooth opening and secure closing. Replace when bent, cracked, or broken to restore proper lid operation.

Right handed Hinge

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

This amber light lens covers and diffuses an indicator/pilot light on the appliance's control panel. It restores proper color and visibility while protecting the opening when the original lens is cracked, discolored, or missing.

• Diffuses and colors the indicator light to amber for clear status visibility
• Shields the lamp opening from dust and incidental contact
• Helps maintain the original look of the control panel
• Common signs it's time to replace: cracked or missing lens, faded/discolored lens, glare or hard-to-see indicator

• Disconnect power to the appliance before servicing.
• Access the control panel area to reach the back of the lens.
• Release the old lens from its retainer/tabs and seat the new lens fully in the panel opening.
• Restore power and verify the indicator light is visible through the lens.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Specs: 10-16 x 1/2 inch.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Dryer won't advance through cycles or keeps running after finishing? This timer controls cycle sequencing and shutoff. Typical DIY repair in 15 minutes.

6 Pin 30 minute

Dryer timer stuck or not advancing through cycles? The timing cam controls cycle progression. Worn cams cause timers to stall mid-cycle or fail to move.

3 pin 60 minute
