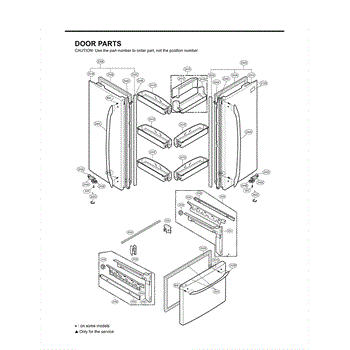

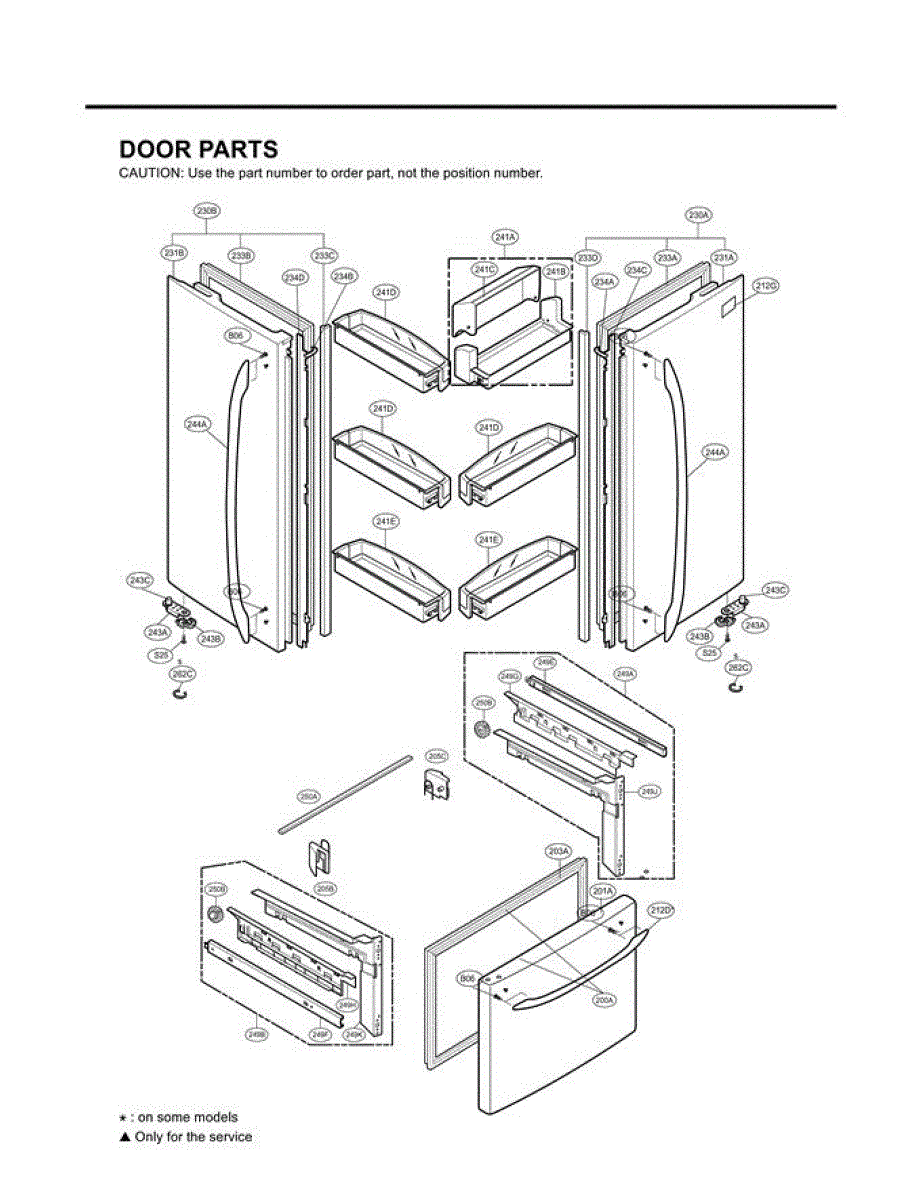

Parts for Lg LFC21770ST / ASTCLGA: Section 4 Parts

This replacement screw secures panels and components on LG appliances to restore proper alignment and prevent rattling or loose parts. It's a direct-fit fastener used where OEM mounting hardware has become stripped, lost, or damaged. What it does:

• Secures panels, brackets, or trim to maintain appliance structure and alignment
• Helps stop vibration noise caused by loose panels or components
• Replaces missing or damaged mounting hardware to prevent parts from shifting
• Restores proper fit where stripped or worn screws no longer hold

• Use the correctly sized screwdriver or bit to avoid stripping the head
• Tighten snugly but do not overtighten; excess torque can strip threads or crack plastic
• If working near electrical components, unplug the appliance first to ensure safety
• Keep removed screws organized during disassembly to match locations on reassembly

The Freezer Door Gasket is an OEM part for LG side-by-side and bottom-freezer refrigerators. This gasket forms an important insulating seal around the freezer door compartment, preventing warm air from entering the sealed interior. Maintaining proper freezing temperatures depends on an intact door gasket.

Causes of a bad freezer door gasket can include cracks, deterioration, or compression from repeated opening and closing of the freezer door over time. Food debris trapped against the gasket rim can also damage sealing integrity.

Symptoms of a bad freezer gasket include:

• Difficulty closing or sealing the freezer door properly
• Warm air leaking into the freezer sections
• Frost and ice buildup occurring faster than usual
• Higher energy bills from the freezer running excessively

This replacement freezer door gasket from LG is also compatible with some Kenmore-brand refrigerators.

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

The Freezer Door Handle is an OEM part for LG refrigerators. It provides a convenient grip for opening and closing the freezer door, ensuring easy and efficient access to the freezer compartment.

Over time, freezer door handles can become loose, damaged, or break due to frequent use, accidental impacts, or general wear and tear. These issues can make it difficult to open or close the freezer door properly.

Symptoms of a bad freezer door handle include:

• Loose or wobbly handle
• Visible cracks or breaks in the handle
• Difficulty in opening or closing the freezer door
• Handle detaching from the door

This OEM LG part is also compatible with Sears/Kenmore models.

This is refrigerators door gasket assembly that is used on the right-side door of a french style refrigerator. The gasket assembly is what seals the door to the appliance so that air does not leak into the unit or out of the unit, which helps the appliance maintain a specific temperature.A new refrigerator door gasket assembly will be needed if the gasket is cracked, broken, or damaged in any way. Some refrigerators may begin the beeping alarm that alerts the user that the door is not closed, when in fact, it's just the gasket that has gone bad. The refrigerator door gasket assembly may need to be replaced after normal use over time.This is a genuine LG part and is an OEM part sourced directly from the manufacturer. It is sold individually. This particular refrigerator door gasket assembly is compatible with refrigerators that are manufactured by LG.

The Door Latch Cam is an OEM part for LG refrigerators. This component is integral to the proper functioning of the refrigerator door latch system, ensuring the door stays securely closed.

Over time, the door latch cam can become worn out or damaged due to frequent use, exposure to moisture, or accidental impact. When the cam is compromised, it can affect the door's ability to seal properly, which can lead to energy inefficiency and potential spoilage of food.

Symptoms of a bad door latch cam include:

• Difficulty in closing or opening the refrigerator door
• The door not sealing tightly, leading to temperature fluctuations
• Increased energy consumption
• Unusual noises when operating the door latch

This OEM LG part is also compatible with Sears/Kenmore.

The Camshaft is an OEM part for LG refrigerators. It plays a crucial role in the proper operation of the refrigerator's door hinge, ensuring smooth and secure opening and closing. The camshaft helps align the door and maintains the seal, preventing warm air from entering the refrigerator.

You should replace the camshaft if it becomes worn out or damaged. Causes of a bad camshaft can include wear and tear from frequent use, physical damage from impact or mishandling, and misalignment issues that stress the camshaft over time.

Symptoms of a bad camshaft include:

• Difficulty in opening or closing the refrigerator door
• The door not staying closed
• Unusual noises when opening or closing the door
• Misalignment of the refrigerator door

This OEM LG part is also compatible with Sears/Kenmore models.

This refrigerator door basket mounts on the inner door and holds bottles, jars, and condiments. Replace a cracked or missing upper bin to restore secure, organized storage and keep frequently used items within easy reach.

• Attaches to the door liner to support and organize condiments and beverages
• Restores lost storage when a bin is cracked, warped, or missing
• Common symptoms: broken tabs, sagging bin, won't stay seated, or items tipping
• Helps keep frequently used items accessible without opening main shelves

What's included: 1 door basket Install notes:

• Remove contents, then lift the old bin straight up to release
• Align the new basket's hooks/tabs with the door slots and lower or snap into place
• Confirm it's fully engaged before loading items
• Handle carefully; avoid flexing or overloading the bin

This refrigerator door basket mounts on the inner door and holds bottles, jars, and condiments. Replace a cracked or missing upper bin to restore secure, organized storage and keep frequently used items within easy reach.

• Attaches to the door liner to support and organize condiments and beverages
• Restores lost storage when a bin is cracked, warped, or missing
• Common symptoms: broken tabs, sagging bin, won't stay seated, or items tipping
• Helps keep frequently used items accessible without opening main shelves

What's included: 1 door basket Install notes:

• Remove contents, then lift the old bin straight up to release
• Align the new basket's hooks/tabs with the door slots and lower or snap into place
• Confirm it's fully engaged before loading items
• Handle carefully; avoid flexing or overloading the bin

The Refrigerator Door Shelf is an OEM part for LG refrigerators. This component is designed to fit snugly into the door of the refrigerator, providing convenient storage space for frequently accessed items such as drinks, condiments, and snacks. The shelf measures about 15 inches wide, 3 inches high, and 8 inches deep, providing plenty of storage space.

Symptoms of a failing Refrigerator Door Shelf include:

• The shelf becoming loose or failing to hold items securely
• Cracks or breaks in the shelf, which compromise its load-bearing capacity
• Sagging or bending of the shelf, particularly when loaded with heavier items
• Difficulty in fitting the shelf into its designated slots on the refrigerator door

Causes of a bad door shelf can include overloading beyond its weight capacity, frequent adjustment or removal of the shelf, or material fatigue from regular use and exposure to temperature variations within the refrigerator.

This OEM LG part is also compatible with Sears/Kenmore models.

This small sleeve fits over the hinge pin to provide a smooth pivot and maintain proper door alignment. Replacing a worn bushing helps eliminate wobble and squeaks so the door opens and closes correctly.

• Supports the hinge pin/shaft to reduce friction and wear
• Helps keep the door aligned and at the correct height at the hinge
• Can resolve door wobble, sagging, squeaking, binding, or rubbing
• Improves smooth opening/closing and reduces play at the hinge

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door before removing hinge fasteners; note the order of spacers/washers
• Replace the bushing on the hinge pin and reassemble in the same stack-up
• Verify door alignment and operation after installation

The Door closer is an OEM part for LG refrigerators, this part prevents the refrigerator door from swinging open too widely. By limiting the door's range of motion, the Door Stop ensures that the door opens smoothly and safely, contributing to the longevity of the appliance and maintaining the aesthetic integrity of your kitchen space.

Causes of a bad Door closer can stem from physical damage, wear and tear over time, or loosening of the component due to repeated use.

Symptoms of a bad Door closer include:

• The refrigerator door swinging open too far
• Damage or marks on adjacent walls or furniture from the door hitting them
• Increased wear on the refrigerator's hinges due to uncontrolled door movement

This OEM LG part is also compatible with some Kenmore models.

This joint assembly is the connector that joins two refrigerator water tubes to form a tight, leak-resistant seal. Replace it to stop leaks at a line coupling and restore reliable dispenser and icemaker water flow.

• Connects two plastic water lines within the refrigerator's water system
• Maintains a watertight seal to prevent drips and air intrusion
• Common fix for leaks at a coupling or tubing that won't stay seated
• Symptoms include slow/sputtering dispenser, small/no ice production, or visible seepage at the connector

• Unplug the refrigerator and shut off the water supply before servicing
• Dispense water to relieve line pressure
• Depress the connector collar to release the tubing; cut damaged tube ends square and fully insert tubing until it bottoms out
• Restore water and power, then check all connections for leaks

This is a ring intended for use in refrigerators. The ring is used to adjust the height of the door. Genuine OEM replacement rings are necessary for the repair to ensure a proper fitting.If the refrigerator door no longer opens or closes easily, or if it is not sealing properly, the rings may need to be replaced. Visual inspection can determine if there are problems with the refrigerator door rings. Make sure to unplug the device before starting any of the disassemblies of the machine. Wear gloves.This ring is an authentic OEM replacement part. It is sold as an individual unit. The ring is made of high-quality, durable materials. The replacement piece is sourced directly from the manufacturer. It can be installed in several models of refrigerators. The genuine OEM replacement ring is compatible with refrigerators produced by both LG and Kenmore.
