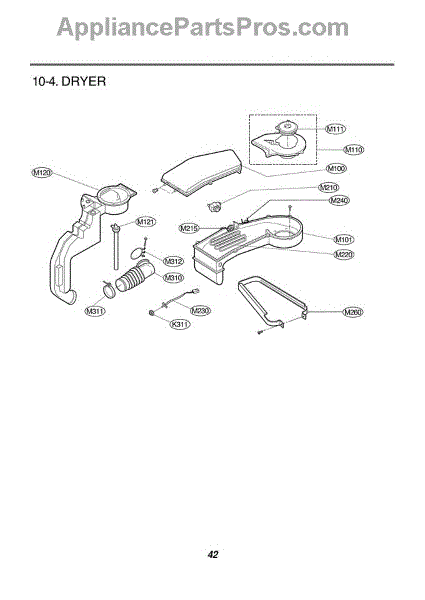

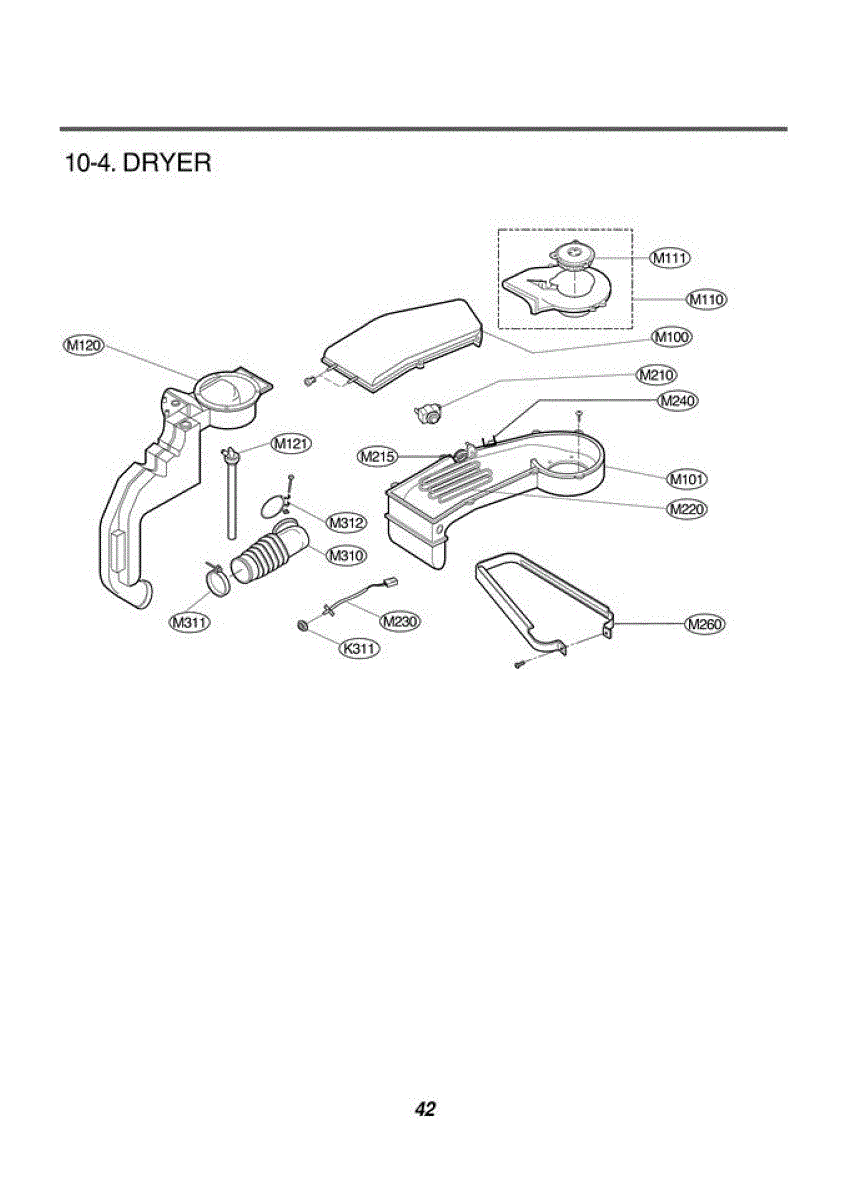

Parts for Lg WM3632HW / ABWEEUS: Section 4 Parts

This duct outlet directs dryer exhaust from the appliance to the home vent, helping maintain proper airflow and a finished connection. It replaces damaged or cracked outlets that can cause leaks, rattles, or restricted airflow. What it does:

• Provides a secure discharge path for exhaust air from the appliance
• Restores a sealed connection to the vent system to reduce leaks and lint escape
• Replaces cracked, warped, or broken outlet pieces that cause rattling or poor airflow
• Helps prevent airflow restriction that can extend drying times or stress the dryer

• Disconnect power and gas before servicing the dryer
• Work in a well-lit area and note existing vent/clamp orientation before removal
• Use gloves to protect hands from sharp sheet-metal edges
• Check and tighten clamps or seals after installation; replace any damaged vent hose or hardware

This Thermostat Assembly monitors and regulates internal temperature within the appliance's heating circuit. Replacing a failed thermostat restores proper heat control, helps prevent overheating, and can resolve common heating performance issues so cycles run correctly. What it does

• Senses internal temperature and opens/closes the heater circuit to maintain proper heat
• Provides over-temperature protection by cutting power at unsafe temperatures
• Helps ensure consistent heating performance throughout the cycle
• Helps with symptoms such as no heat, overheating/shutting off, or unusually long cycle times

• 1 thermostat assembly

• Disconnect power before servicing; allow hot components to cool
• Access the thermostat location (varies by model); note wire positions before removal
• Mount flush to the surface for accurate sensing; transfer original hardware if required
• After installation, test operation; use a multimeter for continuity checks if needed

This heater assembly warms the wash water inside the tub so the control can reach and maintain the selected temperature. Replacing a failed element restores proper heating performance and helps return cycle times to normal. What it does:

• Heats the water in the washer's tub during applicable cycles
• Helps the control reach and hold target temperatures for better cleaning
• Failure symptoms can include cold wash water, extended cycle times, and reduced cleaning performance
• Visual damage or an open circuit on the element indicates replacement is needed

• 1 heater assembly

• Disconnect power and turn off water before servicing
• The heater mounts at the bottom of the outer tub; remove front or rear panels as required by your model to access it
• Note wire locations; loosen the center nut, press the stud to release the old seal, and carefully withdraw the element
• Seat the new gasket evenly, tighten the nut to compress the seal, then run a test cycle to check for leaks and proper heating

The Thermistor Assembly is an OEM component specifically designed for front loading LG washing machines. It plays an important role in monitoring and regulating temperatures during heated wash cycles. The thermistor detects temperature changes within the wash drum and sends this information to the control board to ensure clothes are washed at the optimal temperature.

Causes of a bad thermistor assembly can include general wear and tear over time, exposure to extreme temperatures, or damage due to impact or mishandling during cycles.

Symptoms of a bad thermistor assembly include:

• Inability to reach or maintain set temperatures
• Fluctuating water temperatures
• Error codes related to temperature sensing

This OEM LG part is also compatible with Sears/Kenmore washers.

This wire harness routes power and signals between the washer's control and multiple components. Replace a damaged harness to restore dependable operation when wiring is cut, brittle, or connectors are heat-damaged or corroded.

• Distributes electrical power and communication between the control board and components such as the motor, pump, valves, door lock, and sensors
• Maintains safe, reliable connections when insulation and terminals are intact
• Typical failure signs: intermittent operation, no start, specific loads not working (pump/motor/valves), or error codes traced to wiring faults
• Visible damage like chafed wires, broken connector locks, or burned/corroded terminals indicates replacement

• Disconnect power and turn off water supply before servicing; wear cut-resistant gloves
• Photograph and label connectors; move one plug at a time from old to new to avoid miswiring
• Route along original clips, channels, and grommets; keep wiring clear of sharp edges and moving parts
• Ensure all connectors are fully seated; test operation before final reassembly

This washer door boot gasket (bellows) seals the opening between the outer tub and the front panel on front-load machines, keeping wash water inside the drum. Replace when the seal is torn, cracked, or leaking around the door.

• Forms a flexible, watertight seal between the tub and door opening
• Helps prevent leaks during fill, wash, and spin cycles
• Typical failure signs: water on the floor at the front of the washer
• Visible rips, cracks, or warping of the boot
• Drips or seepage from the door area after a cycle

• Unplug the washer and shut off water supply before servicing
• Remove the outer and inner retaining clamps and front panel as required by your model to access the boot
• Note the boot's orientation and alignment marks; match the same orientation on the new gasket
• Ensure the gasket lip is fully seated in the grooves; reinstall clamps evenly and securely

This clamp secures flexible hoses to fittings to prevent leaks and keep connections tight. It's a simple replacement that restores a secure seal on water and drain lines. What it does:

• Holds a hose firmly to a barb or nipple to prevent slipping and leaks
• Helps stop common symptoms like dripping, visible leaks, or a loose hose connection
• Keeps hoses from shifting or vibrating during operation
• Works wherever a small metal hose clamp is used on plumbing or drainage connections

• One clamp

• Turn off power and shut off water supply before replacing the clamp
• Slide the clamp over the hose, seat the hose on the fitting, then tighten or crimp per the clamp type
• Use pliers or the correct tool for the clamp to avoid damage to the hose or clamp
• Replace with the same clamp style and size for a proper fit; inspect hose and fitting for wear

This thermistor seal is the grommet that seals the temperature sensor where it passes through the washing machine's outer tub. Replacing a worn seal restores a watertight fit and helps prevent leaks that can damage surrounding components. What it does

• Forms a watertight barrier around the tub temperature sensor (thermistor)
• Helps keep the sensor securely positioned in the mounting port
• Common failure symptoms: water leaking during cycles, puddles under the unit, visible cracking/hardening of the grommet, or a loose sensor fit

• 1 thermistor seal

• Disconnect power and water; drain any remaining water from the tub
• Access the thermistor on the outer tub, disconnect its harness, and remove the sensor
• Pull out the old seal, clean the opening, press in the new seal, and reinstall the sensor fully seated
• Run a brief test cycle and check for leaks before final reassembly

This clamp secures flexible hoses to fittings to prevent leaks and keep connections tight. It's a simple replacement that restores a secure seal on water and drain lines. What it does:

• Holds a hose firmly to a barb or nipple to prevent slipping and leaks
• Helps stop common symptoms like dripping, visible leaks, or a loose hose connection
• Keeps hoses from shifting or vibrating during operation
• Works wherever a small metal hose clamp is used on plumbing or drainage connections

• One clamp

• Turn off power and shut off water supply before replacing the clamp
• Slide the clamp over the hose, seat the hose on the fitting, then tighten or crimp per the clamp type
• Use pliers or the correct tool for the clamp to avoid damage to the hose or clamp
• Replace with the same clamp style and size for a proper fit; inspect hose and fitting for wear
