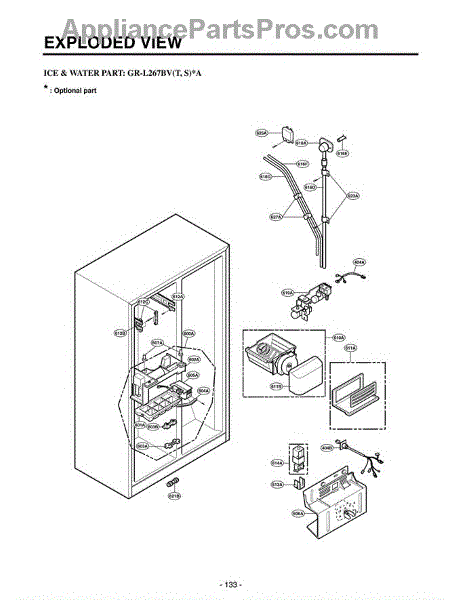

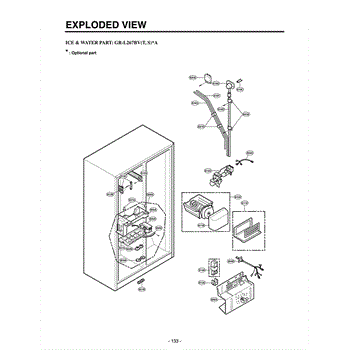

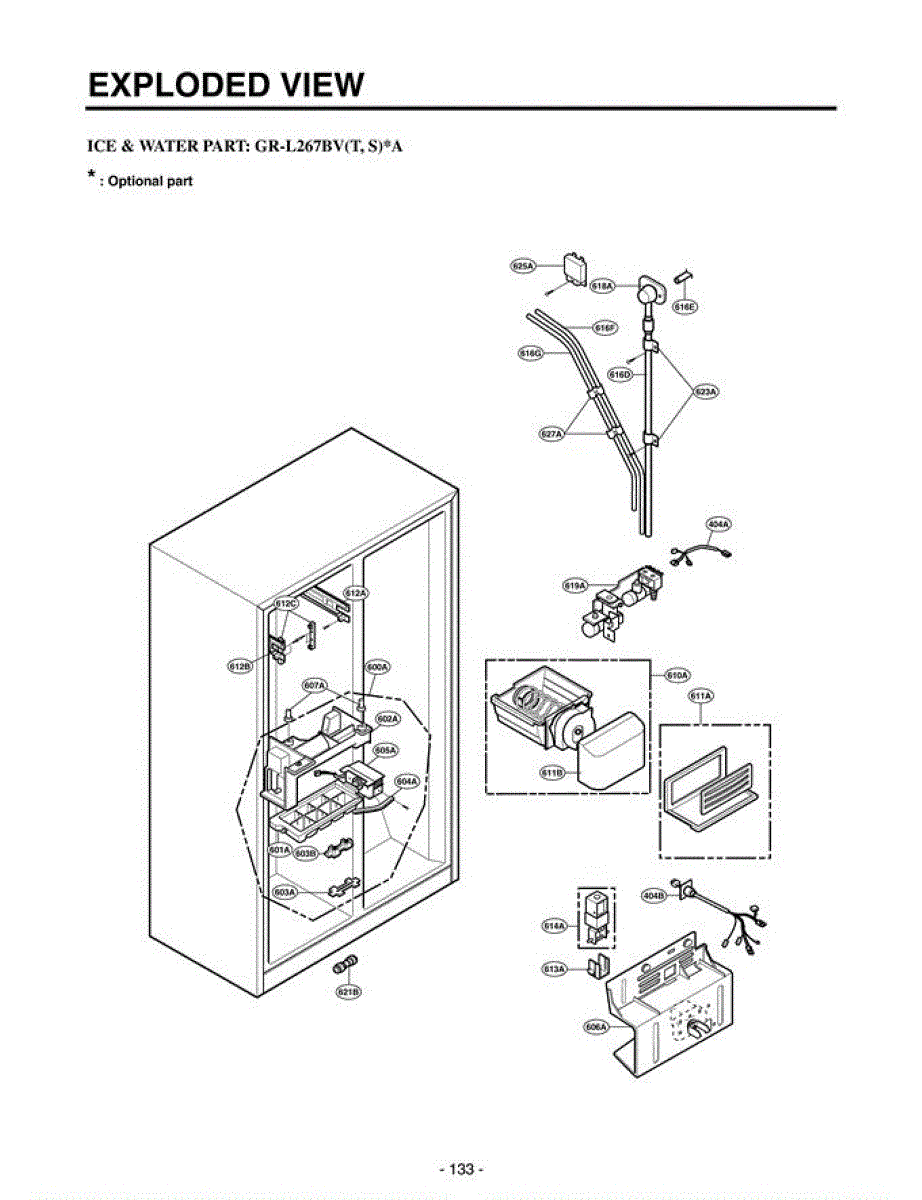

Parts for Lg LRSC26941ST / ASTCLGB: Section 5 Parts

Reduces contaminants and odors from your refrigerator's water and ice supply. Replace every 6 months for optimal performance. Verify fit by model number.

Wire harness connector that joins two wiring sections in your refrigerator. Replace this joint if the original is damaged, corroded, or causing loose connections.

The Ice Cube Tray is an OEM part for LG refrigerators. It is located in the freezer section of the refrigerator and provides a designated space for freezing water into ice cubes. It is designed with individual compartments to form ice cubes in a specific shape and size.

Causes of a faulty ice cube tray can include regular wear and tear, physical damage, or improper handling. These factors can result in issues such as the tray cracking or breaking, difficulty in removing ice cubes, or improper freezing of the cubes.

Symptoms of a bad ice cube tray may include:

• Cracked or broken tray
• Difficulty in removing ice cubes from the tray
• Irregularly shaped or improperly frozen ice cubes

This OEM LG part can also be used on Kenmore/Sears appliances.

This is a complete refrigerator ice maker assembly that automatically forms, freezes, and ejects ice cubes into the bin. It restores consistent ice production when the original ice maker stops cycling or no longer makes ice. What it does

• Freezes water in its mold, then harvests and ejects cubes into the ice bucket each cycle
• Controls fill and harvest timing and signals the water inlet valve during the fill portion of the cycle
• Stops ice production when the bin is full via its shutoff mechanism
• Typical failure symptoms: no ice, intermittent/low ice output, or cubes not ejecting

• 1 ice maker assembly

• Disconnect power and turn off the household water supply before servicing
• Remove the ice bin; loosen mounting screws, disconnect the wire harness, and swap in the new assembly in the same position
• Inspect and clear the fill tube of any ice blockage before reconnecting
• Restore power and water; allow the unit to reach operating temperature and begin cycling

GUIDE, RAIL (RIGHT)

The Left Hand Guide Rail is an OEM part for LG refrigerators. This part supports and guides the ice bucket, ensuring smooth and stable movement when inserting or removing the bucket from the freezer compartment.

Causes of a bad guide rail can include regular wear and tear, damage from overloading the ice bucket, or accidental impacts that cause the rail to bend or break.

Symptoms of a bad Left Hand Guide Rail for the ice bucket include:

• Difficulty sliding the ice bucket in and out
• The ice bucket not aligning properly or sagging
• Unusual noises when operating the ice bucket
• The ice bucket getting stuck or not moving smoothly

This OEM LG part is also compatible with some Kenmore models.

This is a guide bracket that directs ice from the ice maker into the storage bin inside the freezer compartment. It ensures ice cubes are properly channeled and don't scatter or jam during the harvest cycle. Replace this bracket if ice is falling outside the bin, getting stuck, or if the bracket is cracked or broken.

Changes between cubed or crushed ice.

This is the water injector tube for select refrigerators. It routes water from the supply system into the appropriate internal channel, helping ensure proper flow to the ice maker or dispenser and preventing leaks at the connection point.

• Directs water from the valve/supply line into the refrigerator's internal water path
• Helps restore proper ice maker/dispenser filling
• Common symptoms: leaking at the rear/under the unit, poor or no ice production, slow or no dispenser flow

• Unplug the refrigerator and shut off the water supply before service
• Have a towel ready to catch residual water from the line
• Note tube routing and connection points before removal; push-to-connect fittings may be present
• After installation, turn water on and check all joints for leaks

This is a polyethylene (PE) plastic tube with a 1/4" outer diameter used to carry water within the refrigerator, typically connecting the water inlet valve to the ice maker or water dispenser. It provides a flexible, food-safe pathway for water flow. Replace this tubing if you notice leaks, cracks, kinks, or reduced water flow to the ice maker or dispenser.

The Water Line is an OEM part for LG refrigerators. It is designed to transport water from the home’s supply to the refrigerator, enabling the production of ice and the dispensing of fresh water. This tubing is essential for the refrigerator's water and ice features to function correctly, ensuring clean, clear water is available at all times.

Symptoms of a bad Water Line include:

• Noticeable leaks or dampness along the line's path.
• Decreased water flow to the dispenser or ice maker.
• Unusual noises like buzzing or humming from the line when the dispenser is used.

Causes of a bad water line can include physical damage such as cracks or punctures, blockages from mineral buildup inside the line, or deterioration due to aging or environmental factors such as heat or pressure.

This OEM LG part is also compatible with Sears/Kenmore, ensuring broad compatibility across multiple refrigerator models.

The Water Supply Line is an OEM part for LG refrigerators. It is responsible for delivering water from the household supply to the refrigerator's water dispenser and ice maker. This line ensures a consistent flow of water, crucial for producing ice and dispensing chilled water.

Over time, water supply lines can wear out or become damaged due to factors such as mineral buildup, kinks, or punctures. These issues can lead to leaks or reduced water flow, affecting the refrigerator's functionality.

Symptoms of a bad Water Supply Line include:

• Leaks or puddles around the refrigerator
• Reduced or no water flow to the dispenser
• Ice maker not producing ice
• Unusual noises when the dispenser is used

This OEM LG part is also compatible with Sears/Kenmore.

This connector joins water tubing sections in the refrigerator's water system, located at various connection points throughout the water line. Replace when you notice leaks at connection points or when water flow becomes restricted.

No water from dispenser or ice maker? This water inlet valve controls flow to both. DIY-friendly repair—takes about 15 minutes with basic tools.

The Water Tube Connector is an OEM part for LG refrigerators. It is specifically designed to securely connect the water supply tubes in the refrigerator. The connector ensures a proper seal, preventing leaks and ensuring a consistent water supply to your refrigerator.

Causes of a bad water tube connector can include wear and tear over time, exposure to water pressure, or damage due to accidental impact or mishandling. These factors can result in leaks, water flow disruptions, or a loose connection, leading to issues with water dispensing or ice making.

Symptoms of a bad water tube connector may include:

• Water leaks at the connection point
• Reduced or intermittent water flow
• Complete water flow blockage

This OEM LG part can also be used on Kenmore/Sears appliances.

The Water Tube Connector is an OEM part for LG refrigerators. It is specifically designed to securely connect the water supply tubes in the refrigerator. The connector ensures a proper seal, preventing leaks and ensuring a consistent water supply to your refrigerator.

Causes of a bad water tube connector can include wear and tear over time, exposure to water pressure, or damage due to accidental impact or mishandling. These factors can result in leaks, water flow disruptions, or a loose connection, leading to issues with water dispensing or ice making.

Symptoms of a bad water tube connector may include:

• Water leaks at the connection point
• Reduced or intermittent water flow
• Complete water flow blockage

This OEM LG part can also be used on Kenmore/Sears appliances.

Secures bracket assemblies inside your refrigerator to keep components aligned and reduce vibration. Replace if cracked, bent, or missing.

Secures internal components in place to prevent rattling and misalignment. Replace if cracked, broken, or missing. Confirm fit with your model number.
