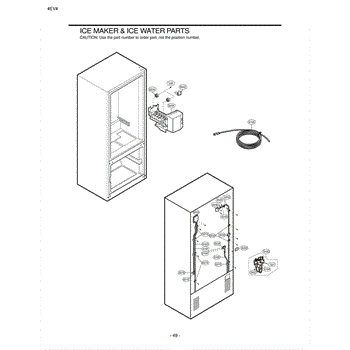

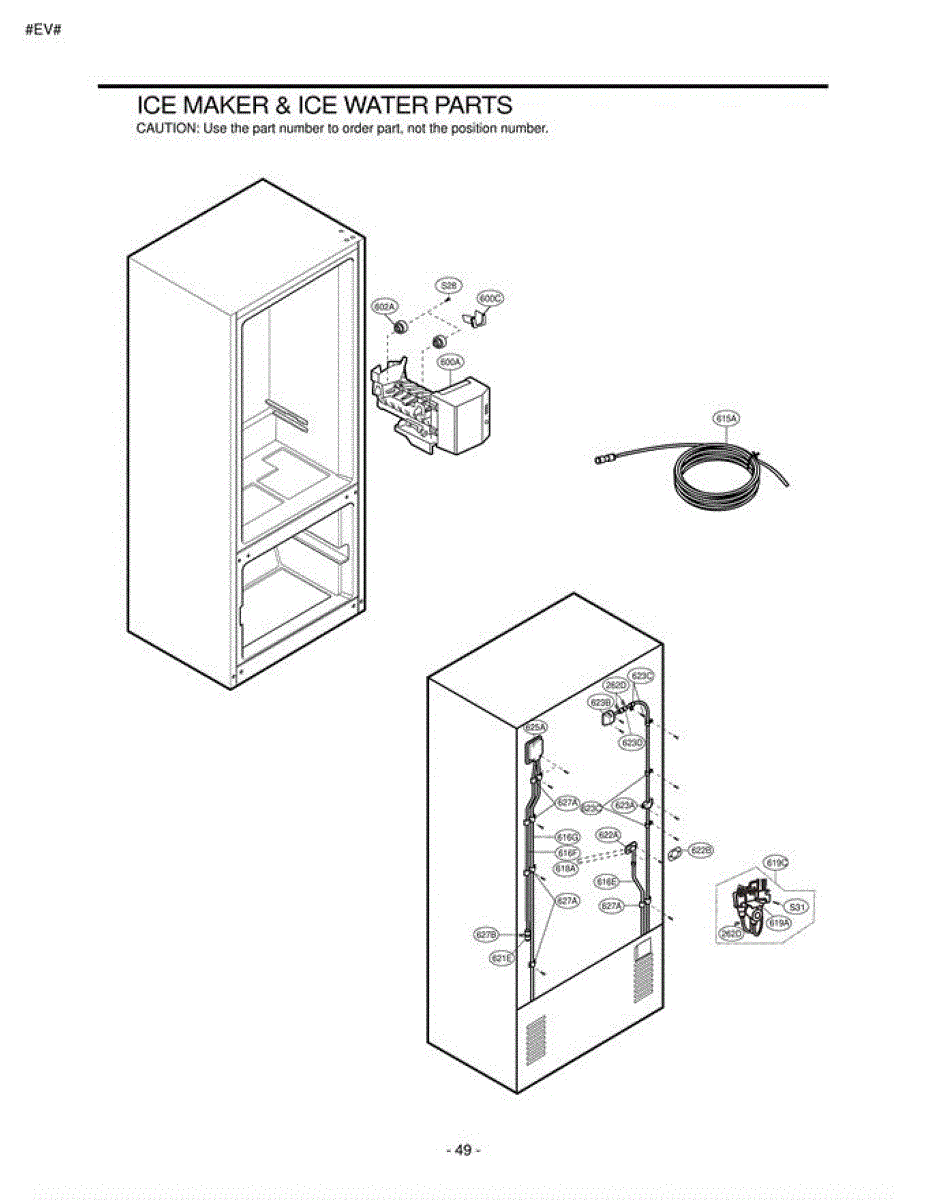

Parts for Lg LRBC22544WW / ASWCLGR: Section 6 Parts

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

The Clip is an OEM part for LG refrigerators. This clip secures the water tube in place, preventing it from moving or becoming disconnected. It plays a crucial role in maintaining the proper flow of water to the ice maker and water dispenser.

Causes of a bad water tube clip can include physical damage, wear and tear from regular use, or brittleness due to temperature fluctuations. If the clip fails, it can result in leaks or disconnections, disrupting the water supply.

Symptoms of a bad water tube clip include:

• Water leaks inside or outside the refrigerator
• The water tube becoming loose or disconnected
• Reduced or no water flow to the ice maker or water dispenser

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

This guide tube is a small routing sleeve that supports and protects a rod, shaft, cable, or line inside your appliance. It keeps the path straight to reduce friction, noise, and premature wear.

• Guides and supports a rod/shaft/cable/tube through the chassis
• Maintains alignment for smooth movement or flow
• Helps prevent chafing, kinks, and vibration-related damage
• Typical failure signs: scraping or rattling noises, binding/misalignment, or visible cracks/deformation

• Disconnect power; turn off water or gas before servicing
• Refer to your model's parts diagram for routing and mounting points
• Reuse original screws/clips unless damaged
• Route exactly like the original; avoid pinches/kinks and verify clearances before restoring power

The Water Tank is an OEM part for LG refrigerators. This tank stores and supplies water to the refrigerator's ice maker and water dispenser, ensuring a consistent supply of fresh, filtered water. It is designed to fit securely within the refrigerator, maintaining hygiene and preventing leaks.

Over time, the water tank can become worn out, cracked, or contaminated. Common causes of a bad water tank include regular wear and tear, exposure to extreme temperatures, or damage from mishandling or improper installation.

Symptoms of a bad water tank include:

• Leaking water inside the refrigerator
• Low water flow to the dispenser or ice maker
• Unusual tastes or odors in the water
• Visible cracks or damage to the tank

This OEM LG part is also compatible with Sears/Kenmore.

Note: tube is 1/4" in outside diameter.

The Water Supply Tube (1/4" O.D.) is an OEM part for LG refrigerators. It transports water from the household water line to the refrigerator’s water dispenser and ice maker, ensuring a steady and reliable supply of water for these functions.

Causes of a bad water supply tube can include wear and tear over time, kinks or bends restricting water flow, or leaks due to cracks or punctures.

Symptoms of a bad Water Supply Tube include:

• Leaks or water pooling behind or under the refrigerator
• Reduced or no water flow to the dispenser or ice maker
• Visible cracks or kinks in the tube
• Ice maker not producing ice or dispensing water intermittently

This OEM LG part is also compatible with some Kenmore models.

The Water Line is an OEM part for LG refrigerators, designed to supply water to the ice maker and water dispenser. Made from durable materials to withstand water pressure and prevent leaks, this water line is essential for access to clean, filtered water at all times. Note: color of the water tube may be different from original. Tube is 5/16" diameter

Symptoms of a bad Water Line include:

• Leaking of water at the connection points or along the tubing.
• A noticeable decrease in water flow to the dispenser or ice maker.
• A bad taste or odor of the water and ice

Causes of failure can range from physical damage, such as kinks or punctures, to wear and tear over time leading to brittleness or weakening of the material. These issues can compromise the integrity of the water supply, affecting both the quality and safety of the water and ice provided by your refrigerator.

This OEM LG part can also be used on Kenmore/Sears appliances.

This injection tube directs water to the refrigerator ice maker so the mold fills correctly and produces ice. It replaces a cracked or blocked tube to restore reliable water flow to the ice-making assembly. What it does:

• Channels water from the valve to the ice maker fill cup for proper ice production
• Helps prevent leaks caused by cracked or brittle tubing
• Commonly replaced when the ice maker won't fill, fills slowly, or leaks near the ice mold
• Works with the ice maker fill system; not a water valve or pump

• Disconnect power and shut off the water supply before starting work
• Inspect adjoining fittings and seals; replace worn grommets or clips as needed
• Handle carefully to avoid kinks or damage to the tube during installation

This mechanical tube connector joins sections of your refrigerator's water tubing. Use it to restore a secure, leak-resistant connection when repairing or replacing lines that feed the dispenser, ice maker, or filter. What it does:

• Connects two sections of the refrigerator's water tubing
• Helps stop leaks caused by a cracked, loose, or damaged connector
• Can restore water flow when a line has separated at a coupling
• Provides a serviceable coupling point after replacing a tubing section

• 1 mechanical tube connector

• Unplug the refrigerator and shut off the water supply before servicing.
• Cut tubing ends square; remove any damaged section and ensure clean, burr-free ends.
• Fully insert tubing into the connector and perform a gentle pull test to verify engagement.
• Turn water back on and inspect all connections for leaks before restoring power.

The Water Nozzle is an OEM replacement part for LG refrigerators. It is a component within the refrigerator's ice maker and water dispenser system. The water nozzle controls the flow of water into the ice making mold or water dispenser functions.

Symptoms of a bad water nozzle include:

• Slow filling or inability to fill the ice-making mold
• Inconsistent or weak water dispensing from the refrigerator's door
• Leaks or water drips around the ice maker or water dispenser area

Causes of a faulty water nozzle can be mineral deposits accumulating over time, wear and tear from heavy use, or damage due to impact or freezes.

This part is also compatible with many Kenmore side-by-side refrigerator models.

This mechanical mounting band secures a bracket assembly inside the appliance to keep components aligned and reduce vibration. It restores proper bracket positioning so moving parts run quietly and reliably. What it does:

• Holds a bracket or component assembly in place to maintain proper alignment
• Dampens movement and reduces vibration-related noise or rattling
• Prevents excess wear by keeping parts from shifting during operation
• Helps maintain correct clearances to avoid interference or rubbing

• Disconnect power before inspecting or replacing internal parts
• Remove only the fasteners necessary to access the bracket; keep track of hardware
• Secure all fasteners to the manufacturer's torque or snug specification
• Replace the band if bent, cracked, or missing to restore proper fit and function

This holder is a small mounting bracket that secures a mating component in place inside the appliance. Replacing a cracked or missing holder restores a firm, rattle-free fit and proper alignment.

• Provides a stable mount for the designated part
• Prevents shifting and vibration that can cause noise or premature wear
• Common signs of failure: broken tabs, stress cracks, or the attached part sagging or falling out
• When damaged, the connected component may be loose, noisy, or misaligned

• Disconnect power; if working near water tubing, also shut off the water supply
• Note the original orientation and mounting points; take a photo before removal
• Reuse existing fasteners and avoid overtightening to prevent cracking the plastic
• Ensure the attached component is secure and clears any moving parts before restoring power

The Water Line Connector is an OEM replacement part for LG refrigerators. It is responsible for connecting the water supply line from the home plumbing to the refrigerator's internal water distribution system, allowing for ice and water dispenser functionality.

Causes of a bad water line connector can include cracking, leaks, or deterioration of the connector material over time due to regular water pressure and temperature fluctuations. Connectors may also become damaged if exposed to impact.

Symptoms of a bad water line connector include:

• Leaks at the connection point between the line and refrigerator
• Loose, slipping, or disconnected water line fitting
• Reduced water pressure or no water flow to the dispenser
• Error codes related to water flow from the refrigerator diagnostics

 This OEM LG part is also compatible with Sears/Kenmore refrigerators.
