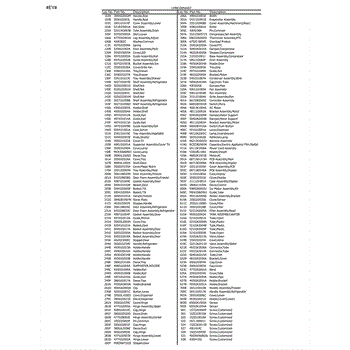

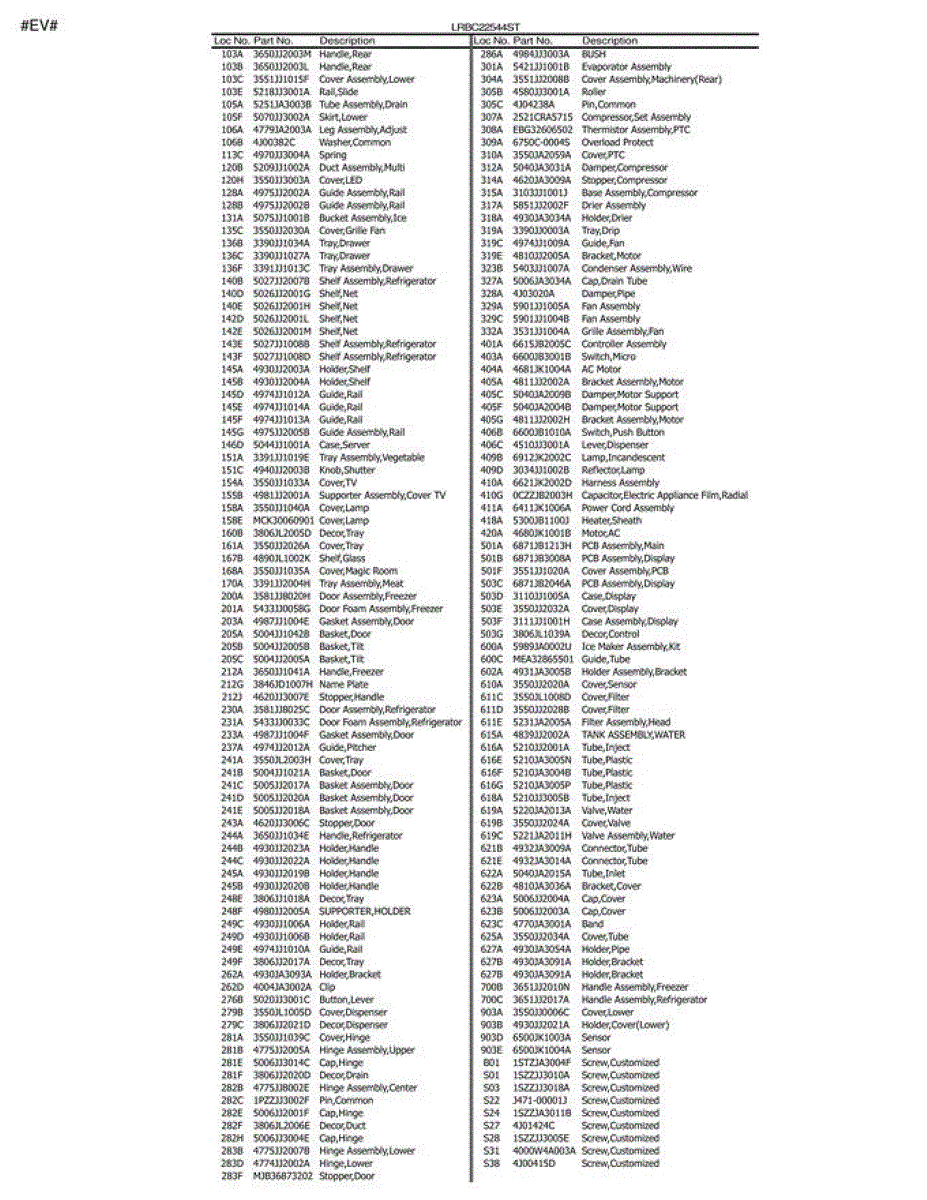

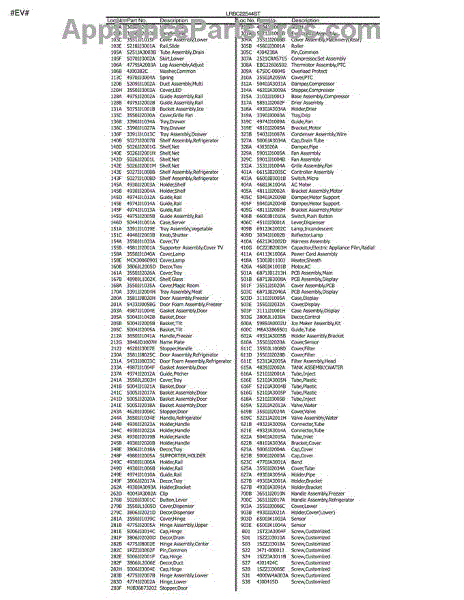

Parts for Lg LRBC22544WW / ASWCLGR: Section 8 Parts

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

The Screw is an OEM part for LG refrigerators. This part secures the shelf brackets within the refrigerator compartment.

Causes of a bad Screw can range from physical damage or impact to general wear and tear over time.

Symptoms of a faulty Screw  include:

• Shelves feeling loose or unstable
• Shelves sagging or not sitting level
• Shelves falling out or collapsing when loaded with items

This OEM LG part is also compatible with some Kenmore models.

This replacement screw secures appliance components in their proper position. Replacing a missing or damaged fastener restores a snug fit, reduces rattling or vibration, and helps keep assemblies aligned for reliable operation.

• Secures panels, brackets, and internal components as specified by your model's parts diagram
• Replaces stripped, rusted, or missing hardware
• Helps address symptoms like rattling/vibration noise, loose panels/trim, or minor misalignment
• Maintains a stable, safe assembly during normal use

• Disconnect power; turn off water and gas supplies if applicable
• Match screw to its original location; do not mix different lengths or types
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Follow your model's service/parts diagram for correct placement

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This slide rail mounts inside the refrigerator and guides a storage drawer so it opens and closes smoothly. Replacing a worn or broken rail restores proper drawer alignment and easy access to stored items. What it does:

• Supports the drawer and provides a smooth glide path along the cabinet wall
• Maintains alignment to keep the drawer level and on track
• Replaces cracked, warped, or worn rails that cause rough, uneven movement
• Common symptoms: drawer binds or sticks, tilts or sags, falls off track, or shows visible rail damage

• 1 slide rail

• Disconnect power to the refrigerator before servicing interior components
• Remove the drawer and any shelf/glass cover to access the rail
• Save and reuse existing mounting screws and any end caps/brackets; match the rail's orientation to the original if your model uses left/right rails
• Align the new rail with factory mounting points, tighten screws, and test for smooth operation

This small fastener washer restores proper spacing and support under a screw or nut in your appliance. It helps distribute clamping force, protect mounting surfaces, and keep brackets and panels secure during normal operation and vibration. What it does:

• Distributes load under a screw or nut to prevent damage to the mounting surface
• Helps maintain correct spacing and alignment of the attached components
• Aids in keeping fasteners secure under vibration when assembled correctly
• Common symptoms: missing or damaged washer, loose/rattling parts, fastener won't tighten flush

• One washer

• Disconnect power and shut off water supply before servicing
• Note the original hardware order and orientation; replace any deformed or corroded pieces
• Install the washer flat against the mating surface under the fastener head or nut
• Tighten fasteners securely; do not overtighten to avoid stripping threads or deforming parts

This duct assembly routes dryer airflow through the appliance's venting system to help remove hot, moist air during cycles. It restores proper airflow routing so the dryer can vent efficiently and dry loads more reliably. What it does:

• Channels exhaust air from the blower to the external vent or internal ductwork
• Helps prevent moisture buildup and reduces drying times when functioning correctly
• Can reduce hot spots and minimize lint accumulation in the cabinet area
• May eliminate abnormal airflow noises caused by damaged or disconnected ducting

• One duct assembly

• Disconnect power (and gas if applicable) before servicing to avoid shock or fire hazard
• Inspect surrounding seals, clamps and mounting points; replace any damaged hardware for a secure fit
• Use basic hand tools; avoid sharp bends or kinks in the duct to maintain airflow

This rail guide assembly supports and steers a refrigerator drawer along its track. Replacing a worn or broken guide restores smooth sliding and proper alignment, helping prevent binding and damage to bins and rails.

• Guides the drawer as it opens and closes for smooth movement
• Helps keep the drawer level and properly aligned on the track
• Restores easy operation when the rail is cracked, worn, or deformed
• Typical symptoms: drawer hard to slide, tilts or drops, scraping/grinding noises, visible damage to the rail

• Disconnect power and empty the affected drawer before servicing
• Remove the drawer/bin and any screws or locking tabs securing the old guide
• Transfer any reusable clips or end caps from the old guide to the new assembly if present
• Reinstall, ensure proper engagement on the track, and test for smooth operation

This rail guide assembly supports and guides a refrigerator drawer so it slides smoothly and stays aligned. Replace a cracked or worn rail to restore easy opening/closing and keep the drawer from jumping off its track.

• Provides the sliding track and side support for one refrigerator drawer/pan
• Restores smooth movement and proper alignment of the drawer
• Can help resolve sticking, binding, tilting, or the drawer popping off the track
• Often needed when the rail is cracked, stop tab breaks, or wear causes rough travel

• Disconnect power and empty the affected drawer before service
• Remove the drawer (and any shelf above) for clear access; note the original side/orientation
• Release locking tabs or remove mounting screws to swap the rail; secure the new assembly in the same positions
• Reinstall the drawer and test for smooth travel before reloading

This grille cover protects the appliance's cooling/ventilation fan and helps direct airflow where it's needed. It restores the cabinet finish and keeps debris away from the fan housing for more reliable operation. What it does:

• Shields the fan from loose debris and small objects that can cause damage
• Helps channel airflow for proper cooling/ventilation
• Prevents direct contact with fan blades for improved safety
• Reduces rattling or vibration caused by damaged or missing grille

• Disconnect power to the appliance before beginning any work
• Remove any trim or access panels as required to reach the fan area
• Secure with the factory fasteners; do not overtighten to avoid cracking
• Handle edges carefully; wear gloves if needed and test operation after reassembly

A replacement glass refrigerator shelf that provides a sturdy, easy-to-clean surface for storing food and containers. Restores lost storage space and helps keep items organized and visible. What it does:

• Supports food, containers and small appliances inside the refrigerator
• Creates a flat, stable storage surface for better organization
• Helps contain spills on a single surface for easier cleanup
• Restores damaged, cracked or missing shelving to regain full shelving capacity

• One glass shelf

• Handle glass carefully and wear cut-resistant gloves to prevent injury
• Remove food and other items from adjacent shelves before installing
• Slide into existing shelf tracks or clips until fully seated; do not force
• If shelf hardware is damaged or missing, replace mounting clips or supports before use

The Shelf Assembly is an OEM part for LG refrigerators. This assembly provides a sturdy and stable surface for storing food items within the refrigerator. It is designed to fit securely into the designated slots, ensuring efficient use of space and easy access to stored goods.

Over time, shelf assemblies can become worn out or damaged due to regular use, overloading, or accidental impact. Common causes of a bad shelf assembly include cracking or breaking from heavy items, warping from temperature changes, or detachment from the support brackets.

Symptoms of a bad shelf assembly include:

• Cracks or breaks in the shelf
• The shelf not fitting securely or falling out of place
• Difficulty in sliding or adjusting the shelf
• Reduced storage efficiency due to instability

This OEM LG part is also compatible with Sears/Kenmore.

A replacement glass refrigerator shelf that provides a sturdy, easy-to-clean surface for storing food and containers. Restores lost storage space and helps keep items organized and visible. What it does:

• Supports food, containers and small appliances inside the refrigerator
• Creates a flat, stable storage surface for better organization
• Helps contain spills on a single surface for easier cleanup
• Restores damaged, cracked or missing shelving to regain full shelving capacity

• One glass shelf

• Handle glass carefully and wear cut-resistant gloves to prevent injury
• Remove food and other items from adjacent shelves before installing
• Slide into existing shelf tracks or clips until fully seated; do not force
• If shelf hardware is damaged or missing, replace mounting clips or supports before use

This shelf net is a mesh-style refrigerator shelf designed to support and contain food items while allowing airflow. It replaces torn, stretched, or missing nets to restore storage organization and help prevent items from shifting. What it does:

• Provides a flexible, ventilated surface for storing packaged foods, produce, or deli items
• Helps keep small or irregularly shaped items from falling through larger shelves
• Restores proper storage function when original netting is damaged, loose, or missing
• Compatible with designated shelf frames and snaps into place where equipped

• Unplug the appliance or turn off power to the unit before servicing for safety.
• Empty and remove food items from the affected shelf area before installation.
• Install by aligning the net with the shelf frame and securing per the owner's manual; do not force or modify parts.
• If installation requires removal of shelves or trim, keep fasteners and small parts organized and follow manufacturer instructions.

This shelf assembly is a tempered glass storage shelf that provides a flat, stable surface for arranging food and containers in the refrigerator. It restores usable storage space and helps keep items organized and contained. What it does:

• Replaces a cracked, chipped or missing refrigerator shelf to prevent items from falling or spilling.
• Provides a level surface for storing food, pitchers and containers.
• Fits into existing shelf tracks or support clips to lock into position.
• Helps maintain airflow and visibility inside the fresh-food compartment.

• Unplug the refrigerator or switch off power at the breaker before servicing.
• Remove food and supports, then lift the broken shelf straight out, supporting glass to avoid dropping.
• Slide the new shelf into the existing tracks or align with support clips until it seats securely.
• Handle tempered glass carefully and dispose of broken glass per local regulations; wear gloves and eye protection.

The Shelf Assembly is an OEM part for LG refrigerators. This assembly provides a sturdy and stable surface for storing food items within the refrigerator. It is designed to fit securely into the designated slots, ensuring efficient use of space and easy access to stored goods.

Over time, shelf assemblies can become worn out or damaged due to regular use, overloading, or accidental impact. Common causes of a bad shelf assembly include cracking or breaking from heavy items, warping from temperature changes, or detachment from the support brackets.

Symptoms of a bad shelf assembly include:

• Cracks or breaks in the shelf
• The shelf not fitting securely or falling out of place
• Difficulty in sliding or adjusting the shelf
• Reduced storage efficiency due to instability

This OEM LG part is also compatible with Sears/Kenmore.

This T/V cover fits over the refrigerator's interior air vent/duct to shield components and guide airflow. Replacing a cracked or missing cover helps maintain proper air circulation and a clean interior appearance.

• Covers the interior T/V air vent/duct opening in the fresh food compartment
• Helps direct cold air and keeps food items from blocking the vent
• Shields the damper/thermistor area and wiring from contact and debris
• Typical symptoms: broken or missing cover, loose/vibrating cover, or uneven airflow around the vent

• Disconnect power before servicing
• Remove shelves/drawers as needed to access the vent area
• Remove retaining screws or release tabs; keep hardware for reuse
• Position the new cover, ensure vents are unobstructed, and secure before restoring power

This lamp cover encloses and shields the light bulb while diffusing illumination inside the appliance. Replacing a cracked, discolored, or missing cover restores safe, even lighting and protects the bulb from accidental contact and debris.

• Covers and protects the light bulb; diffuses light for better visibility inside the compartment
• Helps prevent bulb damage from impact, moisture, and debris
• Common symptoms: cover is cracked, warped/melted, yellowed, loose, or missing; exposed bulb or harsh glare
• Sometimes called a light lens; may rattle or fall out when tabs or screws break

• Disconnect power to the appliance and allow the lamp area to cool completely
• Handle the lens carefully; align tabs/clips and seat fully before securing—do not overtighten
• Inspect and replace the bulb if damaged or heat-darkened

This lamp cover encloses and shields the light bulb while diffusing illumination inside the appliance. Replacing a cracked, discolored, or missing cover restores safe, even lighting and protects the bulb from accidental contact and debris.

• Covers and protects the light bulb; diffuses light for better visibility inside the compartment
• Helps prevent bulb damage from impact, moisture, and debris
• Common symptoms: cover is cracked, warped/melted, yellowed, loose, or missing; exposed bulb or harsh glare
• Sometimes called a light lens; may rattle or fall out when tabs or screws break

• Disconnect power to the appliance and allow the lamp area to cool completely
• Handle the lens carefully; align tabs/clips and seat fully before securing—do not overtighten
• Inspect and replace the bulb if damaged or heat-darkened

Replacement shelf glass for refrigerator interiors that provides a stable flat surface for food storage and helps contain spills. Restores a cracked or missing shelf so you can safely organize items and use full storage capacity. What it does:

• Provides a sturdy, level platform for food, containers and small appliances.
• Helps contain spills and makes cleanup faster and easier.
• Replaces cracked, chipped or missing shelves that cause unstable storage or lost usable space.
• Restores proper shelving so items sit flat and doors/drawers close without obstruction.

• Handle carefully; wear cut-resistant gloves when installing or removing damaged glass.
• Slide the shelf into the refrigerator's existing supports or clips—do not force or flex the glass.
• Confirm shelf is fully seated and level before loading; do not overload beyond the refrigerator's recommended shelf capacity.
• If support brackets or clips are broken, replace them before using the new shelf.

This Magic Room cover is the replacement shelf cover for the refrigerator's convertible compartment, restoring a flat, stable surface to hold food and containers. It helps keep items supported and the compartment functioning as intended. What it does:

• Replaces a cracked, chipped or missing Magic Room shelf cover
• Provides a stable surface for storing foods and containers in the convertible compartment
• Helps maintain proper spacing and support for drawer/bin components
• Prevents items from falling through or contacting temperature controls below

• Remove food and any drawers or bins that block access before installing
• Handle carefully to avoid chipping; support edges when sliding into place
• Reassemble components in reverse order and ensure the cover seats securely
• Follow all safety steps in the refrigerator owner's manual; unplug or power off if recommended for your model

The meat tray assembly is the shallow deli drawer inside your refrigerator. Replace it to restore clean, organized storage and smooth sliding when the original bin is cracked, broken, warped, or missing.

• Provides a dedicated compartment for deli meats and cheeses beneath a refrigerator shelf
• Slides on shelf rails for easy access and organization
• Common failure symptoms: cracked or broken bin, damaged tabs, drawer won't slide or stay on tracks, or missing drawer
• Restores proper fit so shelves and doors operate without interference

• Unplug the refrigerator and remove items from the affected shelf area
• Pull the old deli drawer straight out; lift to clear the rails and remove
• Align the new tray with both tracks and slide it fully in until seated
• Do not force or overload; inspect shelf rails/supports for damage before reuse

The Door Gasket is an OEM part for LG refrigerators. This gasket seals the refrigerator door, ensuring a tight closure to maintain the internal temperature and prevent cold air from escaping. By creating an airtight seal, the door gasket helps keep food fresh and reduces energy consumption.

You should replace the door gasket if it becomes worn or damaged. Causes of a bad door gasket can include wear and tear over time, damage from repeated opening and closing of the door, or warping due to temperature fluctuations.

Symptoms of a bad door gasket include:

• Warm spots inside the refrigerator
• Excessive condensation or frost buildup
• The refrigerator door not closing properly
• Increased energy bills

This OEM LG part is also compatible with Sears/Kenmore models.

Left Hand side

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

This door basket replaces a cracked or worn refrigerator door shelf to restore secure storage for bottles and small items. Durable molded plastic keeps contents organized and prevents spills on the door. What it does:

• Provides a stable shelf on the refrigerator door for bottles, condiments and small containers
• Replaces broken, cracked or loose door bins that allow items to fall or shift
• Restores proper alignment so the door closes without obstruction
• Matches OEM fit and mounting locations for a direct replacement

• Remove all food and items from the door before starting
• Lift out the old basket and snap the new basket into the same door track; no cutting or modification required
• Inspect door seals and surrounding trim during installation; handle edges carefully to avoid injury

The Door Basket Assembly is an OEM part for LG refrigerators. It provides additional storage space on the refrigerator door, allowing you to organize items such as beverages, condiments, and other small items for easy access. This basket is designed to fit securely on the door, making efficient use of available space.

Over time, the door basket assembly can become damaged due to heavy use, overloading, or accidental impacts. When the basket is compromised, it may not hold items securely or fit properly on the door.

Symptoms of a bad door basket assembly include:

• Cracks or breaks in the plastic
• The basket not staying securely in place
• Items falling out of the basket
• Difficulty in inserting or removing the basket

This OEM LG part is also compatible with Sears/Kenmore.

This door stopper cushions and limits an appliance door's travel to prevent slamming and reduce wear on the hinge. It helps the door close smoothly and reduces noise for a better user experience. What it does

• Stops and cushions the door at the end of its swing to prevent hard impacts
• Reduces hinge and cabinet wear caused by repeated slamming
• Helps eliminate banging or rattling noises during door movement
• Can restore proper door feel when the original stopper is cracked, worn, or missing

• One door stopper

• Service with the appliance unplugged and/or power disconnected for safety
• Typically installed at the hinge/cabinet area using basic hand tools; may require removing a trim or access panel
• Inspect hinge screws and mounting area; replace any damaged hardware and tighten to secure the stopper

The Clip is an OEM part for LG refrigerators. This clip secures the water tube in place, preventing it from moving or becoming disconnected. It plays a crucial role in maintaining the proper flow of water to the ice maker and water dispenser.

Causes of a bad water tube clip can include physical damage, wear and tear from regular use, or brittleness due to temperature fluctuations. If the clip fails, it can result in leaks or disconnections, disrupting the water supply.

Symptoms of a bad water tube clip include:

• Water leaks inside or outside the refrigerator
• The water tube becoming loose or disconnected
• Reduced or no water flow to the ice maker or water dispenser

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Hinge Bushing is an OEM part for LG refrigerators. It serves as a crucial component in the door hinge mechanism, ensuring smooth and stable operation when opening and closing the refrigerator door.

You should replace this hinge bushing if it becomes worn out or damaged. Common causes of a bad hinge bushing include constant use leading to wear and tear, misalignment of the door, or physical damage due to impact.

Symptoms of a bad hinge bushing include:

• Difficulty in opening or closing the door
• The door sagging or not aligning properly
• Unusual noises like squeaking or grinding when the door is moved

This OEM LG part is also compatible with Sears/Kenmore.

This is a replacement retaining pin used to secure small moving parts and assemblies in compatible LG appliances. It restores proper alignment and holds components in place so assemblies operate smoothly. What it does:

• Secures and locates components within an assembly to prevent shifting or disengagement
• Helps maintain proper alignment for moving parts that can cause noise or malfunction when loose
• Commonly used where a small, durable metal pin is needed to retain clips, levers, or linkages
• Simple, single-purpose part — replacement when the original is bent, worn, or missing

• One retaining pin

• Unplug the appliance or disconnect power before servicing
• Access the affected assembly per the appliance service instructions; small fasteners or clips may need removal
• Use pliers or appropriate hand tools to remove/install the pin; avoid forcing to prevent damage
• Keep track of orientation and any associated clips or washers during disassembly

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

This overload protector is a safety device that helps prevent compressor damage by stopping electrical current during overheating or locked-rotor conditions. It's a direct-fit replacement that restores proper compressor protection and helps keep the appliance running safely. What it does:

• Protects the compressor by interrupting power if the motor overheats or experiences an electrical fault
• Common symptom: refrigerator runs but compressor won't start or only hums
• Common symptom: fridge cycles frequently or doesn't maintain temperature due to compressor protection tripping
• Works with the start device to help ensure reliable compressor startup

• Disconnect power before servicing; work only with the appliance unplugged
• Access typically requires removing the rear access panel to reach the compressor area
• Replace using the same mounting and terminal connections; ensure secure electrical connections

This PTC cover protects the refrigerator's PTC/compressor start device from dirt, moisture and accidental contact, helping the start device operate reliably. It's a simple replacement that restores the protective enclosure for the start assembly. What it does:

• Shields the PTC/compressor start relay and wiring from debris and moisture that can cause malfunctions
• Helps prevent accidental shorting or contact with terminals during operation or service
• Can resolve symptoms where the start device is exposed or the compressor area shows visible wear or damage
• Maintains correct positioning and protection of the start components for consistent compressor starting

• One PTC cover (protective enclosure) as shown

• Disconnect power to the appliance before starting any repair
• Replace only when the start device or cover is exposed and you can access compressor/start assembly safely
• Avoid bending or stressing terminals and wiring when removing or installing the cover

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This motor bracket is the OEM-style mounting bracket that secures the appliance motor to the cabinet, keeping the motor aligned and reducing vibration for reliable operation. It helps restore proper motor support and stable running. What it does:

• Provides a secure mounting point to hold the motor in correct position
• Maintains motor alignment to prevent belt slip and uneven wear
• Reduces vibration and noise caused by a loose or damaged motor mount
• Can resolve symptoms such as unusual motor noise, excessive vibration, or motor movement during operation

• Disconnect power (and gas if applicable) before starting any repair
• Basic hand tools are typically required; follow the appliance service manual for access steps
• Inspect surrounding components (mounting fasteners, motor and belts) and replace any damaged parts

The Defrost Sensor Assembly is an OEM part for LG refrigerators. It plays a critical role in the defrost system by monitoring the temperature of the evaporator coil to ensure that it remains at the optimal temperature to prevent frost buildup. The sensor sends signals to the control board, triggering the defrost cycle when necessary.

Over time, the defrost sensor assembly can fail due to wear and tear, electrical issues, or exposure to moisture and temperature fluctuations. When the defrost sensor malfunctions, it can cause improper defrost cycles, leading to excessive frost buildup, reduced cooling efficiency, or the refrigerator not defrosting at all.

Symptoms of a bad defrost sensor assembly include:

• Excessive frost buildup on the evaporator coils
• Refrigerator or freezer not maintaining the correct temperature
• Increased energy consumption
• Refrigerator not defrosting properly

This OEM LG part is also compatible with Sears/Kenmore.

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

This DC fan motor drives the refrigerator's fan to circulate air across the coils and through the cabinet. Replacing a weak or failed motor restores proper airflow for consistent temperatures and reliable cooling performance.

• Spins the fan blade to move air through the cabinet and across heat-exchange coils
• Helps maintain even, stable temperatures throughout the appliance
• Typical failure symptoms: fan not running or intermittent, unusual humming/squealing/rattling near the fan area, poor cooling or temperature fluctuations
• Can reduce hot spots by restoring proper air circulation

• Disconnect power before servicing; use cut-resistant gloves
• Access the motor behind the rear cover or interior panel (location varies by model)
• Note connector orientation; disconnect harness, mount the new motor, and securely route wiring
• Ensure the blade spins freely with no obstructions; restore power and verify fan operation

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

This reflector lamp is the interior light housing that helps direct and diffuse the refrigerator/freezer bulb for brighter, more usable interior illumination. Replaces a cracked, discolored, or missing reflector to restore even light inside the compartment. What it does:

• Reflects and directs the interior lamp's light to improve visibility inside the compartment
• Covers and protects the light bulb and lamp socket from splashes and debris
• Helps reduce hot spots and uneven lighting caused by a damaged reflector
• Common symptom: interior light is dim, uneven, flickering, or reflector is cracked/discolored

• One reflector lamp housing

• Disconnect power to the appliance before starting any repair
• Typically secures with a few screws or snap tabs; use appropriate screwdriver and keep fasteners
• Handle carefully to avoid cracking the plastic; check the bulb and socket when replacing the reflector
• Test the light after reassembly and restore power only when the housing is properly installed

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

This sheathed defrost heater mounts at the evaporator and melts frost during the automatic defrost cycle to restore airflow and stable temperatures. Replacing a failed heater helps prevent ice-clogged coils, warm spots, and noisy fan interference.

• Melts frost from the evaporator coil during the defrost cycle to maintain proper airflow
• Symptoms of failure: persistent ice on the back panel, weak cooling, or the evaporator fan striking ice
• A failed heater can cause long run times and temperature swings
• Replace if the element tests open/short or shows visible damage

• Disconnect power before service; allow components to warm to reduce risk of cracking brittle plastics
• Remove shelves and the evaporator cover; carefully defrost ice—do not chip or pry against the fins
• Transfer original clips/insulators if present; route wires as original and make firm electrical connections
• After reassembly, ensure the drain area is clear and the fan spins freely

This condenser fan motor spins the cooling fan that draws air across the condenser coils and around the compressor. Replacing a weak or seized motor restores proper heat removal so the refrigerator can hold temperature and run more efficiently. What it does:

• Drives the condenser fan to move air through the rear condenser/compressor compartment
• Helps dissipate heat from the refrigerant and protects the compressor from overheating
• Supports stable internal temperatures and efficient cooling performance
• Common symptoms: fan not running, louder rattling/grinding at the back-bottom, hot cabinet sides, warmer-than-normal refrigerator temperatures

• Includes 1 cooling fan motor

• Disconnect power before servicing; pull the unit away from the wall for access
• Remove the rear lower access panel to reach the condenser fan area
• Note wiring and fan-blade orientation; transfer the blade and any mounting hardware from the old motor as needed
• The fan spins freely and airflow direction matches the original before reassembly

This guide tube is a small routing sleeve that supports and protects a rod, shaft, cable, or line inside your appliance. It keeps the path straight to reduce friction, noise, and premature wear.

• Guides and supports a rod/shaft/cable/tube through the chassis
• Maintains alignment for smooth movement or flow
• Helps prevent chafing, kinks, and vibration-related damage
• Typical failure signs: scraping or rattling noises, binding/misalignment, or visible cracks/deformation

• Disconnect power; turn off water or gas before servicing
• Refer to your model's parts diagram for routing and mounting points
• Reuse original screws/clips unless damaged
• Route exactly like the original; avoid pinches/kinks and verify clearances before restoring power

The Water Filter is an OEM part for LG refrigerators. It is a component that ensures the purity and quality of your drinking water and ice.

The water filter is designed to effectively reduce contaminants, impurities, and odors from your water supply, providing you with clean and refreshing drinking water. It employs advanced filtration technology to remove substances such as chlorine, sediment, and other potentially harmful particles.

Causes of a faulty water filter can include regular usage over time, expiration of its filtering capacity, or clogging due to sediment buildup. These factors can result in compromised water quality, decreased flow rate, or unpleasant taste and odor.

Symptoms of a bad water filter may include:

• Decreased water flow from the dispenser
• Water with an unusual taste or odor
• Visible discoloration or particles in the water

This OEM LG part can also be used on Kenmore/Sears appliances.

The Water Tank is an OEM part for LG refrigerators. This tank stores and supplies water to the refrigerator's ice maker and water dispenser, ensuring a consistent supply of fresh, filtered water. It is designed to fit securely within the refrigerator, maintaining hygiene and preventing leaks.

Over time, the water tank can become worn out, cracked, or contaminated. Common causes of a bad water tank include regular wear and tear, exposure to extreme temperatures, or damage from mishandling or improper installation.

Symptoms of a bad water tank include:

• Leaking water inside the refrigerator
• Low water flow to the dispenser or ice maker
• Unusual tastes or odors in the water
• Visible cracks or damage to the tank

This OEM LG part is also compatible with Sears/Kenmore.

Note: tube is 1/4" in outside diameter.

The Water Supply Tube (1/4" O.D.) is an OEM part for LG refrigerators. It transports water from the household water line to the refrigerator’s water dispenser and ice maker, ensuring a steady and reliable supply of water for these functions.

Causes of a bad water supply tube can include wear and tear over time, kinks or bends restricting water flow, or leaks due to cracks or punctures.

Symptoms of a bad Water Supply Tube include:

• Leaks or water pooling behind or under the refrigerator
• Reduced or no water flow to the dispenser or ice maker
• Visible cracks or kinks in the tube
• Ice maker not producing ice or dispensing water intermittently

This OEM LG part is also compatible with some Kenmore models.

The Water Line is an OEM part for LG refrigerators, designed to supply water to the ice maker and water dispenser. Made from durable materials to withstand water pressure and prevent leaks, this water line is essential for access to clean, filtered water at all times. Note: color of the water tube may be different from original. Tube is 5/16" diameter

Symptoms of a bad Water Line include:

• Leaking of water at the connection points or along the tubing.
• A noticeable decrease in water flow to the dispenser or ice maker.
• A bad taste or odor of the water and ice

Causes of failure can range from physical damage, such as kinks or punctures, to wear and tear over time leading to brittleness or weakening of the material. These issues can compromise the integrity of the water supply, affecting both the quality and safety of the water and ice provided by your refrigerator.

This OEM LG part can also be used on Kenmore/Sears appliances.

This injection tube directs water to the refrigerator ice maker so the mold fills correctly and produces ice. It replaces a cracked or blocked tube to restore reliable water flow to the ice-making assembly. What it does:

• Channels water from the valve to the ice maker fill cup for proper ice production
• Helps prevent leaks caused by cracked or brittle tubing
• Commonly replaced when the ice maker won't fill, fills slowly, or leaks near the ice mold
• Works with the ice maker fill system; not a water valve or pump

• Disconnect power and shut off the water supply before starting work
• Inspect adjoining fittings and seals; replace worn grommets or clips as needed
• Handle carefully to avoid kinks or damage to the tube during installation

This mechanical tube connector joins sections of your refrigerator's water tubing. Use it to restore a secure, leak-resistant connection when repairing or replacing lines that feed the dispenser, ice maker, or filter. What it does:

• Connects two sections of the refrigerator's water tubing
• Helps stop leaks caused by a cracked, loose, or damaged connector
• Can restore water flow when a line has separated at a coupling
• Provides a serviceable coupling point after replacing a tubing section

• 1 mechanical tube connector

• Unplug the refrigerator and shut off the water supply before servicing.
• Cut tubing ends square; remove any damaged section and ensure clean, burr-free ends.
• Fully insert tubing into the connector and perform a gentle pull test to verify engagement.
• Turn water back on and inspect all connections for leaks before restoring power.

Note: 90 degree elbow coupler (Fits 1/4" diameter tubing on each end) For 5/16" elbow connector, order part# 4932JA3009B.

The Water Line Union is an OEM part for LG refrigerators. This component connects sections of the water line, ensuring a secure and leak-free passage of water to the refrigerator's icemaker and water dispenser. It is an elbow tube union connector, which connects two tubes at a 90-degree angle.

Causes of a bad water line union can include wear and tear from frequent use, damage from high water pressure, or deterioration due to mineral buildup and age. A compromised union can lead to water leaks and disruption in the water supply.

Symptoms of a bad Water Line Union include:

• Water leaks around the connection points
• Reduced water flow to the icemaker or water dispenser
• Puddles or moisture near the refrigerator
• Unusual noises from the water line

This OEM LG part is also compatible with Sears/Kenmore.

The Water Nozzle is an OEM replacement part for LG refrigerators. It is a component within the refrigerator's ice maker and water dispenser system. The water nozzle controls the flow of water into the ice making mold or water dispenser functions.

Symptoms of a bad water nozzle include:

• Slow filling or inability to fill the ice-making mold
• Inconsistent or weak water dispensing from the refrigerator's door
• Leaks or water drips around the ice maker or water dispenser area

Causes of a faulty water nozzle can be mineral deposits accumulating over time, wear and tear from heavy use, or damage due to impact or freezes.

This part is also compatible with many Kenmore side-by-side refrigerator models.

This mechanical mounting band secures a bracket assembly inside the appliance to keep components aligned and reduce vibration. It restores proper bracket positioning so moving parts run quietly and reliably. What it does:

• Holds a bracket or component assembly in place to maintain proper alignment
• Dampens movement and reduces vibration-related noise or rattling
• Prevents excess wear by keeping parts from shifting during operation
• Helps maintain correct clearances to avoid interference or rubbing

• Disconnect power before inspecting or replacing internal parts
• Remove only the fasteners necessary to access the bracket; keep track of hardware
• Secure all fasteners to the manufacturer's torque or snug specification
• Replace the band if bent, cracked, or missing to restore proper fit and function

This holder is a small mounting bracket that secures a mating component in place inside the appliance. Replacing a cracked or missing holder restores a firm, rattle-free fit and proper alignment.

• Provides a stable mount for the designated part
• Prevents shifting and vibration that can cause noise or premature wear
• Common signs of failure: broken tabs, stress cracks, or the attached part sagging or falling out
• When damaged, the connected component may be loose, noisy, or misaligned

• Disconnect power; if working near water tubing, also shut off the water supply
• Note the original orientation and mounting points; take a photo before removal
• Reuse existing fasteners and avoid overtightening to prevent cracking the plastic
• Ensure the attached component is secure and clears any moving parts before restoring power

The Water Line Connector is an OEM replacement part for LG refrigerators. It is responsible for connecting the water supply line from the home plumbing to the refrigerator's internal water distribution system, allowing for ice and water dispenser functionality.

Causes of a bad water line connector can include cracking, leaks, or deterioration of the connector material over time due to regular water pressure and temperature fluctuations. Connectors may also become damaged if exposed to impact.

Symptoms of a bad water line connector include:

• Leaks at the connection point between the line and refrigerator
• Loose, slipping, or disconnected water line fitting
• Reduced water pressure or no water flow to the dispenser
• Error codes related to water flow from the refrigerator diagnostics

 This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Toe Grille Clip is an OEM part for LG refrigerators. This part secures the toe grille to the base of the refrigerator, ensuring it remains in place while providing easy access for cleaning and maintenance.

Causes of a bad Toe Grille Clip can include breakage due to accidental impacts during cleaning or general wear and tear over time.

Symptoms of a faulty Toe Grille Clip include:

• The toe grille coming loose or falling off
• Difficulty attaching or detaching the grille for routine maintenance
• Visible damage or deformation of the clip
• Unusual gaps between the grille and the refrigerator base

This OEM LG part is also compatible with some Kenmore models.

The Freezer Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature within the freezer compartment, sending readings to the refrigerator’s control board to maintain optimal temperature levels. It plays a crucial role in ensuring that the freezer operates efficiently and keeps food items properly frozen.

Over time, the temperature sensor can fail due to regular wear and tear, electrical issues, or exposure to extreme temperatures. A faulty sensor can lead to inaccurate temperature readings, affecting the freezer's performance.

Symptoms of a bad freezer temperature sensor include:

• Inconsistent freezer temperatures
• The freezer running continuously or not running at all
• Frost buildup in the freezer compartment
• The control board displaying error codes related to temperature

This OEM LG part is also compatible with Sears/Kenmore.
