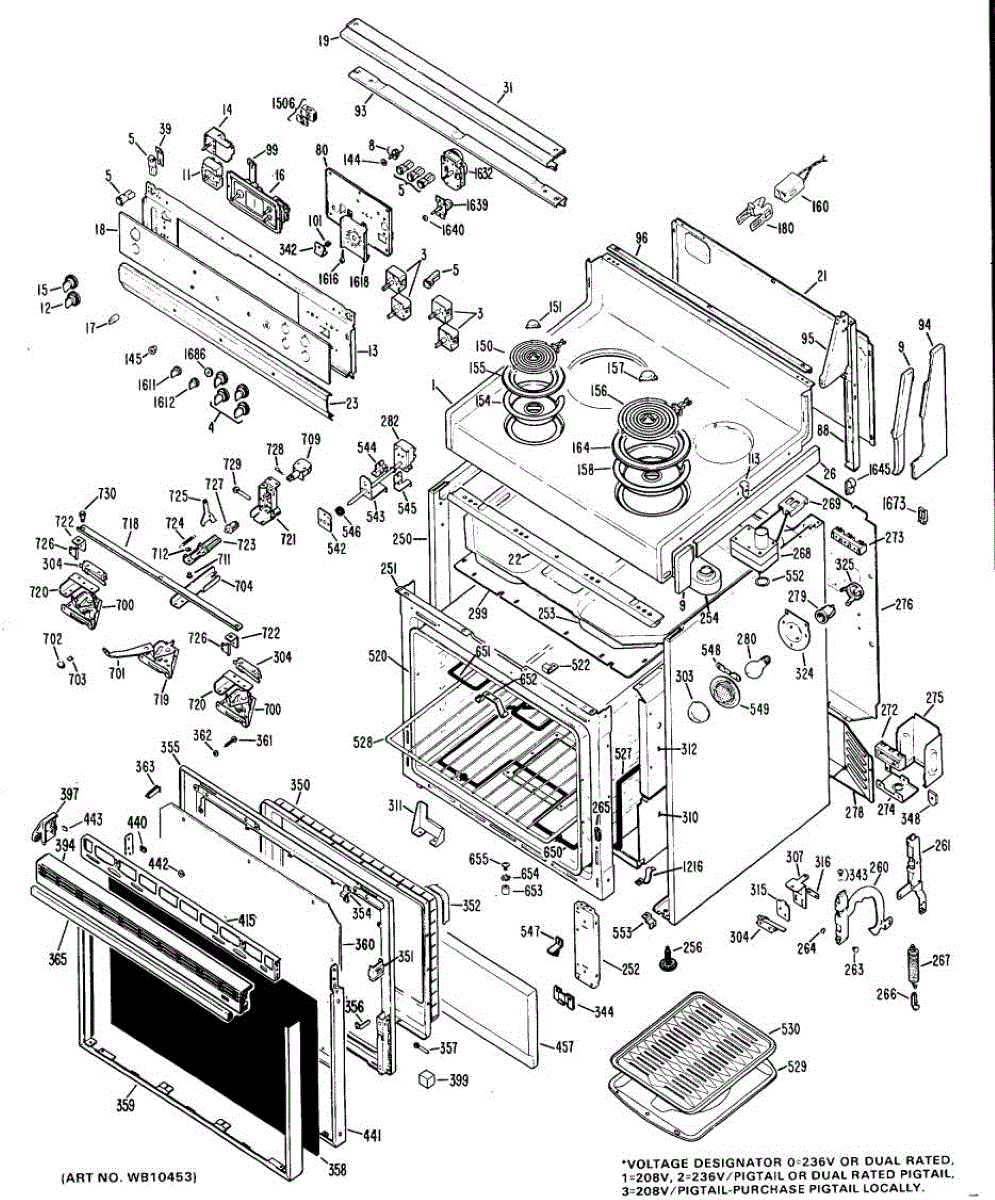

Parts for Ge JBV42GXJ1: 01 - Section1 Parts

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Please note per GE: Jumper Wire For Phase 2&3 Of Self Clean Must Be Made By Tech In Field "y" Wire. Note:may Have Allign/problem With Holes On Glass,reported(1-18-00) Call On Qualified Technician For Instruction

Color: Chrome. 3 pack. These range clock knobs are all you need to cover one timer control. For black order WB3X5699.

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

The 6 Inch Trim Ring is an OEM part for GE ranges and cooktops. It fits around the stove's burner, enhancing the appliance's aesthetic while also serving a functional purpose by catching spills and drips. This component helps keep the cooking surface clean and reduces the risk of burns or stains by containing minor spills.

Causes of a bad 6 Inch Trim Ring can include exposure to high temperatures leading to warping or discoloration, accidental damage such as dents or bending from cookware impact, and corrosion from frequent exposure to moisture and cleaning chemicals.

Symptoms of a bad 6 Inch Trim Ring include:

• Loose fit around the burner
• Noticeable rust or corrosion
• Discoloration or uneven surface
• Difficulty cleaning or removing debris from under the ring

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Compatible 6-inch drip pan: WB32X10012. Matching 8-inch drip pan: WB32X10013 and ring: WB31X5014.

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

This 8-inch porcelain drip pan sits beneath the surface coil to catch spills and help reflect heat toward the cookware. Replacing a stained or warped pan refreshes the cooktop's look and ensures the element seats correctly.

• Collects drips and debris under the 8-inch surface coil
• Helps reflect heat back toward the cookware
• Provides proper support so the coil element sits level and stable
• Replace if pan is stained, rusted, warped, or if the element wobbles or there are persistent odors/smoke from burned-on spills

• Disconnect power and allow the burner to cool completely
• Pull the surface coil straight out of the receptacle and set it aside
• Lift out the old pan, clean the recess, and align the notch on the new pan
• Seat the pan flat and fully reinstall the coil into the receptacle

The Surface Unit Receptacle is an OEM part for GE cooktops and ranges. It is designed to hold and connect the surface heating element to the cooktop’s electrical system, providing a secure and reliable connection for the element to receive power.

Causes of a bad surface unit receptacle can include wear and tear from regular use, exposure to high temperatures, or electrical arcing. A malfunctioning receptacle can lead to improper heating element performance or electrical hazards.

Symptoms of a bad surface unit receptacle include:

• The heating element not heating up or only heating intermittently
• Visible damage or burn marks on the receptacle
• Sparks or electrical arcing when the element is in use
• The heating element feeling loose or not fitting securely in the receptacle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

For the large 8-inch surface element order WB30M2. For the small 6-inch surface element order WB30M1.

The 8 Inch Trim Ring is an OEM part for GE ranges and cooktops. It fits around the 8-inch burner elements, providing a clean, finished look while also helping to contain spills and crumbs on the stovetop.

Symptoms of a bad 8 Inch Trim Ring include:

• Misalignment or improper fit around the burner, which can affect cooking performance and cleaning.
• Visible rusting, warping, or deterioration, which can detract from the appearance of the cooktop.
• Loose fitting that may cause the ring to move or rattle during use.

Causes of a bad trim ring can include frequent exposure to high temperatures, spills of acidic or sugary substances that cause corrosion or damage, and general wear and tear from cleaning and use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

If you’re looking to replace all of the trim rings and drip pans:

• 8” Drip Pan - WB32X10013
• 6” Drip Pan - WB32X10012
• 6” Trim Ring - WB31X5013

The Surface Unit Receptacle is an OEM part for GE cooktops and ranges. It is designed to hold and connect the surface heating element to the cooktop’s electrical system, providing a secure and reliable connection for the element to receive power.

Causes of a bad surface unit receptacle can include wear and tear from regular use, exposure to high temperatures, or electrical arcing. A malfunctioning receptacle can lead to improper heating element performance or electrical hazards.

Symptoms of a bad surface unit receptacle include:

• The heating element not heating up or only heating intermittently
• Visible damage or burn marks on the receptacle
• Sparks or electrical arcing when the element is in use
• The heating element feeling loose or not fitting securely in the receptacle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

For the large 8-inch surface element order WB30M2. For the small 6-inch surface element order WB30M1.

Right hand side

Left hand side

Clip for door hinge.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Replacement refrigerator door gasket that restores a tight seal to help maintain proper cooling and reduce frost and moisture buildup. Fits the door channel to stop warm-air leaks and improve overall temperature stability. What it does:

• Seals the refrigerator door perimeter to keep cold air in and warm air out.
• Helps reduce frost and ice buildup inside the compartment.
• Can reduce condensation and uneven cooling caused by a worn or damaged seal.
• Common symptoms of a failing gasket: warm spots, excess frost, visible gaps around the door, or higher-than-normal energy use.

• Unplug the appliance and remove food from the door area before beginning work.
• Clean and dry the gasket channel and door surface; align the gasket and press it fully into the channel for an even seal.
• If the gasket is stiff, gently warming it can make installation easier—avoid excessive heat.
• Confirm this part number matches your appliance model before installing.

Includes 12 screws.

Includes 12 washers.

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

Package of 12

This replacement screw is a simple fastener used to secure panels, trim, and internal components on GE appliances, restoring proper fit and preventing loose parts. It's a direct-replacement hardware piece for common mounting and assembly points. What it does

• Secures panels, brackets, and trim to prevent rattling or gaps
• Replaces missing, stripped, or corroded fasteners that compromise fit
• Helps maintain proper alignment of controls and components
• Keeps internal parts fixed for safe, reliable operation

• Screw as shown

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct screwdriver or bit to avoid stripping the head
• Install with moderate torque; do not overtighten to prevent thread or component damage
• If threads are damaged or the mating hole is stripped, replace the mating hardware or repair the thread before reuse

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

This retainer is a small mounting clip that secures compatible appliance components in place to prevent movement and wear. It restores proper alignment so related parts stay seated and operate quietly and safely. What it does:

• Holds a specific component or harness firmly to the appliance frame or assembly
• Prevents rubbing, vibration noise, or parts shifting during operation
• Helps maintain correct part alignment for reliable function
• Common symptom: loose, rattling, or misaligned components where the retainer is missing or damaged

• One retainer

• Disconnect power and any fuel sources before starting work
• Inspect surrounding parts for damage before installing the retainer
• Typically installs with basic hand tools; avoid over-tightening nearby fasteners

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This male/female electrical terminal connects appliance wiring harnesses to components, restoring a secure, conductive connection for safe operation. Use when a bent, corroded, or loose terminal causes intermittent power or loss of function. What it does:

• Provides a stable male-to-female connection for wiring and component terminals
• Restores proper electrical contact to stop intermittent power, arcing, or poor connection
• Replaces damaged, corroded, or bent terminal ends to improve safety and reliability
• Works where a direct spade/quick-disconnect style mating is required

• One male/female terminal assembly

• Always disconnect power to the appliance before inspecting or replacing electrical parts
• Use proper crimping or fastening tools; avoid exposed wire or loose connections

This pad is a small bumper-style cushioning part that protects surfaces, reduces vibration and noise, and prevents metal-on-metal contact in appliance assemblies. It helps maintain quiet, secure operation and prevents cosmetic damage where parts meet. What it does:

• Acts as a cushion between components to absorb shock and reduce rattling or vibration.
• Prevents direct contact and wear between adjacent surfaces or panels.
• Helps keep parts aligned by providing a friction surface that resists shifting.
• Reduces noise caused by vibration or loose-fitting panels.

• One replacement pad.

• Inspect the mounting area and remove any debris or adhesive residue before installing.
• Typically presses or adhesively mounts into place; align carefully to ensure full contact.
• Replace only with the exact part number to ensure fit and function.
• Disconnect power to the appliance or follow model-specific safety precautions before accessing internal panels.

Size: 8-32 t. Includes 12 screws.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
