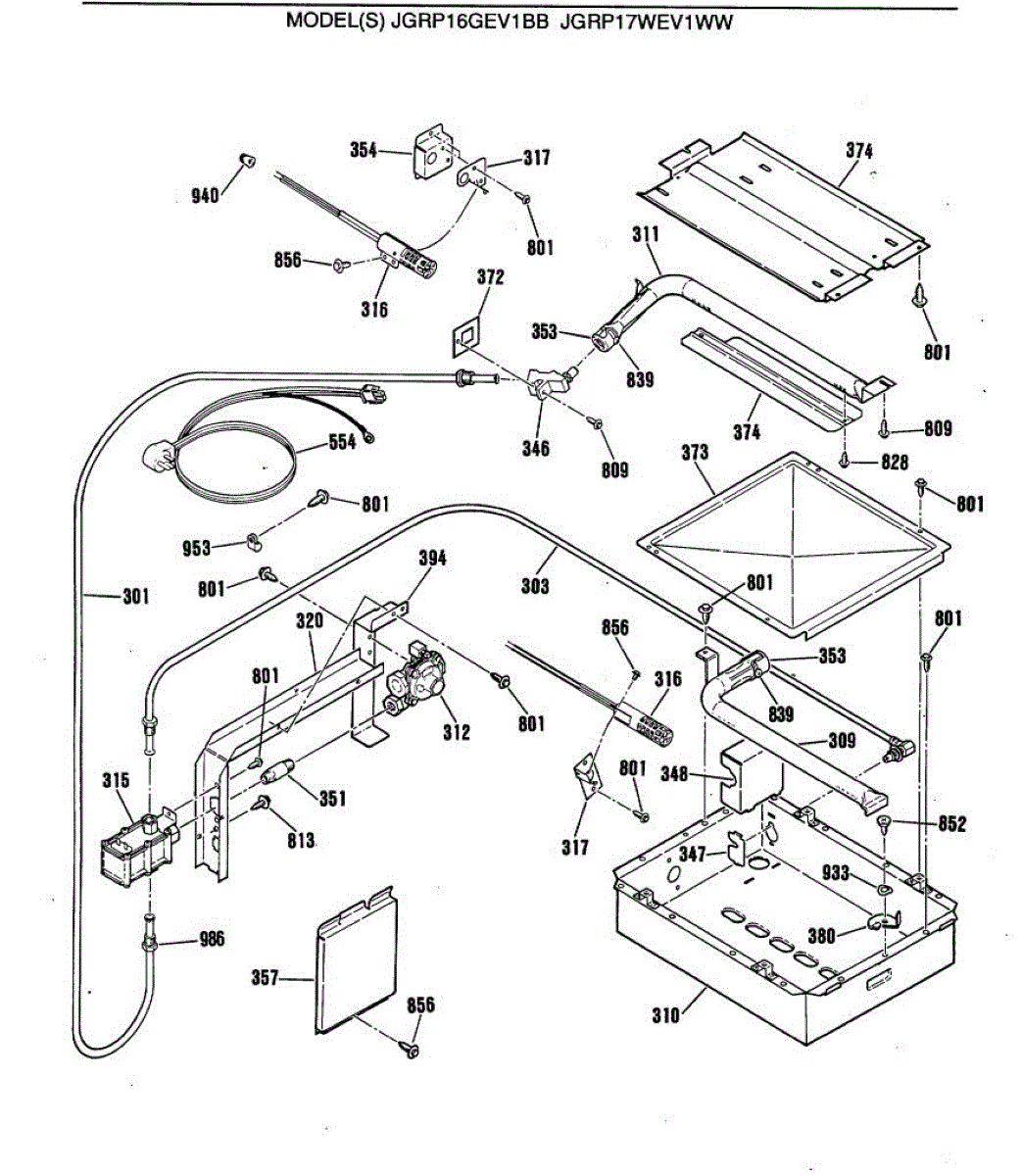

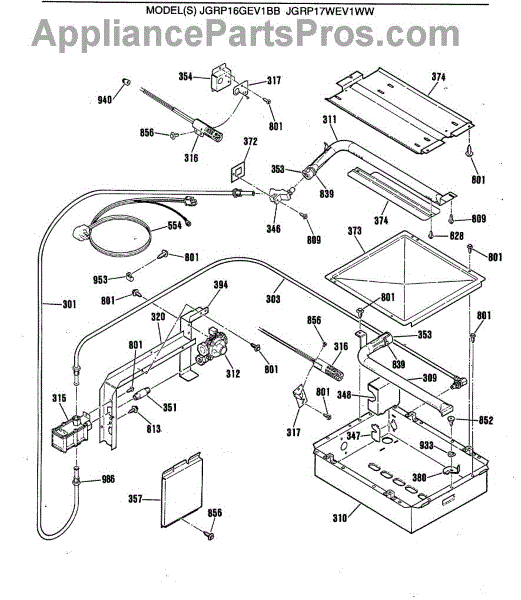

Parts for Ge JGRP16GEV1BB: 01 - Section1 Parts

Tube assembly for ovens and ranges. Connects gas or water lines internally. Replace if cracked, corroded, leaking, or damaged during appliance repair.

Delivers regulated gas from the supply line to the oven burner. Replace if the tube is cracked, orifice is clogged, or assembly is damaged or missing.

Oven won't heat but igniter glows? This safety valve controls gas flow to the burner. Common fix for ranges with no heat. Moderate DIY repair.

Oven won't heat or takes too long to preheat? A faulty igniter is the most common cause. This round-style gas range igniter is a 15-30 minute DIY fix.

Secures the igniter assembly to your range burner system. Replace this bracket if it's bent, broken, or missing to properly mount the igniter component.

This valve wire cover is a small protective shroud that snaps over the water/valve wiring to keep wires organized and shielded from moisture and contact with nearby parts. It helps reduce risk of wiring abrasion and keeps connections tidy. What it does:

• Covers and protects valve wiring from contact with moving parts or sharp edges
• Keeps wires routed and secured to prevent snagging or pinching
• Helps reduce exposure to moisture and debris around the valve area
• Visible sign to replace: cracked, broken, or missing cover leaving wires exposed

• One valve wire cover

• Disconnect power to the appliance before servicing to avoid shock
• Remove any panels as needed to access the valve assembly; use basic hand tools
• Snap the cover into place over the valve wiring; ensure it seats fully and wires are not pinched
• Replace if the cover is cracked, warped, or will not secure wiring properly

Burner orifice fitting for gas ranges and ovens. Connects gas supply line to burner assembly. Replace if cracked, stripped, or leaking at connection.

Replaces a cracked, rusted, or missing bottom baffle in your oven. Installs at the base of the oven cavity to direct airflow and protect components.

Fix an oven door that won't stay closed or latch properly with this gas range door latch. Simple repair for restoring secure door operation.

Range power cord connects your range to the wall outlet. Replace if cord is frayed, damaged, or missing when installing a new range or moving to a new home.

Hex head mounting screw for ranges and ovens. Secures elements, panels, and internal components. Replace if stripped, missing, or damaged during repairs.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

Mounting screw for securing oven components and panels. Replace if stripped, corroded, or missing during appliance repair or maintenance work.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Package of 12 mounting nuts for securing panels, brackets, and components on gas ranges, ovens, and washers. Replace missing, stripped, or worn nuts.

Inverted tubing nut secures gas line connections on ranges and ovens. Replace if stripped, corroded, or missing to ensure proper tubing fitment.
