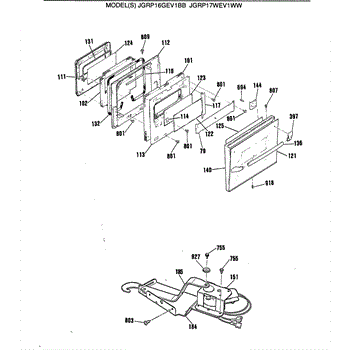

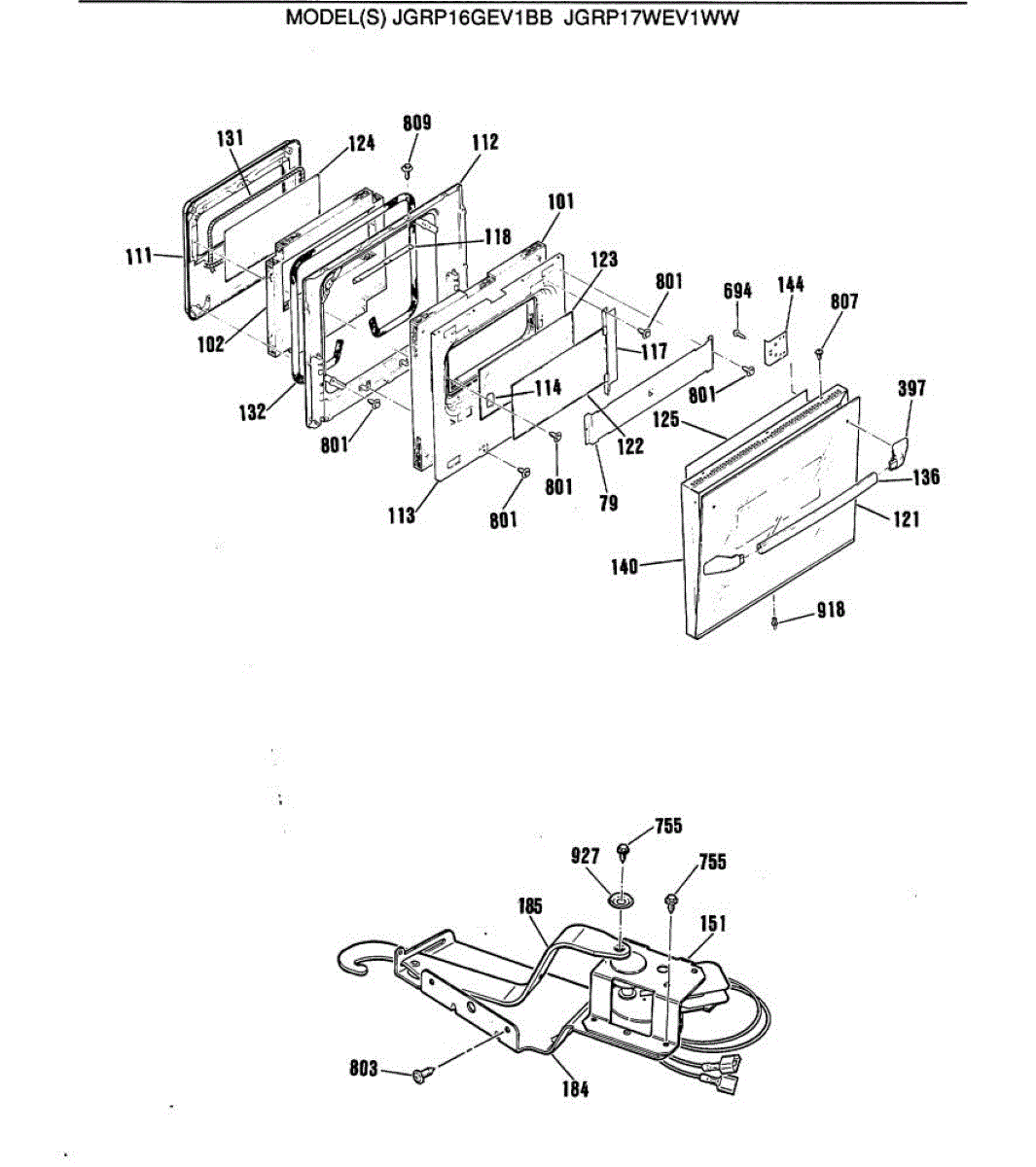

Parts for Ge JGRP16GEV1BB: 02 - Section2 Parts

This plug insulation is a small molded cover that protects an appliance's terminal plug or electrical connector from moisture, dirt and accidental contact, helping maintain a safe, reliable connection. What it does:

• Covers and insulates terminal plugs or wire connectors to reduce risk of shorting and arcing
• Helps keep moisture, dust and debris away from electrical connections
• Stabilizes the plug to reduce wear from vibration or movement
• Supports proper electrical seating for consistent operation

• Disconnect power to the appliance before accessing electrical connectors
• Install over the mating plug/terminal until it seats fully; do not force
• If panels or components must be removed, keep fasteners organized for reassembly

This is the outer glass panel for the oven door. Replacing a cracked or shattered exterior pane restores a safe, clean-looking door surface and helps protect the inner window and insulation from damage. What it does:

• Forms the front layer of the oven door and shields the inner window/insulation
• Provides a smooth, easy-to-clean exterior surface and finished appearance
• Helps maintain proper door integrity when the original glass is broken or missing
• Common symptoms include cracked or shattered glass, loose/rattling trim, or sharp edges on the door exterior

• 1 outer oven door glass panel

• Disconnect power; for gas ranges, also shut off the gas supply
• Allow the appliance to cool completely before service
• Wear cut-resistant gloves and eye protection; handle tempered glass carefully
• Support or remove the door; transfer handle/trim and reuse original hardware; do not overtighten fasteners

This inner oven door glass seal cushions and seals the inner glass pane inside the door, helping contain heat and keep the glass stable and quiet. Replace a cracked or flattened seal to maintain safe, consistent oven performance.

• Seats and cushions the inner door glass panel
• Seals the perimeter of the pane to limit heat and air leaks
• Helps prevent debris and moisture between glass layers
• Can reduce rattling or shifting of the inner glass
• When worn, contribute to longer preheat times or temperature inconsistency

• Disconnect power; for gas ranges, also shut off the gas supply. Allow the oven to cool completely.
• Remove the door and separate the inner panel per your service instructions.
• Note the seal's routing and orientation; install the new seal without stretching or twisting.
• Wear cut-resistant gloves and handle glass carefully during reassembly.

This lower front panel frame replaces the trim piece at the bottom of the oven/range to restore appearance and help keep the bottom cavity covered. It provides a finished look and protects internal components from debris. What it does:

• Covers the lower front opening and conceals the storage/drawer area
• Restores cosmetic appearance when original panel is dented, bent, or scratched
• Helps reduce debris from entering the area under the oven/range
• Fits to existing mounting points and works with the unit's lower assembly

• Disconnect power to the appliance before servicing and allow the range/oven to cool.
• Installation typically requires removal of lower access screws or clips; keep fasteners for reuse.
• Handle the panel carefully to avoid scratching the finish during installation.

This oven door latch assembly secures the door during the self-clean cycle and reports lock status to the control. Replace a worn or failed latch to restore safe locking and reliable self-clean operation.

• Locks the oven door during self-clean to prevent opening at high temperatures
• Signals the control when the door is locked or unlocked
• Helps the oven start and complete a self-clean cycle safely
• Typical symptoms: self-clean won't start or finish, door won't lock/unlock, lock motor runs continuously or is noisy, lock indicator stays on

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Access is typically from the top or behind the control panel; remove panels as required and note linkage/switch orientation
• Transfer any linkages or mounting hardware from the original latch in the same orientation
• Manually cycle the latch to verify smooth operation before restoring power and testing self-clean

This lock lever is the replacement latch arm that engages the oven door lock mechanism so the door secures during self-clean cycles and normal operation. It restores proper door engagement and helps the oven door lock and latch reliably. What it does:

• Moves the latch assembly to secure the door when the lock engages
• Prevents the door from opening during self-clean or locked states
• Common symptom: oven won't enter or complete self-clean because door won't lock
• Common symptom: door feels loose, won't latch, or makes scraping/obstructed noises when closing

• Disconnect power to the appliance before starting any repair
• Access may require removing the oven door or control/front panel; follow OEM instructions
• Handle near edges and glass carefully; use proper tools and keep small fasteners secure

Color: Black
Each package includes one end cap. For the white version, order part number WB7K5319.

The Handle End Cap is an OEM part for GE ranges. This part plays a role in capping the ends of the range handle, allowing a seamless and aesthetically pleasing finish while also preventing injuries by covering potentially sharp edges.

Causes of a bad handle end cap include physical impact, frequent cleaning that leads to wear, or degradation due to exposure to kitchen grease and heat.

Symptoms of a bad hand end cap:

• A loose or incomplete look of the range handle, affecting the overall design and functionality.
• Exposed sharp edges that could pose a safety risk to users.
• An unsecured handle, which may affect the ease of opening and closing the oven door.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This hex washer head screw secures appliance panels and brackets. The 10-16 x 0.812 size replaces missing or stripped hardware so components stay properly fastened, helping prevent looseness, rattling, and misalignment.

• Fastens metal panels, brackets, and components in compatible appliances
• Replaces a lost, damaged, or corroded screw to restore proper attachment
• Helps reduce vibration, noise, or loose-fitting parts caused by missing hardware
• Correct 10-16 thread and 0.812-inch length for specified mounting points

• Disconnect power; for gas models, also shut off the gas supply.
• Note the original screw's location and orientation before removal.
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing.
• Use a nut driver or socket that fits the hex head.

Package of 12

ST10-16 X 7/16"

This is a replacement trim screw used to secure exterior trim pieces and panels on compatible appliances. It restores proper fit and prevents loose or rattling trim for a finished appearance. What it does:

• Secures appliance trim, bezels, and small panels to the cabinet or frame
• Stops trim from shifting, vibrating, or falling loose during operation
• Matches the original size and finish for a discreet, finished look
• Used where a 10-16 thread size and 3/4" length are specified

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until trim is secure to prevent thread damage
• For appliances with electrical or gas connections, disconnect power or gas supply before servicing
• If screws are corroded or stripped, replace matching mating hardware as needed

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This plastic rivet is a push-in fastener used to secure trim and panels on compatible appliances, helping keep exterior pieces firmly in place for proper fit and finish. It's a small, inexpensive part that prevents rattling and loose trim. What it does:

• Acts as a push-in fastener to hold trim pieces, panels or liners together
• Keeps exterior parts aligned and reduces vibration or rattling noises
• Replaces worn or missing rivets that allow panels to sit loose
• Works where a simple snap-in plastic retainer is required

• One plastic rivet

• Disconnect power to the appliance before starting any repair that exposes wiring or components
• Typically installs by pushing into the mounting hole until the head seats; may require pliers for removal
• Inspect mating hole and surrounding trim for damage before installing replacement

Includes 12 washers.
