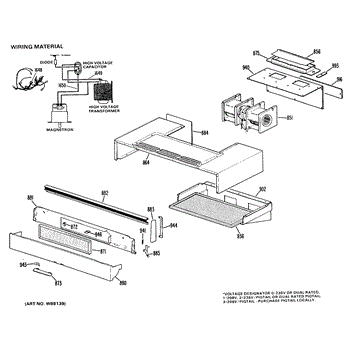

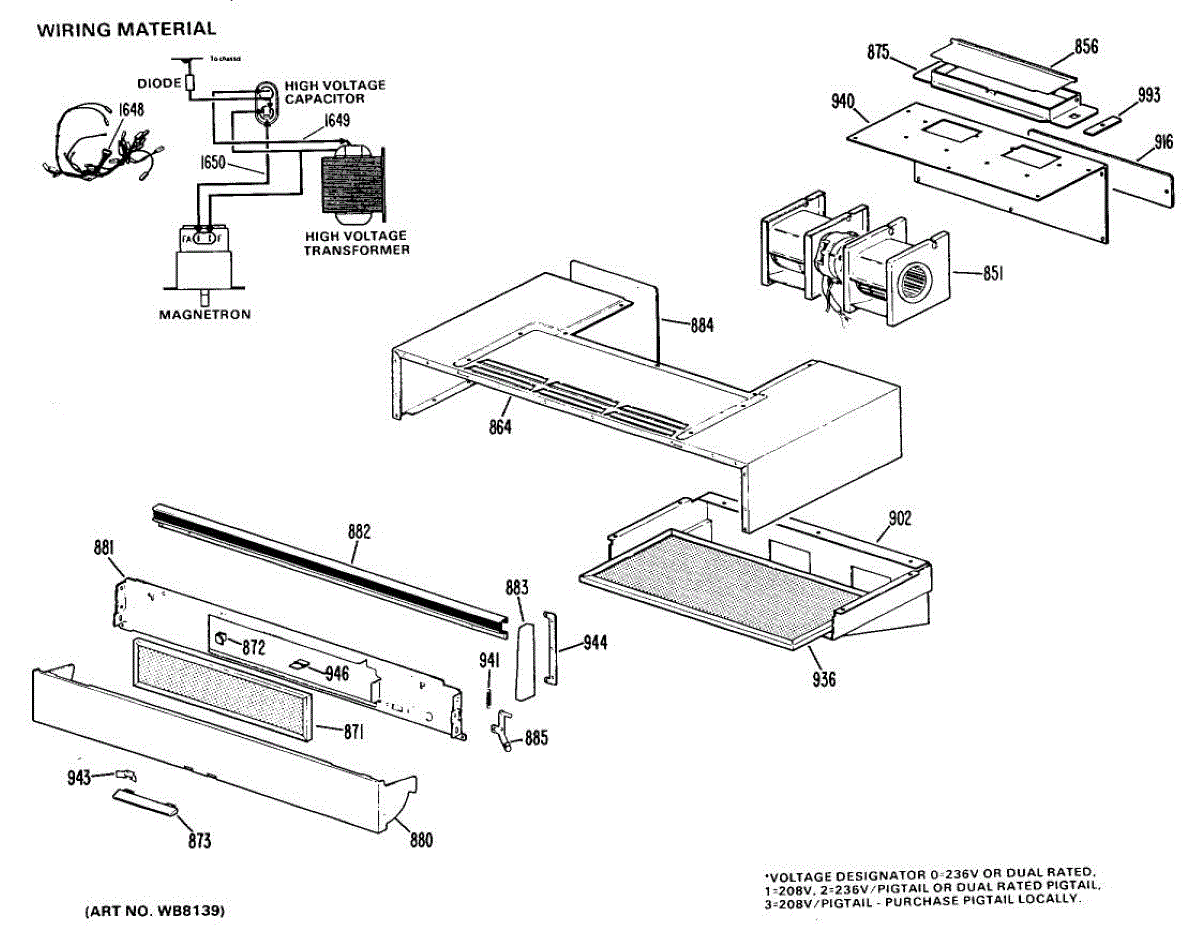

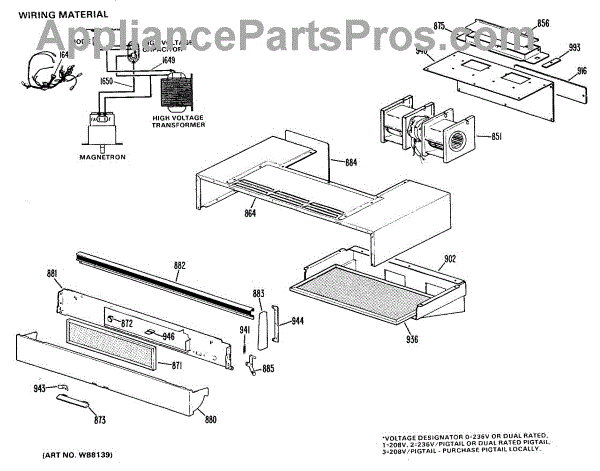

Parts for Ge JHP62VXK1: 01 - Section1 Parts

A small decorative bezel that restores the finished look of the control panel and helps protect the underlying opening from dust and debris. Replaces a cracked, faded, or missing jewel to freshen appliance appearance. What it does:

• Covers and protects a control-panel opening or indicator area, improving cosmetics.
• Hides mounting hardware and helps keep dust and spills out of internal components.
• Commonly used to replace cracked, broken, or missing jewels that distract from the appliance finish.
• Simple cosmetic replacement — does not affect electronic functionality.

• Always disconnect power to the appliance before starting any repair.
• Typically snaps into place or secures with small screws; handle gently to avoid cracking.
• If screws are present, use the correct size screwdriver and avoid over-tightening.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

Part is no longer available

This replacement screw is a simple fastener used to secure panels, trim, and internal components on GE appliances, restoring proper fit and preventing loose parts. It's a direct-replacement hardware piece for common mounting and assembly points. What it does

• Secures panels, brackets, and trim to prevent rattling or gaps
• Replaces missing, stripped, or corroded fasteners that compromise fit
• Helps maintain proper alignment of controls and components
• Keeps internal parts fixed for safe, reliable operation

• Screw as shown

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct screwdriver or bit to avoid stripping the head
• Install with moderate torque; do not overtighten to prevent thread or component damage
• If threads are damaged or the mating hole is stripped, replace the mating hardware or repair the thread before reuse

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This part has been discontinued and is no longer available.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This pad is a small bumper-style cushioning part that protects surfaces, reduces vibration and noise, and prevents metal-on-metal contact in appliance assemblies. It helps maintain quiet, secure operation and prevents cosmetic damage where parts meet. What it does:

• Acts as a cushion between components to absorb shock and reduce rattling or vibration.
• Prevents direct contact and wear between adjacent surfaces or panels.
• Helps keep parts aligned by providing a friction surface that resists shifting.
• Reduces noise caused by vibration or loose-fitting panels.

• One replacement pad.

• Inspect the mounting area and remove any debris or adhesive residue before installing.
• Typically presses or adhesively mounts into place; align carefully to ensure full contact.
• Replace only with the exact part number to ensure fit and function.
• Disconnect power to the appliance or follow model-specific safety precautions before accessing internal panels.

Package of 12

This magnetron generates microwave energy to heat food in compatible countertop and over-the-range microwaves. Replacing a worn magnetron restores cooking power and helps eliminate uneven heating or failure to heat. What it does:

• Converts high-voltage electrical power into microwave radiation used to cook and reheat food
• Common symptom: oven runs but food doesn't heat or heats very slowly
• May also be needed if you notice loud buzzing, arcing, or burning odors during operation
• Works with the microwave's high-voltage system; other components may also need inspection

• One magnetron (single unit as shown)

• Disconnect power and discharge the microwave's high-voltage capacitor before servicing
• Inspect surrounding parts (waveguide, diode, capacitor, and cooling fan) for damage during replacement
• Use only the correct replacement part number to ensure proper fit and safe operation

Size: 8-32 t. Includes 12 screws.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This microwave high-voltage capacitor stores and releases energy in the high-voltage circuit to power the magnetron. Replacing a failed capacitor helps restore proper heating and protects other components in the high-voltage system.

• Works with the transformer and high-voltage diode to supply the magnetron with the required voltage
• Failure may result in the unit running but not heating
• Shorted capacitors can blow the internal fuse or trip a breaker; opens may cause loud humming or buzzing
• Visible swelling or leakage on the capacitor body are common failure signs

• Unplug the microwave; capacitors can retain a dangerous charge even when unplugged—discharge using an appropriate, insulated method before servicing
• Note wire positions and terminal orientation; transfer any mounting hardware from the original part
• Mount securely and route wires to avoid pinching

This high-voltage rectifier diode is used in the microwave's high-voltage circuit. It converts AC to DC so the magnetron can produce heat. A failed diode can cause no heat, loud humming, or a blown fuse when starting. What it does:

• Rectifies high-voltage AC to DC to power the magnetron
• Blocks reverse voltage in the HV circuit
• Common failure symptoms can include: runs but doesn't heat; loud hum then shutdown; line fuse blows at startup

• 1 high-voltage diode

• Unplug the microwave and properly discharge the high-voltage capacitor before servicing—dangerous voltage can remain even when unplugged
• Match diode orientation/polarity to the original and ensure a solid chassis ground connection where used
• Route leads and reinstall any clamps/insulators exactly as found; keep wiring clear of sharp edges and hot components
• If the original diode failed, inspect the HV capacitor and transformer for related issues before reassembly

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
