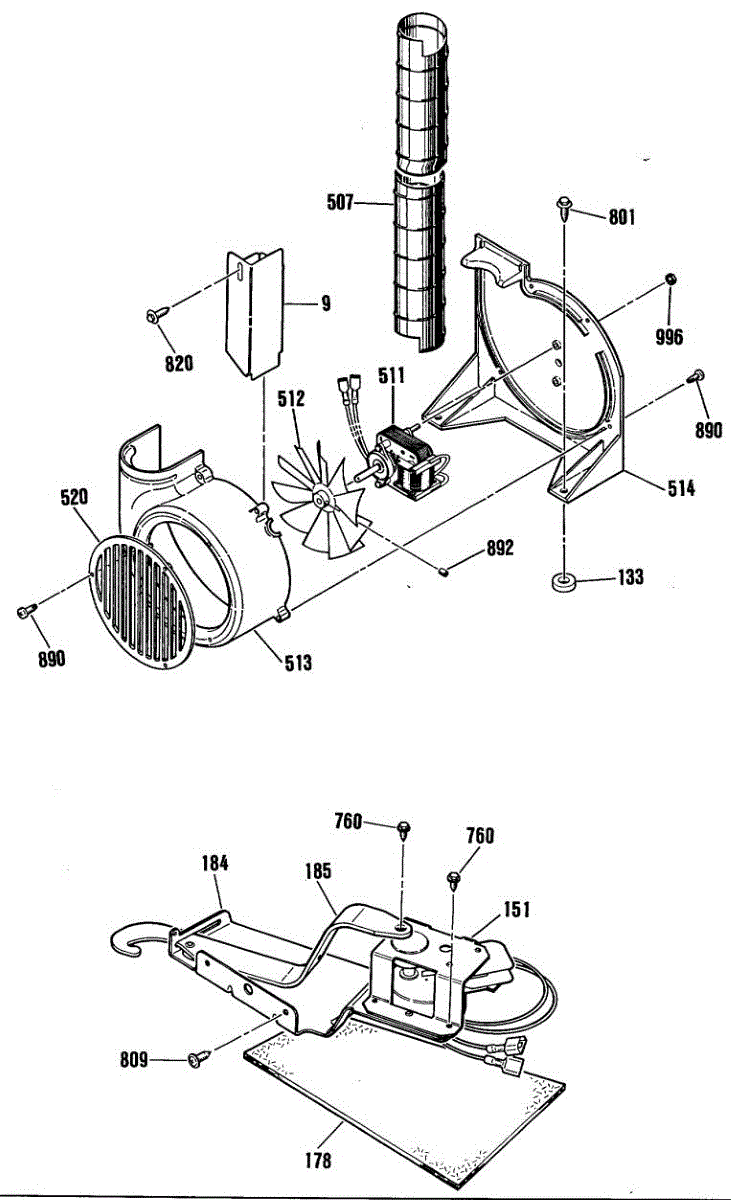

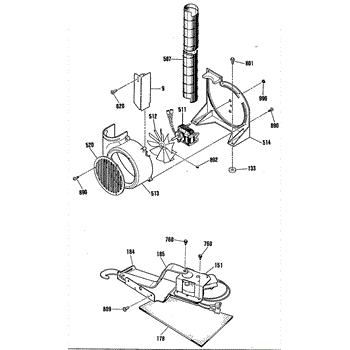

Parts for Ge JSP31GP1: 01 - Section1 Parts

This oven door latch assembly secures the door during the self-clean cycle and reports lock status to the control. Replace a worn or failed latch to restore safe locking and reliable self-clean operation.

• Locks the oven door during self-clean to prevent opening at high temperatures
• Signals the control when the door is locked or unlocked
• Helps the oven start and complete a self-clean cycle safely
• Typical symptoms: self-clean won't start or finish, door won't lock/unlock, lock motor runs continuously or is noisy, lock indicator stays on

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Access is typically from the top or behind the control panel; remove panels as required and note linkage/switch orientation
• Transfer any linkages or mounting hardware from the original latch in the same orientation
• Manually cycle the latch to verify smooth operation before restoring power and testing self-clean

This lock lever is the replacement latch arm that engages the oven door lock mechanism so the door secures during self-clean cycles and normal operation. It restores proper door engagement and helps the oven door lock and latch reliably. What it does:

• Moves the latch assembly to secure the door when the lock engages
• Prevents the door from opening during self-clean or locked states
• Common symptom: oven won't enter or complete self-clean because door won't lock
• Common symptom: door feels loose, won't latch, or makes scraping/obstructed noises when closing

• Disconnect power to the appliance before starting any repair
• Access may require removing the oven door or control/front panel; follow OEM instructions
• Handle near edges and glass carefully; use proper tools and keep small fasteners secure

A sturdy blower plate used to secure and align the dryer blower assembly, helping channel airflow for proper venting and heating performance. Restores correct blower positioning to reduce noise and improve air movement. What it does:

• Mounts and supports the blower wheel and motor assembly inside the dryer housing
• Directs airflow from the blower into the vent path for consistent drying
• Helps reduce rattling or scraping noises caused by a loose or misaligned blower
• Addresses poor drying or overheated cycles when blower alignment is compromised

• One blower plate

• Disconnect power before starting work to avoid shock risk
• Access may require removing the dryer front panel or cabinet per model service manual
• Inspect blower wheel and motor mount for wear when replacing this plate
• Tighten fasteners to OEM torque; reuse only manufacturer-recommended hardware

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

Nickel

This push-type plastic rivet is a small fastening clip that secures trim, panels and lightweight components on appliances. It replaces worn or broken rivets to restore a snug fit and reduce rattles or loose trim. What it does:

• Secures interior or exterior trim, panels and access covers
• Holds wiring harnesses or insulation in place where a low-profile fastener is required
• Replaces missing or damaged rivets that cause loose panels or vibration noise
• Simple push-in design creates a firm hold without screws or adhesives

• Disconnect power to the appliance before working on panels or wiring
• Push the rivet stem into the hole until it snaps; remove by prying out the center pin or using pliers
• Use the same style and size rivet as the original to ensure proper fit and retention
• Protect surrounding surfaces from tools and work deliberately to avoid damage

Includes 12 washers.
