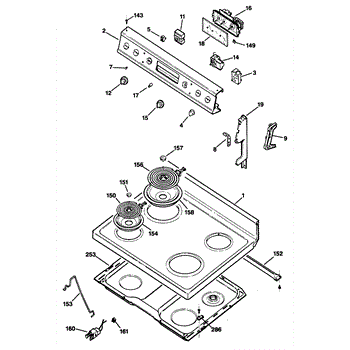

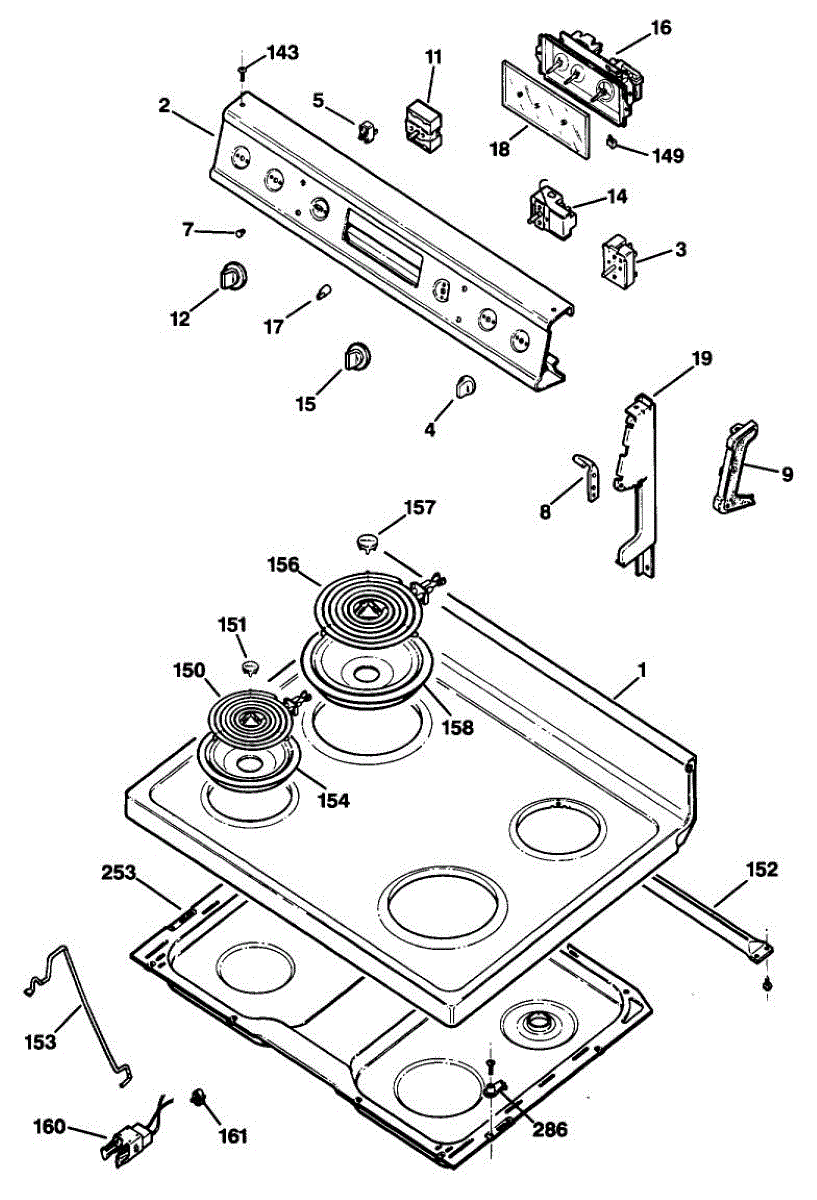

Parts for Ge RB636XR1: 01 - Section1 Parts

Color: White

Color: Almond

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damag

Decorative lens cover for range control panel indicator lights. Replace when cracked, faded, or missing to restore appearance. Verify fit by model.

Color: Black

Left side end cap for electric range control panels. Replaces cracked, broken, or missing trim pieces. Black finish secures panel edges for clean look.

Fix a buzzing timer or non-functioning clock with this range clock timer control. Moderate DIY installation, wiring instructions included. Fits electric ranges.

The Clock Knob Kit is an OEM replacement part for GE ranges. It contains the necessary knobs to control clock and timer functions from the control panel. This 3 pack of range clock knobs is all you need to cover one timer control. Color: Black. Each kn

Replace a non-heating or damaged 6-inch burner. Simple plug-in installation takes minutes—just unplug the old element and connect the new one.

Range won't power on or heats intermittently? A faulty terminal block disrupts electrical connections. This double terminal block restores power flow.

Chrome drip bowl installs beneath 6-inch coil burners on electric ranges. Catches spills and drips during cooking. Replace when rusted, worn, or stained.

If your burner won't heat or only works on high, this 8 inch surface element restores proper cooking. Simple plug-in replacement takes seconds.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the con

This 8-inch drip bowl installs under your range burner to catch grease and spills. Replace if yours is rusted, cracked, warped, or heavily stained.

Burner not heating or working intermittently? This surface element receptacle connects your heating element to power. DIY-friendly repair in under 1 hour.

Secures wiring harness to prevent rubbing and loose connections. Replace if worn or broken to restore proper wire routing. Confirm fit with your model.

Cooktop chassis frame box that supports and encloses the burner assembly on your electric range. Replace if cracked, bent, rusted, or damaged.

Thermal insulation blanket for the inner oven cavity. Replace if damaged, compressed, contaminated, or missing to restore heat retention and safety.

This printed wiring diagram provides the factory electrical schematic for the appliance, making diagnostics and wiring checks faster and clearer for DIYers. Use it to confirm wiring routes and component connections before repairs. What it does:

• Shows wire colors, connector locations and circuit paths for accurate troubleshooting
• Helps identify which components share power, ground or control circuits
• Useful when tracing shorts, open circuits or intermittent electrical issues
• Clarifies harness routing and connector pinouts during part replacement

• Disconnect power to the appliance before inspecting or referencing the diagram near live wiring
• Keep the diagram dry and flat; protect it from grease and heat during repairs
• Use the diagram as a reference—verify connections visually on the appliance before reconnecting power
• Make a photocopy or take a photo to keep a clean reference while working

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.
