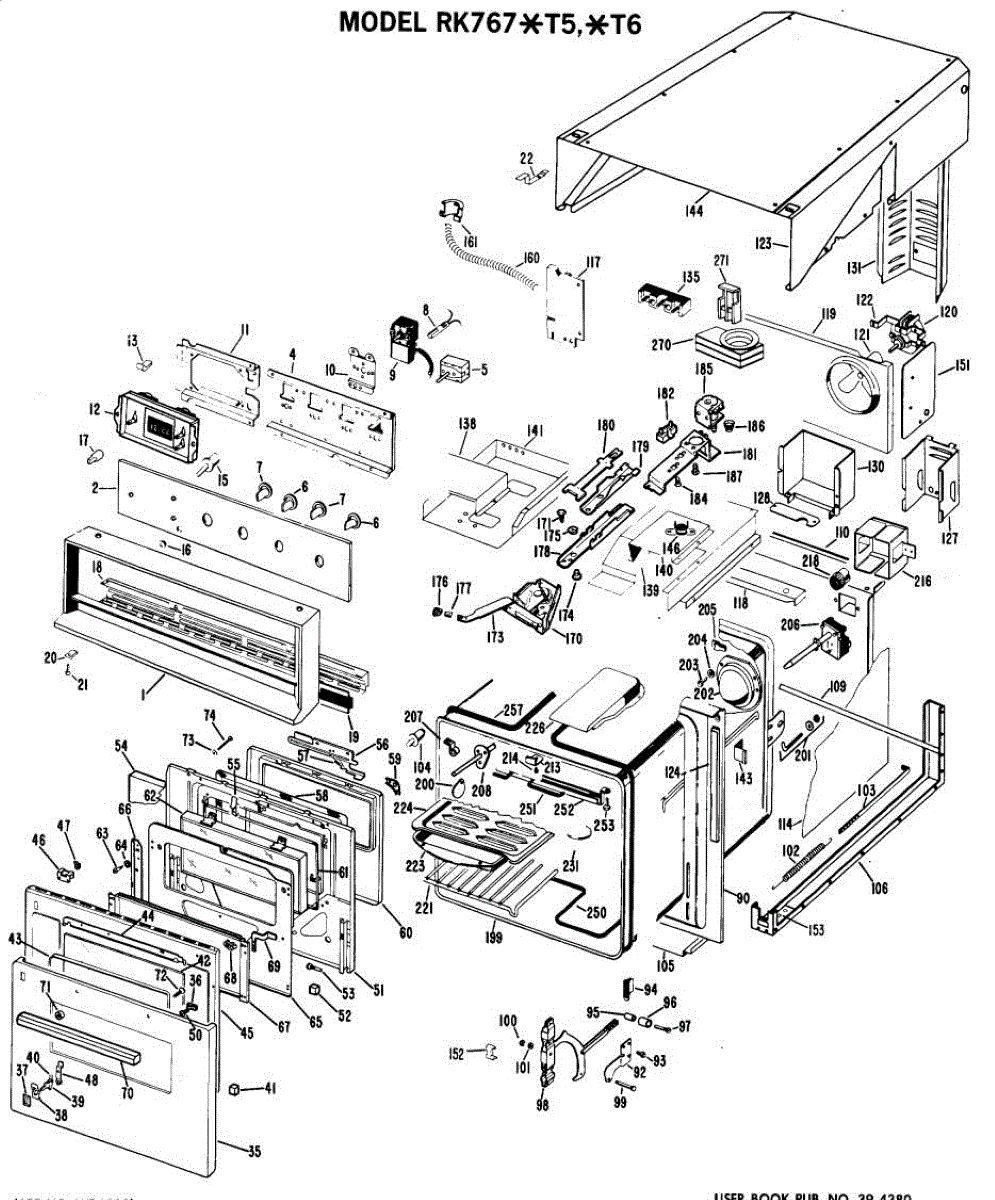

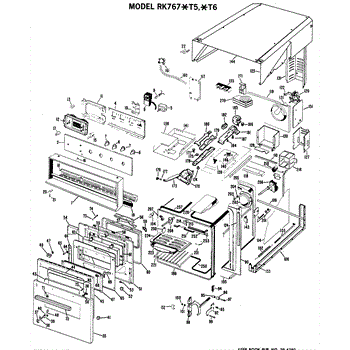

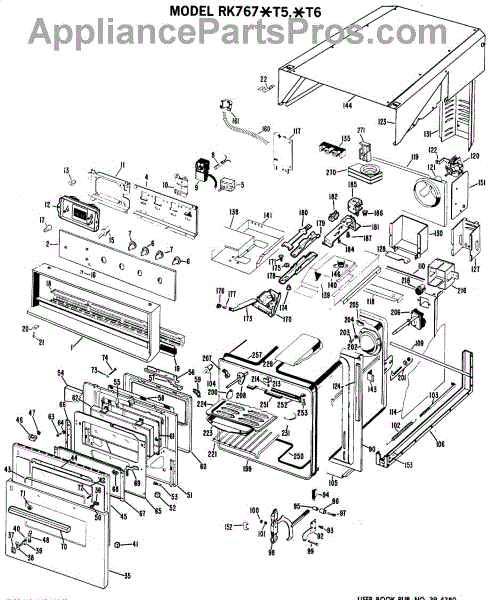

Parts for Ge RK767XT6: 01 - Section1 Parts

Please note per GE: Jumper Wire For Phase 2&3 Of Self Clean Must Be Made By Tech In Field "y" Wire. Note:may Have Allign/problem With Holes On Glass,reported(1-18-00) Call On Qualified Technician For Instruction

The Oven Broil Kit is an OEM part for GE ovens. It includes the broil element, which is responsible for generating high heat from the top of the oven to broil food. The broil element, which has screw-on terminals, measures 11-3/8" wide and 15-5/8" long from the mounting bracket to the end of the element. The distance from the bracket to the terminal end is 1-5/8".

You should replace this broil kit if it fails to heat properly. Causes of a bad broil kit can include electrical faults, such as short circuits or open circuits in the element, physical damage from accidental impact, or wear and tear over time.

Symptoms of a bad broil kit include:

• The broil element not heating up
• Uneven broiling results
• Visible damage or burns on the element
• The oven tripping the circuit breaker when broil mode is activated

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broil Element is an OEM part for GE ovens. It is designed to provide the high heat necessary for broiling food, such as meats and vegetables, allowing for a quick cooking process that seals in flavors and creates a deliciously crispy exterior.

Causes of a bad Broil Element can include failure due to internal coil damage, burnout from excessive use, or electrical issues such as short circuits or loose connections that prevent it from heating.

Symptoms of a bad Broil Element include:

• The oven not heating up to the set broil temperature.
• Uneven cooking or browning of food.
• No visible glow from the element during operation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Baking Element is an OEM part for GE electric ranges and wall ovens. This baking element is located at the bottom of the oven cavity and provides heat from below during baking function. Even, consistent heating is vital for optimal cooking performance.

Causes of a bad baking element can include mineral buildup from repeated high temperature use that interferes with heating ability. Element coils breaking or blowing out is also common after several years of use.

Symptoms of a bad baking element include:

• Inconsistent or inadequate heating from the bottom of the oven
• Cook times longer than normal for many recipes
• Error codes indicating issues with the lower heating element
• Open or shorted element coils preventing any heating

This OEM GE replacement is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

The Oven Bake Element is an OEM replacement part for GE ovens. It is a critical component responsible for generating the heat necessary for baking and cooking food in the oven cavity. Measuring 18 ¼ inches wide and 14 ½ inches deep to the mounting flange. It has an element extension of approximately 2 1/4 inches past the bracket to the terminals. This element is rated at 220 volts and 2300 watts.

Causes of needing to replace the bake element can include normal wear over time, electrical malfunctions, or physical damage from impact or excessive temperature fluctuations.

Symptoms of a faulty oven bake element include:

• Uneven baking or hot/cold spots within the oven
• The oven not heating up to the desired temperature
• Visible signs of damage or burnout on the bake element itself
• Unusual smells or burning odors coming from the oven

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models, ensuring a perfect fit and reliable heat generation for your specific appliance.
