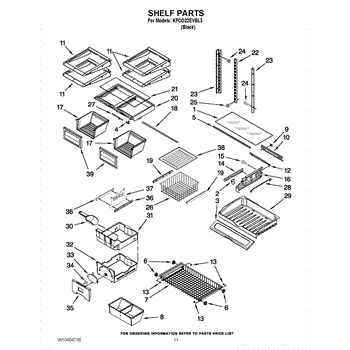

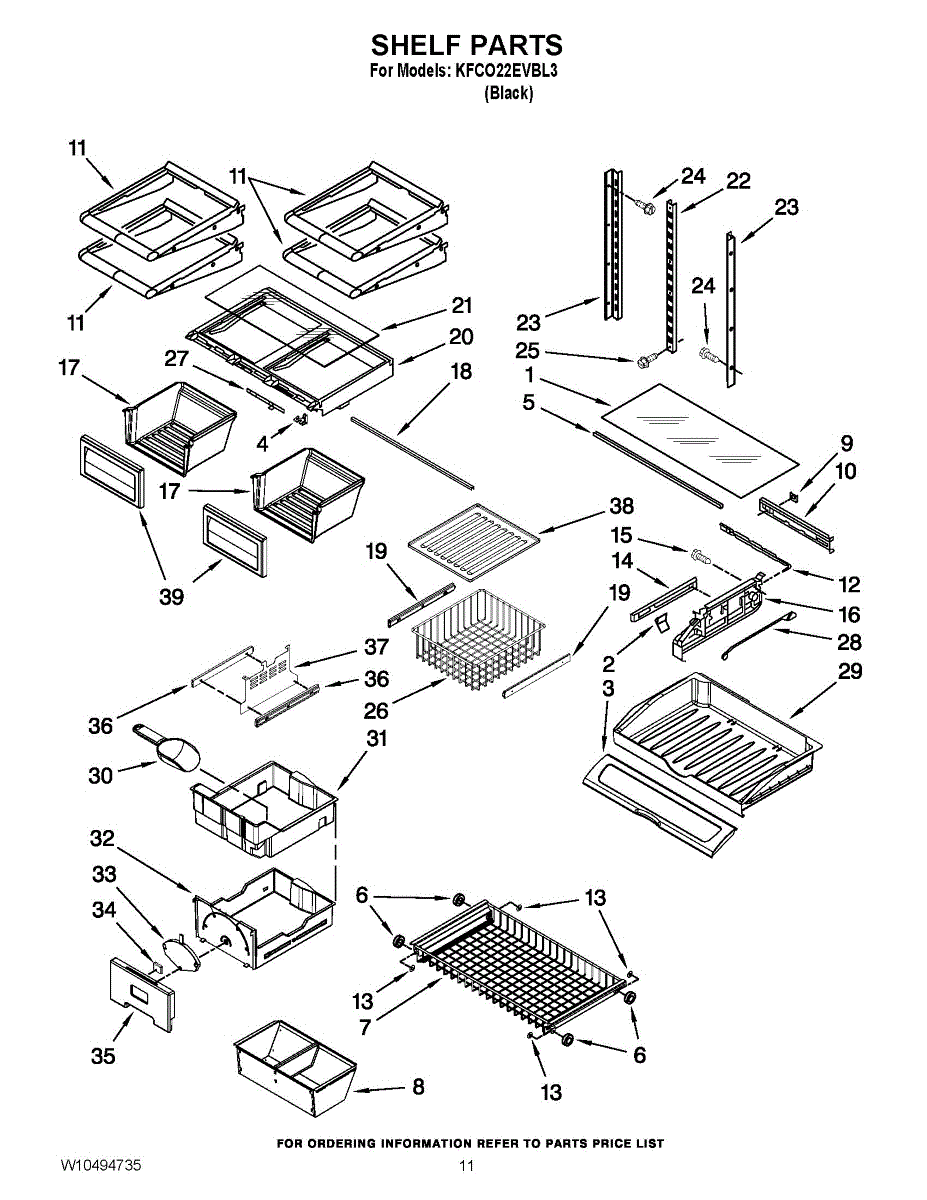

Parts for Kitchenaid KFCO22EVBL3: 06 - Shelf Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Replacement control knob that restores positive, easy-to-use control of appliance settings. Installs quickly to replace a cracked, stripped or missing knob so you can accurately select cycles, temperatures or timers. What it does:

• Fits onto the appliance control shaft to turn and select settings.
• Replaces knobs that are cracked, loose, hard to turn, or have stripped splines.
• Restores secure grip and precise selection of cycles, temperatures or timers.
• Matches factory fit and appearance when installed.

• Always disconnect power (and gas if applicable) before servicing the appliance.
• Remove the old knob by pulling it straight off the control shaft; align splines and push the new knob fully onto the shaft.
• If the knob does not seat easily, check shaft alignment and spline orientation before applying force.

The Cover is an OEM replacement part for Whirlpool refrigerators. It protects internal crisper drawer components from moisture and spills.

Symptoms of a faulty cover include:

• Cracks, breaks, or loose fit within the crisper framework
• Failure to properly seal the drawer contents
• Water leaks entering the mechanism area
• Inability to remove for cleaning undercover

Causes can be normal wear from frequent opening and closing of the crisper drawer over time. Exposure to condensation or food spills may also impact plastic material durability.

This OEM cover is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

A replacement rotary control knob that restores reliable user control of a front-panel selector. Replaces a worn, cracked, or missing knob to make settings easy to select and read. What it does:

• Provides a tactile grip for turning the appliance selector or temperature dial
• Replaces broken, loose, or missing knobs that slip or won't engage
• Helps restore accurate selection of cycles, temperatures, or functions
• Visible indicator aligns with the control shaft for clear setting reference

• Disconnect power to the appliance before starting any work.
• Most control knobs simply pull straight off the shaft; some models use a small retaining screw—inspect before removal.
• Align the knob's indicator with the control shaft and press firmly until seated.

This pantry brace secures the pantry assembly on 36-inch refrigerator pantry units, restoring proper alignment and stability for smooth door operation. It replaces a bent or broken brace to help maintain correct pantry support and fit. What it does:

• Provides structural support for the pantry/pull-out assembly to prevent sagging or misalignment
• Helps restore smooth opening and closing when the pantry feels loose or uneven
• Replaces damaged or cracked braces that can cause rattling or binding
• Works as a direct-fit replacement for the 36-inch pantry brace used in compatible Whirlpool pantry assemblies

• One pantry brace

• Remove power to the appliance and empty the pantry/pull-out before replacing the brace
• Use appropriate hand tools and avoid overtightening fasteners to prevent damage
• Inspect surrounding hardware and tracks for wear while replacing the brace

This drum support roller keeps the dryer drum turning smoothly and quietly by supporting the drum's weight and reducing friction. Replacing a worn roller restores proper drum alignment and reduces noise and rubbing. What it does

• Supports the dryer drum to maintain smooth rotation and proper clearance
• Reduces grinding, thumping, or rumbling noises caused by worn rollers
• Prevents drum wobble and uneven wear on the drum and seals
• Helps the drum spin freely for consistent drying performance

• One replacement roller

• Disconnect power (and gas supply if applicable) before beginning any repair
• Access typically requires removing the dryer's rear panel or front assembly; follow your model's service manual
• Inspect the mating shaft and adjacent roller(s); replace matching rollers if also worn
• Use appropriate tools and avoid forcing parts

This middle wire basket provides a sturdy storage shelf inside the freezer compartment so you can organize frozen foods and access items easily. Designed to replace a damaged, bent, or missing middle basket for proper storage function. What it does:

• Holds and organizes frozen foods on the freezer's middle shelf area
• Restores proper storage capacity when an existing basket is cracked, bent, or missing
• Helps prevent items from shifting or falling between freezer shelves
• Fits into the freezer rack system and supports typical frozen-food loads

• Unplug the appliance or shut off power at the breaker before servicing
• Remove surrounding shelves or drawers as needed for clearance
• Slide the basket into the freezer rack—no special tools typically required
• Handle the wire edges carefully to avoid scraping or catching gloves

This replacement freezer bin is the removable drawer that stores frozen food and keeps items organized in the freezer compartment. It restores secure storage and easy access when the original bin is cracked, broken, or missing. What it does:

• Holds and organizes frozen food inside the freezer drawer area.
• Slides in and out on the freezer tracks for convenient loading and access.
• Prevents items from falling into lower compartments when installed correctly.
• Commonly replaced when the bin is cracked, warped, or no longer latches securely.

• Empty the freezer section and remove any ice buildup before installing.
• Align the bin with the tracks and slide it in until it seats; do not force.
• Handle carefully to avoid chipping or cracking the plastic edges.

This slide temperature control is the user-access interface that moves the thermostat connection to select dryer heat levels. It restores responsive, indexed temperature selection for standard slide-style dryer controls. What it does

• Moves the internal contact to select low/medium/high heat settings for the dryer
• Replaces worn or loose slider that causes inconsistent or stuck temperature selection
• Helps correct symptoms such as inability to change heat level, intermittent temperature changes, or a slider that feels loose or won't stay in position
• Works as the mechanical interface between the console knob/lever and the dryer's control assembly

• One slide temperature control (single slider assembly)

• High-level replacement for users comfortable removing control consoles; disconnect power before service
• Handle control panel clips and trim carefully to avoid cracking plastic bezels
• Verify proper seating and alignment of the slider on the control shaft before reassembly

A small hex retaining nut used to secure fittings and components in place on compatible Whirlpool appliances. Durable metal construction keeps assemblies tight and prevents loosening from vibration or normal use. What it does:

• Secures threaded studs, bolts, or fittings to maintain proper assembly alignment
• Helps prevent parts from loosening during normal operation or vibration
• Commonly used on panels, brackets, or internal component mounts
• Serves as a simple, serviceable fastener for repair or reassembly tasks

• One metal hex nut

• Disconnect power and water (when applicable) before servicing the appliance
• Use the correct size wrench or socket to tighten; avoid over-tightening which can strip threads
• Keep track of small parts and fasteners during disassembly to ensure correct reassembly
• If the original nut is corroded or damaged, replace it with this new nut of the same thread size

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Note: Right Side Endcap, for Left Side Endcap order WPW10122078.

The Refrigerator Pantry Door Endcap is an OEM part for Whirlpool refrigerators. It is designed to support and secure the pantry door, allowing it to open and close smoothly.

You should replace this endcap if it becomes damaged or worn out. Causes of a bad pantry door endcap can include repeated use, accidental impact, or wear and tear over time.

Symptoms of a bad pantry door endcap include:

• Difficulty in opening or closing the pantry door
• The pantry door not staying securely in place
• Visible cracks or damage to the endcap

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Left Side Endcap, for Right Side Endcap order WPW10121977.

The Refrigerator Pantry Door Endcap is an OEM part for Whirlpool refrigerators. It is designed to support and secure the pantry door, allowing it to open and close smoothly.

You should replace this endcap if it becomes damaged or worn out. Causes of a bad pantry door endcap can include repeated use, accidental impact, or wear and tear over time.

Symptoms of a bad pantry door endcap include:

• Difficulty in opening or closing the pantry door
• The pantry door not staying securely in place
• Visible cracks or damage to the endcap

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This crisper pan replaces the lower fresh-food drawer pan to support produce storage and collect spills so the drawer operates smoothly. It restores a stable base for the crisper drawer and helps contain leaks for easier cleanup. What it does:

• Provides the support surface for the refrigerator crisper/fresh-food drawer
• Helps contain spills and prevents liquids from dripping into the cabinet
• Restores proper drawer alignment and smooth sliding action
• Fits into the bottom of the crisper/drawer assembly to hold produce and bins

• Remove refrigerated food and turn the refrigerator off or disconnect power before servicing
• Slide the crisper drawer out, lift gently as needed, and replace the pan in the drawer housing
• Inspect surrounding rails and gaskets for wear; replace damaged components as needed
• Handle carefully to avoid cracking plastic; do not use excessive force during installation

This Support is a replacement mounting bracket that stabilizes and secures appliance components for reliable operation. Restores proper fit and helps prevent movement or misalignment that can cause noise or part wear. What it does:

• Provides a secure mounting point for associated panels or components
• Helps keep moving parts aligned to reduce rubbing, vibration, or rattling
• Restores original fit when a worn or broken support causes looseness
• Suitable when a damaged bracket is visible or when parts shift out of place

• One Support

• Basic hand tools required; disconnect power and water before starting
• Inspect surrounding fasteners and replace any that are stripped or damaged
• Tighten to OEM torque if specified in manufacturer instructions; avoid over-tightening

This upper rack glide replaces the small guide that helps the dishwasher's top rack slide smoothly. Restores proper rack movement and reduces sticking or noisy operation for easier loading and unloading. What it does:

• Guides the upper rack along the track to enable smooth in-and-out motion
• Prevents rack from binding, catching or shifting during cycles
• Reduces scraping or grinding noises caused by worn or broken glides
• Helps maintain proper rack alignment so dishes load securely

• Disconnect power to the appliance before beginning any work
• Rack removal is often required to access and replace the glide
• Reuse existing fasteners unless damaged; replace any broken clips with OEM parts

This crisper frame is the trim piece that supports and secures the refrigerator crisper drawer, helping the drawer slide smoothly and stay aligned. Replacing a cracked or warped frame restores proper drawer fit and appearance. What it does:

• Provides the mounting surface and edge trim for the crisper (vegetable) drawer
• Keeps the crisper drawer aligned so it opens and closes smoothly
• Helps maintain a proper seal/fit around the drawer opening to prevent rubbing
• Addresses symptoms such as a loose, cracked, warped, or visibly damaged drawer opening

• One crisper frame (drawer trim) as shown

• Disconnect power to the refrigerator before starting any work
• Remove the crisper drawer and any shelves blocking access; frame typically snaps or screws into place
• Use basic hand tools; avoid forcing the frame to prevent additional damage
• Handle edges carefully and dispose of broken plastic pieces safely

This glass crisper shelf provides a stable, easy-to-clean surface for the refrigerator crisper area and restores proper storage and support for produce drawers. Ideal when the original shelf is cracked, chipped, or missing. What it does:

• Supports crisper drawers and refrigerated items to maintain organized storage
• Contains spills and makes cleanup faster than exposed drawers or rails
• Replaces a cracked, chipped, or broken crisper shelf to restore stability
• Fits into the refrigerator's existing shelf supports/rails

• Remove food and any drawers or bins that obstruct the shelf before replacing
• Handle glass carefully and wear cut-resistant gloves to avoid injury from chips or breakage
• Inspect shelf rails and retainers; replace damaged supports to ensure a secure fit

This replacement ladder is the OEM-style ladder used to support and stabilize the shelf/rail assembly inside the appliance, restoring proper alignment and preventing sagging or items from shifting during use. What it does:

• Provides sturdy support for the appliance shelf or rail assembly
• Keeps shelves aligned so items sit level and don't slide or tip
• Prevents noise and movement caused by a loose or broken support
• Helps maintain proper interior spacing for storage

• Disconnect power to the appliance before starting any repair
• Remove nearby shelves or trim to access the ladder; keep track of fasteners
• Inspect surrounding clips and rails; replace damaged hardware as needed

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This pantry drawer is the clear utility bin in the fresh food section that stores deli items and snacks. Replace a cracked or missing drawer to restore smooth sliding access and organized, contained storage. What it does:

• Provides a dedicated compartment for meats, cheeses, produce, and snacks
• Slides on existing rails for easy access to contents
• Helps contain small spills to protect shelves below
• Common symptoms: cracked bin, broken tabs, drawer falls off tracks or sticks, missing drawer

• 1 pantry drawer bin

• Empty the existing drawer, lift slightly, and pull straight out to remove from the rails
• Inspect and clean rails/cover area; remove debris before installing
• Align the new bin with the tracks and slide in until fully seated—do not force
• Hand-wash with mild soap before use; avoid harsh abrasives

The Ice Maker Scoop is an OEM component specifically designed for Whirlpool ice machines. As an included accessory, it provides a sanitary and convenient way for users to fetch ice from the storage bin.

The scoop is strategically designed with an ergonomic handle and wide opening bowl shape. This facilitates easy scooping and transport of ice cubes without spillage or crumbling. Its food-safe materials maintain hygienic conditions in the storage area.

Symptoms of a faulty scoop include:

• Cracks or breaks that compromise the scooping surface
• Leaks or spills of ice when trying to scoop
• Sharp edges that risk cuts or scratches
• Warping or loosening of the handle attachment over time

This OEM Whirlpool scoop is also compatible with some Scotsman and Manitowoc ice machines. Replace yours today to restore safe and hygienic ice retrieval from the storage bin.


This ice pan is the molded plastic tray that sits beneath the ice maker to collect melted ice and runoff, helping keep the freezer compartment dry and the ice maker area tidy. It replaces a cracked or warped tray to restore proper drainage. What it does

• Collects melted ice and minor overflow from the ice maker area to prevent water from pooling in the freezer
• Provides a stable platform and channeling for ice melt toward the drain
• Helps reduce nuisance leaks and moisture that can cause frost buildup around the ice maker
• Fits into the ice maker housing to maintain proper clearance and alignment

• One ice pan

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove the ice maker or access panel as needed to reach and remove the old pan; keep track of fasteners
• Inspect surrounding components and clear any debris before installing the new pan
• Reassemble panels and restore power, then check for proper seating and absence of leaks

This ice pan catches and stores ice produced by the refrigerator's icemaker, providing a stable bin for ice collection and dispensing. It replaces a cracked, warped, or missing ice container to restore proper ice containment. What it does:

• Holds ice released by the icemaker so cubes collect in a single, accessible bin
• Guides ice toward the dispenser or access area for consistent dispensing
• Prevents ice from falling into lower compartments or freezer floor
• Helps maintain organized ice storage and reduces clumping

• Disconnect power to the appliance before beginning work to avoid electrical or moving-part hazards
• Remove any ice and clear surrounding shelves or components for safe access
• Handle carefully to avoid scratching or cracking the plastic; align tabs and slides fully before locking in place
• Inspect the icemaker assembly and dispense mechanism separately

This dispenser arm replaces the detergent dispenser actuator assembly to restore proper detergent release in affected dishwashers. It helps ensure detergent is delivered at the correct time for better cleaning results. What it does:

• Acts as the actuator/arm for the dishwasher detergent dispenser door
• Triggers or releases detergent into the wash at the appropriate cycle stage
• Helps prevent detergent from remaining trapped in the dispenser
• Common symptom: detergent not dispensing or dispenser door failing to open

• One dispenser arm

• Disconnect power and water supply before beginning any repair
• Handle parts carefully to avoid damaging the dispenser housing or linkage
• Basic hand tools are typically required; follow OEM service instructions

This door magnet secures the appliance door by providing magnetic hold for proper closure and seal, helping maintain temperature and prevent accidental openings. It's a simple, durable component used where magnetic catch is required. What it does:

• Provides magnetic holding force so the door stays securely closed
• Helps maintain an effective door seal to preserve appliance performance
• Commonly linked to symptoms like a door that won't stay closed or items shifting during cycles
• Works with the existing strike or gasket to keep the door aligned when closed

• Disconnect power before accessing the door assembly to avoid injury
• Remove door panel or access cover as required by your model's service instructions
• Handle magnet and adhesive/mounting hardware carefully; use proper fasteners if original hardware is damaged
• Test door closure after installation to ensure proper alignment and holding force

This front ice pan replaces the damaged or cracked front section of the refrigerator ice bin to help keep ice contained and feeding smoothly to the dispenser. Fits the ice storage area and restores a proper front cover. What it does:

• Replaces a cracked, chipped or misshapen front ice pan section that can leak or allow ice to spill
• Helps keep ice contained for proper dispensing and easier access
• Restores the original fit and alignment with the ice bin and dispenser components
• Prevents debris from entering the ice storage area

• Remove power to the refrigerator before beginning any service to avoid injury
• Access the ice bin area per your model's service instructions; typically requires removing the ice bin and related trim
• Handle plastic parts carefully to avoid cracking; use proper trim tools if needed

This glide ice pan is the molded tray that collects and guides ice from the ice maker into the freezer bin, helping ice dispense smoothly and stay contained. It replaces damaged or warped pans to restore proper ice routing. What it does:

• Collects ice from the ice maker and directs cubes into the storage bin
• Prevents ice from jamming or spilling into the freezer compartment
• Restores correct ice path when the original pan is cracked, warped or broken
• Works with the ice maker assembly to maintain cleaner ice storage

• Disconnect power to the refrigerator before starting any repair
• Remove ice bin and any obstructions, then unclip or unscrew the old pan per your model's service sheet
• Handle with care to avoid cracking the new pan during installation

The center drawer glide assembly supports and guides your range's storage drawer so it travels smoothly and stays aligned. Replace a worn or broken glide to fix sticking, sagging, or derailing and restore easy, even open-and-close action.

• Supports and centers the lower storage drawer on its track
• Keeps the drawer aligned to prevent tipping or coming off the rails
• Reduces friction for smooth, consistent operation
• Common symptoms: drawer hard to open/close, sags or drops, rubs/scrapes, won't close flush

• Disconnect electrical power and, if applicable, shut off gas; allow the range to cool completely
• Remove the storage drawer to access the center glide
• Remove the old glide and install the new one, transferring fasteners as needed and aligning with the side glides
• Reinstall the drawer and verify smooth travel and full closure

This front pan is the lower cabinet front panel that restores the dryer's front appearance and helps protect internal components from debris and damage. It provides a clean, finished look and a secure mounting surface for door and trim. What it does

• Replaces a cracked, dented, or warped front panel that can allow lint and debris into the cabinet
• Restores proper alignment and fit of the dryer door and surrounding trim
• Helps keep internal components protected from accidental impacts and contaminants
• Improves cabinet appearance when the original panel is damaged or corroded

• One front pan

• Disconnect power (and gas, if applicable) before starting any repair; follow manufacturer safety precautions
• Basic disassembly of the dryer front and door may be required; keep fasteners organized for reassembly
• Use appropriate hand tools; avoid forcing parts to prevent damage to adjacent components
