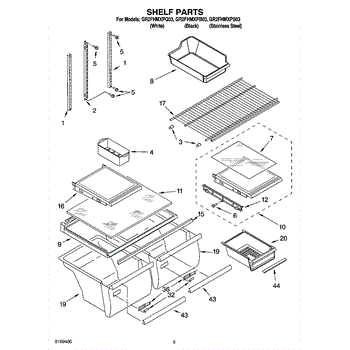

Parts for Whirlpool GR2FHMXPS03: 03 - Shelf Parts

This mounting cup installs in the freezer liner to create a secure attachment point for the ice maker or its bracket. It helps keep the assembly stable and properly aligned so the ice maker mounts firmly and operates reliably. What it does:

• Provides the receiving anchor for the ice maker/bracket mounting screw
• Helps hold the ice maker level and reduces movement or vibration
• A worn, stripped, or missing cup can prevent the screw from tightening
• Common signs include a loose or sagging ice maker, rattling, or difficulty keeping the ice maker aligned

• 1 mounting cup

• Disconnect power and shut off the water supply before servicing
• Remove the ice maker to access the cup location
• Seat the cup fully into the liner opening, then reinstall the bracket/ice maker and mounting screw
• Do not overtighten; verify the ice maker sits level and clears the fill tube

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.

Size: 8 x 1/2 ab.

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

The Ice Pan is an OEM part for Whirlpool refrigerators. It is used to collect and store ice produced by the icemaker, ensuring a dedicated space for easy access and storage of ice. It measures approximately 11" W x 8" H x 20" D.

Causes of a bad ice pan can include cracks or breaks due to handling or impact, warping from temperature fluctuations, or general wear and tear over time. A damaged ice pan can lead to leaks or improper ice storage, impacting the overall functionality of the icemaker.

Symptoms of a bad ice pan include:

• Cracks or visible damage to the pan
• Leaks or water pooling in the freezer
• Ice not being stored properly or the pan not fitting correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Crisper Cover Frame is an OEM part for Whirlpool refrigerators. This component supports the crisper drawer and serves as a shelf, providing a surface to hold and organize food items while also ensuring the drawer operates smoothly.

Over time, the crisper cover frame can become damaged due to regular use, excessive weight, or accidental impacts. When the frame is compromised, it can lead to issues with the drawer's alignment and functionality, making it difficult to store and access fresh produce effectively.

Symptoms of a bad crisper cover frame include:

• Cracks or visible damage to the frame
• The crisper drawer not sliding in and out smoothly
• The cover frame not sitting properly or securely within the refrigerator
• Food items not staying organized or supported on the shelf

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Glass Shelf is an OEM replacement part for Whirlpool refrigerators. Located inside fridge storage compartments, the durable tempered glass provides a stable surface for arranging items. Note: Frame not included.

Symptoms of a cracked or damaged glass shelf include:

• Sharp, exposed glass edges posing injury risks when accessing the fridge
• Instability causing stored items to fall during opening
• Food spills or liquids seeping into the fridge walls
• Warping of shelf slide brackets from excessive weight loads

Causes relate to impact damage from overloading or appliance shifting. Normal wear from continuous use may also weaken shelf material integrity over 15+ years.

Compatible models include Maytag, Jenn-Air, Amana, and selected KitchenAid refrigerators.

This crisper cover support mounts to the refrigerator liner and holds the crisper cover frame/glass level. Replacing a broken or missing support restores a stable shelf surface and helps the crisper drawers slide and close properly.

• Supports the crisper cover frame/glass along the cabinet wall
• Maintains a level surface to help prevent sagging or glass shifting
• Keeps crisper drawers aligned and moving smoothly
• Common symptoms: cracked or missing support, shelf tilts, glass slips, drawers scrape or won't close fully

• Disconnect power and clear the shelf area
• Remove crisper drawers and lift out the cover/glass
• Release and remove the damaged support; snap or screw the new support into the same position
• Reinstall the cover and drawers; verify level fit

The Crisper Drawer is an OEM part for Whirlpool refrigerators. This drawer provides the best storage environment for fruits and vegetables, helping to maintain their freshness for longer periods. It works by controlling the humidity levels within the drawer, reducing the chances of premature spoiling.

The crisper drawer can deteriorate over time from overloading, impacts, or aging, affecting humidity control and leading to food spoilage.

Symptoms of a bad Crisper Drawer include:

• Cracks or breaks in the drawer that compromise its structural integrity
• Difficulty in sliding the drawer in and out due to damage or warping
• Excessive moisture accumulation inside the drawer, indicating a failure in humidity control
• Visible signs of wear that affect the drawer's appearance and functionality

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Meat Pan is an OEM part for Whirlpool refrigerators. This pan is designed to provide a designated space for storing meats, helping to keep them fresh by maintaining an optimal temperature and humidity level. It fits securely within the refrigerator, allowing for organized and efficient storage of your food items. The pan measures 13 1/4" wide, 16 1/4" deep, and 4 3/4" high.

Common causes of a bad meat pan include overloading, impacts from heavy or awkwardly shaped items, or wear and tear over time. A compromised meat pan can lead to reduced storage efficiency and potential spoilage of meats.

Symptoms of a bad meat pan include:

• Cracks or breaks in the pan
• Difficulty sliding the pan in and out
• Leaks or moisture buildup inside the refrigerator
• Unpleasant odors due to improper storage conditions

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This humidity control slide mounts on the crisper cover and moves the vent door that regulates moisture in the produce bin. Replacing a broken slider restores smooth adjustment so you can fine-tune humidity for better food freshness.

• Moves the crisper vent door between high and low humidity settings to control airflow
• Restores smooth, positive slider action and clear setting selection
• Common symptoms: slider cracked, missing, or stuck; humidity setting won't hold; crisper too wet or too dry; condensation in the drawer
• Direct-fit replacement for the original crisper humidity vent slider

• Unplug the refrigerator and remove the crisper drawer(s) for access
• Lift out or access the crisper cover where the slider seats
• Align the new slide with the vent/damper lever and snap or slide it into place
• Confirm smooth travel through the full range before reinstalling the drawer(s)

This humidity control body mounts on the crisper cover and forms the adjustable vent for the produce drawer. Replacing a cracked or missing housing restores smooth slider operation and helps manage moisture inside the crisper.

• Houses the humidity control slider and covers the vent opening on the crisper cover
• Regulates airflow into the drawer to help manage moisture for fruits and vegetables
• Restores proper fit when the original part is cracked, warped, or missing
• Common symptoms: loose or stuck slider, difficulty adjusting crisper humidity, excess condensation or wilting in the drawer

• Disconnect power; remove the crisper drawer and cover, handling any glass carefully
• Release retaining tabs or screws and remove the old humidity control body
• Transfer the existing slider/indicator as needed and seat the new body fully
• Verify smooth slider movement before reinstalling the cover and drawer

This crisper pan trim restores the finished edge around the refrigerator crisper drawer, keeping the drawer seated and maintaining a clean appearance. It replaces damaged or cracked trim to help the drawer operate smoothly. What it does:

• Secures the crisper/drawer edge and helps keep the drawer aligned
• Replaces chipped, cracked, or warped trim that can catch or impede the drawer
• Helps maintain a finished look inside the refrigerator
• Common symptom: visible damage to the drawer edge or trim that interferes with smooth drawer movement

• One crisper pan trim

• High-level, user-installable part; remove the drawer to access and snap or slide old trim off and new trim into place
• Use gentle pressure to avoid cracking adjacent components; do not force parts
• Disconnect power only if removing internal lights or working near electrical components; otherwise, power disconnection usually not required
