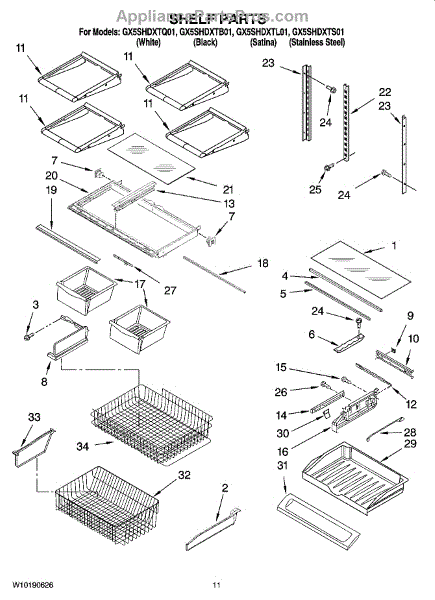

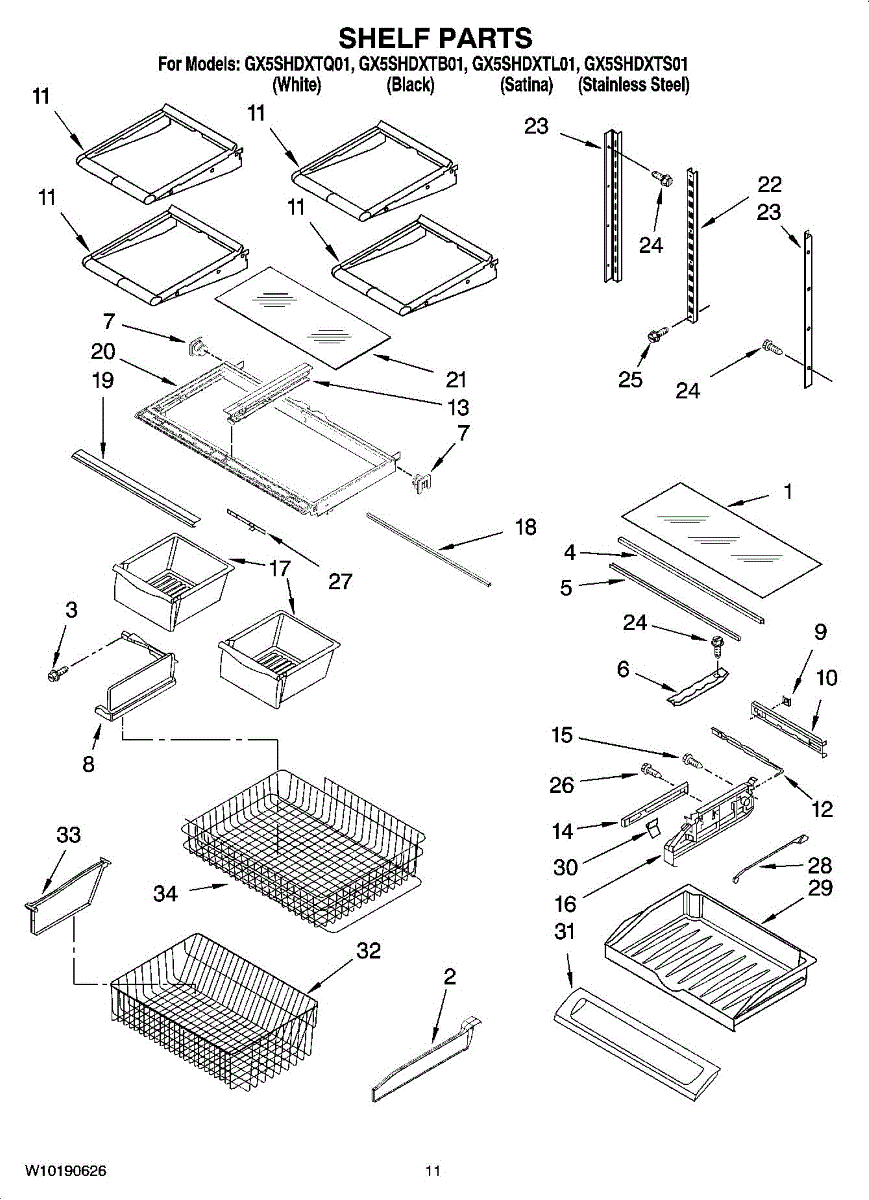

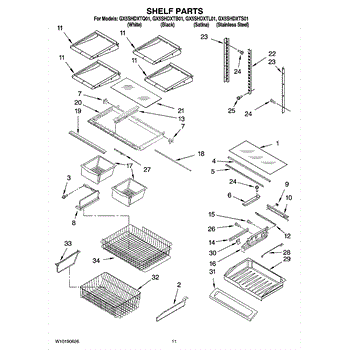

Parts for Whirlpool GX5SHDXTB01: 06 - Shelf Parts

Plastic divider that fits inside the full-width pantry or deli drawer to create separate sections. Replace if cracked, broken, or missing to restore organization.

This support bracket holds your refrigerator's pantry drawer in the proper position for smooth operation. It prevents the drawer from sagging and ensures proper alignment with door seals. Replace if your pantry drawer won't slide smoothly or appears to hang unevenly.

Supports and guides the deli drawer in your refrigerator's fresh food section. Replace if worn, broken, or causing drawer sticking, sagging, or derailment.

Structural support that holds the crisper drawer frame in place. Replace if cracked, broken, or missing. Slides into liner holes for stability.

Seals pantry drawer to maintain proper temperature and prevent air leaks. Replace if torn, cracked, or drawer doesn't close tightly. Verify fit with model.

This housing encloses the temperature control components for the refrigerator's pantry drawer, protecting the thermostat or control board that regulates drawer temperature. It mounts inside or on top of the drawer compartment. Replace this housing if it is cracked, warped, or broken, which can leave the control components unprotected and potentially affect temperature regulation in the drawer.

This slide temperature control is the user-access interface that moves the thermostat connection to select dryer heat levels. It restores responsive, indexed temperature selection for standard slide-style dryer controls. What it does

• Moves the internal contact to select low/medium/high heat settings for the dryer
• Replaces worn or loose slider that causes inconsistent or stuck temperature selection
• Helps correct symptoms such as inability to change heat level, intermittent temperature changes, or a slider that feels loose or won't stay in position
• Works as the mechanical interface between the console knob/lever and the dryer's control assembly

• One slide temperature control (single slider assembly)

• High-level replacement for users comfortable removing control consoles; disconnect power before service
• Handle control panel clips and trim carefully to avoid cracking plastic bezels
• Verify proper seating and alignment of the slider on the control shaft before reassembly

The Center Rail is an OEM part compatible with Whirlpool refrigerators. It plays a crucial role in providing structural support and stability for the shelves and drawers within the refrigerator compartment. This rail measures approximately 14.1 x 2.6 x 1.5 inches.

Causes of a bad refrigerator center rail can include physical damage from impact or excessive force, warping due to temperature fluctuations or moisture over time, or general wear and tear from repeated use.

Symptoms of a bad center rail include:

• Shelves or drawers becoming misaligned or difficult to slide in and out
• Excessive wobbling or instability when shelves or drawers are loaded
• Visible signs of damage, such as cracks or bends, on the center rail itself

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement slide rail for refrigerator pantry or deli drawers. Installs on drawer side to enable smooth gliding. Needed when rail is bent, broken, or cracked.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Replaces broken or cracked endcaps that secure your refrigerator's pantry drawer. Kit includes left and right endcaps for complete repair.

Replaces broken or cracked endcaps that secure your refrigerator's pantry drawer. Kit includes left and right endcaps for complete repair.

Replacement crisper pan for refrigerators. Installs in the fresh food section to store fruits and vegetables. Replace if cracked, broken, or missing.

Cross-support brace that reinforces the crisper cover on 36-inch models. Replace if broken, missing, or cracked to prevent cover sagging and keep bins aligned.

Structural frame that supports crisper drawers and holds the glass shelf above them. Replace if cracked, broken, or damaged to restore proper drawer support.

Note: Per the manufacturer, the center rail is part number WPW10326469.

Glass panel that covers the top of crisper drawers in your refrigerator. Replace if cracked, shattered, or broken during cleaning or normal use.

Center ladder support for refrigerator shelves. Replaces worn, cracked, or broken ladders that no longer secure shelving properly. Restores alignment.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Replacement mounting screw for refrigerators, ranges, and other appliances. Replaces lost, stripped, or damaged screws during repairs or maintenance.

Replacement screw for securing brackets, panels, trim, and internal assemblies. Needed when fasteners are missing, stripped, or rusted to restore stability.

Humidity control slide for refrigerator crisper drawers. Replace this plastic slide if the lever tab has snapped off, cracked, or broken during use.

This temperature control bar is the actuator used to adjust and regulate the appliance's internal temperature, restoring proper temperature response for the bar/beverage control system. It provides a direct replacement for the OEM control bar assembly. What it does:

• Transfers user temperature adjustments to the control mechanism so the appliance reaches the set temperature
• Restores correct temperature changes when the control knob or selector fails to respond
• Helps address symptoms like incorrect temperature readings, temperature not changing, or unstable cooling behavior
• Works with the existing control housing and selector components to re-establish normal operation

• One temperature control bar

• Disconnect power before servicing to avoid electric shock
• Handle the part and surrounding components carefully to avoid damaging clips or wiring
• You may need to remove interior panels or the control housing to access the part;
• Verify the part number on your existing component before installation

This is a sliding pantry drawer that fits inside the refrigerator compartment, typically used as a deli or fresh food storage drawer. It slides on tracks or rails within the refrigerator cavity and provides a sealed space to store meats, cheeses, and other perishables at a slightly different humidity level. Replace this drawer if it is cracked, broken, or if the slides no longer allow it to open and close smoothly.

Control knob broken, cracked, or won't turn? This replacement knob restores precise temperature and setting adjustments. Clips into place in minutes.

Front cover for refrigerator pantry drawer with clear plastic window. Replaces cracked, broken, or damaged pantry lids. Snaps onto drawer end caps.

This part measures 30-1/2 inches long. If your original cover is 28-3/16 inches long you will need to order W10827914.

Direct-replacement lower freezer bin for bottom-mount refrigerators. Restores organized storage when original is cracked, broken, or missing.

This is a wire storage basket designed to sit in the upper section of a freezer compartment. It provides organized storage space for frozen foods and slides or rests on internal rails or supports. Replace this basket if the wire frame is bent, rusted, or broken, making it difficult to store items or slide the basket in and out.
