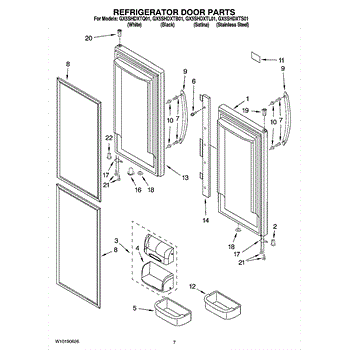

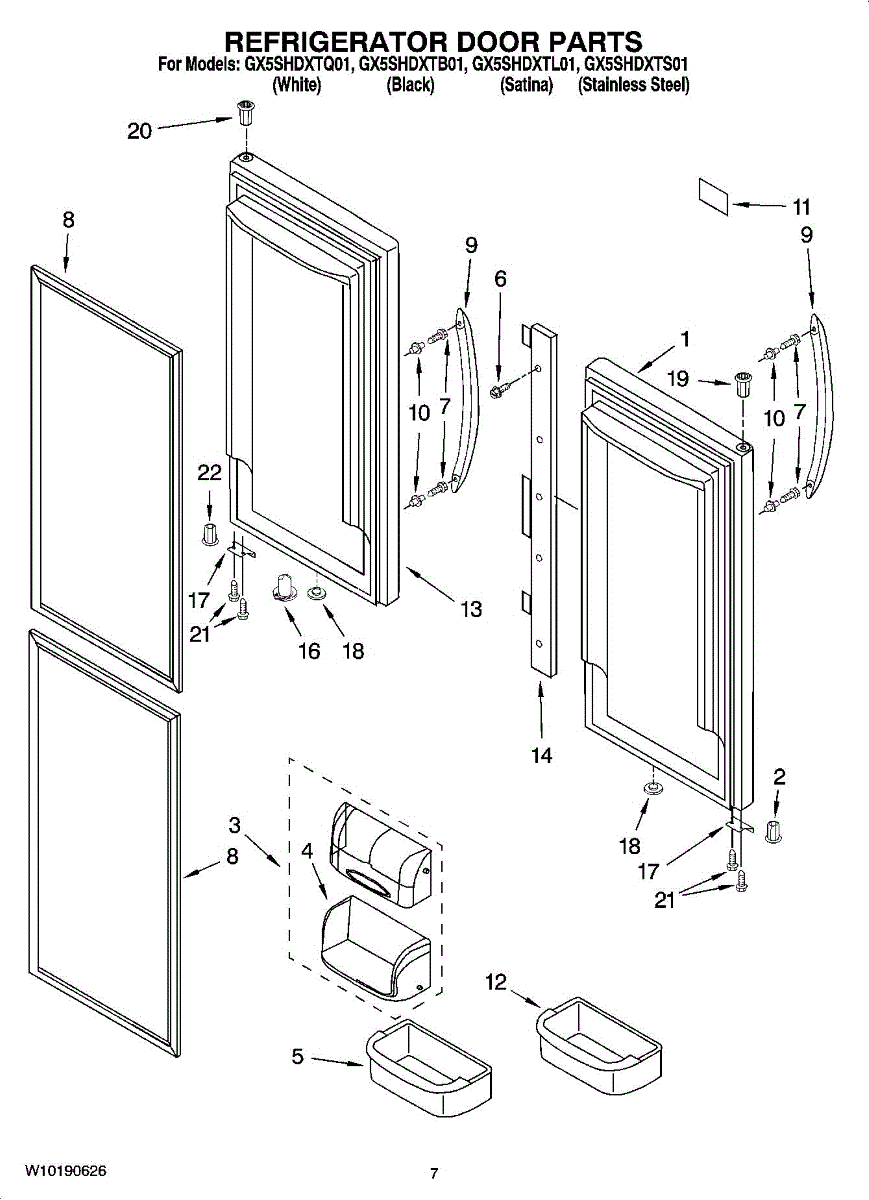

Parts for Whirlpool GX5SHDXTB01: 04 - Refrigerator Door Parts

Color: White

Note: For Black, order WP67002721. For Grey, order W11245157.

Color: Black

Note: For Grey, order W11245157. For White, order 67002722.

This replacement dairy door restores the flip-up cover for the small butter/dairy bin on your refrigerator door. Replace a cracked or missing cover to keep contents contained and your door storage tidy.

• Covers the butter/dairy compartment on the fresh food door
• Flips up for access and down to help secure items
• Helps prevent small items from sliding out of the bin
• Replaces a cracked, broken, loose, or missing cover

• Remove the dairy bin for easier access and alignment
• Align hinge tabs with the bin pivots and press gently until it snaps in
• Avoid forcing cold plastic; let parts warm to room temperature
• If working near electrical components, disconnect power and wear cut-resistant gloves

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators. It is a specialized storage compartment designed to fit the refrigerator door, providing convenient and organized storage space for smaller items such as condiments, jars, or bottles. The bin measures approximately 15 inches wide, 3 inches high, and 6 inches deep.

Causes of a damaged or unusable door shelf bin can include physical impact, cracks or breaks due to excessive weight or pressure, or general wear and tear over time.

Symptoms of a door shelf bin that needs replacement include:

• Cracked or broken shelves, making it difficult to store items securely
• Warping or misshaping, preventing a proper fit in the door compartment
• Missing or loose components, resulting in items falling out or shifting during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Factory-style replacement screw for securing appliance components. Restores a tight, rattle-free fit for brackets, panels, trims, or covers when the original hardware is missing, stripped, or corroded, helping keep assemblies aligned and secure.

• Fastens components to keep panels, brackets, and trim firmly in place
• Replaces missing, stripped, or rusted hardware that can cause looseness or rattling
• Helps restore proper alignment of parts that won't stay secured
• Useful after service when original fasteners are damaged or lost

• Disconnect power before servicing; shut off water supply if applicable
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking adjoining parts

Black for Right Hand Door

The Gasket-FIP (BLK) is an OEM part for Whirlpool refrigerators. This gasket is designed to create a tight seal around the refrigerator or freezer door, helping to maintain the internal temperature by preventing cold air from escaping and warm air from entering.

Causes of a bad gasket can include wear and tear over time, cracks or tears from frequent door openings and closings, and deformation due to improper cleaning or handling. A compromised gasket can lead to energy inefficiency, increased frost build-up, and higher utility bills.

Symptoms of a bad gasket include:

• Warm spots inside the refrigerator or freezer
• Excessive frost or condensation buildup
• The door not sealing properly or gaps in the seal
• Higher than usual energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For WHITE gasket, order W10830189.

Color: White
Note: For RH Door. For BLACK gasket, order W11368721.

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. This part forms a seal around the refrigerator or freezer door, ensuring that cold air stays inside and warm air stays out. By maintaining a tight seal, the gasket plays a critical role in the appliance's energy efficiency, helping to keep food fresh and safe while minimizing energy consumption.

Over time, door gaskets can lose their elasticity, get torn, or wear out, leading to gaps between the gasket and the refrigerator frame.

Symptoms of a bad Refrigerator Door Gasket include:

• Visible cracks, tears, or wear in the gasket
• Condensation or frost buildup near the door edges
• The refrigerator or freezer door does not close as tightly as it should
• Increased energy consumption as the refrigerator works harder to maintain temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This face-mount handle assembly replaces a worn or broken appliance door handle and restores a solid, easy-to-grip surface for opening the door. It provides a direct-fit replacement designed to match the original mounting style and function. What it does:

• Replaces a cracked, bent, or broken face-mounted door handle
• Restores secure grip and normal door operation
• Prevents metal edges or sharp fragments from catching hands or clothing
• Helps eliminate wobble or looseness caused by damaged mounting points

• For safety, unplug the appliance or disconnect power before starting work
• Typically mounts with exposed screws or fasteners; use appropriate screwdriver or nut driver
• Align handle over mounting posts, then install and snug fasteners—do not overtighten
• Replace hardware before use

The Threaded Handle Anchor is an OEM part for Whirlpool refrigerators. This component is essential for securely attaching the refrigerator door handle to the door, ensuring that it remains firmly in place during regular use. The anchor fits into the door and provides a threaded connection point for the handle screws, offering stability and ease of use.

Common causes of a bad threaded handle anchor include wear and tear from frequent use, cross-threading during installation, or physical damage from excessive force or impact.

Symptoms of a bad threaded handle anchor include:

• The refrigerator door handle feeling loose or unstable
• Difficulty securing the handle to the door
• The handle detaching from the door
• Visible damage or stripping on the anchor threads

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Bin is an OEM part for Whirlpool refrigerators. This bin is designed to fit into the door of the refrigerator, providing additional storage space for items such as bottles, condiments, and small containers. This door bin measures about 15 inches wide by 3 inches high by 8 inches deep.

Symptoms of a failing Door Shelf Bin include:

• Cracks or breaks in the plastic, which can cause items to fall out
• The bin not fitting securely into the door slots
• Sagging or bending of the bin, especially when loaded with heavier items
• Difficulty in removing or replacing the bin due to damage or warping

Causes of a bad door shelf bin can include regular wear and tear from frequent use, overloading with heavy items that exceed the bin’s weight capacity, or exposure to temperature fluctuations that can cause the plastic to become brittle and break.

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

The Flapper Door with Mullion Heater is an OEM part for Whirlpool refrigerators. It plays a crucial role in maintaining the proper temperature inside the fridge by sealing the gap between the doors when closed, and the mullion heater prevents condensation build-up.

Causes of a bad flapper door with mullion heater can include wear and tear over time, damage from accidental impacts, or electrical issues affecting the heater's functionality.

Symptoms of a bad flapper door with mullion heater include:

• Warm air entering the refrigerator, causing temperature fluctuations
• Excessive condensation or frost build-up around the door seal
• Increased energy consumption due to the refrigerator working harder to maintain temperature
• Difficulty in closing the refrigerator door properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Door Guide is an OEM part for Whirlpool refrigerators. It helps to guide and align the refrigerator door during opening and closing, ensuring a smooth and secure fit that maintains the seal and efficiency of the refrigerator.

Causes of a bad door guide can include wear and tear from regular use, physical damage from accidental impact, or misalignment due to improper handling or installation.

Symptoms of a bad door guide include:

• Difficulty in opening or closing the door
• The door not sealing properly
• Visible damage or misalignment of the door guide
• Unusual noises during door operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Door Closure is an OEM part for Whirlpool refrigerators. It is a critical component responsible for ensuring the proper sealing and closure of the refrigerator door, maintaining the desired temperature and preventing air leaks.

A faulty or worn door closure can lead to issues such as inadequate cooling, increased energy consumption, and potential food spoilage. Causes of a bad door closure may include normal wear and tear over time, physical damage from impact or mishandling, or compatibility issues with the specific refrigerator model.

Symptoms of a faulty Door Closure include:

• Air leaks around the door seal, causing cooling inefficiency
• Difficulty in opening or closing the refrigerator door
• The door not sealing tightly or feeling loose when closed
• Visible cracks, breaks, or damage to the door closure mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

This vent plug seals an unused appliance vent opening to keep out debris and improve appearance. A simple OEM-fit replacement that restores a clean, finished look to the appliance exterior. What it does

• Covers and seals a vent opening to prevent dust, lint, and pests from entering the cabinet or vent cavity.
• Restores the appliance's finished appearance where a vent opening is exposed or a plug is missing.
• Helps maintain proper airflow paths by closing unused ports and reducing drafts.
• Fits the original mounting location for a secure, low-profile fit.

• One black vent plug.

• High-level push-in replacement; no special tools typically required.
• Disconnect power to the appliance before any service when accessing internal areas.
• Inspect surrounding trim or grille for clips or screws; remove carefully to access the vent opening.
• If plug does not seat fully, verify the correct OEM location and orientation before forcing.

Color: Black

This door hinge bushing restores smooth, stable movement at the refrigerator door pivot. It sleeves the hinge pin to reduce friction and wear, helping the door stay aligned so it closes cleanly and maintains a proper seal.

• Seats in the door hinge to guide the hinge pin and reduce friction
• Helps maintain door alignment and consistent gasket contact
• Replaces a worn, cracked, or missing bushing that can cause noise or binding
• Typical symptoms: squeaking or grinding at the hinge, door sagging/misalignment, door hard to open or close, or not closing flush

• Disconnect power; clear and support the door to prevent strain
• Remove hinge cover and fasteners; lift the door off the hinge pin as needed
• Remove the old bushing from the hinge area and press the new bushing fully into place, matching original orientation
• Reinstall hardware; adjust hinges/level as needed

This door bushing fits on the refrigerator hinge/closer to provide a smooth pivot point and proper door alignment. Replacing a worn bushing reduces squeaks and binding and helps the door close and seal as designed.

• Provides a low-friction bearing surface between the hinge pin/closer cam and the door
• Helps maintain correct door height and alignment to the cabinet
• Promotes smooth door swing and reliable self-closing action
• Typical wear symptoms: squeaking or grinding, binding, door sag, or poor sealing

• Disconnect power and support the door before removing hinge hardware
• Note the order/orientation of hinge parts and any shims; lift off the door carefully
• Install the new bushing on the hinge pin or in the door as shown in your model's diagram
• Reinstall, level, and verify the gasket seals evenly all around

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

A replacement hinge bushing that supports and cushions a refrigerator/freezer or appliance door hinge for smoother movement and reduced wear. Restores correct hinge alignment and helps prevent noisy or stiff door operation. What it does:

• Cushions metal-to-metal contact at the door hinge to reduce wear and vibration
• Helps the door swing smoothly and maintain proper alignment
• Reduces rubbing, scraping noises, and uneven door movement
• Supports hinge pin function to extend hinge life

• Basic hand tools required; appliance diagrams for hinge access
• Remove power or unplug the appliance before servicing where applicable
• Handle door panels carefully; support door weight to avoid damage or injury

The Door Bushing is an OEM part for Whirlpool refrigerators. This part allows the smooth opening and closing of the refrigerator door by providing a smooth surface for the door hinge to pivot on. It helps ensure the door operates quietly and maintains proper alignment.

Causes of a bad door bushing can include regular wear and tear, exposure to weight stress from the door, or accidental damage.

Symptoms of a bad door bushing include:

• Door not opening or closing smoothly
• Squeaking or grinding noises when moving the door
• Door misalignment
• Increased difficulty in opening or closing the door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
