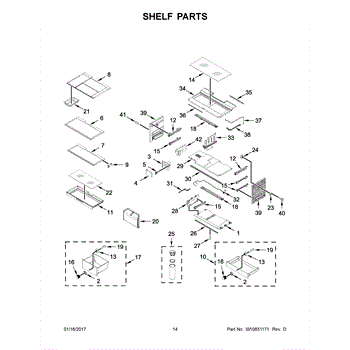

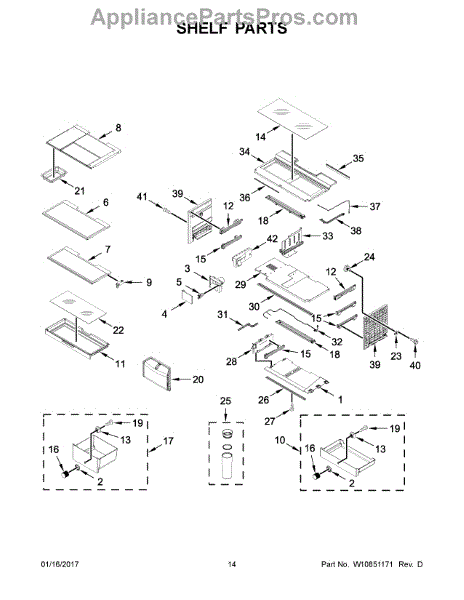

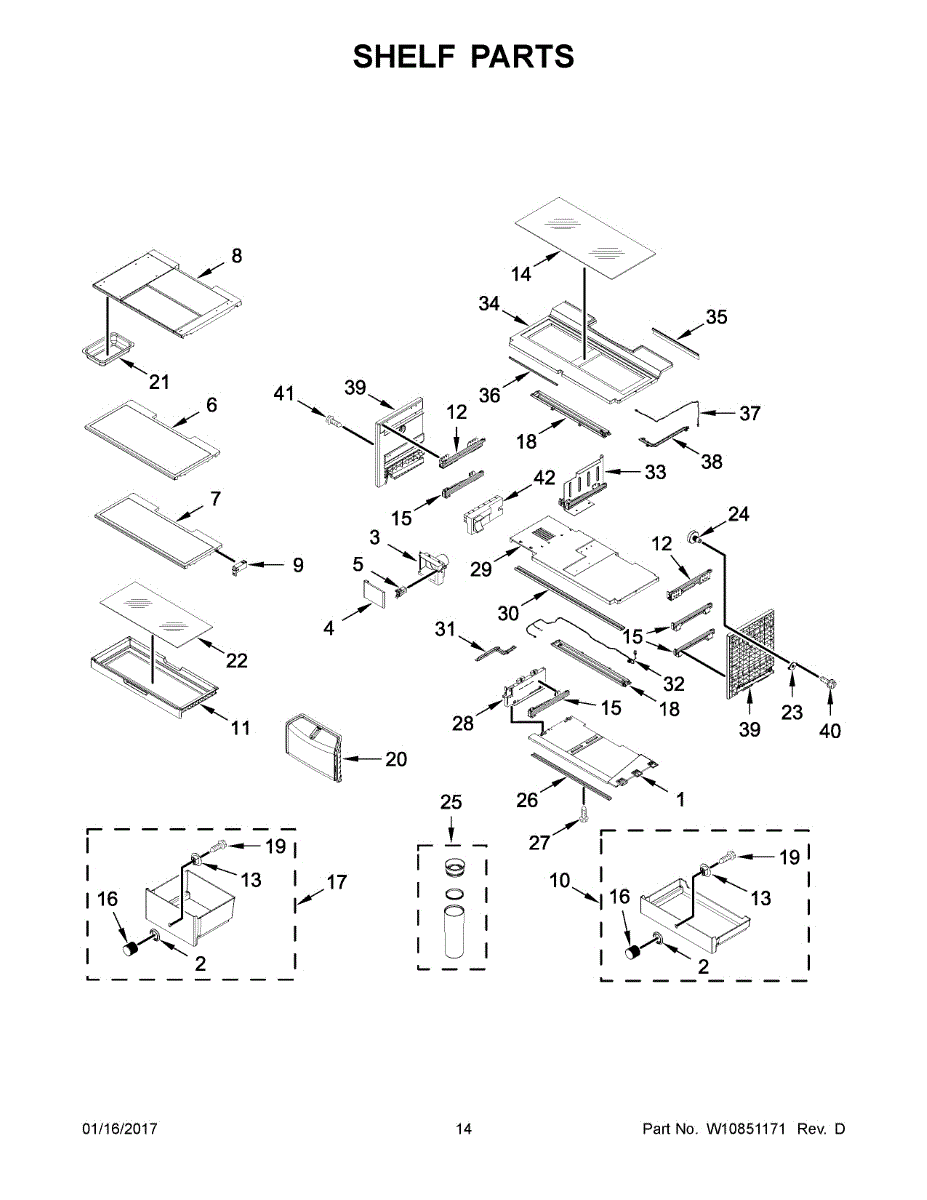

Parts for Kitchenaid KRFC704FSS00: 08 - Shelf Parts

This replacement housing is the cabinet component that protects internal appliance parts and provides mounting for controls and panels. It restores structural support and helps keep components aligned for reliable operation. What it does:

• Replaces a cracked, dented, or broken cabinet housing to restore structural integrity
• Provides mounting points for control panels, switches, and internal assemblies
• Helps reduce rattling or vibration caused by damaged housing
• Protects internal parts from debris and accidental contact

• Disconnect power and water before starting any repair
• Basic tools required; panel removal and partial disassembly often needed
• Handle with care to avoid sharp edges; wear gloves and eye protection

This filter cover secures and protects the appliance's filter housing, keeping the filter seated and helping contain lint, debris and moisture. A correct cover helps maintain proper airflow and keeps the filter working as intended. What it does

• Secures the filter in its housing so the filter stays in place during use
• Helps contain lint and debris to prevent bypass or escape into the appliance
• Protects the filter from damage and helps maintain consistent airflow
• Common symptoms of a bad or missing cover: rattling, filter falling out, visible debris escape, or reduced airflow

• One filter cover

• Disconnect power (or unplug) before accessing the filter housing
• Remove the old cover by releasing any clips or tabs; align new cover and snap into place
• Inspect surrounding sealing surfaces and the filter for damage; replace if necessary
• Use only the correct replacement cover designed for your appliance model

This small, spring-action push latch mounts in trim or liner to secure a flip-down compartment door or cover. Replacing a worn latch restores a positive close and smooth push-to-open operation to the affected door or panel.

• Provides the push-to-latch/push-to-release catch for a small door or cover
• Helps prevent nuisance pop-opens and rattling
• Common symptoms: door/cover won't stay shut, latch feels loose, cracked or missing latch
• Restores proper engagement and closing feel

• Disconnect power to the appliance before starting
• Open the compartment; depress retaining tabs or gently pry the old latch straight out
• Match orientation and snap the new latch fully into the opening
• Test operation: close to latch, press to release

The Glass Shelf is an OEM part for Whirlpool refrigerators that provides storage space and organization within the refrigerator.

A bad glass shelf assembly can occur due to accidental damage, wear and tear, or improper handling. If you notice symptoms such as cracked or broken glass, instability, or difficulty in placing items on the shelf, it may indicate a faulty or damaged glass shelf assembly.

Symptoms of a bad glass shelf assembly include:

• Cracked or broken glass
• Instability or sagging of the shelf
• Difficulty in placing items evenly on the shelf

Restore your refrigerator by replacing the faulty glass shelf assembly with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Shelf-Glas is an OEM component specifically designed for Whirlpool refrigerators. It is the shelving surface located inside the refrigerator and freezer doors. The shelf provides a flush, durable surface for conveniently storing and organizing items.

Causes of a bad shelf-glass are typically physical damage from overloading or dropping heavy items on the shelf. Exposure to moisture or temperature changes may also cause cracks or breaks.

Symptoms of a bad shelf-glas include:

• Broken, cracked, or unstable shelf surfaces
• Scratches or wear patterns that collect dirt
• Inability to safely hold weighted items

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This shelf stud secures a refrigerator shelf to the cabinet liner so the shelf stays level and stable. Replaces a cracked or missing stud to restore proper shelf seating and prevent sudden shelf drops. What it does

• Locks a refrigerator shelf into the cabinet liner and holds the shelf edge in place.
• Prevents shelf sagging, shifting, or sudden falls when loading items.
• Stops rattling or loose shelf movement caused by a broken or worn stud.
• Simple replacement fix when a plastic stud is cracked, stripped, or missing.

• Unplug the appliance or shut off power before service to avoid electrical hazard.
• Remove the shelf or glass first to access the mounting point; handle glass with care and wear gloves.
• Press or snap the stud into the liner hole until fully seated; avoid forcing or over-stressing the liner.

This shelf stud is a small support piece that secures a refrigerator shelf in place, keeping glass or wire shelves stable and aligned for safe storage. It restores proper shelf seating and helps prevent slipping or tilting. What it does:

• Provides a mounting point that holds the shelf edge or bracket in position
• Keeps shelves level to prevent stored items from sliding or tipping
• Common replacement when a stud is cracked, broken, missing, or worn
• Helps restore safe shelf operation after damage or impact

• Disconnect power or unplug the appliance before servicing to reduce risk of electrical shock.
• Remove the shelf and any items from the area before replacing the stud.
• Press or snap the stud into the shelf frame location; if fasteners are present, secure per manufacturer instructions.

A replacement mounting spacer that helps position and secure components for proper alignment and stable operation. Restores correct spacing to reduce vibration and rubbing that can cause noise or premature wear. What it does:

• Maintains correct distance between mounting points and adjoining parts to ensure smooth operation
• Helps prevent rubbing, scraping, or misalignment-related noise during operation
• Supports stable mounting to reduce vibration and movement of nearby components
• Useful when worn, cracked, or missing spacers are causing fit or clearance problems

• Disconnect power to the appliance before beginning any repair
• Remove any panels or components needed to access the spacer
• Inspect adjacent mounts, fasteners, and seals; replace any damaged hardware for a secure fit

This pan handle is the replacement handle used to grip and move a removable oven broiler or drip pan. It restores a secure hold for safe removal and placement, helping you handle hot pans with better control. What it does:

• Provides a sturdy grip for removing, carrying, and positioning the oven broiler/drip pan
• Replaces a cracked, loose, or missing pan handle to reduce slipping and accidental drops
• Helps prevent direct contact with hot metal by giving a stable handle point
• Fits the OEM pan design to maintain original handling and alignment

• Basic hand tools may be required; follow your appliance owner's manual for access instructions
• Ensure the appliance is off and completely cool before attempting installation
• Handle with care; check that the handle locks or seats fully before use

The Snack Drawer is an OEM component for Whirlpool refrigerators. As a specialized storage solution, it provides convenient access to frequently used small items and snacks directly within the refrigerator door.

The snack drawer utilizes precision slides and runners to allow for smooth opening and closing even after years of use. Its integrated shelves keep items neatly organized without obstructing airflow for cooling.

Causes for a faulty snack drawer can include stripped slide channels from overloading or failure of the mounting brackets releasing proper tension over time.

Symptoms of a problem with the snack drawer include:

• Items left inside falling out when the door opens
• Difficulty fully extending or retracting the drawer
• Noisy operation or binding during movement
• Flimsy fit that causes inadvertent opening

Compatible with many Kenmore, Maytag, Jenn-Air, and other co-branded models as well.
