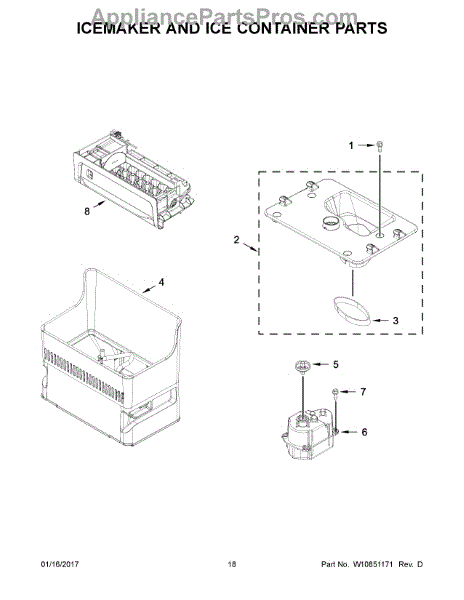

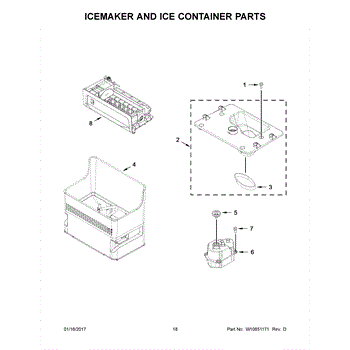

Parts for Kitchenaid KRFC704FSS00: 10 - Icemaker And Ice Container Parts

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Ice Chute Mounting Plate Assembly is an OEM part for Whirlpool refrigerators. It is responsible for securely holding the ice chute in place, ensuring proper alignment and smooth dispensing of ice.

A bad ice chute mounting plate assembly can occur due to regular use, accidental damage, or wear and tear over time. If you notice issues such as ice not dispensing properly, the chute becoming loose or misaligned, or water leaks around the ice dispenser area, it may indicate a problem with the mounting plate assembly.

Symptoms of a bad ice chute mounting plate assembly include:

• Improper or inconsistent ice dispensing
• Loose or wobbly ice chute
• Water or drips around the ice dispenser area

Replace your faulty ice chute mounting plate assembly with this genuine OEM part to restore your refrigerator’s dispenser.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This ice chute gasket seals the dispenser funnel opening to the freezer door. A tight seal keeps warm air and moisture out of the chute, helping prevent frost buildup, condensation, and drips around the dispenser. What it does:

• Seals the ice dispenser chute/funnel to prevent air leaks
• Helps reduce frost and ice buildup in the chute area
• Minimizes condensation and water droplets at the dispenser opening
• Supports consistent ice flow by limiting clumping from warm air intrusion

• 1 ice chute gasket

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control and funnel to access the gasket
• Note orientation; press the new gasket evenly into place without stretching
• Reassemble and verify the ice door closes and seals properly

The Ice Bucket Coupler is an OEM part for Whirlpool refrigerators. It is a component that connects the auger motor to the ice bucket and facilitates proper ice delivery. The coupler works behind the scenes to allow a smooth transfer of ice from the bucket to the dispenser for convenient access.

Causes of a bad Ice Bucket Coupler can include wear and tear over time, fatigue from continuous use, or damage to the coupling mechanism.

Symptoms of a bad Ice Bucket Coupler include:

• Ice cubes accumulating near the icemaker and not filling the bucket
• Decreased ice production or an empty bucket despite the icemaker running
• Loose ice bucket connection or the bucket detaching from the refrigerator body

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Auger Drive Motor is an OEM part for Whirlpool refrigerators. It is responsible for powering the auger mechanism that dispenses ice from the ice maker into the ice bucket or directly through the door dispenser. This motor ensures that ice is delivered smoothly and efficiently whenever needed.

Over time, the auger drive motor can wear out or fail due to constant use or electrical issues. Causes of a bad auger drive motor can include motor burnout, electrical malfunctions, or damage from ice buildup.

Symptoms of a bad auger drive motor include:

• The ice dispenser not dispensing ice
• Unusual noises coming from the ice maker area
• The auger not turning or moving slowly
• Intermittent operation of the ice dispenser

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

The Icemaker is an OEM part for Whirlpool refrigerators. It is responsible for producing ice within the freezer compartment. The icemaker automates the ice-making process, ensuring a steady supply of ice without manual intervention.

Causes of a bad icemaker can include wear and tear over time, clogging or blockage in the water supply line, electrical issues affecting the icemaker's functionality, or damage due to mishandling or impact. It is important to maintain the icemaker and ensure the water supply is clean and free from obstructions to prolong its lifespan.

Symptoms of a bad icemaker include:

• No ice production
• Slow ice production
• Ice cubes are smaller than usual
• Ice cubes are malformed or hollow
• Leaking water around the icemaker

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
