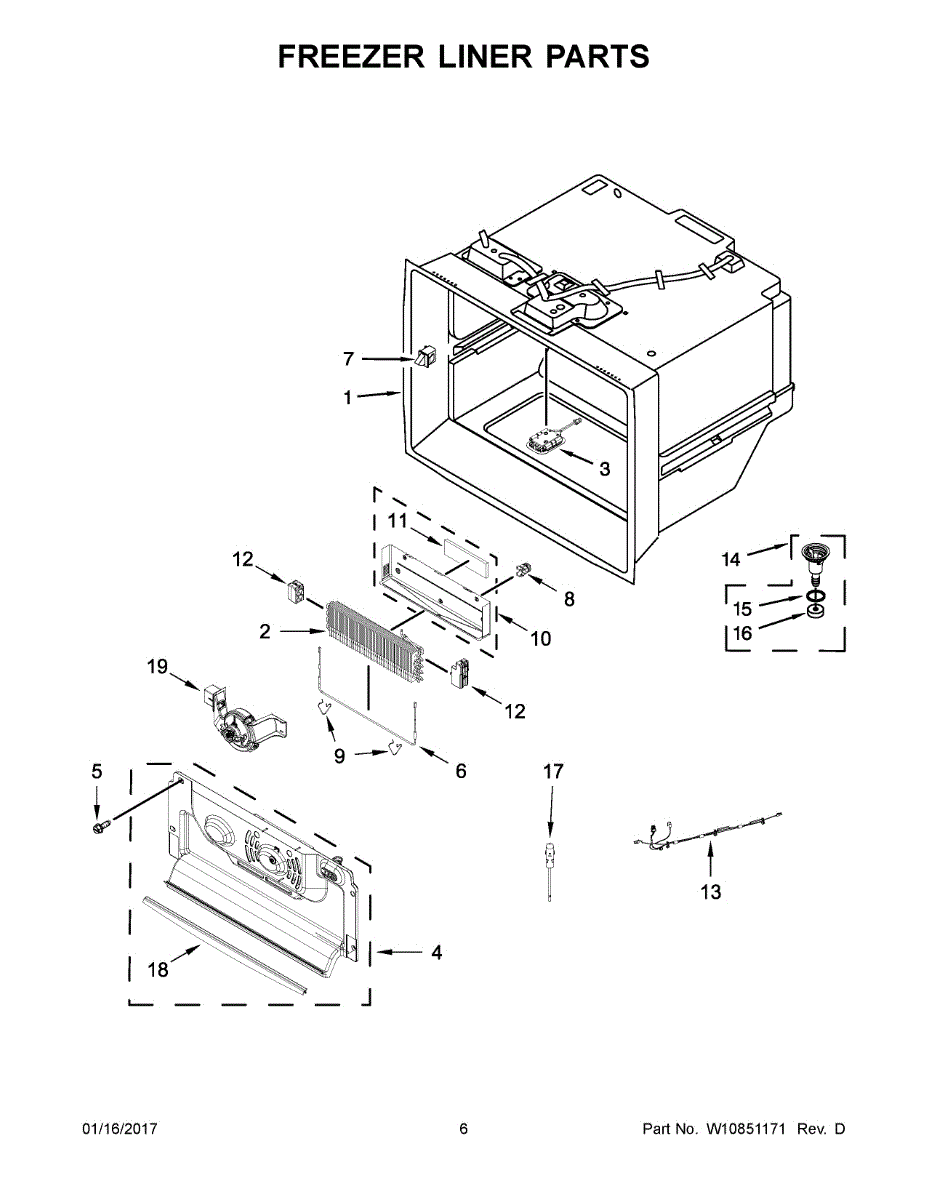

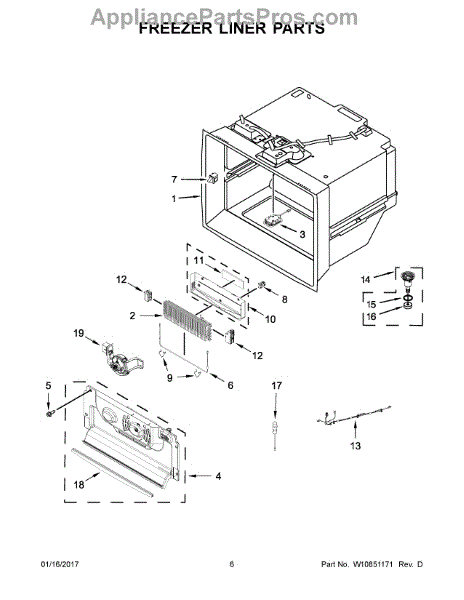

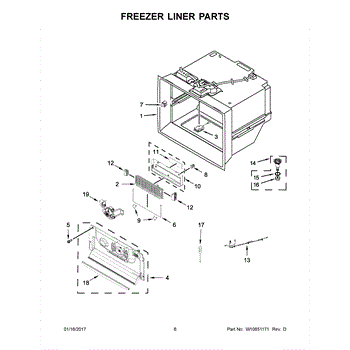

Parts for Kitchenaid KRFC704FSS00: 04 - Freezer Liner Parts

The LED Light Module Kit is an OEM part compatible with Whirlpool refrigerators and freezers. The kit contains 12 LED lights to replace all LEDs within the refrigerator. Within the interior cavity, this module evenly illuminates the compartment to visually check contents. LED technology provides a cool, energy-efficient light source.

Causes of a bad light module can include failure of individual LED bulbs over time, wires detaching from the circuit board, or damage from moisture intrusion.

Symptoms of a bad LED light module include:

• Dim, flickering, or completely non-functional lighting
• Hot spots or sections of the module not illuminating
• Audible buzzing or humming from internal electronics

This replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This heater is the dryer heating assembly that produces the hot air needed to dry clothes. Replaces a worn or failed heater so your dryer can reach operating temperatures and dry loads efficiently. What it does:

• Generates heat for the dryer drum so clothing dries during normal cycles
• Commonly replaced when the dryer runs but produces little or no heat
• Addresses long dry times or loads that remain damp after a full cycle
• Works with the dryer's thermal cutoff/thermostats to regulate temperature

• Disconnect power to the appliance before beginning service to avoid shock
• Handle the element carefully; avoid bending the heating coils or damaging terminals
• Verify related thermal fuses/thermostats and venting if the dryer still heats poorly after replacement
• Test operation after install and restore all safety panels

This replacement NC light switch restores proper operation of the appliance's light circuit, helping the light turn on and off as designed for safe use and visibility during service or operation. What it does

• Completes or breaks the light circuit when the door or control triggers the switch.
• Restores interior or indicator light operation that is dim, flickering, or nonfunctional.
• Prevents the light from staying on continuously if the switch is failed closed.
• Matches the OEM function for reliable, long-term use when replacing a worn switch.

• Disconnect power before servicing to avoid shock or injury.
• Access may require removing panels or door trim—refer to your model's service manual or tech sheet.
• Inspect wiring and connectors; replace any damaged harnesses or terminals.

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

The Wire Harness is an OEM part for Whirlpool refrigerators. It forms the bundled network transmitting power and signals between electronic control boards and internal components.

Symptoms of a bad wire harness can include intermittent or complete component failures due to wire insulation cracks exposing live connections to moisture. Physical stress from frequent door openings may also nick individual electrical lines.

Causes of a bad wire harness typically involve long-term vibration wear and repeated flexing/abuse of wires near hinge points. Sharp shelving edges pose an abrasion risk over many years of use.

Symptoms of a bad wire harness include:

• Lights or temperature displays that suddenly cut out
• Ice/water dispenser that fails to operate
• Frequent error codes related to specific zones or shelves
• Buzzing or arching sounds near routing points

Compatible brands include KitchenAid, Jenn-Air, and Kenmore models.

The Drain Funnel is an OEM part for Whirlpool French door refrigerators. It serves as the sloped plastic strainer that guides water from the evaporator coils s it into the drip pan below.

Causes of a faulty Drain Funnel include cracks or punctures developing from continuous use transferring water weight. Mineral deposits or food particles that gradually collect on funnel surfaces could restrict proper drainage as well over time.

Symptoms involve:

• Puddling or spilled water inside refrigerator interiors
• Uncontrolled leaks potentially damaging other components
• Restricted airflow if funnel clogs from sediment buildup
• Musty odors developing without efficient drainage management

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This O-ring seal provides a watertight seal for the appliance's water path, helping prevent leaks and maintain proper operation. Use this exact replacement when the original ring is cracked, flattened, or worn. What it does:

• Creates a pressure-tight seal at a water connection to stop drips and leaks
• Keeps water contained inside hoses, valves or pump fittings
• Restores proper sealing when the original O-ring becomes brittle or deformed
• Helps prevent water damage to cabinetry and flooring from appliance leaks

• One O-ring seal

• Turn off power and water supply before beginning any repair
• Remove the old O-ring and clean mating surfaces of debris and buildup
• Inspect the groove or fitting for damage; replace the part if the mating surface is scored
• If needed, use a small amount of manufacturer-recommended lubricant to ease installation and protect the O-ring

This drain tube gasket seals the connection between the drain tube and its mating port to prevent leaks. A tight seal helps keep water where it belongs and protects surrounding components from moisture damage.

• Creates a watertight seal at the drain tube connection point
• Can help address water leaks around the drain area
• Deterioration, cracking, or hardening of the old gasket may cause seepage
• Replacing a worn gasket can restore proper leak prevention

• Unplug the appliance and shut off water supply before service
• Place a towel or pan to catch residual water when disconnecting the tube
• Inspect the tube and mating surfaces; clean before installing the new gasket
• Do not overtighten fittings; verify a snug, even seal and check for leaks on first run
