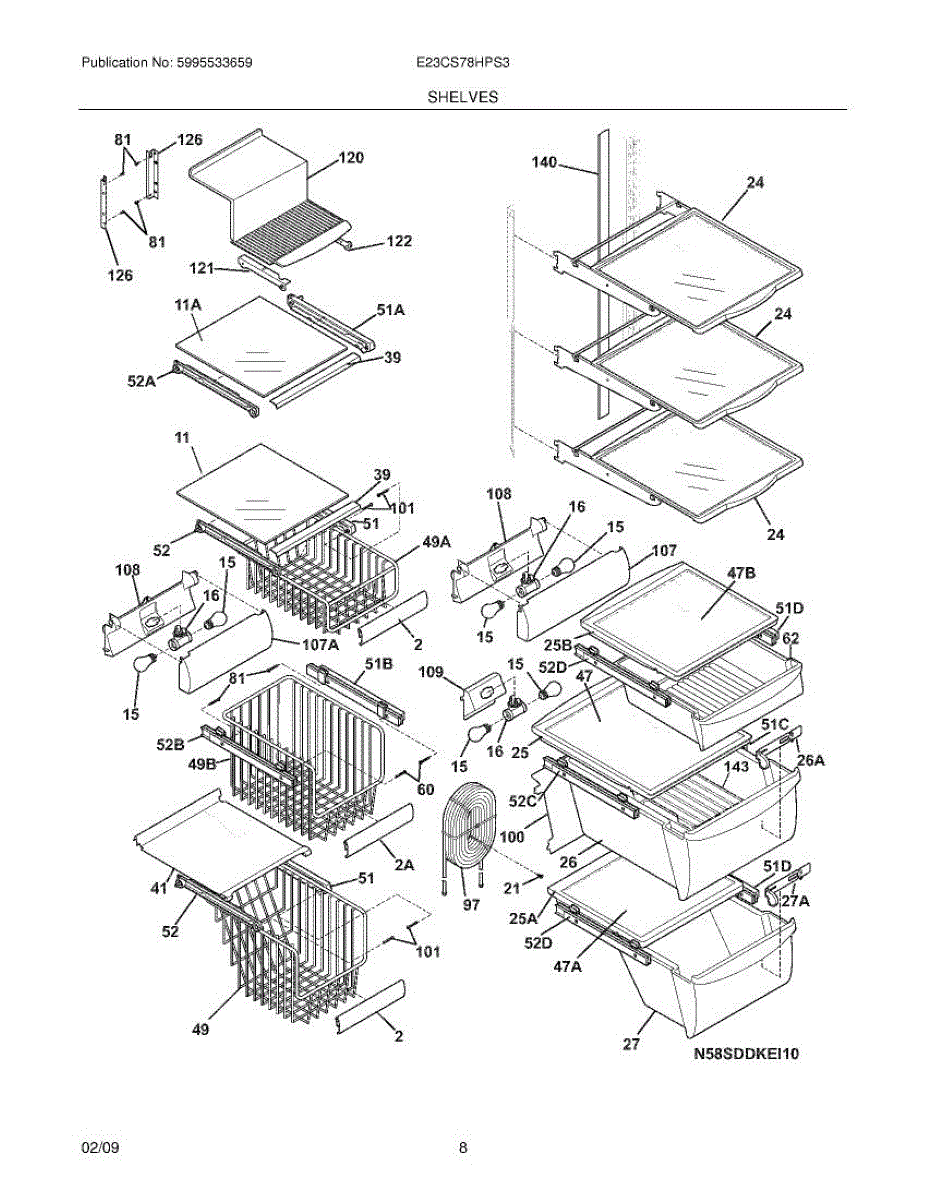

Parts for Electrolux E23CS78HPS3: 09 - Shelves Parts

Frigidaire PureAir® Refrigerator Air Filter combines activated carbon, Zeolite and real baking soda to reduce odors from foods such as onions, garlic, fish, stale milk and over-ripe fruits and vegetables. Recommended air filter replacement is every six months. Dimensions: 4-1/2" x 2-1/2"

This interior refrigerator glass shelf replaces a damaged or missing shelf, restoring a stable, easy-to-clean surface for storing food and containers. Its flat design helps keep items organized and visible. What it does:

• Provides a stable, flat surface for food, containers and small items.
• Replaces cracked, chipped, shattered or missing shelf glass.
• Easy-to-clean surface helps contain spills and reduce odors.
• Intended as a replacement for the factory shelf when installed on existing supports.

• Remove food and any loose items before removing or installing the shelf.
• Wear cut-resistant gloves and handle the glass by its edges to avoid injury.
• Slide or set the shelf into the existing tracks or ledges without forcing; ensure it sits level.
• If shelf clips, rails or supports are damaged, replace those parts separately before installing the glass.

This freezer shelf provides a sturdy, level surface for organizing food in the freezer compartment. Replace a broken, bowed, or missing shelf to restore storage capacity and keep containers stable, accessible, and out of the air vents.

• Provides a flat, stable surface for food storage in the freezer
• Replaces cracked, warped, or missing shelf that won't sit level
• Helps maintain organization and efficient airflow
• Seats securely in the factory side supports when properly installed

• Disconnect power before servicing; remove food from the work area
• Lift the front edge and pull out to release the old shelf from the side supports
• Align the new shelf with the support rails; push back until fully seated and level
• Load food evenly and avoid overloading the shelf

The LED Light Bulb is an OEM part for Frigidaire refrigerators. It provides illumination inside the refrigerator, making it easier to see and access food items.

Causes of a bad LED light bulb can include burnout from prolonged use, electrical surges, or damage from physical impact. Additionally, issues with the bulb's connection or internal circuitry can result in malfunction.

Symptoms of a bad LED light bulb include:

• The refrigerator interior remaining dark when the door is opened
• Flickering or dim light
• Intermittent lighting
• Complete failure to light up

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This receptacle is the mating socket for a plug-in refrigerator component, providing a secure connection for reliable operation. Replacing a worn or heat-damaged socket restores solid contact and helps prevent intermittent performance.

• Serves as the socket/interface for a plug-in component inside the appliance
• Maintains tight contact for consistent operation and safe connectivity
• Replaces loose, burned, or broken sockets that can cause heat or arcing
• Common symptoms: connected part won't run or is intermittent; loose fit; visible discoloration or melting at the socket

• Disconnect power to the appliance before servicing
• Access the socket location and note/photograph wire orientation
• Transfer wires/terminals one at a time to the new receptacle; ensure full seating
• Inspect the mating plug/harness for heat damage and replace if necessary

This replacement cover restores a clean, finished look and protects internal components inside your refrigerator. Replace a broken or missing cover to keep parts secured and the compartment properly enclosed for dependable everyday use.

• Conceals and protects internal components or hardware in the designated area
• Restores a secure, finished enclosure over the section it covers
• Common failure signs: cracked, warped, or missing cover
• Won't snap or stay in place; loose or rattling piece
• Exposed screws/hardware or items snagging on the opening

• Unplug the refrigerator before servicing
• Clear food items/shelves as needed to access the cover
• Release retaining tabs or remove mounting screws; transfer any reusable hardware
• Align and snap or fasten the new cover; verify secure fit before restoring power

This humidity control assembly adjusts airflow to the crisper/produce drawer, helping maintain optimal humidity for fresh produce and reducing premature wilting. It replaces a worn or broken control to restore adjustable drawer humidity regulation. What it does:

• Regulates airflow between the fridge compartment and crisper to control drawer humidity.
• Lets you select higher humidity for leafy greens or lower humidity for fruits.
• Restores smooth slider or lever operation if the original is cracked, loose, or stuck.
• Helps prevent excess moisture buildup or premature drying in the produce drawer.

• High-level, user-serviceable replacement; access typically requires removing the crisper drawer.
• Disconnect power to the appliance before servicing to avoid injury.
• Handle plastic parts gently to avoid damage; verify correct orientation before tightening.

This humidity control is the adjustable slider in the crisper drawer cover that opens and closes the vent to regulate moisture around fruits and vegetables. Replace a cracked or missing control to restore smooth adjustment and consistent crisper conditions.

• Mounts to the crisper cover and links to the vent/damper door
• Slides between settings to increase or reduce airflow for proper crisper humidity
• Typical symptoms: broken or missing lever, slider stuck or loose, vent doesn't move as you adjust, excess condensation or wilting produce

• Disconnect power; remove food, crisper pan, and cover/glass as needed—handle glass carefully
• Release the old control from its slot/retainer and note the vent linkage orientation
• Seat the new control and engage the linkage; confirm full travel and proper vent action
• Reassemble the cover and drawer, then restore power

The Crisper Pan is an OEM part for Frigidaire refrigerators. This pan is designed to store fruits and vegetables at an optimal humidity level, helping to keep them fresh for longer periods. It slides easily in and out of the refrigerator compartment, allowing for convenient access and organization of produce. The drawer measures approximately 15 inches in width and extends about 16 inches from front to back. Please note that due to a factory revision, the new version of this crisper drawer does not feature a humidity control slide.

You should replace the crisper pan if it becomes cracked, broken, or difficult to slide. Causes of a bad crisper pan can include overloading, dropping, or general wear and tear over time. Damage to the crisper pan can lead to reduced functionality and improper storage conditions for your produce.

Symptoms of a bad crisper pan include:

• Cracks or breaks in the plastic
• Difficulty in sliding the pan in or out
•  Reduced storage capacity due to damage
• Food not staying fresh as long

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Pan Cover Insert is an OEM part for Frigidaire refrigerators. It serves as a protective cover for the refrigerator’s crisper or storage pans, helping to maintain optimal humidity levels for stored produce and other items. The pan cover measures approximately 13-3/4 by 15-7/16 inches.

Causes of a bad pan cover insert can include cracking or breaking due to mishandling, exposure to heavy loads, or wear and tear over time. A damaged insert can lead to reduced efficiency in maintaining the desired humidity levels, affecting the freshness of stored items.

Symptoms of a bad pan cover insert include:

• Cracks or breaks in the cover
• Difficulty in fitting the cover properly
• Reduced freshness of produce
• Visible wear or discoloration

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Crisper Glass Insert is an OEM part for Frigidaire refrigerators, designed to fit over the crisper drawers. This glass insert provides a sturdy and flat surface for storing fruits, vegetables, and other items in the refrigerator's crisper section, helping to maintain optimal humidity levels and keep produce fresh longer. The glass measures approximately 17.12 inches X 15.40 inches.

Symptoms of a failing Crisper Glass Insert include:

• Cracks or chips in the glass
• Difficulty fitting the glass properly due to damage
• Excessive scratching that obscures visibility

Causes of a bad Crisper Glass Insert can range from accidental damage, such as dropping heavy items on the glass, to normal wear and tear over time.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This HANGER-BASKET secures the silverware/basket assembly in the dishwasher rack so cutlery and small items stay upright for better cleaning and drying. It replaces a broken or worn rack hanger to restore proper basket support. What it does:

• Holds and stabilizes the silverware basket on the dishwasher rack during cycles
• Prevents the basket from tipping, shifting, or falling into the wash area
• Helps maintain proper spray clearance so utensils receive consistent cleaning
• Reduces noise and wear caused by a loose or damaged basket hanger

• One hanger-basket piece as shown

• Disconnect power and water to the appliance before beginning any service
• Typically installs by snapping or sliding onto the rack rail—confirm orientation before fastening
• Inspect surrounding rack clips and rails for damage; replace if needed to ensure secure fit

This hanger-shelf glass is the replacement glass shelf that mounts to the refrigerator door, restoring a secure, flat surface for storing bottles and containers. Replaces cracked or chipped door shelf glass to help keep items stable. What it does

• Provides a sturdy, flat shelf surface for door storage.
• Hangs into the door rail to support bottles, jars, and deli items.
• Restores a broken or chipped door shelf so items no longer shift or fall.
• Matches OEM fit and mounting style for a clean, stable installation.

• Remove food and any loose items from the door before replacing the shelf.
• Handle carefully and wear cut-resistant gloves; glass edges may be sharp.
• Align the shelf hangers with the door rails and slide into place until fully seated.
• If mounting clips or supports were damaged, replace them before installing the new glass.

Right Side

The Freezer Basket Hanger is an OEM part for Frigidaire refrigerators. It provides a sturdy mounting solution for organizing freezer baskets and maximizing usable storage space within the freezer compartment.

Causes of a bad freezer basket hanger include cracks or breaks due to heavy loads, general wear and tear over time compromising its structural integrity, or accidental damage during cleaning or rearranging.

Symptoms of a bad freezer basket hanger include:

• Freezer baskets that no longer stay securely in place
• Slide-out baskets that are difficult to maneuver or move freely
• Reduced storage capacity due to unstable basket placement
• Potential for items to fall and become damaged

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This hanger-shelf glass is the replacement glass support used to hold and stabilize a refrigerator shelf. It restores a secure, level surface for stored items and replaces cracked or missing shelf supports. What it does:

• Supports and secures the refrigerator glass shelf to its hanger/rail
• Keeps the shelf level to prevent stored items from sliding or tipping
• Replaces broken, cracked or worn hanger supports that cause shelf instability
• Helps restore proper shelf alignment and safe storage inside the compartment

• One hanger-shelf glass replacement

• Handle glass carefully and wear cut-resistant gloves to avoid injury
• Remove shelf contents and the damaged shelf before installing the replacement
• Follow the appliance manufacturer's instructions for re-seating the glass into the hanger/rails

A replacement hanger basket that supports items inside the appliance so clothes or components stay organized and secure. Restores proper basket support and helps prevent sagging or shifting during operation. What it does:

• Holds and supports garments or items in the appliance basket area
• Helps maintain even load distribution to reduce rubbing or snagging
• Can resolve symptoms like a loose, tilted, or missing basket support
• Replaces worn or damaged hanger/basket hardware

• One hanger basket

• Disconnect power before inspecting or replacing parts
• Remove surrounding panels or components as needed for access
• Use basic hand tools; handle sharp edges carefully

A replacement hanger that secures a removable wire basket inside a refrigerator or freezer, restoring stable support and alignment. Helps prevent baskets from tipping, slipping, or detaching during normal use. What it does:

• Supports and secures a removable wire basket so it stays aligned and stable.
• Replaces a broken, bent, or missing hanger that allows baskets to fall or hang unevenly.
• Helps stop baskets from slipping out of position or tipping when loaded.
• Restores proper basket engagement with the cabinet track or mounting point.

• Disconnect power to the appliance or unplug before servicing to avoid electrical hazards.
• Remove food, shelves, and the basket to access the hanger; use basic hand tools as needed.
• Align the hanger with the mounting location and engage clips or screws without forcing; verify the basket hangs securely before returning items.
• If mounting hardware or the cabinet track is damaged, replace those components per manufacturer guidance.

This freezer basket hanger is the side rail that supports and guides your freezer's sliding wire basket. Replace a cracked or worn hanger to restore smooth movement, prevent sagging, and keep your basket seated securely.

• Supports the side of the freezer basket and carries its load
• Provides a track so the basket slides in and out smoothly
• Helps keep the basket aligned and level to prevent tilting or popping loose
• Common symptoms of failure: basket hard to slide, sagging/tilting, broken or cracked hanger tabs

• Disconnect power and remove food and the basket before starting
• Release/remove the old hanger (tabs/screws), noting its orientation; transfer any reusable hardware
• Seat and secure the new hanger, then reinstall the basket and verify smooth operation

Replacement drip pan that captures defrost runoff and other liquids beneath the appliance, helping prevent puddles and odors. Fits into the base to restore proper fluid collection and reduce leaks. What it does:

• Collects and channels moisture and defrost water away from the cabinet to prevent pooling under the unit.
• Helps reduce musty odors and water damage caused by a cracked, warped, or missing pan.
• Supports bottom components and maintains proper clearance where applicable.
• Works with the appliance's existing drain path; a damaged pan can cause visible leaks or puddling.

• Disconnect power and remove any food or items from the appliance before starting.
• Access may require removing lower access panels or the toe kick; follow your model's service instructions.
• Inspect mounting tabs and surrounding seals; ensure the pan seats flat and the drain path is clear.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This molded water reservoir stores and directs water for the refrigerator's dispenser and ice system, restoring normal water flow and reducing leaks when the original tank is cracked or damaged. Fits specific Frigidaire refrigerator configurations. What it does:

• Holds and routes water from the household supply to the dispenser and ice maker
• Replaces a cracked, warped, or leaking reservoir that causes pooling or loss of water flow
• Restores proper water pressure to downstream valves and components when the tank is compromised
• Helps prevent contaminants from entering the dispenser system when installed intact

• One water tank (reservoir) as shown

• Disconnect power and shut off the water supply before starting work
• Drain any remaining water from lines and the old tank to avoid spills
• Handle the tank carefully to avoid damaging fittings; replace any worn gaskets or clips as needed

This is a factory replacement screw fastener used to secure components in your appliance. It restores a tight, rattle-free fit for panels, brackets, and trim when an original screw is missing, stripped, or corroded.

• Secures panels, brackets, and trim to the appliance cabinet or liner
• Replaces a missing, stripped, or rusty screw
• Helps eliminate looseness, vibration, or rattling components
• Maintains proper alignment and a clean, factory fit

• Unplug the appliance before servicing; if near water lines, shut off the supply
• Match to the original and install in the same location/orientation
• Start threads by hand to avoid cross-threading; do not overtighten, especially into plastic
• Keep and reuse any original washers or spacers if present

The opening for the on/off switch is no longer in the shelf. Per manufacturing.

This ice cream shelf rail secures the small shelf/bin on the freezer door so tubs and containers stay in place. It restores the door bin edge that holds lightweight frozen goods and keeps items from shifting during normal use. What it does:

• Replaces a cracked, broken or missing freezer door rail that allows containers to fall or tip
• Provides a stable lip for ice cream tubs, butter, and other small frozen items
• Helps restore proper fit and appearance of the freezer door storage area
• Fits into the existing door bin mounting points and holds the bin edge securely

• One ice cream shelf rail

• Unplug the appliance or shut off power before servicing to avoid electrical hazard
• Remove the door bin or ice cream shelf per your model's instructions to access the rail
• Typically snaps or screws into place; keep original fasteners if present and reuse when possible

Right hand side. For the left hand side order 241674401

Left hand side. For the right hand side order 241674402
