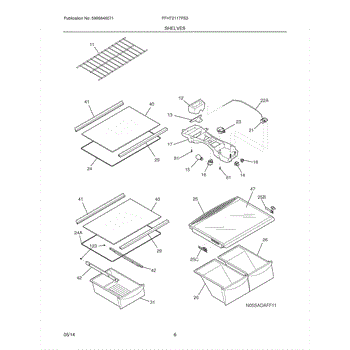

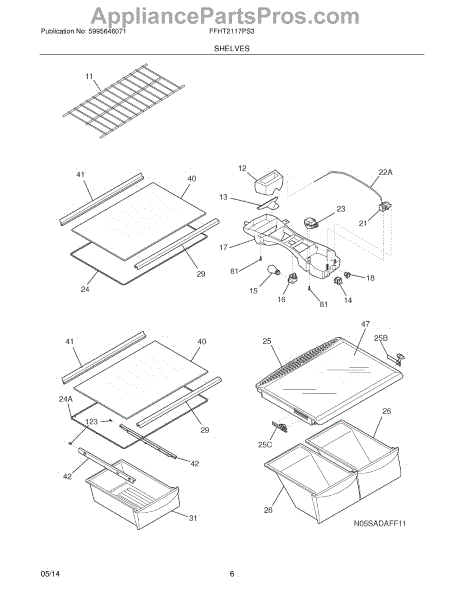

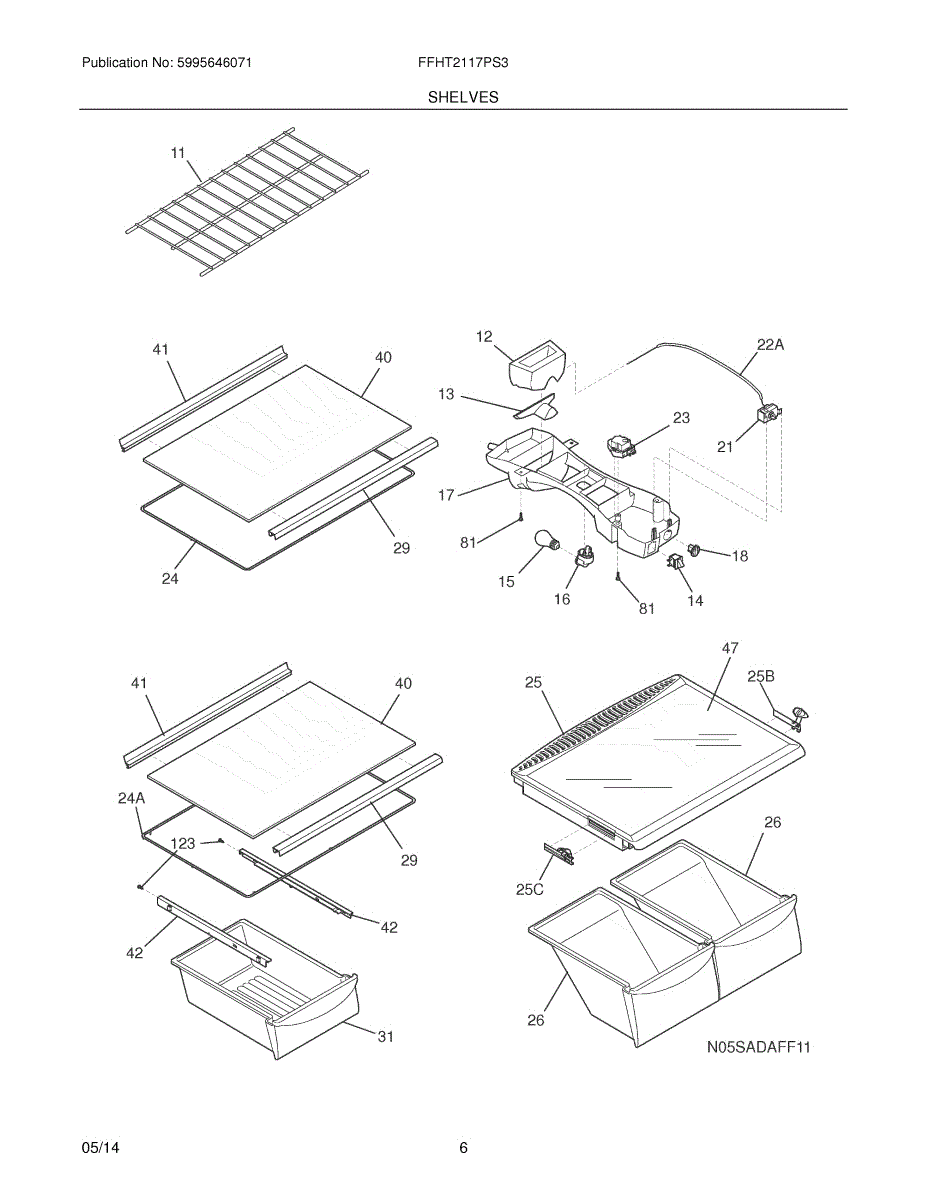

Parts for Frigidaire FFHT2117PS3: 07 - Shelves Parts

Wire freezer shelf

This top air diffuser directs cold airflow inside the refrigerator compartment to help maintain even temperature distribution and reduce hot spots. It replaces a cracked or damaged diffuser to restore proper airflow direction. What it does:

• Channels and disperses cold air from the evaporator into the fresh food cavity
• Helps prevent uneven cooling and localized warm spots
• Replaces broken, cracked, or warped diffusers that cause poor airflow
• Reduces gusty or misdirected airflow noises when damaged

• One top air diffuser

• Disconnect power to the appliance before beginning any repair
• Remove shelves and any interior trim blocking access to the diffuser
• Typically snaps or screws into place; handle gently to avoid cracking

Bottom air diffuser directs cold air into the refrigerator's lower cabinet to help maintain even temperatures and reduce warm spots. Replacing a damaged diffuser restores proper airflow and helps the fresh-food section cool more consistently. What it does:

• Redirects cold air from the cooling channel into the refrigerator's lower cabinet for balanced cooling.
• Helps reduce warm spots and uneven temperatures in the fresh-food area.
• A cracked, broken, or missing diffuser can lead to restricted airflow and inconsistent cabinet temperatures.
• Seats into the lower air channel and secures with factory tabs or fasteners; inspect mounting tabs for damage.

• Disconnect power to the appliance before performing any service.
• Remove shelves and drawers as needed for access; work carefully around evaporator/air channels.
• Gently release and re-seat plastic tabs or remove fasteners; avoid forcing parts to prevent breakage.
• If tabs are damaged, replace them or consider replacing adjacent vent components to ensure a secure fit.

The Light Switch is an OEM replacement part for Frigidaire refrigerators. This switch controls the interior light of the refrigerator, turning it on when the door is opened and off when the door is closed. It ensures that the refrigerator is properly illuminated, making it easier to find items inside.

Causes of a bad light switch can include electrical malfunctions, physical damage from repeated use, or wear and tear over time.

Symptoms of a bad Light Switch include:

• Interior light not turning on when the door is opened
• Light flickering or intermittently turning on and off
• The refrigerator light staying on even when the door is closed

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator light socket holds and powers the interior bulb so you can clearly see inside. Replace a cracked, heat-damaged, or loose socket to restore reliable illumination when the interior light won't work or flickers.

• Provides the electrical connection and mounting point for the compartment light bulb
• Fixes symptoms such as no interior light with a known-good bulb
• Addresses intermittent flickering when the door is opened or closed
• Helps resolve visible charring, melting, or broken contacts on the socket
• Corrects a loose bulb that won't stay seated or lit

• Disconnect power to the refrigerator before servicing; remove the light lens/cover and bulb
• Note wire positions; release the old socket from its mount
• Transfer wires to the new socket one lead at a time and seat the socket fully
• Reinstall the bulb and cover; restore power and test
• Use only the bulb type and wattage specified for your model

This control box houses and protects the appliance's electronic controls and wiring, restoring a secure mounting point for the console and control modules. Replacing a damaged control box helps resolve loose or exposed electronics and supports reliable button and display operation. What it does:

• Provides a secure enclosure for the control board and wiring harness
• Protects electronics from damage, debris, and shorting
• Restores proper mounting and alignment of the control console
• Can stop symptoms like loose or intermittently working buttons, exposed wiring, or a rattling console

• Disconnect power to the appliance before starting any work
• Replacement typically requires removing the control console or outer panel to access mounting screws and harness connections
• Handle electronics and connectors carefully; avoid forcing or bending housing tabs

This temperature control knob replaces a worn or broken fridge temperature dial so you can set the refrigerator temperature accurately. It restores a solid grip and clear pointer for reliable, easy adjustments. What it does:

• Fits onto the temperature control shaft to select colder or warmer settings
• Provides a clear pointer for precise temperature selection
• Replaces cracked, stripped, or missing knobs that make adjustments difficult
• Helps eliminate loose or slipping knob operation

• One temperature control knob

• Push-fit installation onto the control shaft; no special tools typically required
• Ensure power is off and remove food before working in the appliance for safety
• Inspect the control shaft for damage; replace the control if the shaft is stripped

The Cold Control is an OEM part for Frigidaire refrigerators. It regulates the temperature inside the fridge and freezer compartments by controlling the compressor, evaporator fan, and cooling vents. Proper cooling depends on the cold control operating reliably.

Symptoms of a bad cold control include:

• Fluctuating temperatures that don't stay consistent
• The refrigerator or freezer running excessively hot or cold
• The compressor not turning on at all

Causes of failure can be worn over many years of use or damage to electronic components. Without an accurately functioning control, cooling performance diminishes significantly.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement water tube routes water within the refrigerator's internal water system. Installing a fresh, intact tube helps stop leaks and restores reliable water flow to the dispenser and ice maker. What it does:

• Carries water between components such as the inlet valve, reservoir, dispenser, and ice maker
• Maintains a sealed, kink-free path for proper flow and pressure
• Common signs of failure: leaks or puddling, weak or no dispenser flow, ice maker not filling, brittle or discolored tubing

• One tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the original routing; take photos to match length and path
• If trimming, cut ends square and fully seat into the existing push-to-connect or compression fittings
• Restore water and check all connections for leaks before powering the unit back on

The Defrost Timer is an OEM replacement part for Frigidaire refrigerators. It is a crucial component that controls the defrost cycle, ensuring proper and efficient defrosting of the freezer compartment.

Symptoms of a bad defrost timer:

• Excessive ice buildup in the freezer compartment
• Freezer not maintaining the desired temperature
• Water leaks or moisture accumulation due to improper defrosting
• Refrigerator running constantly or cycling too frequently

Causes of a defective defrost timer can include mechanical wear and tear, electrical malfunctions, or simply reaching the end of its lifespan due to regular use.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This sliding full-width shelf frame supports the shelf glass and mounts to the refrigerator liner using rear hanger tabs. Replacing a damaged frame restores safe storage and smooth slide-out access to items on the shelf.

• Supports the shelf glass and distributes weight across the full width
• Hangs securely on rear tabs to keep the shelf level and stable
• Allows the shelf to slide in and out for easier loading and access
• Replace when the frame is cracked, warped, sagging, or the shelf no longer slides properly

• Unplug the refrigerator and clear the shelf area
• Carefully remove the glass insert and any front trim, if present, to reuse
• Lift out the damaged frame and set the new frame onto the supports/hanger tabs
• Reinstall the glass and any trim; verify the shelf sits level and slides smoothly

The Humidity Control Slide is an OEM part for Frigidaire refrigerators. This part regulates the humidity levels within the crisper drawers, helping to keep fruits and vegetables fresh for longer periods. The slide allows users to adjust the ventilation in the crisper, providing optimal storage conditions for different types of produce.

Causes of a bad humidity control slide can include regular wear and tear, accidental breakage, or misalignment that prevents it from moving smoothly.

Symptoms of a bad humidity control slide include:

• Difficulty adjusting the humidity settings
• The slide feeling loose or falling off
• Produce not staying fresh as long as expected
• Visible damage or cracks on the slide mechanism

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Frigidaire humidity control slide is an OEM replacement part responsible for regulating and adjusting the humidity levels within the crisper drawers of a refrigerator. This slide is found on the fresh food drawer to allow adjustment of the amount of moisture retained in the crisper drawers, which is essential for preserving the freshness and crispness of fruits and vegetables.

By adjusting the humidity control slide, users can create an ideal environment for different types of produce, ensuring that they stay fresh for longer periods and preventing food waste from wilting or drying out prematurely.

This part fixes the following symptoms

• Inability to adjust or control the humidity levels within the crisper drawers.
• Produce items wilting or drying out quickly due to improper humidity regulation.
• The control slide becoming loose, stuck, or difficult to move.

This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Crisper Pan Cover is an OEM part for Frigidaire refrigerators. It serves as the shelf that sits above the crisper drawers and supports various items while providing a lid to help maintain the humidity levels necessary to keep fruits and vegetables fresh longer. This cover typically is only the frame and does not include the glass.

Symptoms of a bad Crisper Pan Cover include:

• Cracks or damage to the cover that can compromise its structural integrity
• Warping or bending that affects the fit and function
• Difficulty sliding or fitting the cover properly over the crisper drawers

Causes of a bad crisper pan cover can include overloading the shelf with too much weight, impacts from dropping heavy items, or thermal stress from fluctuations in refrigerator temperatures.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Crisper Pan is an OEM part for Frigidaire refrigerators. The crisper pan measures approximately 19" x 7 1/2" x 11 1/2" It is responsible for lining the bottom of the refrigerator's vegetable and fruit crisper drawers, where perishable items like produce are stored. The crisper pan helps extend the shelf life of fruits and vegetables.

Causes of a bad crisper pan can include heavy impact from dropping, regular wear and tear, or exposure to harsh cleaning chemicals.

Symptoms of a bad crisper pan include:

• Cracks or splits in the plastic
• Difficulty sliding the pan in and out of its compartment
• Food not staying as fresh due to improper humidity levels
• Accumulation of dirt and stains that are hard to clean

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Front Shelf Trim is an OEM part for Frigidaire refrigerators. This part enhances the appearance and functionality of refrigerator shelves by providing a finished look and preventing items from sliding off. The trim snaps onto the front edge of refrigerator shelves, adding stability and a sleek, polished appearance to the shelving unit.

Over time, the front shelf trim can become cracked, discolored, or even break due to frequent cleaning, exposure to cold temperatures, or accidental damage. This can lead to a less secure shelf edge, which might not effectively prevent items from sliding off as intended.

Symptoms of a bad Front Shelf Trim include:

• Visible cracks or breaks in the trim
• Difficulty in fitting or staying attached to the shelf
• Aesthetic issues such as discoloration or warping
• Reduced effectiveness in preventing items from sliding off the shelf

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Meat Pan is an OEM part for Frigidaire refrigerators. This drawer is specifically designed to store meats and other perishables at an optimal temperature within your refrigerator. Its placement often allows for slightly different temperature conditions than the rest of the refrigerator, helping to keep meats fresher for longer. This bin measures approximately 18 inches long and 13 inches wide,

Symptoms of a failing meat pan include:

• Cracks or breaks in the pan that compromise its structural integrity
• Difficulty sliding the pan in and out due to damage or warping
• The pan not sealing properly, which can affect temperature regulation within the compartment

Causes of meat pan damage usually stem from overloading the drawer beyond its capacity, frequent and forceful use, or accidental damage from items being dropped on or in it.

This OEM part is compatible with Kenmore, Frigidaire, Crosley, Westinghouse, Electrolux, Kelvinator, and Gibson brands.

The Glass Shelf is an OEM part for Frigidaire refrigerators. This shelf provides a sturdy and durable surface for storing food and beverages within the refrigerator. The glass measures approximately  23.78 x 18.02 inches

Common causes of a bad glass shelf include impacts from heavy or awkwardly shaped items, thermal stress from hot items being placed directly on the glass, or general wear and tear over time. Sharp edges from chips or cracks can also pose safety hazards.

Symptoms of a bad glass shelf include:

• Cracks or chips in the glass
• The shelf not fitting securely into its brackets
• Sagging or instability under normal weight
• Visible scratches or cloudiness on the glass surface

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Rear Shelf Trim is an OEM part for Frigidaire refrigerators. It is designed to fit along the back edge of refrigerator shelves, providing a clean, finished look and helping to prevent items from sliding off the back of the shelf.

Symptoms of a bad Rear Shelf Trim include:

• The trim becoming loose or detaching from the shelf, which can cause items to fall off more easily.
• Cracking or breaking of the trim, which may compromise the structural integrity of the shelf.
• Wear and discoloration that diminishes the aesthetic appearance of the refrigerator interior.

Causes of a bad rear shelf trim can include frequent removal or adjustment of shelves during cleaning or reorganization, physical impacts from storing or removing items, or the natural aging process that can make plastic components brittle over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Meat Pan Hanger is an OEM replacement part for  Frigidaire ovens and ranges. It is a handy accessory designed to support and securely hold meat pans or other oven-safe cookware during the cooking process. The hanger measures approximately 16.65 inches in length by 1 inch in width.

Symptoms of needing to replace the meat pan hanger include:

• Visible signs of wear, warping, or damage on the existing hanger
• The hanger becoming unstable or unable to securely hold cookware
• Difficulty in inserting or removing the hanger from the oven racks

Causes of needing a new meat pan hanger can include normal wear and tear over time, exposure to high temperatures, or physical damage due to accidental dropping or mishandling.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ovens and ranges. For the right-hand side order 240530701.

The Meat Pan Hanger is an OEM replacement part for Frigidaire refrigerators. Measuring approximately 16 inches long by 1 inch high, it is a component designed to securely hold and support the meat pan or drawer inside the refrigerator compartment.

Symptoms of a faulty or damaged Meat Pan Hanger include:

• The meat pan becoming loose or unstable within the refrigerator
• Difficulty in sliding or removing the meat pan from its designated location
• Visible cracks, breaks, or damage to the hanger itself

Causes of needing to replace the meat pan hanger can include wear and tear over time, physical impact or mishandling, or the desire to upgrade or replace an outdated or damaged component.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

Note: This part is sold separately from the left side drawer support rail. For the left-hand side, you should order part number 240530601.

The Pan Cover Glass Insert is an OEM part for Frigidaire refrigerators. It acts as the shelf above the crisper drawers, providing a stable and transparent surface for storing fruits, vegetables, and other perishables. This glass insert is crucial for maintaining the organization within the fridge, allowing for easy visibility and access to items stored in the crisper drawers beneath it.

Causes of damage to the Pan Cover Glass Insert can include overloading it with too heavy items, accidental impacts during the loading or unloading of groceries, or sudden temperature changes that can cause glass to weaken or crack.

Symptoms indicating the need for a replacement include:

• Visible cracks or chips in the glass
• Scratches that impair visibility
• Shattering of the glass insert

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This replacement screw secures panels, brackets, and other components in your appliance. Replace missing or stripped hardware to restore a tight, rattle-free fit and keep assemblies aligned the way the manufacturer intended.

• Fastens the designated component to the appliance cabinet or assembly
• Helps reduce looseness, vibration, and rattling
• Replaces missing, corroded, or stripped screws
• Supports proper alignment of panels, trim, and brackets

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the screw to the original location; retain any reusable clips or washers
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten into plastic or thin metal

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

This control box wiring harness routes power and signals between the appliance control board and other components to restore reliable control operation and electrical connectivity. It helps resolve intermittent controls and lost function caused by damaged wiring. What it does:

• Connects the control board to switches, sensors and motors to enable normal control functions.
• Replaces damaged or frayed wiring that can cause intermittent operation or unresponsive controls.
• Addresses symptoms such as control panel not responding, random shutdowns, or error codes tied to wiring faults.
• Restores proper signal and power routing when connector damage or wire breaks interrupt circuits.

• Disconnect all power to the appliance before beginning any service.
• Compare the new harness to the original and follow factory connector positions and routing to avoid pin miswiring or chafing.
• Handle connectors gently and ensure all terminals fully seat; inspect mating connectors for damage before reconnecting.
