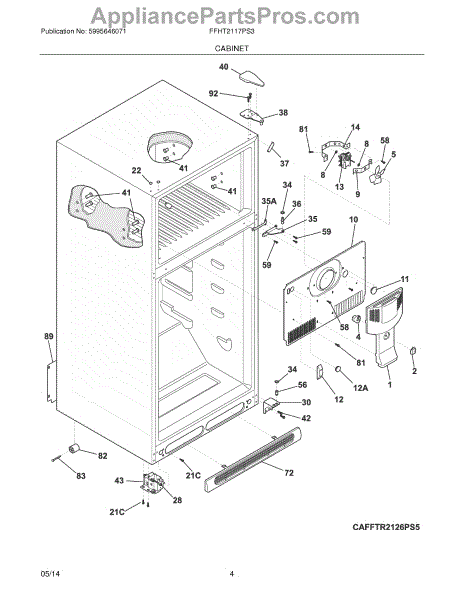

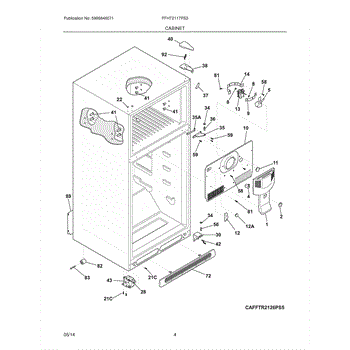

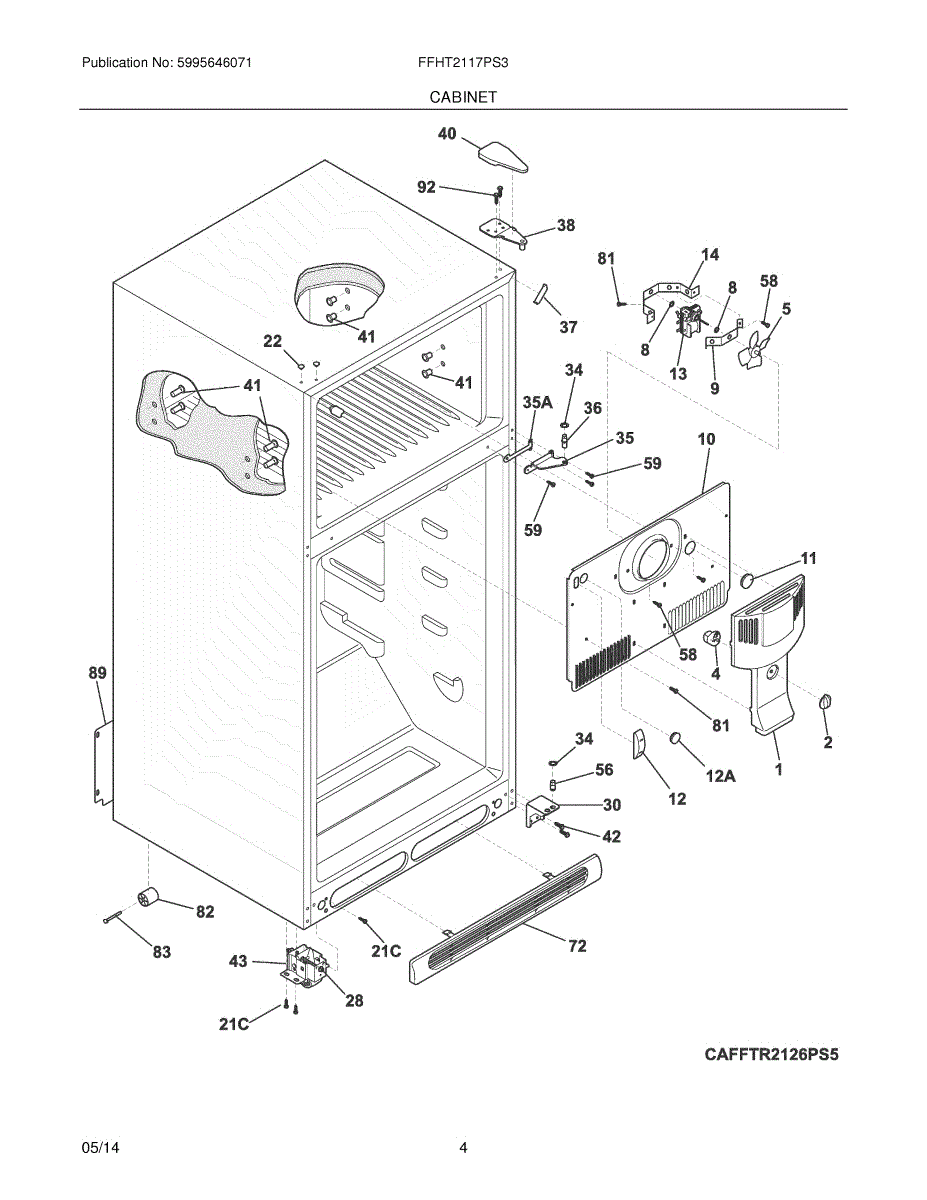

Parts for Frigidaire FFHT2117PS3: 05 - Cabinet Parts

The Evaporator Fan Cover is an OEM part for Frigidaire refrigerators. The fan cover houses and protects the evaporator fan, which spins consistently to circulate cold air throughout the refrigerator compartment.

Causes of a bad evaporator fan cover include cracks or breaks that compromise the fan's protection. Over many years of operation, the plastic material can become brittle or warped.

Symptoms of an issue with the evaporator fan cover include:

• Inconsistent or insufficient air circulation inside the refrigerator
• Cooling performance decreases, causing temperature fluctuations
• Higher electricity usage as the fan must work harder without optimal airflow
• Unusual noises from the rear grill area

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This damper control knob fits the refrigerator's air damper. It attaches to the damper control so you can open or close airflow between the freezer and fresh food compartments when the original knob is cracked, stripped, or missing.

• Attaches to the damper control shaft to adjust airflow from the freezer into the refrigerator compartment
• Direct replacement for a knob that is broken, missing, or stripped
• Symptoms can include a loose or slipping control, difficulty turning, or settings that won't stay in place
• If the control can't be turned, temperature response to damper adjustments may be inconsistent

• Disconnect power to the refrigerator before servicing
• Pull the old knob straight off the control shaft; avoid prying to prevent damage
• Align the new knob with the shaft and press it on until fully seated
• Rotate through the full range to ensure smooth operation without forcing

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator bracket and bushing assembly secures a moving component and provides a stable wear/pivot surface for smooth operation. Replace it when the original parts are worn or broken and causing looseness, scraping noises, or poor alignment.

• Provides a mounting point and bearing surface for rotational or sliding movement
• Helps maintain alignment and smooth, quiet operation
• Can help address wobble, scraping/binding, or a component that sags or sits out of position
• Replace if the bracket is bent/cracked or the bushing is worn/missing

• Disconnect power before servicing; turn off water supply if working near dispenser lines
• Support the attached component while removing fasteners; note the original orientation
• Transfer any spacers/clips from the old parts if present and tighten fasteners evenly
• After installation, verify smooth movement and proper alignment

Front evaporator fan motor mounting bracket

This plug covers the small factory test opening on an appliance cabinet or liner. Replacing a missing or damaged plug helps close the opening to maintain a better seal and restore a clean, finished appearance.

• Seals the factory test opening in the cabinet/panel
• Helps limit air and moisture infiltration through the hole
• Reduces condensation or frost forming around the opening
• Restores a finished look when the original cap is missing or damaged

• Disconnect power before servicing the appliance
• Clean and dry the opening area for proper fit
• Align and press the plug in by hand until it sits flush—do not force or enlarge the hole
• Avoid sharp tools or sealants that could damage the liner or insulation

Size: 1" round

This plug seals an unused hole in an appliance cabinet or inner liner to help block drafts, pests and moisture. It restores a clean, finished appearance and prevents accidental debris entry where a fitting or fastener is not used. What it does:

• Seals unused openings in the appliance cabinet or liner to keep out dust, moisture and pests
• Helps prevent air leaks that can affect temperature stability in refrigerators and freezers
• Covers exposed holes left after removing or relocating components or fasteners
• Restores a finished look to access areas and reduces risk of small-item ingress

• One cabinet sealing plug

• Push the plug into the hole until fully seated; no special tools usually required
• Turn off and unplug the appliance before reaching into compartments or behind panels
• Inspect the hole and plug for correct fit; replace if cracked or deformed

This refrigerator fan motor drives the fan that circulates air through the cooling system, helping maintain even temperatures. Replacing a worn or noisy motor can restore proper airflow and cooling performance.

• Spins the fan blade to move air across coils and through the appliance's airflow passages
• Helps maintain set temperatures and consistent cooling throughout the unit
• Common failure signs: fan not running, intermittent/slow operation, loud humming, grinding, or squealing
• Symptoms include weak airflow, poor cooling, warm spots, or the compressor running longer than normal

• Disconnect power before servicing; wear cut-resistant gloves
• Access location varies by model; note wire positions and hardware
• Transfer the existing fan blade and mounting hardware if required by your model
• Ensure the fan spins freely and wires are routed clear of the blade before restoring power

This refrigerator bracket and bushing assembly secures a moving component and provides a stable wear/pivot surface for smooth operation. Replace it when the original parts are worn or broken and causing looseness, scraping noises, or poor alignment.

• Provides a mounting point and bearing surface for rotational or sliding movement
• Helps maintain alignment and smooth, quiet operation
• Can help address wobble, scraping/binding, or a component that sags or sits out of position
• Replace if the bracket is bent/cracked or the bushing is worn/missing

• Disconnect power before servicing; turn off water supply if working near dispenser lines
• Support the attached component while removing fasteners; note the original orientation
• Transfer any spacers/clips from the old parts if present and tighten fasteners evenly
• After installation, verify smooth movement and proper alignment

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This turntable roller assembly sits under the glass tray to support and guide it as it rotates. Replacing a worn or damaged ring helps restore smooth tray movement for more even heating and dependable microwave performance.

• Supports the glass tray and allows smooth, consistent rotation
• Helps prevent tray wobble, binding, or scraping noises
• Can address issues like the tray not turning or uneven cooking
• Replaces cracked, warped, or missing roller rings

• Disconnect power before servicing
• Remove the glass tray, lift out the old ring, and clean the cavity floor
• Place the new ring wheels-down, seat the tray on the coupler, and test rotation
• Do not operate the microwave without the roller ring and tray properly installed

The Lower Hinge Bracket is an OEM part for Frigidaire refrigerators. This bracket supports the refrigerator door, allowing it to pivot smoothly while opening and closing. It ensures that the door remains aligned and operates correctly.

You should replace the lower hinge bracket if it becomes damaged or worn out. Common causes of a bad hinge bracket include wear and tear from frequent use, rust or corrosion, or damage from accidental impacts.

Symptoms of a bad lower hinge bracket include:

• Difficulty in opening or closing the refrigerator door
• The door not aligning properly with the refrigerator body
• Unusual noises when the door is in motion
• Visible damage or rust on the bracket

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Hinge Washer is an OEM part for Frigidaire refrigerators. The washer acts as a protective barrier that reduces friction and wear on the hinge and frame, facilitating a quieter operation and extending the lifespan of the door mechanism.

Over time, hinge washers can become worn or damaged due to the constant opening and closing of the refrigerator door.

Symptoms of a bad Door Hinge Washer include:

• The refrigerator door is difficult to open or close
• Squeaking or grinding noises when the door is moved
• Looseness or sagging of the door, indicating misalignment
• Excessive wear on the hinge or the area of the frame where the hinge is attached

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Hinge Spacer fits between the refrigerator door and hinge pin to set door height and reduce friction. Replacing a worn or missing spacer restores smooth door movement and proper alignment for a reliable seal. What it does:

• Creates a low-friction bearing surface between the hinge and door
• Helps set and maintain correct door height and gap on the hinge pin
• Can reduce squeaks and prevent rubbing or poor closing caused by a worn/missing spacer
• Replace if cracked, deformed, worn flat, or lost during service

• 1 hinge spacer

• Disconnect power and support the door before servicing hinge components
• Remove hinge cover and fasteners; lift the door off the hinge pin per your model's instructions
• Install the spacer on the hinge pin or into the hinge as oriented for your model
• Reinstall and align the door; verify even gasket contact all around

This black center hinge bracket mounts to the cabinet at the middle door position to support and align the refrigerator door. Replacing a bent or worn bracket restores smooth door swing and a dependable gasket seal.

• Mounts the center hinge assembly to the cabinet for stable door support
• Provides the pivot point for the door via the hinge pin/cam hardware
• Helps keep the door aligned so the gasket seals properly
• Common symptoms: sagging or rubbing door, door not closing/sealing, popping open, or hinge-area squeaks/scrapes

• Disconnect power and support the door; remove items from the door to reduce weight
• Remove center hinge cover and screws; lift door off the hinge
• Transfer reusable hardware to the new bracket
• Reinstall bracket and door, then check door alignment and gasket seal

This center hinge pin supports the refrigerator door at the middle hinge and serves as the pivot point. Replacing a worn pin restores smooth door movement and helps the door align and seal properly.

• Acts as the pivot shaft for the door on the center hinge bracket
• Helps maintain correct door height and alignment for consistent sealing
• Wear or damage may show as door sagging, rubbing, squeaking, or not sealing/closing reliably
• Can reduce wobble or looseness felt at the center hinge

• Unplug the refrigerator and remove items from the door before service
• Support the door, remove hinge cover and screws, then lift the door off the center hinge
• Replace the pin in the center hinge/bracket, transferring any original spacers/washers as found
• Reinstall and level the door; verify the gasket seals evenly all around

This cabinet corner trim is a replacement corner piece that restores the finished edge of the appliance cabinet for a clean, protected look. It helps cover damaged or worn corners and improves the cabinet's appearance. What it does:

• Replaces a cracked, chipped or missing cabinet corner trim to restore a smooth finished edge
• Protects the cabinet corner from dings, moisture, and dirt buildup
• Improves cosmetic appearance by covering exposed cabinet edges
• Keeps adjacent panels aligned and reduces visible gaps around the cabinet corner

• Disconnect power to the appliance before working near electrical components
• Remove any damaged trim and clean the mounting area before installing the new piece
• Trim may snap into place or secure with screws/adhesive depending on model—use appropriate fasteners

The Upper Hinge is an OEM part for Frigidaire refrigerators. It is responsible for securing the top of the refrigerator door to the cabinet, allowing the door to open and close smoothly and securely. This hinge ensures proper alignment and functionality of the refrigerator door.

Causes of a bad upper hinge can include wear and tear over time, damage from excessive force or impact, or corrosion due to moisture exposure. A faulty upper hinge can lead to issues with door alignment and sealing.

Symptoms of a bad upper hinge include:

• The refrigerator door not closing properly
• A sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This upper hinge cover protects and conceals the refrigerator's door hinge assembly for a finished look and safer operation. It helps prevent snags and shields hinge components from dirt and wear while restoring the door's appearance. What it does:

• Covers the upper door hinge to hide hardware and improve aesthetics
• Helps keep dust, grease, and debris off the hinge area
• Reduces the chance of clothing or skin catching on exposed hardware
• Restores a finished, factory appearance when the original cover is cracked or missing

• High-level replacement; some models require removing or loosening the door or hinge fasteners
• Handle carefully to avoid scratching the finish; use the correct screwdriver or fastener tool
• Keep hands clear of the hinge while seating the cover and re-tightening fasteners

Here is a replacement shelf support grommet that is used in freezers and refrigerators. The grommets are used to provide stability for the shelves in the refrigerator. If they are broken or missing, the shelves will not sit correctly, and owners won't be able to put anything onto the shelves. A replacement grommet should slide into place, but may need to be gently tapped to ensure a proper seal is made.The shelf support grommet is for use with certain refrigerator models from Frigidaire, Kenmore, Gibson, and Crosley. This is a genuine OEM replacement part that was sourced directly from the manufacturer. It is important to note that the grommets are sold individually. If more than one is needed, owners will need to order multiple.

Specs: Hex head ,1/4-20 x 5/8

This turntable roller assembly sits under the glass tray to support and guide it as it rotates. Replacing a worn or damaged ring helps restore smooth tray movement for more even heating and dependable microwave performance.

• Supports the glass tray and allows smooth, consistent rotation
• Helps prevent tray wobble, binding, or scraping noises
• Can address issues like the tray not turning or uneven cooking
• Replaces cracked, warped, or missing roller rings

• Disconnect power before servicing
• Remove the glass tray, lift out the old ring, and clean the cavity floor
• Place the new ring wheels-down, seat the tray on the coupler, and test rotation
• Do not operate the microwave without the roller ring and tray properly installed

The Lower Hinge Pin is an OEM replacement part for Frigidaire refrigerators. It serves as a pivot point to properly hang the refrigerator doors in place. This hinge pin supports the stable mounting of doors while allowing for smooth opening and closing.

Causes of a bad lower hinge pin can include wear from extended use, damage due to excess weight loads, or corrosion interfering with motion.

Symptoms of a bad lower hinge pin include:

• Doors not sitting securely when closed or hanging loosely
• Difficulty smoothly opening or closing the refrigerator door
• Noises or squeaking emanating from door hinge areas
• Gaps appearing around door seals

This Frigidaire refrigerator part is compatible with models by Electrolux, Gibson, Kelvinator, and some Kenmore.

This replacement screw features a #10-32 machine thread and 3/4-inch length to securely fasten brackets, panels, and other components. Restore a tight, rattle-free fit by replacing missing or stripped hardware during repairs or reassembly. What it does:

• Secures panels, brackets, trim, and other mounted parts
• Replaces missing, rusted, or stripped screws that no longer hold
• Helps reduce vibration and rattling from loose components
• Maintains proper alignment and stability after service

• One screw (#10-32 x 3/4)

• Disconnect power before servicing; wear cut-resistant gloves
• Remove the old screw and inspect receiving threads for damage
• Start by hand to avoid cross-threading; use the correct driver and do not overtighten (especially into plastic)

• Thread: #10-32 (machine)
• Length: 3/4 inch

GRILLE/KICKPLATE

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This replacement rear compressor base roller supports the refrigerator compressor on the cabinet rear base, helping keep the compressor properly seated and reducing wear from vibration and movement. What it does

• Provides a rolling support under the compressor to keep it aligned and off the cabinet floor
• Helps reduce vibration and rattling that can occur from a loose or worn compressor mount
• Prevents compressor body from dragging or scraping the cabinet base
• Commonly replaced when the roller is cracked, worn flat, missing, or causing noise

• Disconnect power to the appliance before starting any work
• Support or secure the compressor and cabinet before removing the old roller to avoid sudden movement
• Basic hand tools usually required; inspect mounting hardware and replace any damaged fasteners
• Do not attempt sealed-system repairs.

This rivet is a metal fastener used to permanently secure panels, brackets, or internal components in your appliance. Replacing a damaged or missing rivet restores a tight fit and helps prevent vibration, rattles, and looseness.

• Permanently joins thin metal parts where screws or nuts aren't used
• Maintains alignment and structural integrity of housings and frames
• Helpful when panels or components are loose, rattling, or won't stay secured
• Direct replacement for a worn, broken, corroded, or drilled-out factory rivet

• Disconnect power and shut off gas/water (as applicable) before servicing
• Support the part being fastened; drill out the old rivet head if needed
• A hand riveter/rivet tool may be required to set the new rivet
• Wear eye and hand protection during drilling/riveting

The Access Cover is an OEM replacement part for Frigidaire refrigerators. It serves as a protective barrier, covering the internal cooling system and wiring components.

Causes of a faulty access cover can include normal wear from frequent technician access. Exposure to temperature fluctuations may cause seal deterioration over time.

Symptoms of an inadequate access cover include:

• Cracks, breaks, or loose/unsecured fitment to refrigerator framework
• Cold air leaks entering the cabinet from poor access cover seal
• Improper or inefficient refrigeration system performance
• Inability to perform repairs that require access cover removal

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerators.

This replacement screw secures refrigerator components such as brackets, trims, and covers. Replace missing or stripped hardware to keep parts tight and aligned, helping eliminate rattles and restoring a solid, reliable fit.

• Fastens interior or exterior components to the cabinet or doors
• Replaces missing, rusty, or stripped hardware
• Helps reduce vibration noises from loose parts
• Restores proper fit and alignment of panels, trims, or covers

• Disconnect power; turn off water supply if working near the dispenser or ice system
• Retain and reuse any original spacers or washers
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace one fastener at a time to maintain alignment

A molded gasket that seals the evaporator coil cover to reduce air bypass and help direct cold air over the coils for more consistent cooling. Replaces a worn or damaged seal to help restore proper airflow and reduce frost buildup. What it does:

• Seals the evaporator coil cover to prevent warm air from bypassing the coil
• Helps maintain proper airflow for consistent cooling performance
• Reduces frost or ice buildup caused by air leaks around the coil cover
• Prevents condensation and dripping by keeping air where it belongs

• Disconnect power to the appliance before servicing to avoid electrical shock
• Thaw any frost/ice accumulation and remove the evaporator access cover per manufacturer instructions
• Clean mating surfaces, then press the seal into place ensuring a full, even fit around the cover

This replacement screw fastens appliance components such as panels, brackets, and covers. Installing a new fastener restores a snug, rattle-free fit when the original screw is missing, stripped, or corroded.

• Secures covers, brackets, or trim to the cabinet or liner
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration and rattling from loose parts
• Supports proper alignment and stability of assemblies

• Disconnect power before servicing the appliance
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal
• Retain and reinstall any original washers or spacers, if present

Color: Black

Color: White

Nylon
