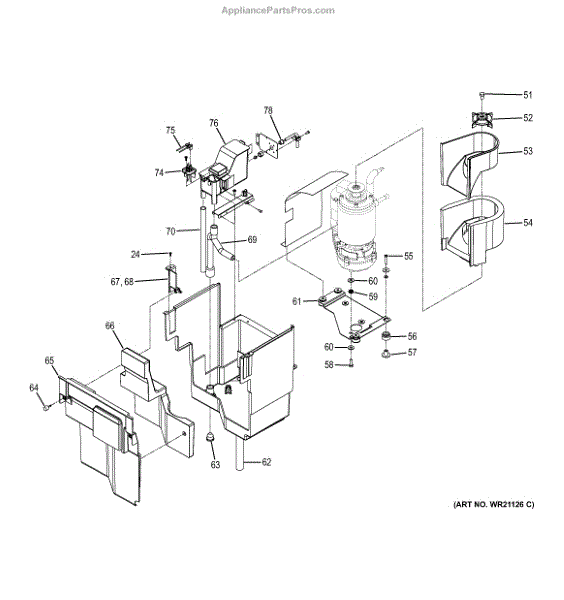

Parts for Ge UNC15NJBII: Storage Bin & Ice Chute Parts

This 5/16-18 screw secures appliance panels and components for a stable, rattle-free fit. Use when replacing a missing or damaged fastener to restore proper mounting and alignment. What it does

• Fastens panels, brackets, and assemblies that use a 5/16-18 thread size
• Restores secure mounting to reduce vibration, noise, or loose parts
• Replaces stripped, bent, or missing screws with the correct thread form
• Simple hardware replacement to prevent larger wear from loose components

• Use the correct driver/socket to avoid cam-out or head damage
• Tighten securely but do not overtighten; excessive torque can strip threads or crack parts
• Replace with the identical part number to ensure proper fit and thread engagement
• Disconnect power or follow appliance safety procedures when accessing internal components

This ice sweep is a molded plastic deflector that helps move ice from the ice maker mold into the ice bin, keeping cubes from sticking or jamming the dispenser. It restores proper ice release and smoother dispensing. What it does:

• Guides and nudges formed ice out of the ice maker mold into the storage bin
• Helps reduce ice clumping and jams that can block dispensing
• Keeps ice moving cleanly between the ice maker and the bin for consistent fill
• Works with the ice maker's ejector action to improve cube release

• One ice sweep

• Turn off power to the refrigerator before starting any repair
• Remove ice bucket and any obstructing components to access the ice maker housing
• Replace the sweep by sliding or snapping it into the ice maker as shown in your model's parts diagram

This molded plastic ice chute funnels cubed ice from the freezer dispenser into a glass or container, preventing spills and guiding ice smoothly through the dispenser opening. Fits into the dispenser housing for reliable ice delivery. What it does:

• Directs dispensed ice from the freezer through the dispenser opening to reduce spills and misfeeds.
• Helps prevent ice from dropping behind the dispenser or jamming the door area.
• Restores proper alignment so the dispenser releases ice into a cup instead of letting it fall inside the compartment.
• Works with automatic and manual ice dispensing mechanisms where this chute is used.

• One ice chute

• Disconnect power to the appliance before servicing to avoid injury.
• Remove any ice and the ice bucket or dispenser trim per your model's instructions before swapping the chute.
• Typically snaps into the dispenser housing; inspect surrounding clips for damage and replace if necessary.

This ice chute cover is the replacement plastic door that closes the ice chute on compatible refrigerators, helping keep ice inside the dispenser area and reducing frost and spillage. Fits where the chute door snaps into the freezer/dispenser opening. What it does:

• Replaces a broken, cracked or missing chute cover so ice stays contained when not dispensing
• Helps reduce air and moisture from entering the ice storage area, which can limit frost buildup
• Restores a proper seal and alignment for smooth ice dispensing
• Prevents fingers or debris from entering the chute when closed

• One ice chute cover

• Typically snaps into place; inspect mounting tabs for damage before installing
• Remove any remaining ice from the chute and clean the area to ensure a proper fit
• If tabs are damaged, replacement of the mounting bracket or adjacent trim may be required
• For safety, disconnect power to the appliance before performing repairs

This drain plug seals the appliance drain opening to prevent leaks and unwanted water flow. It's a simple replacement part that restores a watertight seal and helps keep the drain area clean and functioning. What it does:

• Seals the appliance drain opening to stop slow leaks or drips
• Prevents debris from entering the drain and causing clogs
• Replaces cracked, missing, or worn drain stoppers that allow water escape
• Restores normal drainage control after damage or loss of the original plug

• Disconnect power and water supply before servicing
• Ensure area is dry and free of standing water before removal/installation
• Remove the old plug and press the new plug firmly into the drain opening until seated

This ice compartment cover replaces the plastic lid that seals the refrigerator ice bin, helping keep ice contained and reducing freezer air exposure. Fits and restores the bin's cover function for reliable ice storage. What it does:

• Replaces a cracked, warped, or missing ice bin lid that lets ice spill into the freezer
• Helps limit air and moisture entering the ice bin to reduce freezer odor and clumping
• Provides a flat, secure surface so the ice bin stacks and slides correctly
• Restores normal ice access and containment during dispenser or manual use

• One ice compartment cover

• Unplug the appliance or shut off power before servicing
• Remove the ice bin and lift or unclip the old cover per the bin's attachment points
• Snap or slide the replacement cover into the same mounting slots until secure

This insulation cover fits over the ice maker area to help maintain proper cold temperatures and limit frost buildup. It replaces worn or damaged covers to help the ice maker operate more consistently. What it does:

• Provides thermal insulation around the ice maker to help keep ice colder and reduce temperature fluctuations
• Helps limit frost buildup and moisture migration in the ice bin area
• Supports stable operation of the ice maker assembly by covering exposed insulation gaps
• Simple, direct replacement for damaged or missing insulation covers

• Disconnect power to the refrigerator before starting any work
• Access typically requires removing interior shelves or the ice bin
• Handle carefully to avoid bending tabs or tearing the insulation
• Do not modify part; verify fit against the existing cover before final installation

This reservoir tube routes and holds water for the refrigerator's water distribution, keeping a steady supply to the dispenser and ice maker. Replaces cracked or damaged tubing that can cause leaks or reduced water flow. What it does:

• Channels and stores water between the supply and internal components for consistent dispensing and ice production
• Helps maintain steady water flow to the dispenser and icemaker
• Commonly replaced when tubing is cracked, split, or leaking
• Can address symptoms such as water leaks, weak dispenser flow, or intermittent ice production

• Disconnect refrigerator power and shut off the water supply before servicing
• Inspect and replace any damaged clamps or fittings when installing the new tube
• Ensure fittings are seated and secured to prevent leaks; do not overtighten plastic fittings
• Test water flow and check for leaks after reconnecting power and water

This reservoir assembly houses the water chamber and built-in valve that controls water flow for the refrigerator's icemaking/water delivery system. Replaces a cracked or leaking reservoir to restore proper water containment and valve operation. What it does:

• Collects and stores water for the icemaker/water system and routes it through the integrated valve
• Valve controls fill cycles to prevent overfilling and manages water flow to the icemaker
• Helps stop leaks and puddling caused by a cracked or damaged reservoir
• Can resolve no-fill or slow-fill symptoms when the reservoir or valve has failed

• Disconnect power and water supply before starting replacement to avoid shock or flooding
• Handle the reservoir carefully to avoid cracking plastic or damaging the valve; ensure seal surfaces are clean
• Reconnect water and check for leaks at fittings and seams; run a test fill cycle per your refrigerator's procedure
