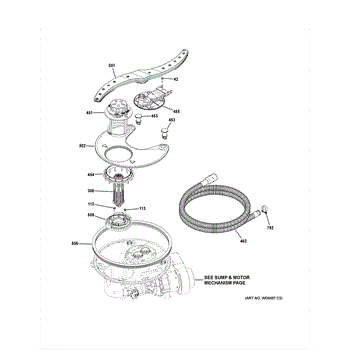

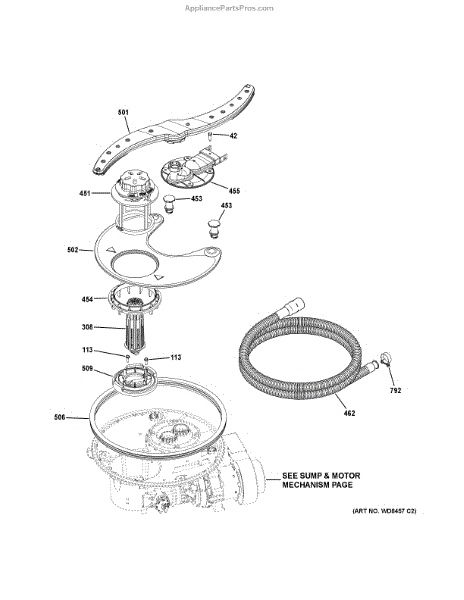

Parts for Ge GDF510PGD4BB: Sump & Filter Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is a stainless steel hex washer-head screw used to fasten and secure components. Its integrated washer head provides a broad bearing surface for a tight, durable hold in appliance assemblies.

• Secures panels, brackets, and hardware to prevent looseness and vibration
• Restores proper fastening when originals are stripped, missing, or corroded
• Stainless construction helps resist rust in moisture-prone areas
• Common symptoms of a needed replacement include rattling, loose panels, or missing hardware

• Disconnect power and, if applicable, shut off water before servicing
• Use the correct nut driver or socket for the hex head to avoid stripping
• Replace any damaged or missing fasteners in matched pairs or sets for even clamping
• Do not overtighten; snug to manufacturer torque guidance when available

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Flood Switch Assembly is an OEM part for GE dishwashers that is responsible for detecting water levels in the dishwasher's base, preventing potential flooding by shutting off the water intake if an overflow is detected. This helps in avoiding water damage to your home and ensuring the dishwasher operates normally.

Symptoms of a bad Flood Switch Assembly include:

• The dishwasher not filling with water
• Water not draining properly
• The dishwasher stops during a cycle

Causes of a bad flood switch assembly can vary from debris accumulation affecting the float's movement to electrical issues within the switch mechanism. Over time, wear and tear on the float or switch can lead to failures.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Ultra fine filter kit is an OEM replacement part for GE dishwashers. As part of the rinse cycle, this filter helps further remove food debris from dishes before the dry cycle begins, allowing for sparkling clean results.

The ultra-fine filter is designed with a close-nit mesh that is able to capture microscopic food particles and sediment. This prevents debris from re-depositing onto dishes or interfering with proper drying.

Symptoms of a bad ultra-fine filter include:

• Food particles or sediment left behind on dishes after the cycle completes
• Cloudiness or film remaining on glassware that is difficult to wipe away
• The shortened lifespan of other filter components due to excessive debris built-up

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vent Filter is an OEM part for GE dishwashers. It helps to capture and filter out food particles, grease, and other debris.

Causes of a bad vent filter can include clogging or blockage due to accumulated debris, wear and tear over time, or damage to the filter material.

Symptoms of a bad vent filter include:

• Lingering unpleasant odors during or after the dishwasher cycle
• Visible signs of debris or buildup on the filter surface
• Reduced effectiveness of the dishwasher's drying performance

Replace your worn-out or clogged vent filter with this genuine OEM GE part to restore your dishwasher.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Filter Adapter is an OEM component specifically designed for GE dishwashers. Located inside the dishwasher tub, it functions to strain out large food particles from water before it reaches the wash arms.  The adapter holds the removable wash/rinse filters in place during operation, functioning as an extension of the filtration system.

Causes of a bad filter adapter can include cracks or breaks compromising its sealing surface, wear and tear deforming filter retention features over time, or buildup inhibiting functionality.

Symptoms of a bad filter adapter include:

• Loose or falling out removable filters during washing
• Bypassing of food particles around compromised seals
• Reduced lifespan of disposable filters placed in a faulty adapter
• Debris accumulation impacting spray arm performance

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This adapter plate is a molded interface in the wash system that secures and seals components so water pressure is routed correctly. Replacing a cracked or warped plate helps stop leaks and restore proper spray performance.

• Connects and supports wash-system components at the sump/water-feed interface
• Maintains a reliable seal to help prevent leaks
• Helps direct wash water to the spray arms for effective cleaning
• Replace if cracked, warped, or stripped; symptoms can include leaks, weak spray, or a loose spray arm

• Disconnect power and water supply before servicing
• Remove the lower rack and related wash components to access the plate; note the order of parts for reassembly
• Reuse existing seals and fasteners in their original positions; seat the plate evenly and tighten hardware snugly, not overtight
• Run a brief test cycle and inspect for leaks before full use

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Drain Tube is an OEM part for GE dishwashers. This tube is responsible for carrying wastewater from the dishwasher to the household drain, ensuring efficient and effective removal of dirty water during and after the wash cycle. The drain tube helps maintain the dishwasher's performance by preventing water from pooling inside the appliance.

Over time, drain tubes can become clogged, cracked, or worn out due to regular use or debris buildup. Common causes of a bad drain tube include blockages from food particles, mineral deposits, wear and tear from frequent use, or damage from improper installation or handling.

Symptoms of a bad drain tube include:

• Water not draining from the dishwasher
• Leaks around the dishwasher area
• Unpleasant odors due to standing water
• Visible cracks, splits, or kinks in the tube

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Contains one lower spray arm and one middle spray arm.

This coarse plastic filter is a replacement strainer that helps keep large debris out of the appliance's water path, protecting internal valves and pumps and helping maintain proper water flow. What it does:

• Catches large particles and sediment before they reach valves, hoses or pumps
• Helps reduce debris-related flow restrictions that can cause poor fill or drain performance
• Reduces the chance of valve damage or clogging from large contaminants
• Commonly replaced when debris is visible or when water flow is noticeably reduced

• One coarse plastic filter/strainer

• Turn off power and water supply before starting any repair
• Access location and removal steps vary by model; follow the parts diagram
• Inspect and clean the housing before installing the new filter; rinse the filter under running water
• Ensure the filter is seated correctly and check for leaks after restoring power and water

The Sump Gasket is an OEM part for GE dishwashers. It forms a watertight seal around the sump area, preventing leaks and ensuring proper water circulation within the dishwasher.

Causes of a bad sump gasket include exposure to high temperatures, general wear and tear over time, and damage from cleaning chemicals.

Symptoms of a bad sump gasket include:

• Water leaking from the bottom of the dishwasher
• Poor cleaning performance due to improper water circulation
• Visible cracks or deterioration in the gasket material
• Unusual noises during the wash cycle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This manual floor plate is the replacement cover that mounts at the appliance base to protect internal components and provide a finished surface. It restores the dryer's base appearance and helps prevent debris from entering the cabinet. What it does:

• Covers and protects the lower cabinet opening and components from dust and lint
• Helps maintain proper clearance and a finished look at the dryer base
• Replaces damaged, bent, or missing base plates that allow debris entry
• Can reduce rattles or vibration caused by a loose or warped floor plate

• One floor plate

• Disconnect power (and gas, if applicable) before servicing to avoid shock or injury
• Remove the dryer front or lower access panel per manufacturer instructions to access mounting screws
• Use correct-size screws and tighten to manufacturer torque; avoid over-bending the plate during installation

This dishwasher hose clamp secures a hose to its fitting to maintain a tight, leak-resistant seal during operation. Replacing a worn or corroded clamp helps stop drips and keeps fill, drain, or circulation lines firmly in place.

• Secures dishwasher hoses to fittings on pumps, valves, or drain outlets
• Helps prevent water leaks at hose connections
• Keeps hoses from slipping off under vibration and water pressure
• Typical symptoms include water under the unit, dampness in the cabinet, or a hose connection that feels loose

• Disconnect power and shut off water supply before servicing
• Access the hose connection (toe-kick or rear/side panels may need removal)
• Seat the hose fully on the fitting, position clamp just behind the barb/ridge, and secure without over-tightening
• Run a short test cycle and check all connections for leaks
