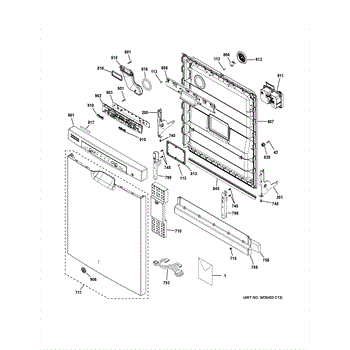

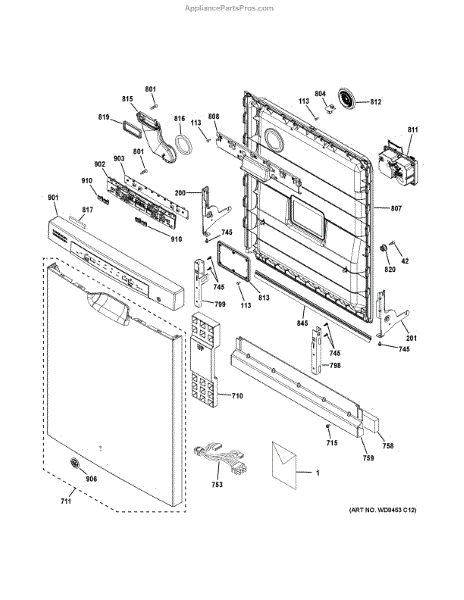

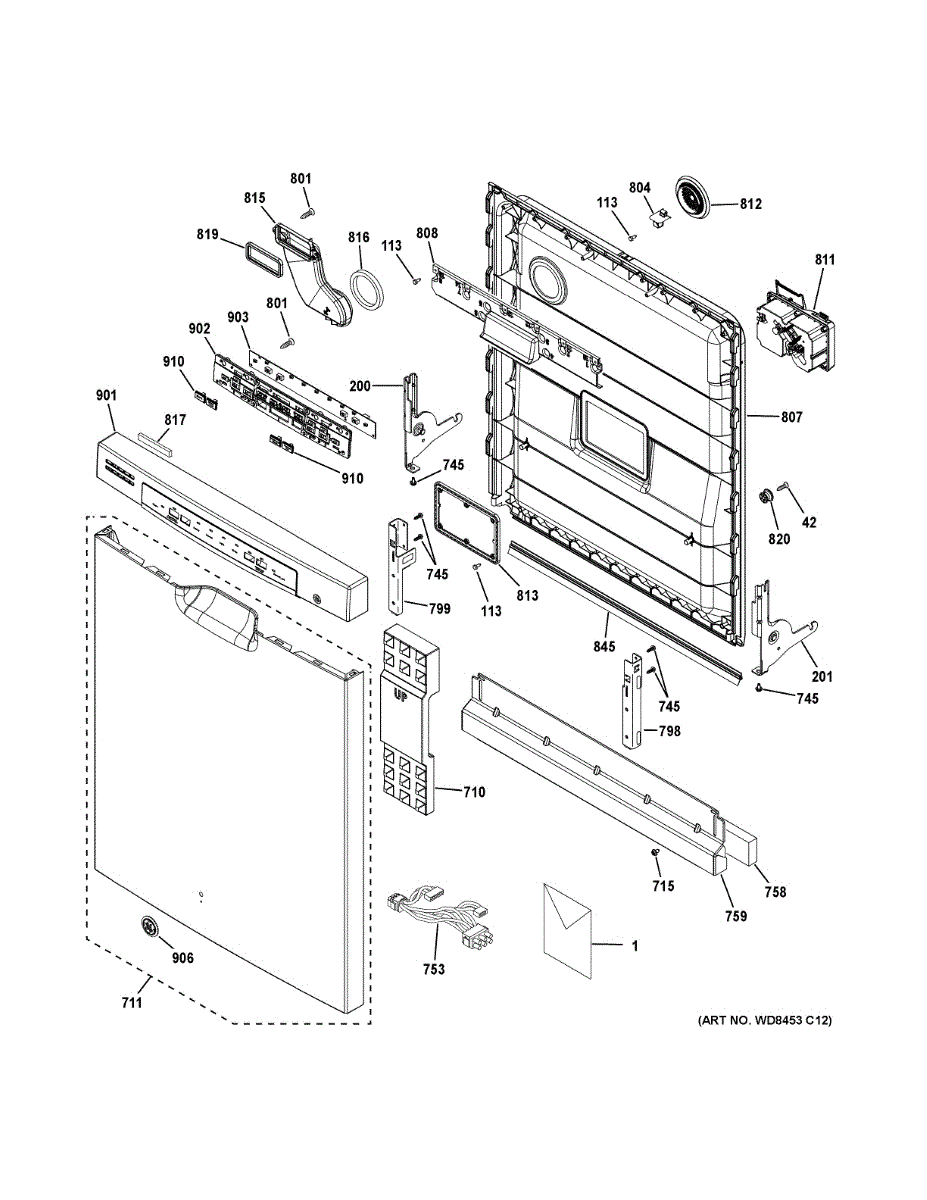

Parts for Ge GDF510PGD4BB: Escutcheon & Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Secures panels, brackets, and hardware in your appliance. Replace when stripped, rusted, or missing to prevent looseness and vibration. Verify fit.

This arm hinge assembly restores smooth, controlled movement of a hinged component in your dishwasher, helping maintain proper alignment and reliable operation. Replacing a worn or broken hinge can reduce binding, squeaks, and misalignment that affect performance. What it does:

• Provides the pivot point and support for a hinged assembly
• Maintains alignment to ensure correct engagement and sealing
• Helps ensure smooth opening/closing motion without binding
• Replaces a hinge arm that is cracked, bent, or worn
• Common signs: stiff or uneven movement, squeaking or popping noises, misalignment, or visible damage

• 1 arm hinge assembly

• Disconnect power and water before servicing
• Support the door or movable assembly to relieve tension while removing the hinge
• Note orientation and transfer any side-specific hardware from the original part
• After installation, check for smooth motion and proper alignment before restoring power and water

Pivoting hinge that supports and guides your dishwasher door. Replace if cracked, worn, or causing door sagging, misalignment, or scraping during operation.

Fix door leaks or excessive noise with this dishwasher door foam block. Cushions and seals the door to prevent vibration and restore a tight fit.

Black outer door panel assembly for your dishwasher. Replaces cracked, scratched, or discolored front door panels. Direct fit replacement part.

Hex washer head screw for securing dishwasher brackets, panels, and internal assemblies. Replace if stripped, corroded, or missing during repairs.

10-32 x 9/16" machine screw secures dishwasher panels, brackets, and internal assemblies. Replace missing, stripped, or damaged fasteners to restore fit.

Replace the door wire harness assembly in your dishwasher. This wiring harness connects electrical components in the door and requires replacement when damaged, frayed, or corroded.

Replace your missing or damaged dishwasher toe kick insulation panel. Blocks drafts and protects internal components. Easy DIY installation repair.

Secures and aligns the dishwasher door hinge assembly. Replace if your hinge bracket is cracked, bent, or broken to restore proper door fit and movement.

Secures your dishwasher door to the cabinet as a stable pivot point. Replace this bracket if cracked, broken, or worn to restore proper door alignment.

6-20 x 3/8 inch nickel screw secures trim panels, brackets, and small components in dishwashers and ovens. Replace missing or stripped screws.

The Door Latch Strike is an OEM part for GE dishwashers. It ensures the dishwasher door latches securely, allowing the appliance to operate only when the door is properly closed.

Causes of a bad door latch strike can include wear and tear from regular use, damage from slamming the door, or misalignment due to repeated opening and closing.

Symptoms of a bad door latch strike include:

• The dishwasher door not latching securely
• The dishwasher not starting or stopping mid-cycle
• Leaks around the door during operation
• Difficulty in closing the door properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replace your dishwasher's door pocket handle. This handle installs on the interior door and is needed when the original is cracked, broken, or missing.

Dishwasher detergent dispenser won't open or latch? This module controls soap release during wash cycles. Moderate DIY repair—30 minutes, door removal.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Gray dishwasher vent cap that releases moist air during the dry cycle. Replace if cracked, damaged, or causing leaks to restore proper steam venting.

This component covers and protects the detergent compartment inside your dishwasher door. Located on the interior door panel, it ensures proper detergent release during wash cycles. Replace if the plate is cracked, warped, or prevents the dispenser door from closing securely.

Fix poor drying or excess moisture in your dishwasher with this replacement vent. Restores proper airflow and heat exhaust for non-fan models.

Controls airflow in your dishwasher door. Replace if cracked or if you see leaking from the door vent area. Confirm fit with your model number.

Foam vent insert seals the dishwasher vent opening to reduce leaks and noise. Replace if torn, compressed, or causing poor drying. Confirm fit by model.

Seals the dishwasher door vent to prevent leaks and maintain moisture control. Replace if worn or causing steam leaks. Confirm fit with your model.

Seals the bottom of your dishwasher door to prevent water leaks during wash cycles. Replace if you notice pooling water on the floor. Confirm fit with your model.

Fix unresponsive buttons or blank display on your dishwasher with this control panel assembly. Restores full function to cracked or damaged consoles.

If buttons won't respond or cycles won't start, the user interface board may have failed. This board houses tactile switches behind the control panel.

Restore your appliance's factory look with this badge assembly. It replaces a missing, cracked, or faded logo on the refrigerator exterior, delivering a clean, professional appearance without affecting performance or operation.

• Decorative nameplate/logo for the refrigerator exterior
• Replaces cracked, faded, loose, or missing badge
• Restores a clean, factory appearance
• Cosmetic component; does not impact cooling or function

• Disconnect power before servicing the appliance
• Protect the finish; use a plastic trim tool to remove the old emblem if needed
• Clean and dry the mounting area; align with locating marks/holes and secure per your model diagram

Replace your dishwasher's control panel button tree assembly. This part holds the selector buttons in place and may need replacement if cracked or broken.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
