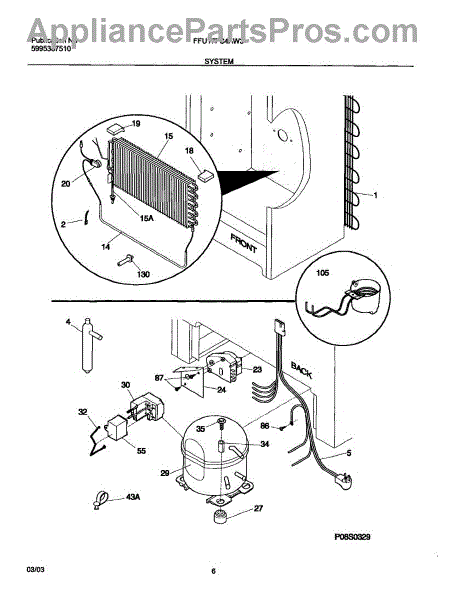

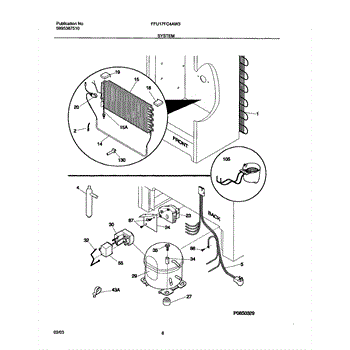

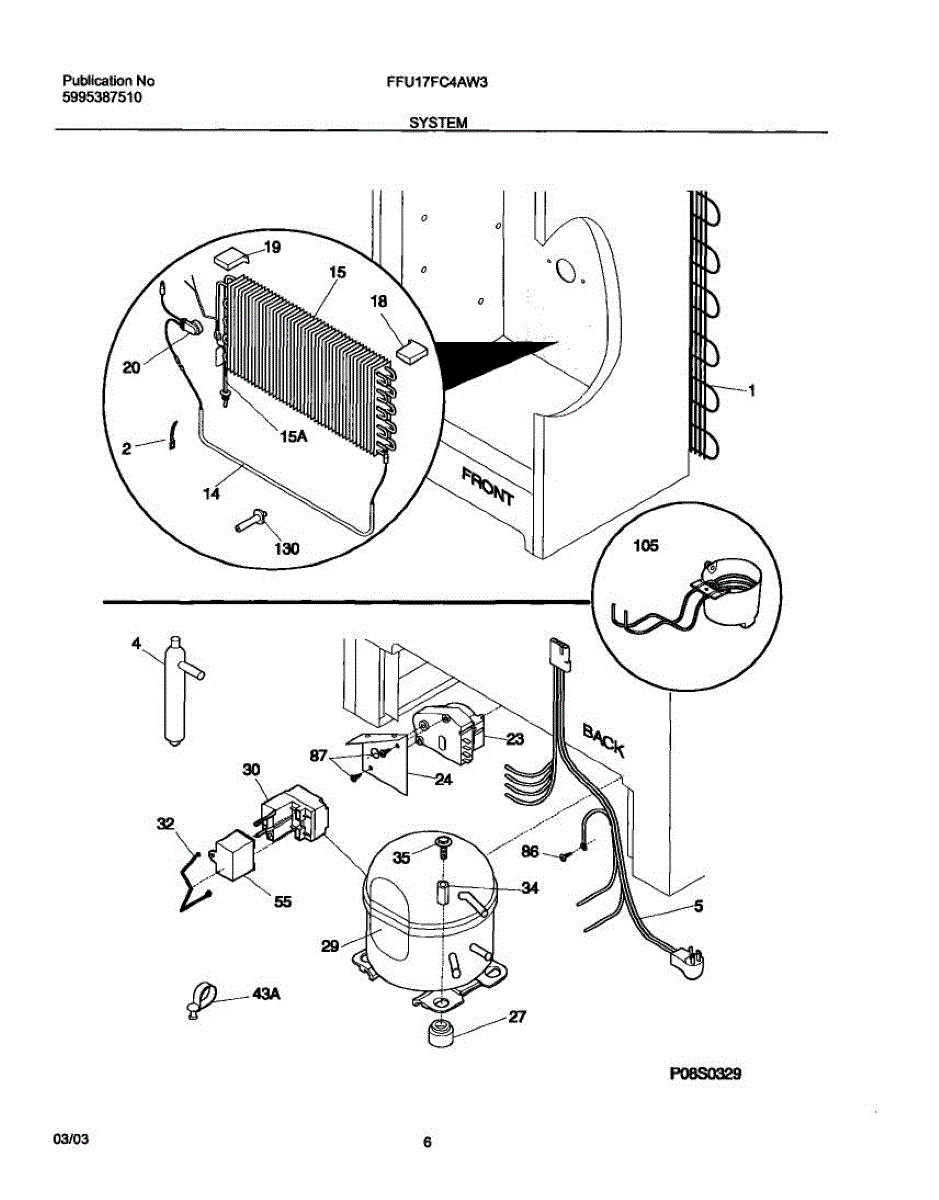

Parts for Frigidaire FFU17FC4AW3: 07 - System Parts

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Includes service line.

Fixes frost buildup on evaporator coils causing warming or ice accumulation. Test with multimeter for continuity. DIY-friendly repair component.

Freezer not maintaining temperature or running constantly? This heat exchanger assembly transfers heat to restore proper cooling and efficient operation.

Freezer not cooling or running constantly? The evaporator may have failed. Professional installation recommended due to refrigerant system work.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

The Defrost Timer is an OEM replacement part for Frigidaire upright freezers. It serves as a crucial component responsible for regulating automatic defrost cycles.

Causes of a faulty defrost timer relate to 20,000+ hours of constant exposure to freezer temperatures as low as -10 degrees Fahrenheit. Such extremes can compromise electrical switching mechanisms over prolonged usage periods.

Symptoms of a failed defrost timer include:

• Inability to initiate automatic defrost modes
• Excessive ice and frost accumulation inside cabinet
• Warm areas detected due to impaired fan circulation
• Diagnostic codes indicating defrosting problems

This genuine Frigidaire replacement part is compatible with Kelvinator and some Kenmore units as well.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Refrigerator not cooling or compressor won't start? This compressor kit with electrical components restores cooling. Requires HVAC certification.

This controller kit is the appliance's main electronic control. It reads inputs from the user interface and sensors to power and coordinate key components. Replacing a failed controller restores responsive controls and consistent, reliable operation.

• Interprets commands from the keypad and sensors to manage operation
• Controls relays powering motors, fans, compressor, or valves as designed
• Coordinates modes and cycle timing for proper performance
• Common symptoms: dead or blank display, unresponsive buttons, won't start, intermittent shutdowns, or error codes

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle the board with ESD precautions; avoid touching connectors and components
• Photograph/label wire connections and transfer them one at a time to the new board
• After installation, verify any model-specific settings per the service documentation before testing

Secures interior trim and panels in your refrigerator. Replace when trim becomes loose or rattles. Verify fit with your model number before ordering.

Compressor vibrating or loose? This mounting screw secures the compressor in freezers and refrigerators. Simple fix, basic tools required.

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

Freezer leaking water inside? This evaporator drain cup catches defrost meltwater and channels it to the drain system, preventing leaks and ice buildup.

Small mounting bracket that holds shelves or baskets inside your freezer. Replace if cracked, broken, or missing to restore secure, level positioning.
