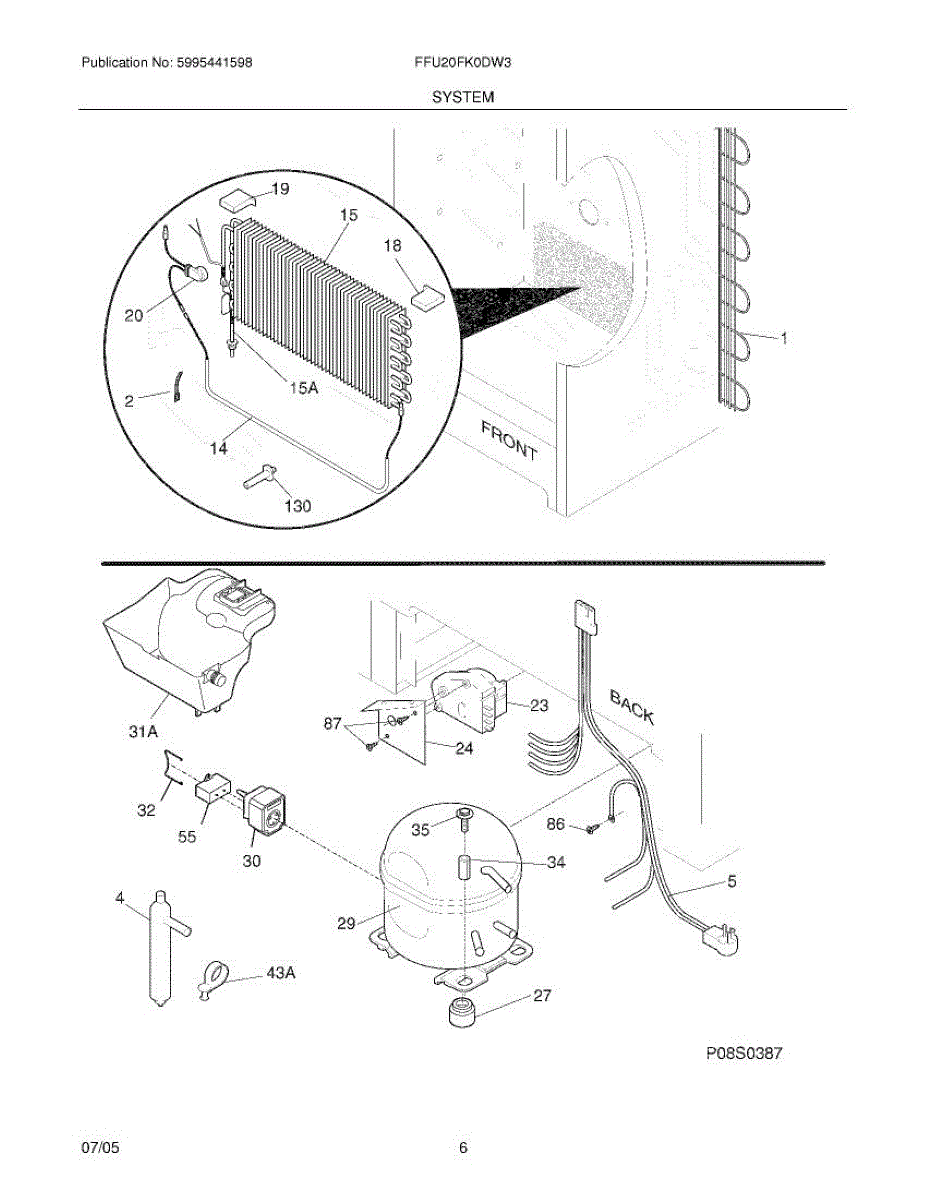

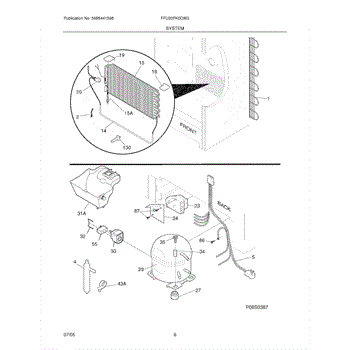

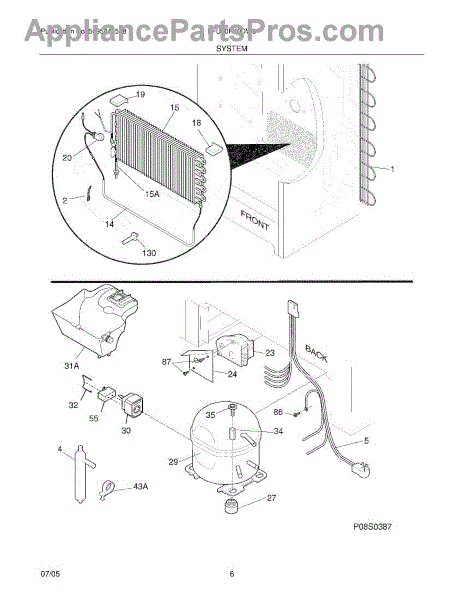

Parts for Frigidaire FFU20FK0DW3: 07 - System Parts

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Includes service line.

Replace a damaged or frayed main wire harness in your freezer. This internal wiring assembly connects electrical components throughout the unit.

Fixes frost buildup on evaporator coils causing warming or ice accumulation. Test with multimeter for continuity. DIY-friendly repair component.

Freezer not maintaining temperature or running constantly? This heat exchanger assembly transfers heat to restore proper cooling and efficient operation.

Freezer not cooling or running constantly? The evaporator may have failed. Professional installation recommended due to refrigerant system work.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

The Defrost Timer is an OEM replacement part for Frigidaire upright freezers. It serves as a crucial component responsible for regulating automatic defrost cycles.

Causes of a faulty defrost timer relate to 20,000+ hours of constant exposure to freezer temperatures as low as -10 degrees Fahrenheit. Such extremes can compromise electrical switching mechanisms over prolonged usage periods.

Symptoms of a failed defrost timer include:

• Inability to initiate automatic defrost modes
• Excessive ice and frost accumulation inside cabinet
• Warm areas detected due to impaired fan circulation
• Diagnostic codes indicating defrosting problems

This genuine Frigidaire replacement part is compatible with Kelvinator and some Kenmore units as well.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Freezer not cooling or running constantly? This compressor kit circulates refrigerant through the system. Advanced repair requires refrigerant handling.

This electronic control board manages the appliance's user interface and core control functions, restoring reliable operation when the original board fails. It replaces a damaged or unresponsive control module to help regain normal appliance control. What it does:

• Sends and receives signals to operate timers, relays, and display functions.
• Controls user inputs and on/off sequencing for the appliance's systems.
• Common symptoms of a failing board: unresponsive controls, blank or erratic display, cycles not starting or stopping, or intermittent operation.
• Use this board to replace units exhibiting control or display faults that other components have not resolved.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the board by the edges and avoid touching components; use an ESD strap if available.
• Verify wiring harness connections and fuses before and after installation.

Secures interior trim and panels in your refrigerator. Replace when trim becomes loose or rattles. Verify fit with your model number before ordering.

Compressor vibrating or loose? This mounting screw secures the compressor in freezers and refrigerators. Simple fix, basic tools required.

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

Small mounting bracket that holds shelves or baskets inside your freezer. Replace if cracked, broken, or missing to restore secure, level positioning.

Suction line plug seals the refrigerant line connection in your freezer's compressor system. Replace if cracked, damaged, or missing to maintain proper seal.
