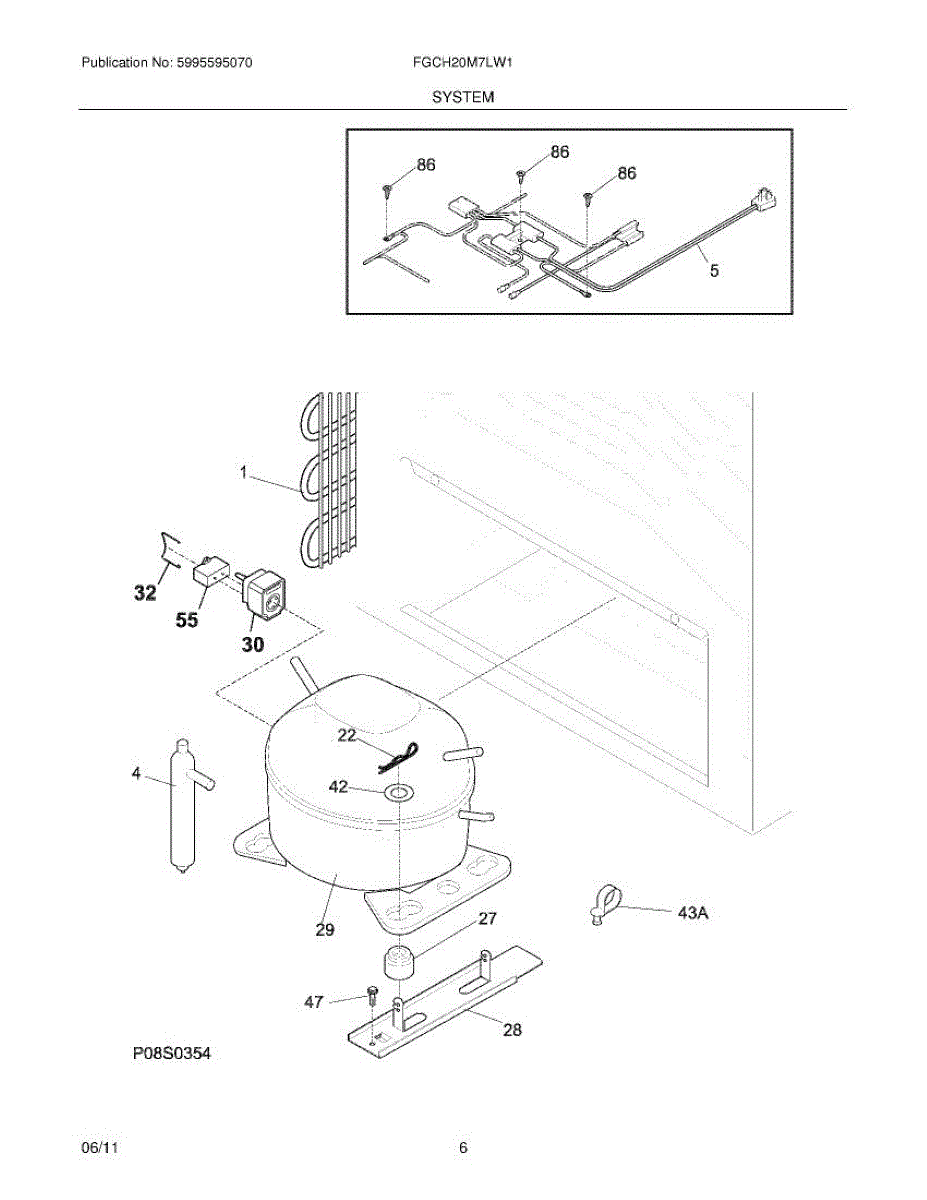

Parts for Frigidaire FGCH20M7LW1: 07 - System Parts

Includes service line.

This compressor mounting clip secures the compressor to its chassis to reduce movement and noise for reliable operation. It replaces worn or broken clips that allow the compressor to shift during use. What it does:

• Holds the compressor in place on the mounting bracket to prevent shifting
• Reduces vibration and rattling noises caused by a loose mount
• Helps maintain proper compressor alignment for steady operation
• Useful when a cracked or bent clip no longer secures the compressor

• Disconnect power to the appliance before accessing compressor area
• Inspect surrounding mounts and rubber isolators; replace if damaged
• Secure clip fully so compressor is held without forcing or misaligning components

This compressor grommet is a rubber mounting isolator that cushions and secures the compressor to the appliance chassis, helping reduce vibration and noise while preventing metal-to-metal contact and premature wear. What it does:

• Cushions compressor movement to reduce vibration transmitted to the cabinet
• Dampens noise and rattling caused by compressor operation
• Prevents direct metal-to-metal contact that can wear mounting points
• Helps keep the compressor positioned and secured under load

• Disconnect power to the appliance before accessing the compressor or base pan
• Replace grommets while supporting the compressor to avoid strain on lines and connections
• Inspect remaining mounting grommets; replace all worn isolators for best performance

This compressor kit is made to be used with freezers and refrigerators by several manufacturers. It includes the compressor as well as all small parts associated with it. The compressor is a component that helps move the refrigerant throughout the appliance's system. Temperature sensors indicate when the compressor should run. If the compressor is damaged, it may make strange noises, no longer cool properly, or could begin to overheat.If any of these issues are present, the compressor should be replaced. First, make sure the refrigerator is not connected to a power source. Remove perishable items from the appliance and place them in an icebox, cooler with ice, or another refrigerator. Locate the compressor on the back of the appliance by removing the metal guard. Remove the wire between the compressor and the capacitor before taking off the compressor. Replace this part with the new one by connecting it to the wire and reassembling the appliance.This is a compressor kit for use with refrigerators and freezers made by Crosley, Electrolux, Westinghouse, Frigidaire, Kelvinator, Tappan, and Gibson. It is sourced directly from the manufacturer and sold as a single part. This is a genuine OEM replacement part.

The Compressor Start Relay is an OEM part for Frigidaire refrigerators. This essential component is responsible for initiating the compressor's start-up process by supplying power to the compressor motor. It helps kickstart the compressor, allowing it to begin the cooling cycle.

A faulty start relay or overload can occur due to wear and tear over time, electrical issues, or component failure.

Signs of a bad start relay may include:

• The refrigerator not cooling properly or not cooling at all
• Unusual noises coming from the compressor area
• The compressor fails to start or repeatedly cycles on and off

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This genuine appliance screw secures panels and components to keep your refrigerator parts aligned and stable. A small but essential fastener, it restores proper fit and stops rattling or loose trim for reliable operation. What it does:

• Fastens panels, trim, or internal components to the appliance frame
• Restores secure fit when factory screws are missing or stripped
• Stops vibration- or temperature-related rattling caused by loose hardware
• Helps maintain proper spacing and alignment of serviceable parts

• Turn off and unplug the appliance before servicing electrical or internal areas
• Use the matching screw hole and thread engagement; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking surrounding material

The Run Capacitor is an OEM part for Frigidaire refrigerators. It helps maintain a consistent electrical current to the compressor, ensuring efficient operation and optimal cooling performance.

Causes of a bad run capacitor can include electrical surges, prolonged use leading to wear and tear, or physical damage. A failing capacitor can lead to the compressor running inefficiently or not at all, affecting the refrigerator's ability to maintain the desired temperature.

Symptoms of a bad run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running inconsistently
• Clicking sounds coming from the refrigerator
• The refrigerator cycling on and off frequently

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
