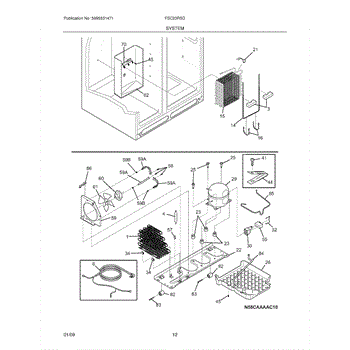

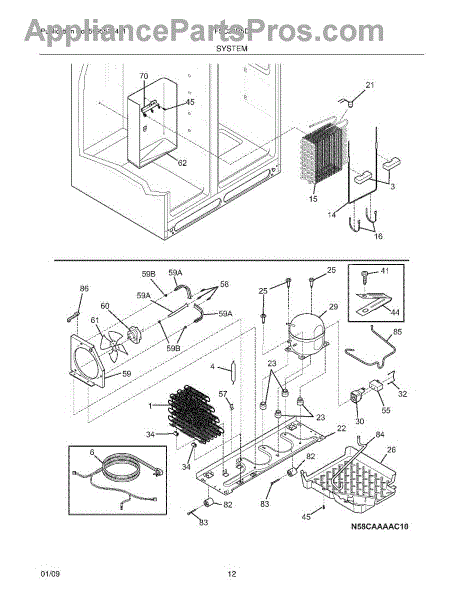

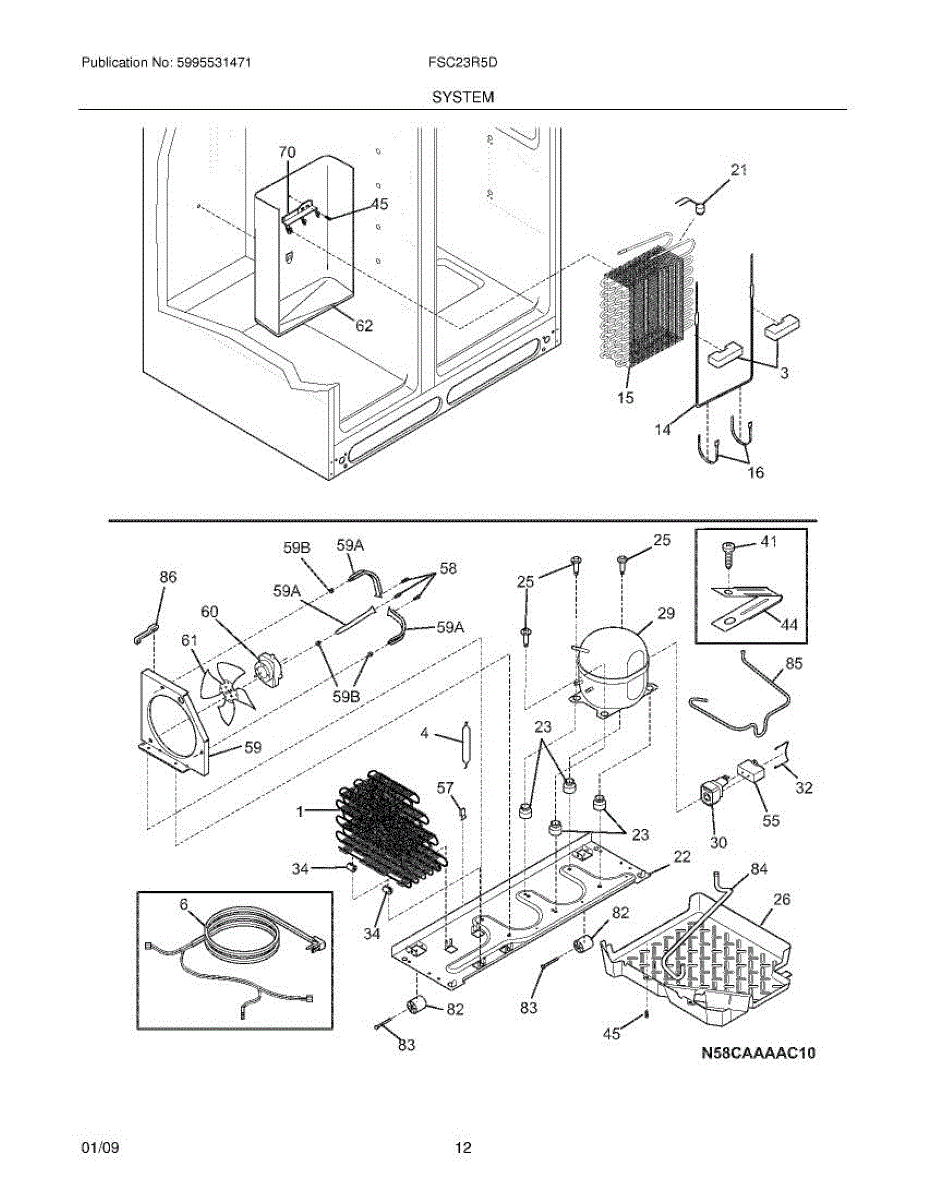

Parts for Frigidaire FSC23R5DBL: 13 - System Parts

The Frigidaire PureSource Plus WFCB Refrigerator Water Filter is an OEM part for Frigidaire refrigerators. This water filter is specifically engineered to reduce impurities and contaminants in your drinking water and ice, including chlorine taste and odor, lead, cysts, and particulates.

Regular replacement of the water filter is recommended to maintain the best water quality and flow rate. Over time, the filter can become clogged with particles and contaminants, which can reduce its effectiveness and potentially affect the taste and odor of your water.

Symptoms of a filter that needs replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turns on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This condenser coil assembly removes heat from the refrigerant so your refrigerator can maintain proper cooling. Replacing a damaged or clogged condenser restores heat rejection and helps the compressor run more efficiently. What it does

• Transfers heat from the refrigerant to the surrounding air so the system can cool interior compartments
• Helps prevent the compressor from running continuously by allowing proper heat dissipation
• Commonly fails when fins are bent, clogged with debris, or corroded, causing reduced cooling performance
• Can cause the refrigerator to run hot, overheat at the rear, or cycle abnormally when compromised

• One condenser coil assembly

• Disconnect power to the appliance before starting any repair
• Replacement typically requires removal of lower rear access panels and panel fasteners; keep hardware for reinstallation
• Handle the coil carefully to avoid bending fins or damaging tubing

Includes service line.

The Power Cord is an OEM part for Frigidaire refrigerators. It transmits electrical current from the wall outlet directly to the internal refrigerator components, allowing them to operate properly. As the critical link supplying energy, this power cord plays an essential role in refrigerator performance.

Causes can involve normal wear over many years, accidental punctures, harsh chemicals, or excessive bending/pulling that strains and weakens internal wiring. Rodent damage is another potential issue.

Symptoms of a bad power cord include:

• The refrigerator not powering on when plugged in
• Flickering lights or intermittent operation
• Warm temperatures inside the fridge compartment
• Evidence of cord damage like cracks, blisters, or exposed wires

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Defrost Heater is an OEM part for Frigidaire refrigerators. It plays a crucial role in the refrigerator's defrost cycle, melting away any frost that accumulates on the evaporator coils.

Causes of a bad Defrost Heater can include a burnt-out heating element, electrical issues such as faulty wiring, or a malfunctioning thermostat that fails to activate the heater when needed.

Symptoms of a failing Defrost Heater include:

• Buildup of frost or ice on the evaporator coils despite regular defrost cycles
• Increasingly warmer temperatures in the refrigerator or freezer compartments
• The refrigerator cycling on and off more frequently than usual
• Unusual noises from ice buildup that affects the fan

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

The Defrost Thermostat Kit is an OEM replacement part for Frigidaire refrigerators. This kit contains the defrost thermostat, which is a crucial component in the refrigerator's defrost system.

Symptoms of needing to replace the defrost thermostat kit include:

• Excessive frost or ice buildup on the evaporator coils
• Inadequate cooling or temperature fluctuations
• Increased energy consumption due to inefficient defrosting
• Condensation or moisture buildup within the refrigerator compartment

Causes of a faulty defrost thermostat can include normal wear and tear, exposure to extreme temperatures or moisture, or electrical malfunctions.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

This defrost drain pan collects water from the refrigerator's automatic defrost cycle and channels it safely to the evaporator area for evaporation, helping prevent leaks and water pooling beneath the appliance. What it does:

• Collects and channels defrost water away from the freezer/refrigerator cabinet
• Prevents water from pooling under the unit, which can cause floor damage or odor
• Helps proper evaporation of defrosted water at the compressor/evaporator location
• Reduces risk of ice build-up from standing water in the cabinet

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove lower access panels or kickplate to reach and replace the pan
• Inspect and clear the drain tube and heater while replacing the pan for best results
• Handle gently to avoid bending or cracking the pan

This starter is the compressor's start device. It energizes the start winding so the compressor can begin running, helping restore reliable cooling performance. What it does and common signs it's bad:

• Supplies initial current to the compressor's start winding; disengages once the motor is running
• Symptoms can include a warm refrigerator/freezer, compressor not starting, clicking or humming every few minutes
• Can show heat damage or rattling when shaken after failure

• One compressor starter

• Disconnect power before servicing and pull the unit forward for rear access
• Remove the compressor cover; note wire positions and device orientation
• Firmly seat the new starter on the compressor terminals and reconnect the harness; reinstall the cover
• Restore power and observe compressor start-up; use cut-resistant gloves and follow the product's service information

A replacement clamp that secures flexible hoses or tubing to fittings to help prevent leaks and keep connections tight. Fits where a small spring-style or band clamp is used on water or drain hoses. What it does

• Holds hoses or small tubing firmly to appliance fittings to maintain a sealed connection
• Helps stop leaks and reduce movement that can wear or disconnect hoses
• Commonly used on drain and water line connections where a compact clamp is needed
• Works with flexible rubber or plastic hose materials; choose correct size for a secure fit

• One clamp

• Disconnect power and shut off the water supply before beginning work
• Drain residual water from hoses to avoid spills
• Use appropriate pliers or a screwdriver depending on clamp type; avoid over-tightening
• Inspect hose ends and fittings for damage and replace any worn components for a reliable seal

Color: Black. Rubber. Holds tube/wire

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Galvanized Steel

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

The Compressor Run Capacitor is an OEM replacement part for Frigidaire refrigerators. This electrical component is essential for providing the necessary torque to start and maintain the operation of the compressor motor, which is responsible for cooling the refrigerator.

Symptoms of a failing compressor run capacitor include:

• The refrigerator not running or cooling properly
• The compressor failing to start or running intermittently
• Humming or buzzing noises coming from the compressor area

Causes of needing to replace the compressor run capacitor can include normal wear over time, exposure to high temperatures or electrical surges, or physical damage to the capacitor itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

The Condenser Fan Motor is an OEM replacement part for Frigidaire refrigerators. It is a component responsible for drawing heat away from the refrigerator's cooling system. By rapidly spinning the condenser fan blades, the motor works to dissipate heat buildup and ensure optimal cooling performance.

Causes of a bad condenser fan motor include bearing wear over time, damage from moisture or dirt infiltration, or failure of electronic motor components.

Symptoms of a bad condenser fan motor include:

• Inadequate or inconsistent cooling within the refrigerator
• Loud buzzing or rattling noises emanating from the rear
• Slow or failed rotation of the condenser fan blades

This OEM Frigidaire replacement condenser fan motor is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore-branded refrigerators.

The Condenser Fan Motor Blade is an OEM replacement part for Frigidaire refrigerators. This part attaches to the condenser fan motor and works by drawing air through the condenser coils and over the compressor, dissipating heat and allowing the refrigerant to cool effectively.

Causes of damage to the Condenser Fan Motor Blade can include physical damage from moving or cleaning the refrigerator, obstruction from debris that impedes the blade's rotation, or wear and tear over time that can lead to cracks or the blade becoming loose.

Symptoms of a bad Condenser Fan Motor Blade include:

• The refrigerator running hotter than usual
• Unusual noises coming from the back of the refrigerator where the condenser fan is located
• The refrigerator compressor running for longer periods than normal or cycling on and off more frequently

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This evaporator cover mounting bracket secures the evaporator cover inside the freezer compartment to keep cooling airflow and components in place. Durable metal construction replaces a broken or bent bracket to restore proper cover alignment. What it does:

• Holds the evaporator cover in position for correct airflow and protection of the evaporator coil
• Helps stop rattling or loose cover movement that can cause noise
• Restores a secure mounting point after impact or corrosion damage
• Works with the evaporator cover assembly to maintain consistent cooling performance

• High-level replacement: remove the evaporator cover to access mounting points; fasten bracket with existing screws
• Use basic hand tools; keep screws and clips organized for reassembly
• Disconnect power to the appliance before starting any repair to avoid electrical hazard

This replacement rear compressor base roller supports the refrigerator compressor on the cabinet rear base, helping keep the compressor properly seated and reducing wear from vibration and movement. What it does

• Provides a rolling support under the compressor to keep it aligned and off the cabinet floor
• Helps reduce vibration and rattling that can occur from a loose or worn compressor mount
• Prevents compressor body from dragging or scraping the cabinet base
• Commonly replaced when the roller is cracked, worn flat, missing, or causing noise

• Disconnect power to the appliance before starting any work
• Support or secure the compressor and cabinet before removing the old roller to avoid sudden movement
• Basic hand tools usually required; inspect mounting hardware and replace any damaged fasteners
• Do not attempt sealed-system repairs.

This rivet is a metal fastener used to permanently secure panels, brackets, or internal components in your appliance. Replacing a damaged or missing rivet restores a tight fit and helps prevent vibration, rattles, and looseness.

• Permanently joins thin metal parts where screws or nuts aren't used
• Maintains alignment and structural integrity of housings and frames
• Helpful when panels or components are loose, rattling, or won't stay secured
• Direct replacement for a worn, broken, corroded, or drilled-out factory rivet

• Disconnect power and shut off gas/water (as applicable) before servicing
• Support the part being fastened; drill out the old rivet head if needed
• A hand riveter/rivet tool may be required to set the new rivet
• Wear eye and hand protection during drilling/riveting

This condenser tube spacer positions and secures the refrigerator's condenser tubing to maintain proper tube spacing and airflow. Replacing a worn or broken spacer helps reduce vibration, rattling, and rubbing that can damage tubing over time. What it does:

• Holds condenser tubing in the correct position to preserve airflow and cooling efficiency
• Cushions tubing to limit vibration and reduce rattling noises
• Prevents tubing from rubbing against the cabinet or other components, lowering wear risk
• Helps reduce the chance of tubing fatigue that can lead to damage

• Disconnect power to the appliance before accessing rear panels or condenser components.
• Handle condenser tubing gently; avoid kinking, bending, or putting stress on lines during installation.
• Installation may require removing the back or lower access panel to reach the condenser assembly.

This replacement fan shroud screw secures the evaporator/condenser fan shroud to the appliance, helping keep the fan assembly stable for proper airflow and quiet operation. Use it to replace stripped or missing mounting hardware. What it does:

• Secures the fan shroud or mounting bracket to the appliance cabinet or fan assembly
• Helps prevent fan wobble, rubbing, and airflow disruption caused by a loose shroud
• Restores proper clearance between fan blades and shroud to reduce noise and wear

• High-level replacement—remove power to the appliance before starting work
• Use appropriate-size driver to avoid stripping the screw head
• Inspect surrounding hardware and shroud for damage; replace any damaged parts before reassembly

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
