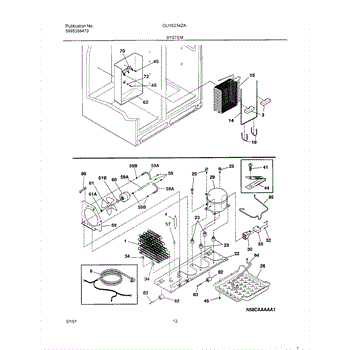

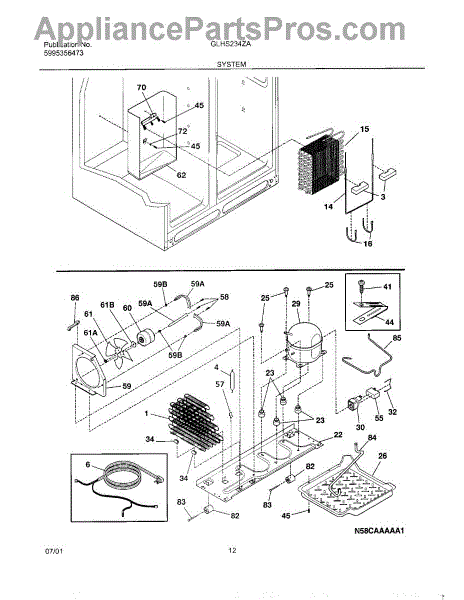

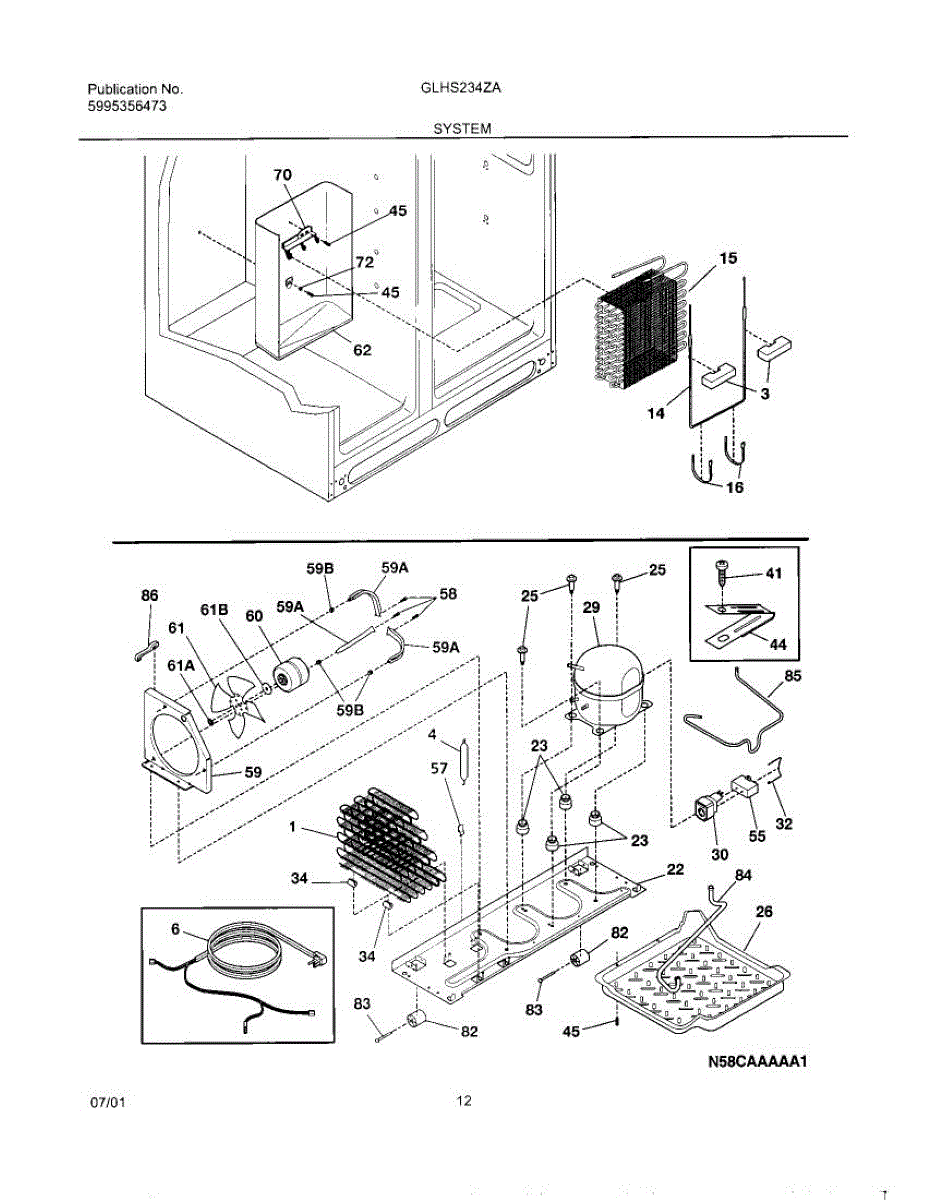

Parts for Frigidaire GLHS234ZAW1: 13 - System Parts

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

Includes service line.

This defrost heater kit restores the automatic defrost cycle by melting frost from the freezer's evaporator coils. Replacing a failed heater helps clear ice buildup, restore airflow, and stabilize temperatures for reliable cooling performance.

• Heats the evaporator during defrost to remove frost and ice
• Helps maintain proper airflow through the coils for consistent cooling
• Common symptoms of a failed heater: heavy frost on the back freezer wall, weak airflow, warming temps, or cooling that improves after a manual defrost
• Supports efficient operation by preventing ice from re-forming on the evaporator

• Unplug the refrigerator before servicing; let any sharp parts or coils warm up to avoid damage
• Access the heater behind the freezer's rear panel; handle the element carefully to avoid damage
• Note wire routing and mounting before removal to match the original configuration
• Check the defrost thermostat and defrost control/timer for proper operation

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

The defrost drain pan collects water that melts off the evaporator during automatic defrost and holds it near the warm compressor so it can evaporate. Replacing a damaged pan helps prevent leaks, puddles, and odors around the base of the refrigerator.

• Collects defrost water routed from the evaporator drain
• Positions water in warm airflow near the compressor for evaporation
• Replace if the pan is cracked, warped, missing, or leaking
• Symptoms can include water on the floor, moisture under the unit, or musty odors

• Unplug the refrigerator; wear cut-resistant gloves
• Pull the unit forward and remove the lower rear access panel to reach the pan near the compressor
• Lift out the old pan; transfer any reusable clips/brackets; seat the new pan under the drain tube and ensure it's level and clear of moving parts
• Reinstall the panel, restore power, and check for proper drainage and evaporation

A replacement compressor kit designed to restore the refrigeration system's ability to cool by replacing failed compressor components. Use this kit when the compressor assembly needs service or replacement. What it does:

• Replaces failed compressor components to help restore normal cooling performance
• Stops intermittent or complete loss of cooling often caused by compressor failure
• Helps address loud humming, grinding, or continuous running tied to compressor problems
• Supports proper refrigerant flow when installed and serviced

• Disconnect power and unplug the appliance before beginning any repairs
• Compressor and sealed-system service (evacuation, vacuum, refrigerant charging) must be performed
• Use proper handling and tools for refrigerant-containing components to avoid leaks and injury

The Compressor Start Kit is an OEM part for Frigidaire refrigerators. It is responsible for providing a reliable start-up for the compressor. It includes the necessary components to assist in initiating the compressor's motor, allowing it to run efficiently.

A bad compressor start kit can occur due to electrical issues, damage, or wear over time. If the start kit fails, it can lead to problems such as the compressor not starting, warm temperatures inside the refrigerator, or inconsistent cooling performance.

Symptoms of a bad compressor start kit include:

• Compressor not starting or struggling to start.
• Warm temperatures inside the refrigerator.
• Inconsistent cooling or inadequate cooling.
• Unusual noises coming from the compressor.

If you're experiencing any of these issues, it's time to replace the compressor start kit with this genuine part. Restore the proper functioning and cooling performance of your refrigerator with a new compressor start kit. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


Color: Black. Rubber. Holds tube/wire

Galvanized Steel

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

The Compressor Run Capacitor is an OEM replacement part for Frigidaire refrigerators. This electrical component is essential for providing the necessary torque to start and maintain the operation of the compressor motor, which is responsible for cooling the refrigerator.

Symptoms of a failing compressor run capacitor include:

• The refrigerator not running or cooling properly
• The compressor failing to start or running intermittently
• Humming or buzzing noises coming from the compressor area

Causes of needing to replace the compressor run capacitor can include normal wear over time, exposure to high temperatures or electrical surges, or physical damage to the capacitor itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

The Condenser Fan Motor Kit is an OEM part for Frigidaire refrigerators. This kit includes the motor and necessary components to replace the existing condenser fan motor in your appliance. It is responsible for circulating air through the condenser coils to dissipate heat outside the refrigerator, helping to maintain the internal temperature and keep the compressor cool.

Causes of damage to the condenser fan motor can include wear and tear over time, dust and debris buildup that obstructs fan movement or damages the motor, and electrical issues such as shorts or surges that can burn out the motor.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator overheating or not cooling efficiently
• Unusual noises coming from the back of the refrigerator
• The refrigerator cycling on and off more frequently or running longer than normal

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This evaporator cover mounting bracket secures the evaporator cover inside the freezer compartment to keep cooling airflow and components in place. Durable metal construction replaces a broken or bent bracket to restore proper cover alignment. What it does:

• Holds the evaporator cover in position for correct airflow and protection of the evaporator coil
• Helps stop rattling or loose cover movement that can cause noise
• Restores a secure mounting point after impact or corrosion damage
• Works with the evaporator cover assembly to maintain consistent cooling performance

• High-level replacement: remove the evaporator cover to access mounting points; fasten bracket with existing screws
• Use basic hand tools; keep screws and clips organized for reassembly
• Disconnect power to the appliance before starting any repair to avoid electrical hazard

This replacement rear compressor base roller supports the refrigerator compressor on the cabinet rear base, helping keep the compressor properly seated and reducing wear from vibration and movement. What it does

• Provides a rolling support under the compressor to keep it aligned and off the cabinet floor
• Helps reduce vibration and rattling that can occur from a loose or worn compressor mount
• Prevents compressor body from dragging or scraping the cabinet base
• Commonly replaced when the roller is cracked, worn flat, missing, or causing noise

• Disconnect power to the appliance before starting any work
• Support or secure the compressor and cabinet before removing the old roller to avoid sudden movement
• Basic hand tools usually required; inspect mounting hardware and replace any damaged fasteners
• Do not attempt sealed-system repairs.

This rivet is a metal fastener used to permanently secure panels, brackets, or internal components in your appliance. Replacing a damaged or missing rivet restores a tight fit and helps prevent vibration, rattles, and looseness.

• Permanently joins thin metal parts where screws or nuts aren't used
• Maintains alignment and structural integrity of housings and frames
• Helpful when panels or components are loose, rattling, or won't stay secured
• Direct replacement for a worn, broken, corroded, or drilled-out factory rivet

• Disconnect power and shut off gas/water (as applicable) before servicing
• Support the part being fastened; drill out the old rivet head if needed
• A hand riveter/rivet tool may be required to set the new rivet
• Wear eye and hand protection during drilling/riveting

This condenser tube spacer positions and secures the refrigerator's condenser tubing to maintain proper tube spacing and airflow. Replacing a worn or broken spacer helps reduce vibration, rattling, and rubbing that can damage tubing over time. What it does:

• Holds condenser tubing in the correct position to preserve airflow and cooling efficiency
• Cushions tubing to limit vibration and reduce rattling noises
• Prevents tubing from rubbing against the cabinet or other components, lowering wear risk
• Helps reduce the chance of tubing fatigue that can lead to damage

• Disconnect power to the appliance before accessing rear panels or condenser components.
• Handle condenser tubing gently; avoid kinking, bending, or putting stress on lines during installation.
• Installation may require removing the back or lower access panel to reach the condenser assembly.

This replacement fan shroud screw secures the evaporator/condenser fan shroud to the appliance, helping keep the fan assembly stable for proper airflow and quiet operation. Use it to replace stripped or missing mounting hardware. What it does:

• Secures the fan shroud or mounting bracket to the appliance cabinet or fan assembly
• Helps prevent fan wobble, rubbing, and airflow disruption caused by a loose shroud
• Restores proper clearance between fan blades and shroud to reduce noise and wear

• High-level replacement—remove power to the appliance before starting work
• Use appropriate-size driver to avoid stripping the screw head
• Inspect surrounding hardware and shroud for damage; replace any damaged parts before reassembly
