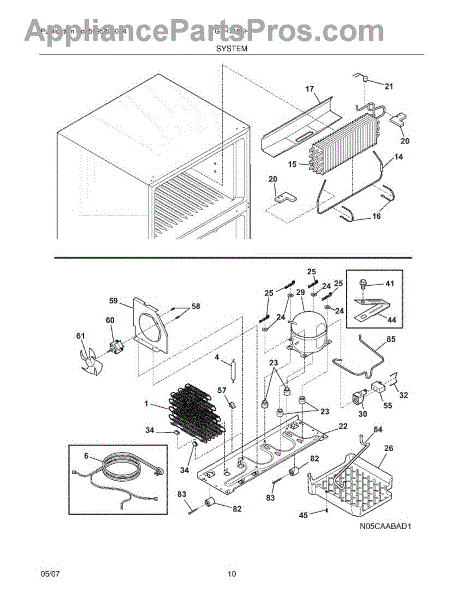

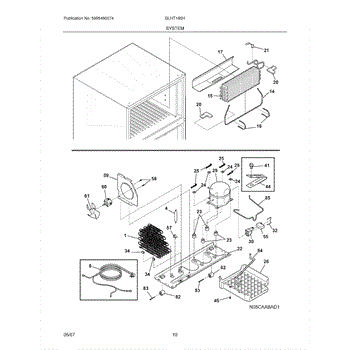

Parts for Frigidaire GLHT186HB3: 09 - System Parts

Refrigerator not cooling properly? A faulty condenser may be blocking heat release. This repair requires soldering skills and sealed system experience.

Includes service line.

Internal wiring harness that routes power between your refrigerator's electrical components. Replace if damaged, chewed by rodents, or frayed.

Frost buildup in freezer or warm fridge? This defrost heater melts ice on the evaporator coil during defrost cycles. DIY-friendly repair in 30-45 minutes.

Freezer not freezing or fridge too warm? The evaporator coil absorbs heat to cool your refrigerator. Professional installation recommended for this repair.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Channels defrost water from the evaporator to the drain pan. Replace if cracked, broken, or leaking to prevent water pooling in the fresh-food compartment.

Foam insulation block that fills gaps inside the refrigerator cabinet to reduce heat transfer. Replaces damaged, compressed, or missing insulation.

Freezer frost buildup? Defrost thermostat regulates defrost cycles to prevent ice accumulation. DIY repair takes 15-30 minutes with basic tools.

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures the compressor to the mounting bracket in your refrigerator. Replace if washer is missing, cracked, or worn to restore proper support.

Secures the compressor to the chassis, reducing movement and noise. Replace if your compressor shifts or rattles during operation. Confirm fit with model.

Fix floor puddles and musty odors caused by a cracked defrost drain pan. This pan collects defrost water and allows it to evaporate. Easy DIY fix.

A replacement compressor kit designed to restore the refrigeration system's ability to cool by replacing failed compressor components. Use this kit when the compressor assembly needs service or replacement. What it does:

• Replaces failed compressor components to help restore normal cooling performance
• Stops intermittent or complete loss of cooling often caused by compressor failure
• Helps address loud humming, grinding, or continuous running tied to compressor problems
• Supports proper refrigerant flow when installed and serviced

• Disconnect power and unplug the appliance before beginning any repairs
• Compressor and sealed-system service (evacuation, vacuum, refrigerant charging) must be performed
• Use proper handling and tools for refrigerant-containing components to avoid leaks and injury

A replacement starter kit used to restore reliable starting operation in compatible Frigidaire appliances. Replaces the original starter components so the appliance can more consistently begin motor/compressor cycles. What it does

• Provides the starter components needed to engage the motor or compressor during power-up.
• Helps resolve symptoms like failure to start, intermittent starts, or humming without run.
• Restores normal starting sequence when starter components are worn or failed.
• Works as a direct-replacement kit for the OEM starter assembly where specified.

• For experienced DIYers only; disconnect power before servicing.
• Follow OEM service instructions for correct routing, mounting, and electrical connections.
• Inspect related components (capacitor, relay, motor) for damage before installation.

Black rubber mounting grommet that secures tubes and wires in your refrigerator. Replace if cracked, worn, or missing to properly hold components in place.

Mounting screw for refrigerators and freezers. Secures panels, brackets, and internal components. Replace when stripped, missing, or damaged.

Secures wire harnesses and ground wires to your refrigerator cabinet. Replace if broken or missing to prevent wire damage. Verify fit with your model.

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

Secures and organizes wiring harnesses in your refrigerator. Replace if broken, cracked, or wires are loose. Confirm fit with your model number.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Fix a fridge that's not cooling or making loud airplane-like noises. This condenser fan motor kit circulates air through coils. 30min-2hr DIY install.

Refrigerator running hot or making noise? A failed condenser fan motor stops airflow across coils. Moderate DIY repair restores cooling efficiency.

Refrigerator not cooling properly? A broken condenser fan blade prevents heat removal from coils. Easy DIY fix—just pull off and press on. Video included.

Supports the compressor on the refrigerator's rear base. Replace if cracked, broken, or worn to keep compressor properly seated and reduce vibration damage.

Metal rivet fastener permanently secures panels, brackets, and internal components in refrigerators. Replace damaged, missing, or worn rivets to restore fit.

Routes defrost and condensation water from freezer to drain pan. Replace if cracked, clogged, disconnected, or causing water pooling in compartments.

Refrigerator not cooling properly? This compressor tube connector links sealed system components. Professional installation required for refrigerant work.

Foam seal tape creates airtight barriers around refrigerator components. Replace when worn, compressed, or damaged to restore proper sealing and efficiency.

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

This heat exchanger suction line kit replaces a damaged or corroded suction line assembly to restore proper refrigerant flow and heat transfer in the cooling system. It helps maintain consistent compartment temperatures and system efficiency. What it does:

• Transfers heat from the refrigerant suction line so the compressor and evaporator operate correctly
• Replaces cracked, kinked, or corroded tubing that can cause refrigerant loss or reduced cooling
• Helps address symptoms such as warm or inconsistent temperatures, visible oil or residue at fittings, or abnormal frost/ice patterns
• Restores a sealed refrigerant path after tubing damage or when corrosion has compromised the line

• Intended for qualified service technicians only; system access requires certified refrigerant handling
• Disconnect power to the appliance before servicing and follow all safety precautions
• Installation may require brazing, flare fittings, or specialty tools; verify leak-tight connections and pressure-test per OEM procedures
• Evacuate and recharge the refrigerant system to OEM specifications after installation

Secures the evaporator or condenser fan shroud to the refrigerator cabinet. Replace this mounting screw if stripped, missing, or broken during repair.

Replacement mounting screw for refrigerator panels, handles, brackets, and internal fixtures. Order when original screws are stripped, lost, or damaged.
