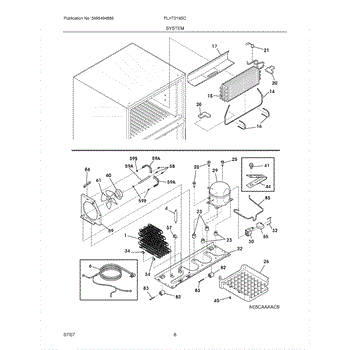

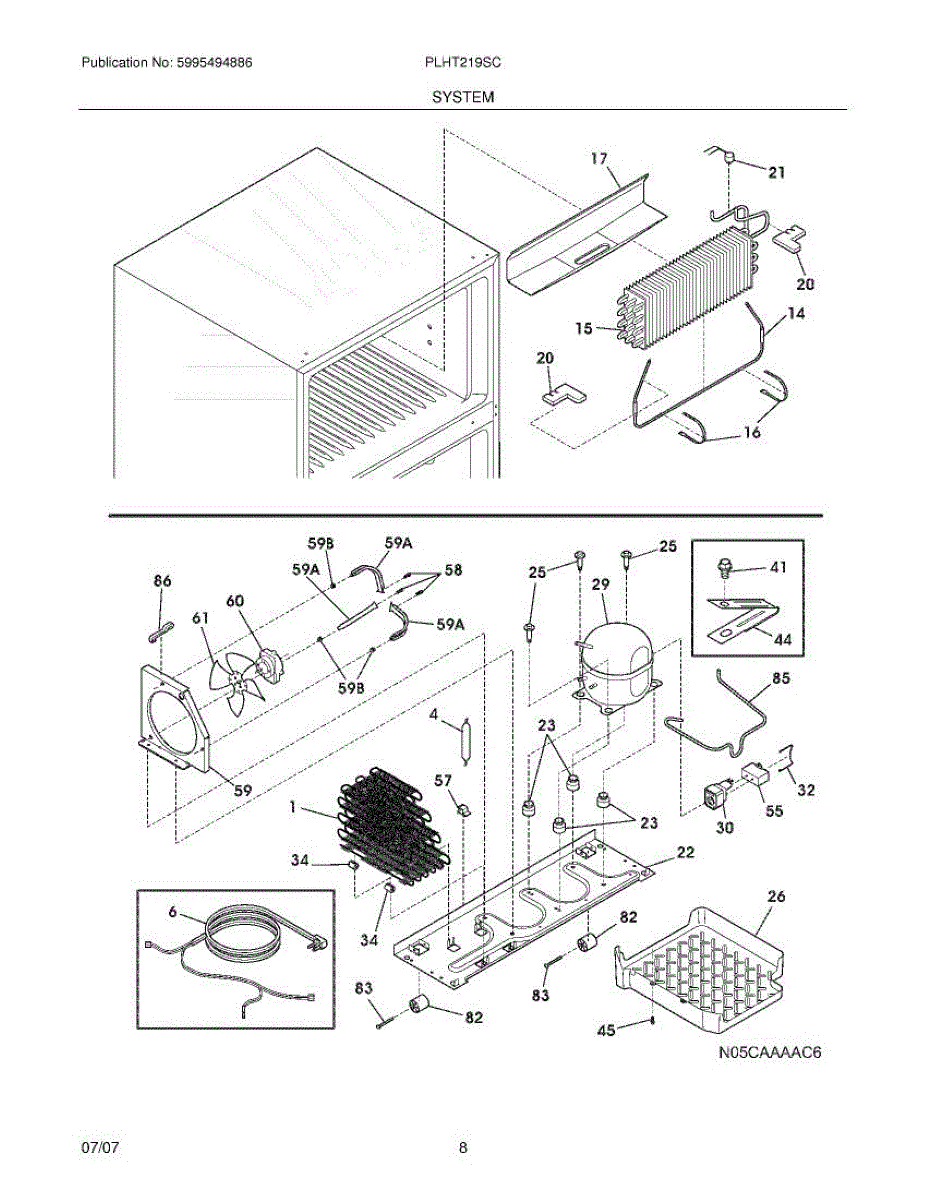

Parts for Frigidaire PLHT219SCBB: 09 - System Parts

Includes service line.

A wiring harness that routes power and signals between a refrigerator's internal electrical components, helping lights, controls, fans and motors operate correctly. Replacing a damaged harness restores reliable electrical connectivity and reduces risk of intermittent faults. What it does:

• Routes power and signal connections between the control board, lights, motors, sensors and other internal components.
• Common visible issues include frayed insulation, broken or loose connectors, or heat damage at terminals.
• Replacing a faulty harness helps eliminate wiring-related faults that can cause component failures or safety concerns.

• Always disconnect power (unplug appliance or shut off circuit breaker) before inspecting or replacing the harness.
• Match connector shapes and pin counts; route the harness along the original path and avoid tight bends or pinch points.
• Secure with the existing clips or ties; replace damaged clips or protective insulation as needed.

This defrost heater mounts at the evaporator and melts frost during the automatic defrost cycle to keep airflow clear and temperatures steady. Replace it if ice builds up on the freezer wall or the refrigerator section warms.

• Heats the evaporator during defrost to clear frost and ice
• Restores normal airflow between freezer and fresh food compartments
• Common symptoms: frost/ice on back freezer panel, warm refrigerator section, longer run times
• Can prevent fan noise or blockage caused by ice around the evaporator

• Disconnect power and remove the freezer rear panel to access the evaporator
• Handle the heater carefully and avoid damaging the evaporator fins
• Route wires and secure the heater exactly like the original, reusing any clips/brackets
• Restore power and verify defrost operation; if frost returns, check the defrost thermostat and control

This genuine replacement part is an evaporator used in refrigerators. The evaporator is the part that exchanges heat to cool the refrigerator. It is the component of the refrigerator that absorbs the heat from the air inside, turning it cool through absorption. If the refrigerator is no longer cooling properly, this could mean it's time for a new evaporator.This is a genuine replacement evaporator compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse brand refrigerators.

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

This drain trough directs defrost water from the evaporator to the refrigerator drain, helping prevent pooling, leaks and ice build-up in the fresh-food compartment. A correct trough keeps defrost water flowing and reduces odors or floor damage. What it does:

• Channels defrost/condensate water from the evaporator to the drain system
• Prevents water pooling under shelves or in the crisper area
• Reduces ice buildup and attendant leaks when the drain path is clear
• Replace if cracked, warped, or if water is collecting where it shouldn't

• Disconnect power to the appliance before servicing
• Remove interior shelves/drawers as needed to access the trough
• Clean the drain channel and clear any debris before installing the new trough
• Make sure the trough is fully seated and aligned so water drains properly; follow OEM fastener/placement points

This foam insulation block helps fill gaps and reduce heat transfer inside the refrigerator cabinet to maintain proper cooling and reduce frost/condensation. It restores the designed insulation barrier where the original piece is damaged or missing. What it does:

• Replaces a damaged or missing foam block that seals internal gaps in the cabinet or behind panels
• Helps prevent warm air infiltration that can cause poor cooling or excess frost
• Reduces condensation and moisture buildup around the evaporator area or panel seams
• Supports consistent temperature performance by restoring insulation continuity

• One foam insulation block

• Disconnect power to the appliance before beginning any repair
• Access location may require removing interior panels or shelves; handle panels and clips carefully
• Install in the exact position and orientation of the original part; use any existing adhesive or fasteners as required
• If adhesive is needed, use only appliance-safe adhesives compatible with foam and follow manufacturer guidance

The Defrost Thermostat is an OEM replacement part for Frigidaire refrigerators. This component plays a crucial role in regulating the defrost cycle, which is responsible for removing any built-up frost or ice from the freezer compartment.

Symptoms that may indicate the need to replace the defrost thermostat include:

• Excessive frost or ice buildup in the freezer
• The refrigerator not maintaining proper temperature levels
• The defrost cycle failing to initiate or complete properly

Causes of a faulty defrost thermostat can include normal wear and tear over time, electrical malfunctions, or exposure to extreme temperatures or moisture.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

The defrost drain pan collects water that melts off the evaporator during automatic defrost and holds it near the warm compressor so it can evaporate. Replacing a damaged pan helps prevent leaks, puddles, and odors around the base of the refrigerator.

• Collects defrost water routed from the evaporator drain
• Positions water in warm airflow near the compressor for evaporation
• Replace if the pan is cracked, warped, missing, or leaking
• Symptoms can include water on the floor, moisture under the unit, or musty odors

• Unplug the refrigerator; wear cut-resistant gloves
• Pull the unit forward and remove the lower rear access panel to reach the pan near the compressor
• Lift out the old pan; transfer any reusable clips/brackets; seat the new pan under the drain tube and ensure it's level and clear of moving parts
• Reinstall the panel, restore power, and check for proper drainage and evaporation

The Starter Device is an OEM part for Frigidaire refrigerators. This part boosts the compressor, enabling it to begin and maintain the refrigeration cycle efficiently. A functioning starter device is vital for preserving food at the right temperature, ensuring freshness and preventing spoilage.

Causes of a bad starter device can range from natural wear and tear to electrical failures, such as short circuits or overloading.

Symptoms of a bad Starter Device include:

• Refrigerator not starting or frequently restarting
• A clicking sound coming from the back of the refrigerator, indicating failed start attempts
• The refrigerator failing to maintain consistent cold temperatures
• Spoiled food due to inadequate cooling

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

A replacement clamp that secures flexible hoses or tubing to fittings to help prevent leaks and keep connections tight. Fits where a small spring-style or band clamp is used on water or drain hoses. What it does

• Holds hoses or small tubing firmly to appliance fittings to maintain a sealed connection
• Helps stop leaks and reduce movement that can wear or disconnect hoses
• Commonly used on drain and water line connections where a compact clamp is needed
• Works with flexible rubber or plastic hose materials; choose correct size for a secure fit

• One clamp

• Disconnect power and shut off the water supply before beginning work
• Drain residual water from hoses to avoid spills
• Use appropriate pliers or a screwdriver depending on clamp type; avoid over-tightening
• Inspect hose ends and fittings for damage and replace any worn components for a reliable seal

Color: Black. Rubber. Holds tube/wire

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Galvanized Steel

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

The Compressor Run Capacitor is an OEM replacement part for Frigidaire refrigerators. This electrical component is essential for providing the necessary torque to start and maintain the operation of the compressor motor, which is responsible for cooling the refrigerator.

Symptoms of a failing compressor run capacitor include:

• The refrigerator not running or cooling properly
• The compressor failing to start or running intermittently
• Humming or buzzing noises coming from the compressor area

Causes of needing to replace the compressor run capacitor can include normal wear over time, exposure to high temperatures or electrical surges, or physical damage to the capacitor itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

The Condenser Fan Motor Kit is an OEM part for Frigidaire refrigerators. This kit includes the motor and necessary components to replace the existing condenser fan motor in your appliance. It is responsible for circulating air through the condenser coils to dissipate heat outside the refrigerator, helping to maintain the internal temperature and keep the compressor cool.

Causes of damage to the condenser fan motor can include wear and tear over time, dust and debris buildup that obstructs fan movement or damages the motor, and electrical issues such as shorts or surges that can burn out the motor.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator overheating or not cooling efficiently
• Unusual noises coming from the back of the refrigerator
• The refrigerator cycling on and off more frequently or running longer than normal

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Condenser Motor Fan Blade is an OEM part for Frigidaire refrigerators. This component is essential for cooling the condenser coils by drawing air through them, which helps in maintaining the optimal temperature inside the refrigerator.

Over time, the condenser motor fan blade can become worn or damaged due to regular use or accidental impact. Factors such as debris accumulation, physical obstructions, or motor malfunctions can contribute to the deterioration of the fan blade.

Symptoms of a bad condenser motor fan blade include:

• Unusual noises coming from the refrigerator
• Overheating of the compressor
• Decreased cooling efficiency
• The refrigerator cycling on and off frequently

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement rear compressor base roller supports the refrigerator compressor on the cabinet rear base, helping keep the compressor properly seated and reducing wear from vibration and movement. What it does

• Provides a rolling support under the compressor to keep it aligned and off the cabinet floor
• Helps reduce vibration and rattling that can occur from a loose or worn compressor mount
• Prevents compressor body from dragging or scraping the cabinet base
• Commonly replaced when the roller is cracked, worn flat, missing, or causing noise

• Disconnect power to the appliance before starting any work
• Support or secure the compressor and cabinet before removing the old roller to avoid sudden movement
• Basic hand tools usually required; inspect mounting hardware and replace any damaged fasteners
• Do not attempt sealed-system repairs.

This rivet is a metal fastener used to permanently secure panels, brackets, or internal components in your appliance. Replacing a damaged or missing rivet restores a tight fit and helps prevent vibration, rattles, and looseness.

• Permanently joins thin metal parts where screws or nuts aren't used
• Maintains alignment and structural integrity of housings and frames
• Helpful when panels or components are loose, rattling, or won't stay secured
• Direct replacement for a worn, broken, corroded, or drilled-out factory rivet

• Disconnect power and shut off gas/water (as applicable) before servicing
• Support the part being fastened; drill out the old rivet head if needed
• A hand riveter/rivet tool may be required to set the new rivet
• Wear eye and hand protection during drilling/riveting

This condenser tube spacer positions and secures the refrigerator's condenser tubing to maintain proper tube spacing and airflow. Replacing a worn or broken spacer helps reduce vibration, rattling, and rubbing that can damage tubing over time. What it does:

• Holds condenser tubing in the correct position to preserve airflow and cooling efficiency
• Cushions tubing to limit vibration and reduce rattling noises
• Prevents tubing from rubbing against the cabinet or other components, lowering wear risk
• Helps reduce the chance of tubing fatigue that can lead to damage

• Disconnect power to the appliance before accessing rear panels or condenser components.
• Handle condenser tubing gently; avoid kinking, bending, or putting stress on lines during installation.
• Installation may require removing the back or lower access panel to reach the condenser assembly.

This replacement fan shroud screw secures the evaporator/condenser fan shroud to the appliance, helping keep the fan assembly stable for proper airflow and quiet operation. Use it to replace stripped or missing mounting hardware. What it does:

• Secures the fan shroud or mounting bracket to the appliance cabinet or fan assembly
• Helps prevent fan wobble, rubbing, and airflow disruption caused by a loose shroud
• Restores proper clearance between fan blades and shroud to reduce noise and wear

• High-level replacement—remove power to the appliance before starting work
• Use appropriate-size driver to avoid stripping the screw head
• Inspect surrounding hardware and shroud for damage; replace any damaged parts before reassembly

Color: Black/natural. Nylon

This control box wiring harness routes power and signals between the appliance control board and other components to restore reliable control operation and electrical connectivity. It helps resolve intermittent controls and lost function caused by damaged wiring. What it does:

• Connects the control board to switches, sensors and motors to enable normal control functions.
• Replaces damaged or frayed wiring that can cause intermittent operation or unresponsive controls.
• Addresses symptoms such as control panel not responding, random shutdowns, or error codes tied to wiring faults.
• Restores proper signal and power routing when connector damage or wire breaks interrupt circuits.

• Disconnect all power to the appliance before beginning any service.
• Compare the new harness to the original and follow factory connector positions and routing to avoid pin miswiring or chafing.
• Handle connectors gently and ensure all terminals fully seat; inspect mating connectors for damage before reconnecting.

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
