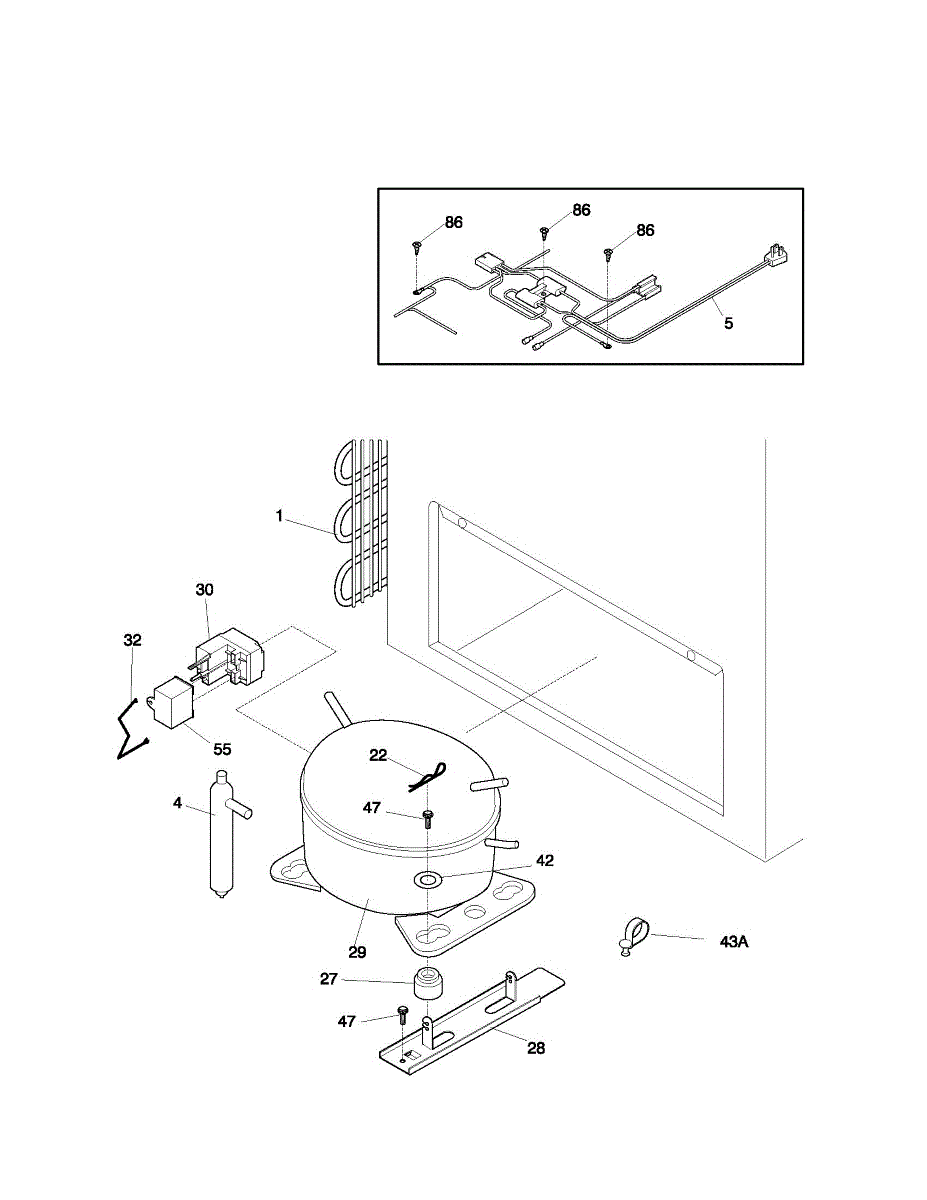

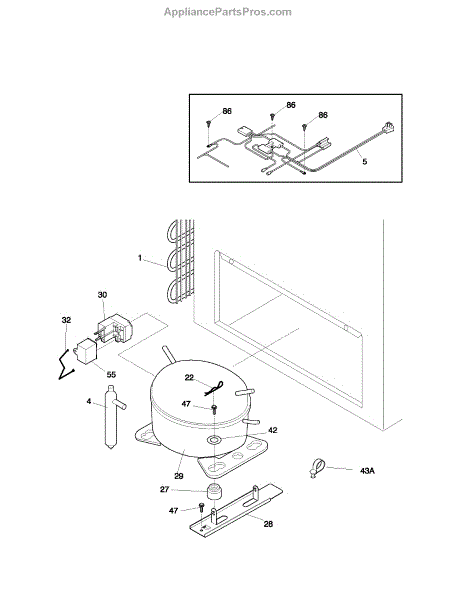

Parts for Kenmore 253.12021101 (25312021101, 253 12021101): System Parts

Includes service line.

Secures compressor to mounting bracket in your refrigerator. Replace if clip is broken, loose, or causing vibration noise. Verify fit with your model number.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Freezer not cooling or running constantly? This compressor kit circulates refrigerant through the system. Advanced repair requires refrigerant handling.

This controller kit is the electronic oven control module that governs bake, broil, and temperature functions. Replacing a failing control restores accurate oven operation and responsive keypad/display performance.

• Regulates oven heating cycles and temperature feedback from the sensor
• Controls bake/broil relays and user interface responses
• Common failure symptoms: no bake/broil, temperature inaccuracy, unresponsive buttons, blank or erroring display
• May recover from intermittent power-up, beeping, or F-codes tied to the control

• Disconnect power before servicing; high voltage is present
• Handle the board by edges; avoid static discharge to components
• Transfer all wiring one connector at a time to the matching locations
• After installation, restore power and verify oven operation and temperature calibration

Secures interior trim and panels in your refrigerator. Replace when trim becomes loose or rattles. Verify fit with your model number before ordering.

Hex washer head screw secures hinges, panels, and trim to your freezer or refrigerator. Replace missing, stripped, or corroded screws for stable parts.

Freezer won't start or compressor hums but doesn't run? A failed run capacitor is often the cause. DIY-friendly repair, typically done in under an hour.
