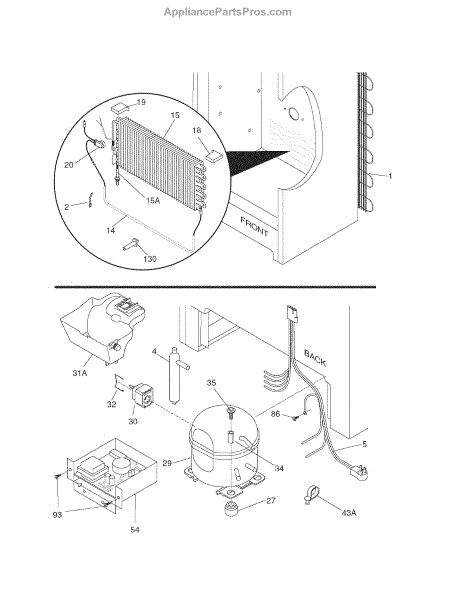

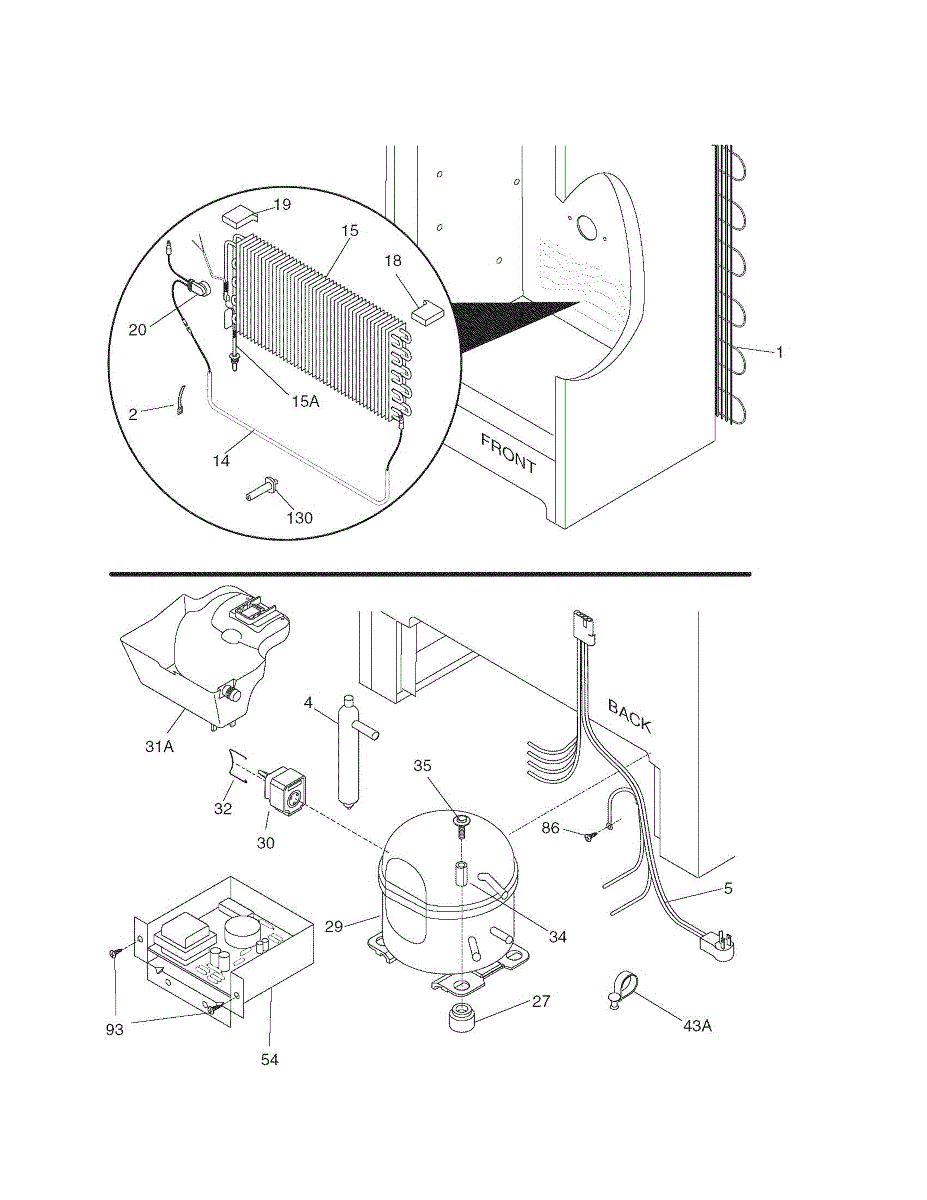

Parts for Kenmore 253.24092103 (25324092103, 253 24092103): System Parts

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Includes service line.

Fixes frost buildup on evaporator coils causing warming or ice accumulation. Test with multimeter for continuity. DIY-friendly repair component.

Freezer not maintaining temperature or running constantly? This heat exchanger assembly transfers heat to restore proper cooling and efficient operation.

Freezer not cooling or running constantly? The evaporator may have failed. Professional installation recommended due to refrigerant system work.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Freezer not cooling or running constantly? This compressor kit circulates refrigerant through the system. Advanced repair requires refrigerant handling.

Compressor vibrating or loose? This mounting screw secures the compressor in freezers and refrigerators. Simple fix, basic tools required.

This is the electronic control board that governs the appliance's cooling system. It interprets sensor input and user settings to run key components, helping maintain consistent temperatures when the original controller becomes faulty or erratic.

• Monitors temperature sensor feedback and executes cooling cycles to hold the selected setpoint
• Controls major components on applicable models
• May manage additional functions like defrost timing or alarms depending on model design
• Failure can present as warm or unstable temperatures, unit not starting, short-cycling/running constantly, or unresponsive temperature adjustments

• Disconnect power before service; observe ESD precautions and handle the board by its edges
• Note wire/plug locations; transfer connectors to the new board one at a time
• Secure the board in its mounting and ensure all harnesses are fully seated
• Reassemble covers/panels before restoring power and checking operation

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

Small mounting bracket that holds shelves or baskets inside your freezer. Replace if cracked, broken, or missing to restore secure, level positioning.

Wiring harness for freezers. Connects electrical components inside the cabinet. Replace if wires are frayed, connectors are damaged, or harness is broken.

Suction line plug seals the refrigerant line connection in your freezer's compressor system. Replace if cracked, damaged, or missing to maintain proper seal.
