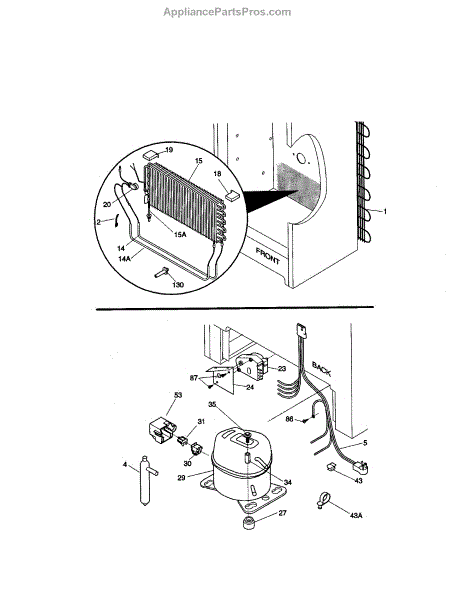

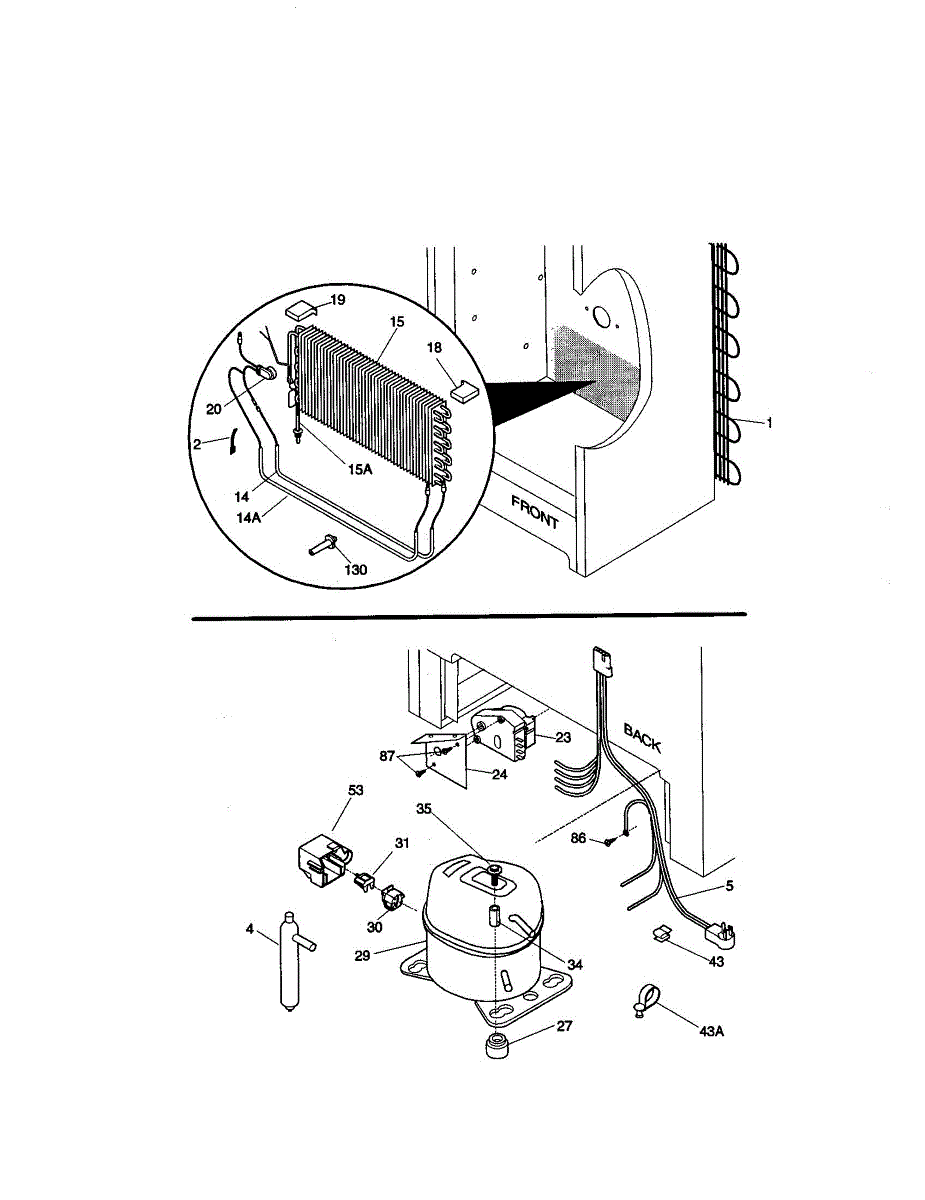

Parts for Kenmore 253.60721002 (25360721002, 253 60721002): System Parts

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Includes service line.

Fix ice buildup and poor cooling caused by a faulty evaporator defrost heater. This heater melts frost during defrost cycles to restore proper airflow.

Freezer won't stay cold or runs too cold? A faulty heat exchanger disrupts refrigerant flow. Requires professional brazing and refrigerant recharge.

Freezer not cooling or running constantly? The evaporator may have failed. Professional installation recommended due to refrigerant system work.

Support spacer for refrigerators. Installs between components to maintain proper alignment and clearance. Replace if cracked, broken, or missing.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

The Defrost Timer is an OEM replacement part for Frigidaire upright freezers. It serves as a crucial component responsible for regulating automatic defrost cycles.

Causes of a faulty defrost timer relate to 20,000+ hours of constant exposure to freezer temperatures as low as -10 degrees Fahrenheit. Such extremes can compromise electrical switching mechanisms over prolonged usage periods.

Symptoms of a failed defrost timer include:

• Inability to initiate automatic defrost modes
• Excessive ice and frost accumulation inside cabinet
• Warm areas detected due to impaired fan circulation
• Diagnostic codes indicating defrosting problems

This genuine Frigidaire replacement part is compatible with Kelvinator and some Kenmore units as well.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Refrigerator not cooling or freezer not freezing? This compressor kit circulates refrigerant to restore proper cooling. Advanced repair, requires HVAC expertise.

Fix a refrigerator that won't cool or has a clicking compressor with this start relay and overload assembly. Common failure part, moderate DIY repair.

Compressor vibrating or loose? This mounting screw secures the compressor in freezers and refrigerators. Simple fix, basic tools required.

This retainer lead wire secures appliance wiring to keep harnesses organized and away from heat or moving parts, reducing wear and accidental disconnection. It's a simple replacement to restore proper wire routing and protection. What it does:

• Clips or holds the wiring harness in place to prevent chafing and strain
• Helps keep wires away from hot surfaces, vents, or moving components
• Reduces risk of intermittent electrical connections caused by loose wiring
• Restores factory routing after service or component replacement

• Disconnect power to the appliance before installing to avoid shock or injury
• Remove any panels necessary to access the original retainer and wiring route
• Replace like-for-like, seating the retainer securely so the harness cannot shift
• If wires show damage or insulation wear, inspect further and replace damaged wiring before reassembly

This is a retainer clip used to secure internal components in place within a freezer. It holds parts firmly in position to prevent shifting or rattling during normal operation. Replace this retainer if the original is cracked, broken, or missing, which can cause loose or misaligned components inside the unit.

This part has been discontinued by the manufacturer and is no longer available.

This printed parts catalog provides exploded diagrams and part listings to help identify and order replacement components. Handy for DIYers and service techs who need clear part illustrations and reference numbers. What it does:

• Shows exploded views and part numbers so you can identify the exact replacement component
• Speeds up parts ordering by providing OEM part references
• Useful reference during troubleshooting and service planning

• No installation required — reference document only
• Keep in a dry place to preserve pages and diagrams
• Verify the catalog matches your appliance model before ordering parts

Foam insulation sleeve that wraps around the defrost drain tube. Replace if worn, missing, or damaged to prevent condensation and maintain proper insulation.
