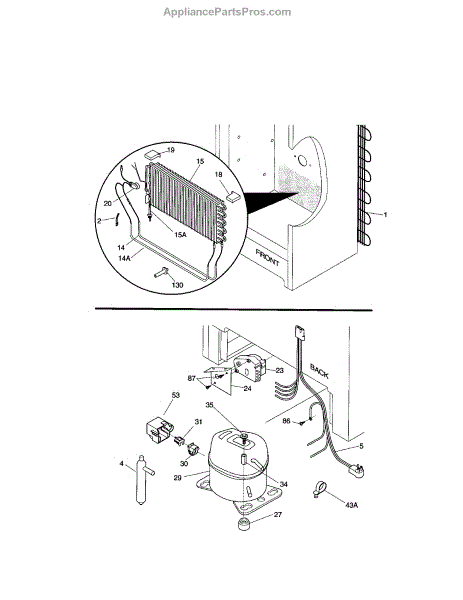

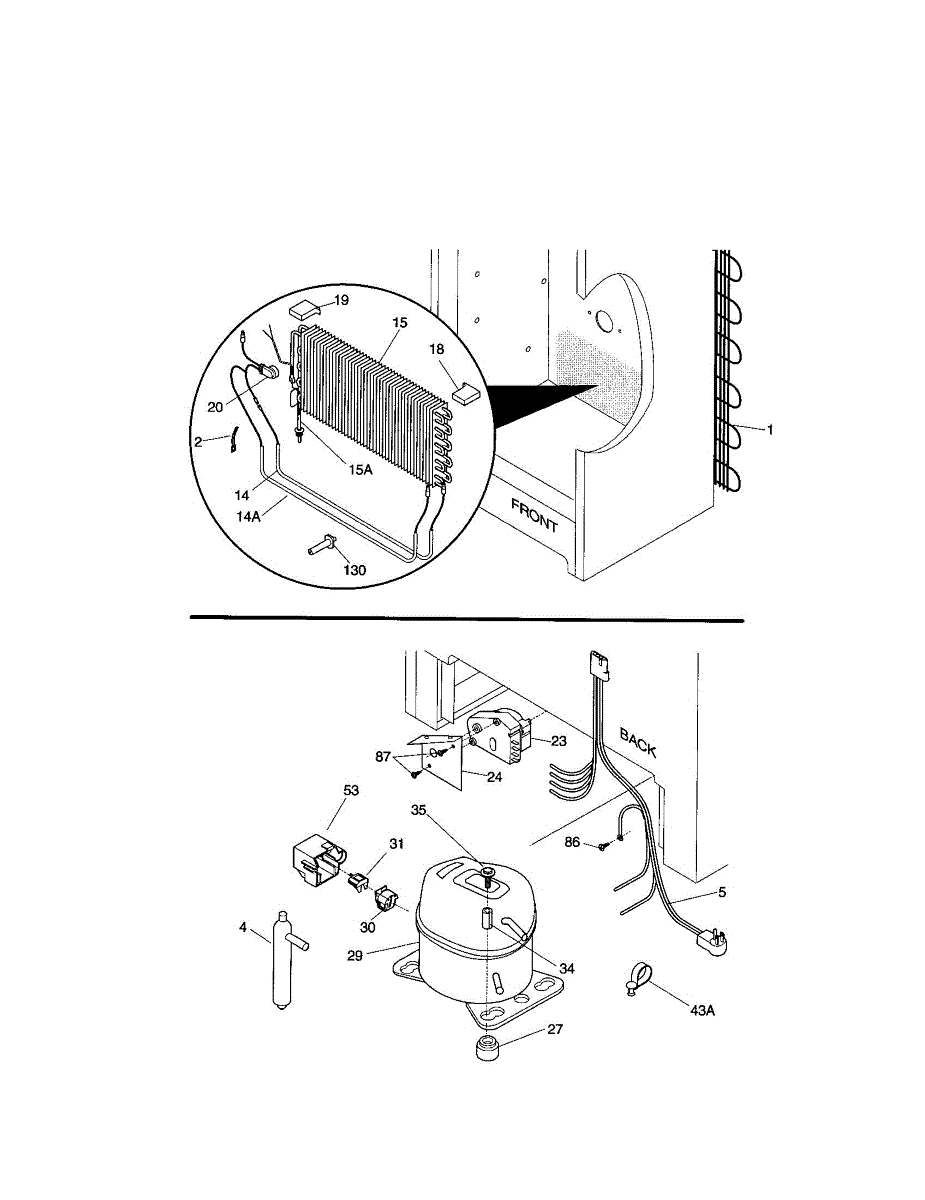

Parts for Kenmore 253.60721004 (25360721004, 253 60721004): System Parts

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Includes service line.

Freezer won't cool or compressor won't start? This compressor start relay restores reliable startup and cooling. Located in the compressor compartment.

Fixes frost buildup on evaporator coils causing warming or ice accumulation. Test with multimeter for continuity. DIY-friendly repair component.

Freezer won't stay cold or runs too cold? A faulty heat exchanger disrupts refrigerant flow. Requires professional brazing and refrigerant recharge.

Freezer not cooling or running constantly? The evaporator may have failed. Professional installation recommended due to refrigerant system work.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

The Defrost Timer is an OEM replacement part for Frigidaire upright freezers. It serves as a crucial component responsible for regulating automatic defrost cycles.

Causes of a faulty defrost timer relate to 20,000+ hours of constant exposure to freezer temperatures as low as -10 degrees Fahrenheit. Such extremes can compromise electrical switching mechanisms over prolonged usage periods.

Symptoms of a failed defrost timer include:

• Inability to initiate automatic defrost modes
• Excessive ice and frost accumulation inside cabinet
• Warm areas detected due to impaired fan circulation
• Diagnostic codes indicating defrosting problems

This genuine Frigidaire replacement part is compatible with Kelvinator and some Kenmore units as well.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Refrigerator not cooling or freezer not freezing? This compressor kit circulates refrigerant to restore proper cooling. Advanced repair, requires HVAC expertise.

Fix a refrigerator that won't cool or has a clicking compressor with this start relay and overload assembly. Common failure part, moderate DIY repair.

Compressor vibrating or loose? This mounting screw secures the compressor in freezers and refrigerators. Simple fix, basic tools required.

This retainer lead wire secures appliance wiring to keep harnesses organized and away from heat or moving parts, reducing wear and accidental disconnection. It's a simple replacement to restore proper wire routing and protection. What it does:

• Clips or holds the wiring harness in place to prevent chafing and strain
• Helps keep wires away from hot surfaces, vents, or moving components
• Reduces risk of intermittent electrical connections caused by loose wiring
• Restores factory routing after service or component replacement

• Disconnect power to the appliance before installing to avoid shock or injury
• Remove any panels necessary to access the original retainer and wiring route
• Replace like-for-like, seating the retainer securely so the harness cannot shift
• If wires show damage or insulation wear, inspect further and replace damaged wiring before reassembly

This part has been discontinued by the manufacturer and is no longer available.

Foam insulation sleeve that wraps around the defrost drain tube. Replace if worn, missing, or damaged to prevent condensation and maintain proper insulation.
