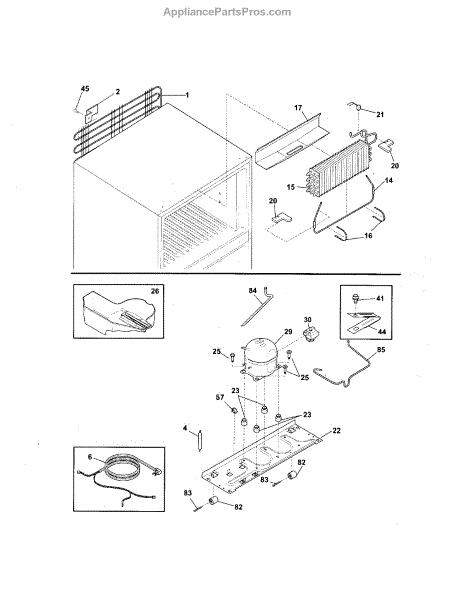

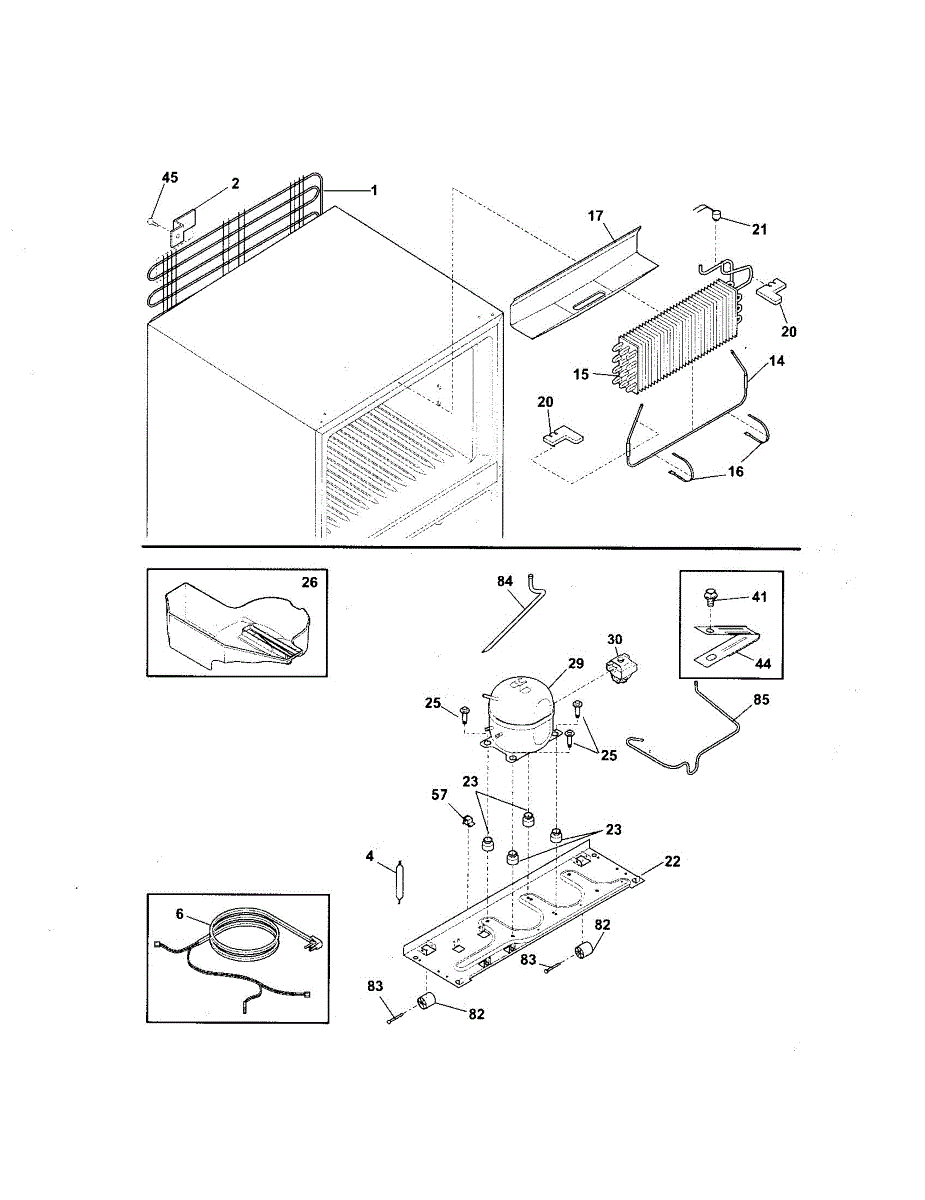

Parts for Kenmore 253.60882407 (25360882407, 253 60882407): System Parts

Color: Black

Black rubber mounting grommet that secures tubes and wires in your refrigerator. Replace if cracked, worn, or missing to properly hold components in place.

Color: White

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.

Touch-up paint in bisque color for appliance exterior surfaces. Covers chips, scratches, and worn spots on refrigerator doors, range panels, and more.

Replacement owner's manual for your refrigerator. Provides operating instructions, maintenance guidelines, and troubleshooting tips for your appliance.

Includes service line.

This is a manufacturer service data sheet that gives technicians the official service and diagnostic information needed to troubleshoot and repair the appliance. It helps locate parts and follow service procedures. What it does:

• Supplies official service and diagnostic information to guide repairs and troubleshooting
• Identifies component locations and wiring relationships to aid diagnosis
• Clarifies service procedures and specifications technicians use during repairs

• This is a reference document, not an electrical or mechanical replacement part.
• Use only as a technician reference; follow all safety guidelines when servicing the appliance.
• Keep the sheet dry and store with other service literature for future use.

Wiring harness for top-mount refrigerators. Connects electrical components throughout the unit. Replace if wires are frayed, damaged, or connectors broken.

Control box wiring harness assembly for refrigerators. Connects control board to components. Replace if wires are damaged, connector is cracked, or harness is worn.

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

This heat exchanger suction line kit replaces a damaged or corroded suction line assembly to restore proper refrigerant flow and heat transfer in the cooling system. It helps maintain consistent compartment temperatures and system efficiency. What it does:

• Transfers heat from the refrigerant suction line so the compressor and evaporator operate correctly
• Replaces cracked, kinked, or corroded tubing that can cause refrigerant loss or reduced cooling
• Helps address symptoms such as warm or inconsistent temperatures, visible oil or residue at fittings, or abnormal frost/ice patterns
• Restores a sealed refrigerant path after tubing damage or when corrosion has compromised the line

• Intended for qualified service technicians only; system access requires certified refrigerant handling
• Disconnect power to the appliance before servicing and follow all safety precautions
• Installation may require brazing, flare fittings, or specialty tools; verify leak-tight connections and pressure-test per OEM procedures
• Evacuate and recharge the refrigerant system to OEM specifications after installation

Frost buildup in freezer or warm fridge? This defrost heater melts ice on the evaporator coil during defrost cycles. DIY-friendly repair in 30-45 minutes.

Freezer not freezing or fridge too warm? The evaporator coil absorbs heat to cool your refrigerator. Professional installation recommended for this repair.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Channels defrost water from the evaporator to the drain pan. Replace if cracked, broken, or leaking to prevent water pooling in the fresh-food compartment.

Foam insulation block that fills gaps inside the refrigerator cabinet to reduce heat transfer. Replaces damaged, compressed, or missing insulation.

Freezer frost buildup? Defrost thermostat regulates defrost cycles to prevent ice accumulation. DIY repair takes 15-30 minutes with basic tools.

Replacement mounting screw for refrigerator panels, handles, brackets, and internal fixtures. Order when original screws are stripped, lost, or damaged.

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures the compressor to the mounting bracket in your refrigerator or freezer. Replace if missing, stripped, or corroded during compressor service.

Heat-conductive mastic improves thermal contact between sensors and surfaces for accurate temperature readings. Replace when sensors misread or during repair.

Refrigerator not cooling or freezing? A failed compressor stops the cooling cycle. This sealed system repair requires a licensed technician to complete.

Secures panels, trim, and brackets inside your refrigerator. Replace this #8-18 x 3/8 screw if the original is missing, stripped, or worn.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

Secures and organizes wiring harnesses in your refrigerator. Replace if broken, cracked, or wires are loose. Confirm fit with your model number.

Supports the compressor on the refrigerator's rear base. Replace if cracked, broken, or worn to keep compressor properly seated and reduce vibration damage.

Metal rivet fastener permanently secures panels, brackets, and internal components in refrigerators. Replace damaged, missing, or worn rivets to restore fit.
