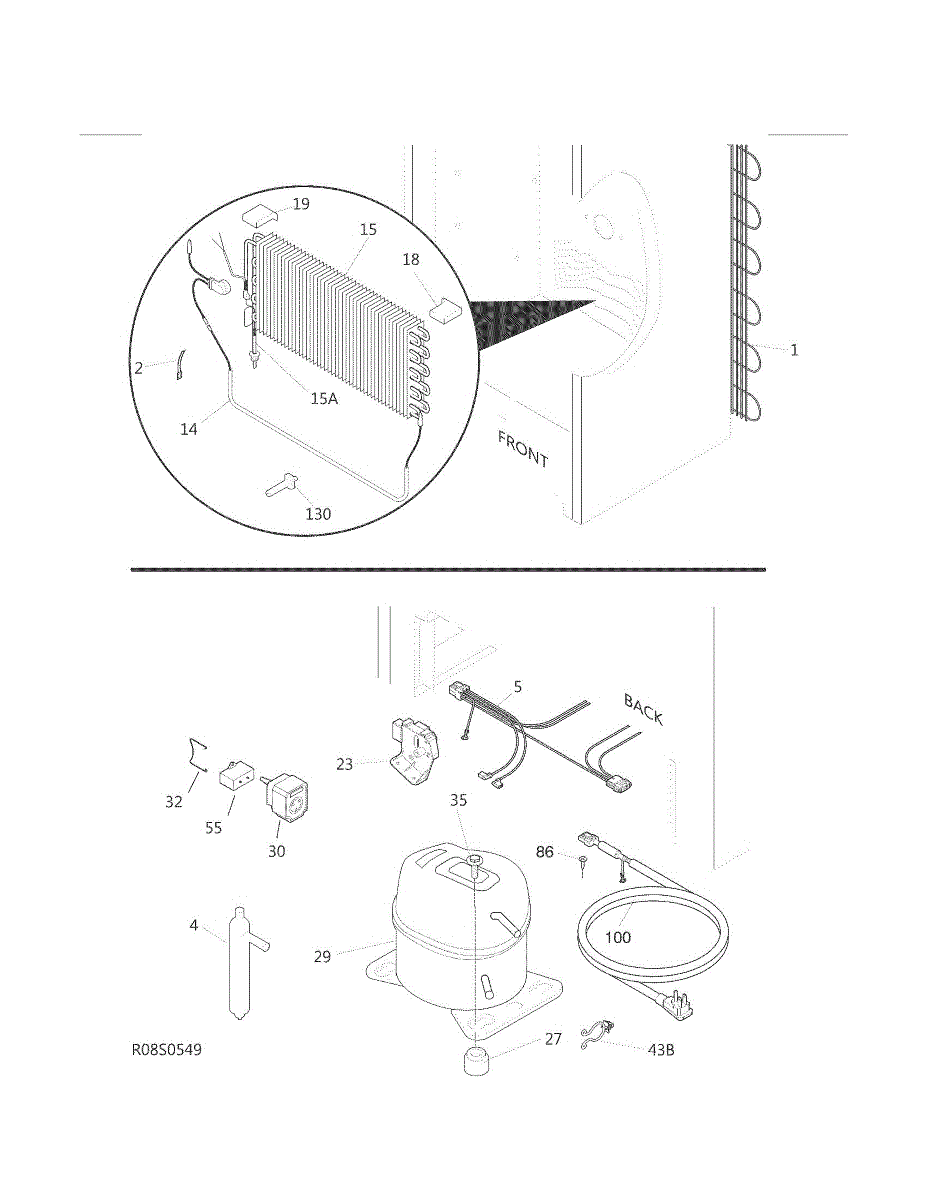

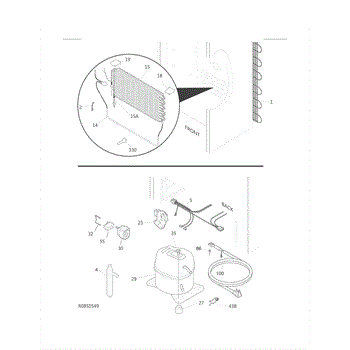

Parts for Kenmore 253.70722410 (25370722410, 253 70722410): System Parts

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

Includes service line.

Restore proper auto-defrost performance in your refrigerator. This defrost heater assembly melts frost off the evaporator during defrost cycles, and the included thermostat helps end the cycle at the correct temperature to prevent over-defrosting.

• Heats the evaporator to clear built-up frost and maintain airflow
• Thermostat monitors coil temperature to terminate defrost at the right time
• Common failure signs: heavy frost/ice on the evaporator, poor cooling, warm fridge but cold freezer, or frequent icing after defrost
• Helps reduce noisy fan icing and improves temperature stability

• Disconnect power before service; components get hot during and after use
• Access is typically from the freezer section behind the evaporator cover
• Note wire routing and clip locations before removal; transfer thermostat to the same position if applicable
• After installation, verify heater and thermostat connections are secure and unobstructed

The EVAPORATOR INSULATOR is an OEM part for Frigidaire refrigerators. It is a heat-resistant insulating pad or wrap that surrounds the evaporator coils. The insulator works to retain cool air and prevent warmer air from entering the refrigerated compartment.

Causes of a bad insulator can include deterioration or breakdown of insulating properties over time due to aging materials. Cracks, holes, or compressed sections of the insulator result in reduced insulation performance.

Symptoms of a bad evaporator insulator include:

• Inconsistently cool or warmer fridge temperatures
• Frost or ice buildup on evaporator coils or surrounding areas
• Higher than normal electric bills from inefficient cooling
• Warm or cold spots inside refrigerator shelves and compartments

This OEM Frigidaire replacement insulator is compatible with some Kitchenaid, Electrolux, Gibson, Kelvinator, and Kenmore side-by-side refrigerator models.

The Defrost Timer is an OEM replacement part for Frigidaire upright freezers. It serves as a crucial component responsible for regulating automatic defrost cycles.

Causes of a faulty defrost timer relate to 20,000+ hours of constant exposure to freezer temperatures as low as -10 degrees Fahrenheit. Such extremes can compromise electrical switching mechanisms over prolonged usage periods.

Symptoms of a failed defrost timer include:

• Inability to initiate automatic defrost modes
• Excessive ice and frost accumulation inside cabinet
• Warm areas detected due to impaired fan circulation
• Diagnostic codes indicating defrosting problems

This genuine Frigidaire replacement part is compatible with Kelvinator and some Kenmore units as well.

Made for use with refrigerators by several major manufacturers, this is a full compressor kit. It is an internal part that is tasked with moving refrigerant throughout the appliance. It also works by adding pressure to part of the circuit to heat up the refrigerant. This creates a high pressure, hot gas that is moved to the compressor to be cooled and used to keep the appliance at the appropriate temperature. If the compressor is damaged or broken, it can cause the refrigerator to start making loud noises. The compressor may turn on and off more frequently than expected, created overheating and improper cooling, and create clicking noises. If the compressor kit is damaged, it should be replaced. Turn off the circuit breaker or unplug the refrigerator. Pull out the refrigerator and take off the access plate. Let it cool down before the compressor is removed. Use the contents of the kit to replace the part before reassembling and turning the power back on.This is a genuine OEM replacement part that can be used with Frigidaire, Kenmore, Gibson, Westinghouse, Tappan, Crosley, Kelvinator, Universal, and Electrolux freezers and refrigerators. It is sold as an individual part.

The Start Relay is an OEM replacement part for Frigidaire refrigerators. It is an electro-mechanical part that signals the refrigerator’s compressor to activate, initiating the cooling cycle. As the main switching mechanism that controls refrigerator operation, start relays experience considerable wear over thousands of on/off cycles.

Symptoms of a bad start relay include:

• Refrigerator failing to cool or compressor not engaging
• Constant humming sound but no cold air circulation
• Cooling performance declining noticeably over time

Causes of start relay failure generally relate to ongoing heat and electrical load stresses that slowly degrade insulation and wiring over the refrigerator’s lifetime. Corrosion from condensation or refrigerant leaks inside the unit can also compromise its function.

This OEM Frigidaire replacement relay is compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This small mounting clip secures interior or cabinet components to keep panels and trim stable, helping reduce noise and maintain proper alignment. It's a simple replacement that restores a snug fit where the original clip has broken or worn. What it does:

• Holds panels, trim, or small components in place to prevent gaps or rattling
• Restores proper alignment of clipped parts after damage or wear
• Maintains a secure attachment point for adjacent parts during normal use
• Helps prevent moisture or debris from entering behind secured panels

• Disconnect power or unplug the appliance before accessing internal components
• Handle the clip and surrounding trim carefully to avoid cracking adjacent plastic
• Use basic hand tools as needed; do not force clips into place—align before snapping
• Replace any damaged mounting features for a secure fit

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

The Run Capacitor is an OEM part for Frigidaire freezers. It is an electrical part that assists the compressor motor in starting up and running efficiently.

Causes of a bad run capacitor can include drying out and cracking of the insulating material over many power cycles, loose connections weakening over time, or electrical shorts from age.

Symptoms of a bad run capacitor include:

• Compressor failing to turn on or start consistently
• Buzzing or humming noises coming from inside the unit
• The freezer struggling to maintain proper temperatures
• Repeated tripping of the circuit breaker

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This replacement power cord delivers household electricity from the outlet to your appliance. Installing a new cord restores safe, reliable power when the original is damaged, worn, or causing intermittent operation.

• Supplies AC power from a household outlet to the unit
• Common fix for no power, flickering lights, or power loss when the cord is moved
• Replaces cords with cuts, cracks, burn marks, or melted areas
• Restores a secure electrical connection for safe, consistent operation

• Unplug the appliance and verify the wall outlet is working before replacing parts
• Access the cord routing and internal connections; note wire positions and routing before removal
• Transfer and secure any strain relief/clamp; keep wiring clear of sharp edges and hot surfaces
• After installation, ensure the cord isn't pinched and the plug seats fully in the outlet

This support is a small mounting bracket used inside the appliance to hold an interior component, such as a shelf or basket. Replacing a cracked or missing support restores a secure, level fit and helps prevent wobbling or dropping.

• Provides a stable mounting point for a shelf, basket, rail, or panel
• Keeps interior components aligned and level
• Common symptoms: shelf/basket tilts, won't seat, or falls; visible cracks or missing support
• Replace if broken, deformed, or worn to restore proper fit

• Disconnect power and clear the work area before starting
• Remove the affected shelf/basket/panel to access the mounting point
• Release the damaged support (snap tabs or remove screw), align, and install the new support
• Reinstall the component and verify it sits level and secure

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw
