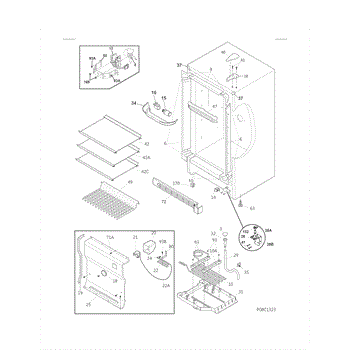

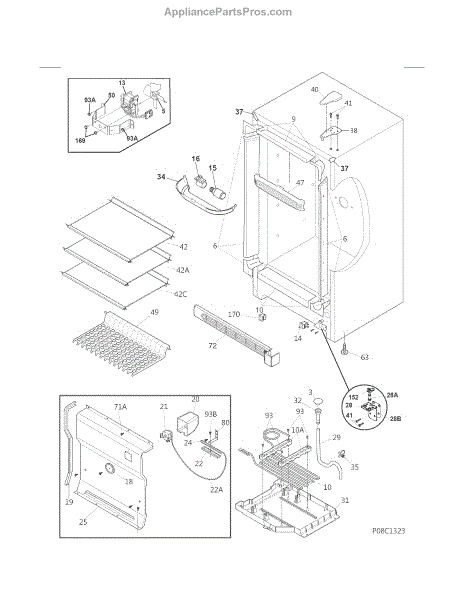

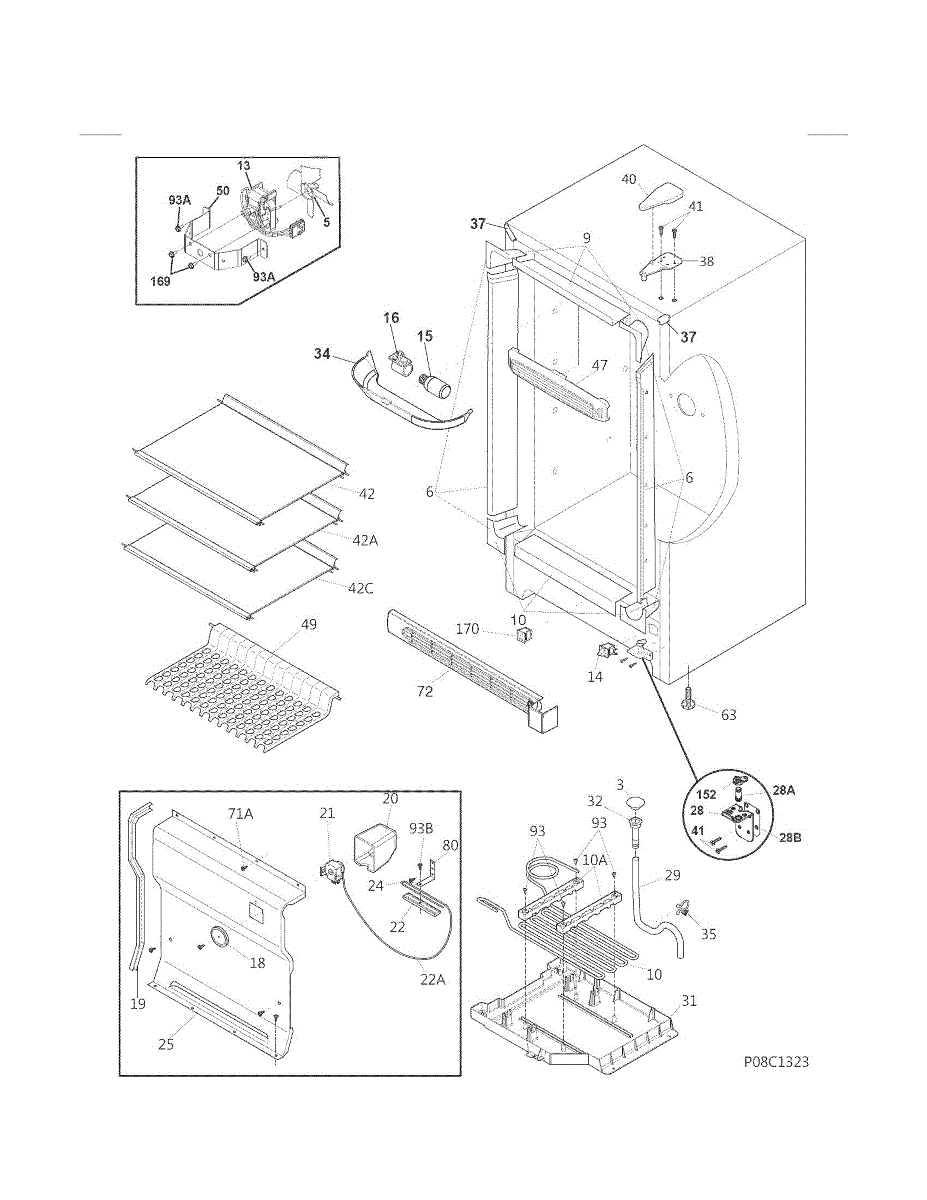

Parts for Kenmore 253.70722410 (25370722410, 253 70722410): Cabinet Parts

Screen - drain keeps the drain path clear by trapping lint and small debris before it reaches the pump or drain hose, helping reduce clogs and improve drainage. Simple replacement restores proper water flow and drain performance. What it does:

• Traps lint, hair and small debris to help prevent clogs in the drain path
• Helps maintain consistent water drainage and pump operation
• Replace if you notice slow draining, standing water, or visible debris at the drain opening
• Sits in the appliance's drain assembly to protect downstream components

• Disconnect power to the appliance before servicing; turn off the water supply if the model requires it
• Access the drain area per your model's service instructions (remove access panel or wash tub components as needed)
• Inspect surrounding seals and hoses for damage and clean mating surfaces before installing the new screen

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This resettable circuit breaker protects an appliance's electrical circuit by interrupting power when an overcurrent or short occurs, then allowing normal operation after the fault is cleared and the breaker is reset. It helps reduce damage from electrical faults and keeps the appliance safer to use. What it does:

• Interrupts power to the appliance when excessive current or a short circuit is detected
• Trips automatically under overload conditions to protect wiring and components
• Can be manually reset (push-to-reset) after the underlying issue is fixed
• Commonly linked to symptoms such as intermittent power loss, appliance not starting, or repeated tripping

• One resettable circuit breaker

• Disconnect power to the appliance before attempting any repair to avoid shock or injury
• Replace only with the correct OEM part number and orientation;
• If the breaker trips repeatedly after replacement, inspect wiring and components for shorts or overloads;

The Fan Motor Evaporator 115V is an OEM replacement part for Frigidaire refrigerators. It is a vital component responsible for circulating air and maintaining proper cooling and airflow within the refrigerator compartment.

Symptoms of a need to replace the fan motor evaporator:

• Inadequate cooling or uneven temperature distribution within the refrigerator
• Excessive frost buildup or ice accumulation on the evaporator coils
• Loud or unusual noises coming from the fan motor
• The fan not running or running intermittently

Causes of a faulty fan motor evaporator include wear and tear over time, bearing failure, electrical malfunctions, or obstructions preventing proper airflow.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

The Door switch is an OEM replacement part for Frigidaire refrigerators. This part turns the light on/off as the door opens and closes.

Causes of a faulty door switch include normal wear of electrical contacts from repetitive on/off cycles. Moisture exposure may potentially corrode internal connections.

Symptoms of a bad light/switch include:

• The interior light fails to turn on when the door is opened
• The light stays on when the door is closed, leading to potential overheating
• An impact on the refrigerator’s temperature regulation due to the switch not signaling the door's closure

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The LED Light Bulb is an OEM part for Frigidaire refrigerators. It provides illumination inside the refrigerator, making it easier to see and access food items.

Causes of a bad LED light bulb can include burnout from prolonged use, electrical surges, or damage from physical impact. Additionally, issues with the bulb's connection or internal circuitry can result in malfunction.

Symptoms of a bad LED light bulb include:

• The refrigerator interior remaining dark when the door is opened
• Flickering or dim light
• Intermittent lighting
• Complete failure to light up

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This light socket securely holds the appliance bulb and provides the electrical connection to illuminate the compartment when the door is opened. Replacing a faulty socket restores interior lighting so you can easily see contents.

• Provides the electrical connection and physical mounting for the light bulb
• Common failure symptoms: light won't turn on, flickers, or only works when the bulb is jiggled
• Show signs of heat discoloration, loose terminals, or intermittent contact

• Unplug the appliance before service; power is off
• Allow the bulb and surrounding area to cool before handling
• Handle wiring carefully; transfer conductors to the new socket one at a time to maintain correct connections
• Do not exceed the bulb type/wattage specified on the appliance rating label

This temperature control knob replaces a worn or missing knob so you can easily adjust the cold-control setting. Restores smooth, precise temperature adjustments and a clean, factory look. What it does:

• Attaches to the cold-control (thermostat) shaft to change the temperature setting
• Provides secure grip and pointer alignment for accurate selections
• Typical failure symptoms: cracked or missing knob, stripped hub, or a knob that slips or won't turn the control

• 1 temperature control knob

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying at an angle to prevent shaft damage
• Align the shaft shape with the new knob and press firmly until fully seated
• The pointer aligns with the control graphics after installation

The Evaporator Cover Gasket seals the perimeter of the freezer's evaporator cover to prevent air leaks that can lead to frost, moisture, and temperature swings. Replacing a worn gasket helps restore proper airflow and consistent cooling.

• Seals the evaporator cover to the liner to maintain directed airflow and contain cold air
• Helps prevent frost or ice buildup around the cover and on nearby air passages
• Can help address symptoms like temperature inconsistencies, poor cooling, or excess moisture caused by air leaks
• Replaces a torn, flattened, or missing gasket to ensure a tight cover fit

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the evaporator cover to access the gasket
• Clean mating surfaces; press the new gasket fully into place with no gaps or twists
• Ensure air vents are unobstructed, reinstall the cover securely, then restore power

This replacement cover is an access panel trim piece that protects internal components and gives the appliance a finished appearance. It restores a secure, clean-looking exterior where the original cover is cracked or missing. What it does

• Covers and protects control or component openings from dust, debris, and accidental contact
• Keeps wiring and fasteners concealed for a neater appearance
• Prevents rattling or vibration caused by a damaged or loose trim piece
• Commonly replaced when the cover is cracked, broken, warped, or missing

• One cover

• Disconnect power to the appliance before starting any work
• Remove adjacent trim or fasteners as needed to access mounting points; retain hardware for reassembly
• Align tabs or screw holes and secure without over-tightening to avoid cracking the plastic

The Temperature Control Thermostat is an OEM part for Frigidaire refrigerators. It regulates the internal temperature of the refrigerator compartment. This thermostat senses the air temperature inside the refrigerator and cycles the cooling system on and off to maintain the desired temperature range set by the user.

Causes of a bad temperature control thermostat include electrical faults, physical damage from impact or moisture, or general wear over an extended period.

Symptoms of a bad temperature control thermostat include:

• Inability to maintain consistent, desired temperatures in the refrigerator compartment
• The refrigerator running continuously without cycling off
• Food spoiling prematurely due to improper cooling

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

A small metal clamp that secures the refrigerator's capillary (temperature sensing) tube to the cold control so the thermostat reads temperatures accurately. Replaces worn or missing clamps to keep the sensing tube stable and prevent movement-related issues. What it does:

• Holds the capillary/sensing tube firmly against the cold control or cabinet
• Helps maintain accurate thermostat sensing by preventing tube movement
• Reduces vibration or rattling from a loose sensing tube
• Stops intermittent temperature swings caused by a displaced capillary tube

• Disconnect power before servicing the appliance.
• Handle the capillary tube gently; avoid kinks or sharp bends.
• Install clamp over the tube and secure to the control or bracket using the factory hole or fastener; do not overtighten.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

This door closing ramp provides the angled surface a hinge cam or glide rides on so the door opens smoothly and pulls itself shut. Replacing a worn ramp restores proper alignment and consistent, reliable closure. What it does

• Creates the sloped track for the mating hinge cam/glide
• Helps the door self-close and seal correctly
• Reduces friction, grinding, or clicking at the hinge area
• Common symptoms: door won't stay closed, pops open, sags, or makes noise when opening/closing

• Includes 1 ramp

• Disconnect power and remove items from the door before service
• Support the door; remove hinge hardware as needed to access the ramp
• Note the ramp's orientation and reuse original fasteners
• After installation, verify door alignment and gasket seal

This shim is a small alignment spacer used to correct fit, spacing, or leveling between appliance components for improved part clearance and smoother operation. It helps restore proper alignment and reduce rubbing or binding where parts meet. What it does:

• Provides a thin, stable spacer to adjust panel, door, or component alignment
• Helps eliminate rubbing, binding, or misaligned gaps that cause noise or wear
• Restores proper clearance so moving parts operate smoothly
• Useful when replacing or reassembling components to achieve correct fit

• Shim

• Turn off and unplug the appliance before starting any work
• Inspect surrounding parts to ensure the shim addresses the alignment issue
• Position the shim between mating surfaces as needed; secure per OEM guidance

This door hinge supports and pivots the appliance door so it opens and closes smoothly. Replacing a worn or bent hinge restores alignment and sealing, helping prevent air leaks, frost buildup, and temperature fluctuations.

• Provides the pivot point and supports the door's weight during opening and closing
• Maintains door alignment to ensure a proper gasket seal
• Replaces hinges that are bent, cracked, or excessively worn
• Common symptoms: door sags or binds, won't close fully, uneven gasket contact, squeaking or clicking noises

• Disconnect power and support the door before loosening hinge screws
• Note the position of any shims/spacers and transfer them in the same order
• Tighten mounting screws securely; check that the door swings freely
• Adjust door position if mounting slots allow

This replacement door stop pin secures the door stop to the hinge, controlling the door's opening angle to prevent over-swing. Restores smooth, controlled door movement and protects the hinge and cabinet from damage.

• Attaches the door stop to the hinge bracket
• Limits door swing to prevent overextension
• Helps maintain door alignment and consistent closing
• Common symptoms: door swings too far, loose/dangling stop, clicking at the hinge, missing or sheared pin

• Disconnect power; remove items from the door to reduce weight
• Support the door before servicing the hinge
• Remove hinge cover/retainer as needed, extract old pin, align stop and hinge, seat the new pin fully
• Reinstall hardware and verify door stop operation before restoring power

This drain hose carries water away from your appliance during draining to help prevent backups and leaks. Replace a cracked, clogged, or kinked hose to restore reliable water removal and protect surrounding floors and cabinets. What it does:

• Directs drain water from the outlet or pump to the designated discharge point
• Maintains proper flow; kinks or blockages can cause slow or no draining
• Helps prevent leaks from splits, pinholes, or loose connections
• Common signs: standing water, water under/around the unit, drain-related error codes, or odors

• Includes 1 drain hose

• Disconnect power and shut off water supply before servicing
• Place towels or a shallow pan to catch residual water when removing the old hose
• Note the original routing; seat connections fully, secure with clamps, and avoid sharp bends or kinks
• Run a brief drain/rinse and check all joints for leaks

This sleeve is a small spacer/bushing used in select Frigidaire-built appliances to keep mating parts aligned and moving smoothly. Replacing a worn sleeve helps eliminate play, reduce friction, and restore proper operation.

• Provides a guided, low-friction surface between parts that slide or rotate
• Maintains correct spacing/alignment to prevent wobble and rubbing
• Helps reduce wear on shafts, pins, or fasteners it interfaces with
• Typical symptoms: looseness or wobble, squeaking/scraping noises, uneven movement, or visible cracking/missing sleeve

• Disconnect power before servicing; shut off gas/water if applicable to your model
• Use your model's diagram to locate the sleeve and note orientation before removal
• Clean and inspect the mating shaft/pin or fastener; replace any severely worn components
• Seat the sleeve fully; avoid over-tightening hardware that passes through the sleeve

A replacement interior light shield that protects the refrigerator light and helps diffuse illumination for even lighting throughout the fresh-food compartment. Restores proper light coverage after a cracked or missing lens. What it does:

• Covers and protects the fridge light bulb from spills, debris and accidental contact
• Diffuses light for more even interior illumination
• Prevents direct glare from the bulb to make contents easier to see
• Commonly replaced when cracked, broken, yellowed, or missing

• Remove power to the appliance before starting—unplug or switch off the breaker
• Typically snaps or screws into place; handle gently to avoid cracking the new lens
• Use a soft cloth and mild cleaner; avoid abrasive pads or harsh solvents
• Inspect the housing and replace hardware as needed

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

This upper door hinge supports the refrigerator/freezer door at the top pivot, keeping it aligned so the gasket seals and the door opens smoothly. Replacing a worn hinge helps restore proper door swing and reliable closing.

• Supports and pivots the door at the top hinge point
• Maintains door alignment for an even, consistent gasket seal
• Helps prevent door sagging, rubbing, or binding
• Worn hinge symptoms include misalignment, squeaks, poor sealing, or the door popping open

• Disconnect power; remove items from the door.
• Support the door to prevent dropping; remove hinge cover and mounting screws.
• Lift the door off the lower hinge, transfer any spacers/shims, and install the new upper hinge.
• Reinstall and align the door; tighten hardware and verify gasket contact all around.

This hinge cover protects and finishes the appliance's door hinge, restoring a clean appearance and helping keep the hinge area clear of dirt and debris. A simple cosmetic and protective replacement. What it does

• Covers and shields the door hinge to protect it from dust, grease and debris.
• Restores the appliance's finished appearance when the original cover is cracked, broken, or missing.
• Helps reduce the chance of exposed sharp edges from a damaged hinge area.
• A damaged or missing cover can contribute to visible hinge hardware and may make the door look misaligned.

• Support the door before removing any hinge hardware to prevent the door from shifting or falling.
• Handle edges carefully and wear gloves to avoid cuts from metal parts.
• Reinstall original mounting screws or clips; do not overtighten plastic components.

Specs: Hex head ,1/4-20 x 5/8

This replacement glass shelf provides a sturdy, easy-to-clean surface for organizing refrigerator interior items and restoring original storage layout. Fits the shelf opening to support food containers and help keep items visible and accessible. What it does:

• Replaces a cracked, chipped or missing refrigerator shelf to restore usable storage space
• Provides a flat, stable surface for plates, containers and produce
• Keeps spills contained and makes cleanup faster than wire shelving
• Restores even weight distribution to prevent items from tipping

• One replacement glass shelf

• Handle carefully—support the glass fully during installation to avoid dropping or chipping
• Slide into existing shelf supports or grooves; do not force if alignment feels tight
• Wear gloves to protect hands when handling damaged glass

This fixed shelf frame secures a refrigerator door shelf and restores the shelf's edge trim for a finished look and stable storage. It replaces a cracked, broken or worn shelf frame so items stay supported and contained. What it does:

• Holds and supports the door shelf or shelf bin edge to prevent items from falling
• Replaces damaged or cracked trim that can snag or allow spillage
• Restores proper mounting surface and alignment for the shelf bin
• Common symptom: visible cracks, missing trim, or shelf that shifts or drops

• One fixed shelf frame

• Remove all contents from the shelf before starting
• Many frames snap into place; some models use retaining screws—keep original fasteners
• Inspect mounting tabs; replace if broken to ensure secure fit

This shelf assembly replaces a damaged or missing cabinet shelf to restore stable storage and organization inside the refrigerator. It provides a flat, secure surface for food and beverage items. What it does

• Replaces a cracked, broken or missing interior shelf so items stop slipping or falling
• Restores usable shelf space and proper spacing between shelves
• Sits in existing shelf tracks or supports to provide a level storage surface
• Helps keep refrigerator contents organized and accessible

• Remove food and loose items from the area before installing
• Slide shelf into the existing tracks or set onto supports until it seats securely
• Wear cut-resistant gloves and remove all debris before installing
• Always unplug the appliance or disconnect power before doing any repairs that expose electrical components

This trivet is the cast metal support that sits over a cooktop burner to hold cookware steady and protect the burner assembly. It restores a level cooking surface and helps maintain safe, even contact between pots and the burner. What it does:

• Provides a stable platform for pots and pans on a cooktop burner
• Keeps cookware off the burner head to prevent direct damage
• Helps maintain correct clearance so flames and heat are directed properly
• Replaces cracked, warped or missing trivets that cause wobbling or uneven cooking

• Allow the cooktop to cool completely before handling the trivet
• No tools usually required — set the trivet into place over the burner until it seats securely
• Inspect mating surfaces for debris or damage before reinstalling
• If the trivet is warped or doesn't sit level after installation, do not use the burner and replace with a matched part

This mounting bracket secures internal components and panels to restore proper alignment and reduce vibration. It provides a direct replacement for worn or damaged support hardware so assemblies stay firmly in place. What it does:

• Secures appliance panels or internal components to the cabinet or frame
• Keeps parts aligned to prevent rattling, vibration, or movement during operation
• Restores proper fit where a bent, broken, or missing bracket causes loose assemblies
• Helps maintain safe, stable operation by holding parts in their designed position

• One mounting bracket

• Designed to replace the factory bracket in the same mounting location; verify fit before installation
• Use appropriate fasteners and torque to avoid striping or damage to mounting points
• Disconnect power and empty unit if needed before accessing internal areas

The Adjustable Foot is an OEM part for Frigidaire dryers. This part is located at the bottom of the dryer and allows you to level it, ensuring stability and proper operation.

Causes of a bad adjustable foot can include regular wear and tear, damage from moving the appliance, or breaking due to excessive weight or stress.

Symptoms of a bad adjustable foot include:

• The dryer wobbling or tilting
• Difficulty in adjusting the height of the foot
• Visible damage or deformation of the foot
• Unusual noises or vibrations during operation

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw fastens appliance panels and components to restore a secure fit and reduce vibration or rattling. Use when original hardware is missing, loose, or stripped to keep parts aligned and operating quietly. What it does:

• Secures panels, brackets, and trim to prevent movement and rattling.
• Replaces missing or damaged hardware that can cause loose or misaligned parts.
• Helps maintain proper component alignment for reliable operation.
• Small but essential fastener for safe, stable assembly.

• Disconnect power before servicing any electrical appliance.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten, which can strip threads or crack panels.
• Keep removed hardware organized to ensure correct reinstallation.

The Grille/Kickplate is an OEM replacement part for Frigidaire refrigerators. It serves both an aesthetic and protective purpose, covering the bottom front edge of the appliance beneath the doors. The grille includes air vents that allow for proper airflow circulation to cool components inside.

Symptoms of a bad grille/kickplate can include broken or missing clips, screws, or fasteners holding it in place. Physical damage such as dents, cracks, or punctures compromising ventilation are also causes for replacement.

Causes of a bad grille/kickplate include:

• Inability to properly ventilate or cool internal refrigerator systems
• Risk of foreign material blockage from exposed internal areas
• Loose or unstable fit that impacts the fridge's appearance

This OEM Frigidaire replacement part is compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

The Hinge Bearing is an OEM part for Frigidaire refrigerators. As a pivot point that supports opening and closing of the refrigerator door, the bearing assembly is crucial for smooth and balanced door movement. Repeated use over time subjects these small ball bearings to wear and tear.

Causes of a bad hinge bearing can include regular wear from years of use, improper loading or stress placed on the door, or damage from over-tightening or mishandling during repairs.

Symptoms of a bad hinge bearing include:

• Squeaking or grinding noises coming from the hinge area
• Resistance or difficulty when opening/closing the fridge door
• Looseness, wobbling, or imbalance of the door

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
