Parts for Kenmore 253.9280414 (2539280414, 253 9280414): System Parts

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

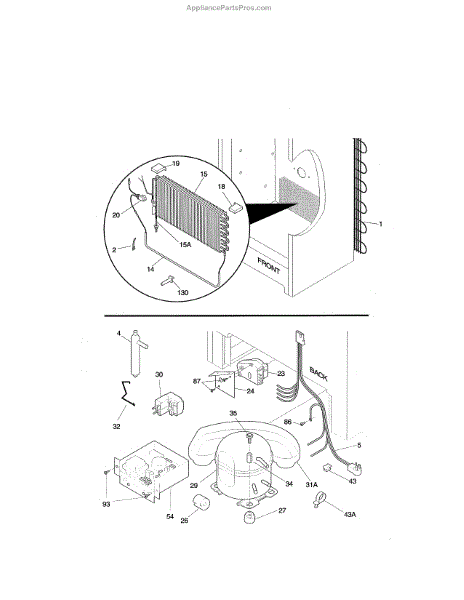

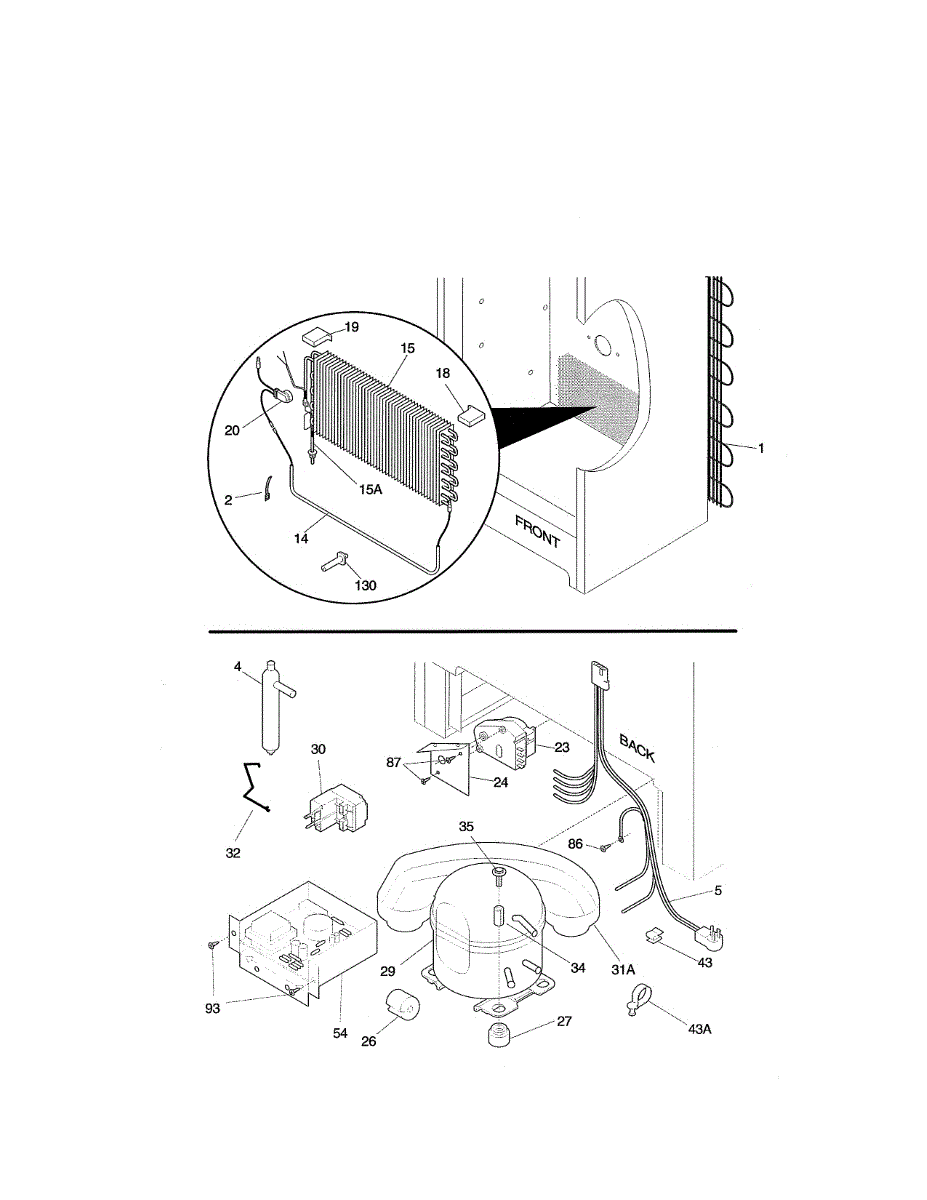

A service parts catalog containing exploded diagrams and part numbers to help identify and order replacement components quickly. Ideal for technicians and DIYers who need a clear reference for locating parts. What it does:

• Provides exploded views and part reference numbers for accurate identification
• Speeds repair planning by showing part locations and relationships
• Useful for matching symptoms (no cooling, unusual noises, leaks) to likely service parts

• This item is a reference/document — not a physical repair part to install
• Use the catalog with the appliance's model-specific service instructions
• Keep document dry and readable; replace if damaged or illegible
• For safety, disconnect power to the appliance before performing repairs shown in the catalog

Includes service line.

Wire harness for freestanding freezers. Connects electrical components inside the cabinet. Replace if wires are frayed, damaged, or connectors are broken.

Foam insulation sleeve that wraps around the defrost drain tube. Replace if worn, missing, or damaged to prevent condensation and maintain proper insulation.

A pressure-relief valve that allows air circulation and prevents vacuum formation in sealed freezer systems. Replace when experiencing difficulty opening the freezer door immediately after closing or poor temperature regulation.

Fixes frost buildup on evaporator coils causing warming or ice accumulation. Test with multimeter for continuity. DIY-friendly repair component.

Freezer not cooling or running constantly? The evaporator may have failed. Professional installation recommended due to refrigerant system work.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

The Defrost Timer is an OEM replacement part for Frigidaire upright freezers. It serves as a crucial component responsible for regulating automatic defrost cycles.

Causes of a faulty defrost timer relate to 20,000+ hours of constant exposure to freezer temperatures as low as -10 degrees Fahrenheit. Such extremes can compromise electrical switching mechanisms over prolonged usage periods.

Symptoms of a failed defrost timer include:

• Inability to initiate automatic defrost modes
• Excessive ice and frost accumulation inside cabinet
• Warm areas detected due to impaired fan circulation
• Diagnostic codes indicating defrosting problems

This genuine Frigidaire replacement part is compatible with Kelvinator and some Kenmore units as well.

Plastic spacer that maintains proper gap between freezer door and cabinet. Replace if cracked, broken, or missing to restore correct door alignment.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Freezer not cooling or running constantly? This compressor kit circulates refrigerant through the system. Advanced repair requires refrigerant handling.

Drip pan kit for freezers. Installs beneath the unit to collect condensation and defrost water. Replace if cracked, warped, or missing pieces.

Compressor vibrating or loose? This mounting screw secures the compressor in freezers and refrigerators. Simple fix, basic tools required.

This retainer lead wire secures appliance wiring to keep harnesses organized and away from heat or moving parts, reducing wear and accidental disconnection. It's a simple replacement to restore proper wire routing and protection. What it does:

• Clips or holds the wiring harness in place to prevent chafing and strain
• Helps keep wires away from hot surfaces, vents, or moving components
• Reduces risk of intermittent electrical connections caused by loose wiring
• Restores factory routing after service or component replacement

• Disconnect power to the appliance before installing to avoid shock or injury
• Remove any panels necessary to access the original retainer and wiring route
• Replace like-for-like, seating the retainer securely so the harness cannot shift
• If wires show damage or insulation wear, inspect further and replace damaged wiring before reassembly

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.
