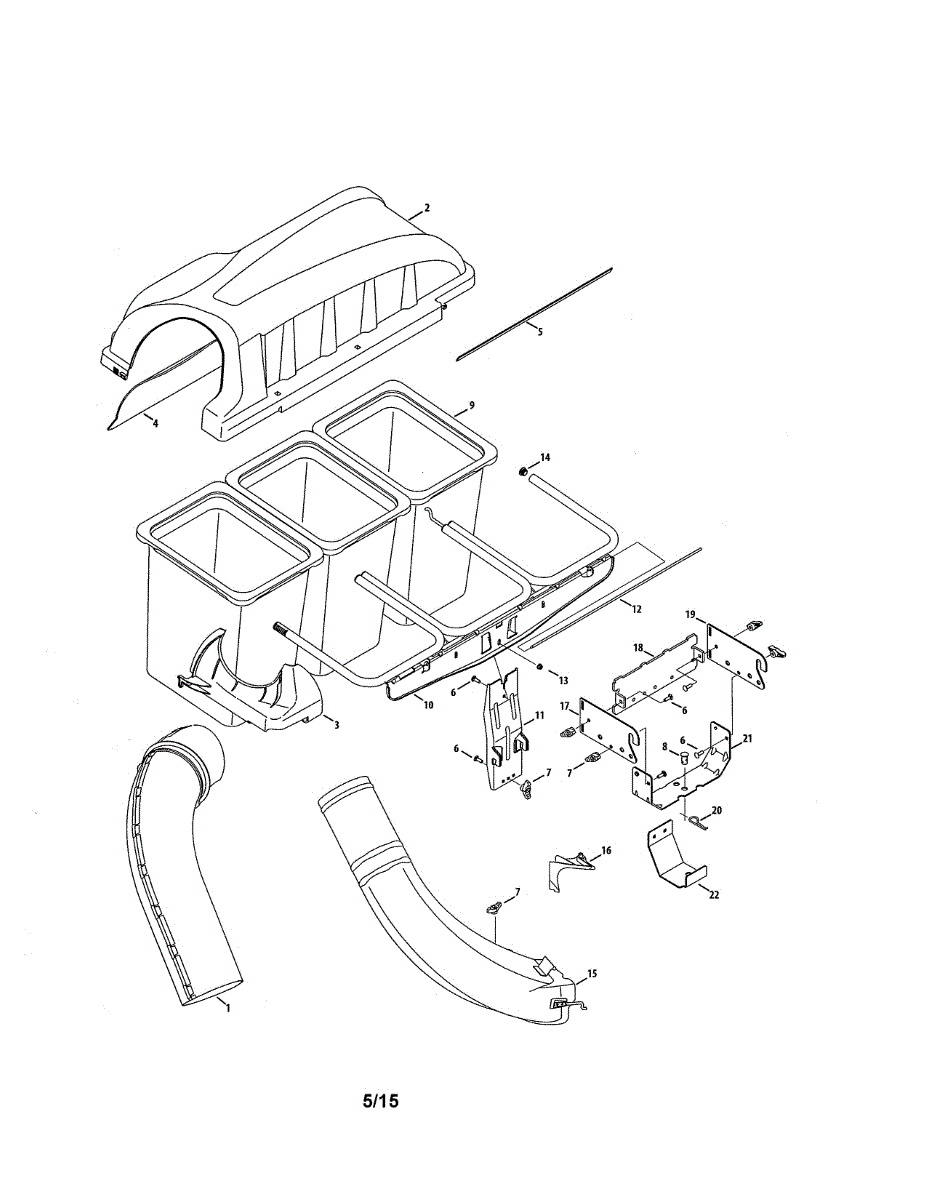

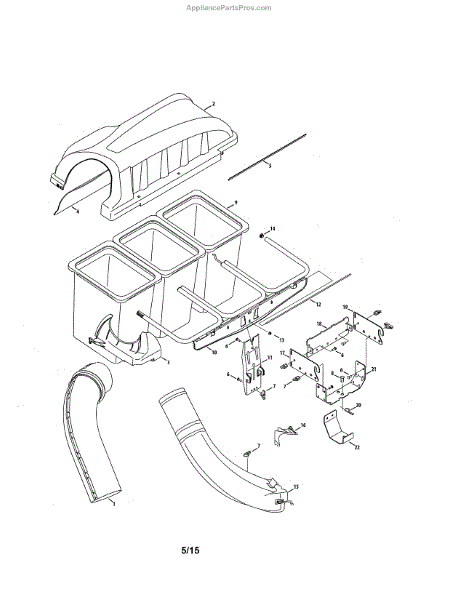

Parts for Craftsman 247240800: Three Bin Bagger Parts

Parts for Craftsman 247240800: Three Bin Bagger Parts

Location on Diagram
Part Description
Price & Availability
1
Product photo
By: Mtd
Part Number: 931-04291A

Upper chute assembly for riding lawn mower bagging systems. Guides cut grass from deck to collection bag. Replace if cracked, broken, or damaged.

More
$207.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
2
By: Mtd
Part Number: 631-04298P

Replacement cover for lawn tractor triple bagger attachment. Installs on top of bagger assembly. Needed when original is cracked, damaged, or missing.

More
$327.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
3
Product photo
By: Mtd
Part Number: 731-06497

This is the upper chute support bracket used on a lawn tractor bagger attachment. It provides structural support to hold the upper discharge chute in the correct position so grass clippings are directed into the collection bag. Replace this bracket if it is bent, broken, or missing, causing the chute to sag or disconnect during mowing.

More
$41.73

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
4
Product photo
By: Mtd
Part Number: 731-06504

Replace your grass catcher bagger cover screen when damaged or clogged to restore proper airflow and clipping collection. Verify fit with your model number.

More
$20.25

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
5
Product photo
By: Mtd
Part Number: 721-04388

Adhesive foam tape for grass catcher assembly on lawn tractors. Replaces worn, cracked, or missing tape that secures components and dampens vibrations.

More
$8.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6
Product photo
By: Mtd
Part Number: 710-0276

Carriage bolt fastener for lawn and garden equipment. Replaces worn, stripped, or missing bolts that secure deck components and attachments.

More
$4.55

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
7
Product photo
By: Mtd
Part Number: 720-04122

Wing knob for lawn mowers and snow blowers. Secures chutes, bagger frames, and adjustable components. Replace if cracked, broken, or missing.

More
$8.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
9
Product photo
By: Mtd
Part Number: 964-05104

Collection bag for grass catcher attachments on lawn tractors. Replaces worn, torn, or missing bags. Installs on rear-mounted grass catchers.

More
$104.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
10
By: Mtd
Part Number: 683-04498A-0637
$222.08

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
11
By: Mtd
Part Number: 683-04519B-0637

Vertical support bracket for grass catcher attachments. Secures and stabilizes the bag frame. Replace if bent, cracked, or broken to restore proper fit.

More
$102.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
12
By: Mtd
Part Number: 711-05079

Replacement hinge pin for lawn tractor attachment triple cover. Secures cover panels and maintains proper alignment. Needed when original is bent or missing.

More
$23.12

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
13
Product photo
5.0 (1)
By: Mtd
Part Number: 712-04063

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

More
$5.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
14
Product photo
By: Mtd
Part Number: 735-0246A

This part is a replacement handle plug. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It is intended to replace a defective or broken handle plug in tillers.This handle plug ensures that the opening at the end of the handle is sealed properly. This part can easily become worn, detached, or lost and thus will require replacement with a genuine part. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to use this handle plug, the appropriate owner's manual and equipment diagrams should be referred to. This handle plug is a genuine OEM part made of durable materials and is sold individually. It is suitable for use with tiller models that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

More
$6.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
15
Product photo
By: Mtd
Part Number: 631-05103

Replacement bagger chute assembly for lawn tractors. Transfers grass clippings from deck to collection bag. Replace if cracked, broken, or missing.

More
$248.75

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
16
By: Mtd
Part Number: 731-10133

Adapter that connects the discharge chute to your grass catcher system. Replace if cracked, broken, or no longer creates a secure seal between components.

More
$20.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
21
By: Mtd
Part Number: 783-08129-0637

Hitch bracket that secures and supports the grass bag attachment on lawn tractors. Replace if cracked, bent, or broken to restore proper bag mounting.

More
$29.68

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
22
By: Mtd
Part Number: 783-08856
$25.70

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
