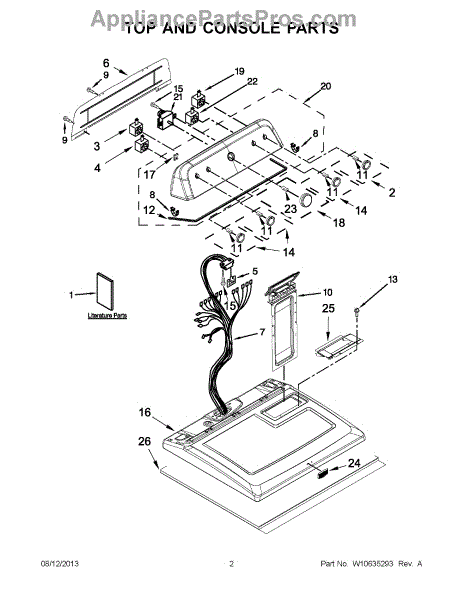

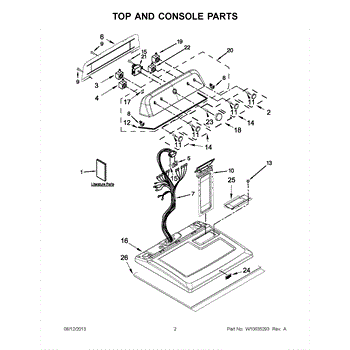

Parts for Maytag MGDX500BW0: 01 - Top And Console Parts

Parts for Maytag MGDX500BW0: 01 - Top And Console Parts

Location on Diagram
Part Description
Price & Availability
2
By: Whirlpool
Part Number: WPW10565871

Replacement control knob for dryer control panel. Restores tactile selection of heat, cycle, and temperature settings. Replaces cracked, missing, or worn knobs.

More
$52.68

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
3
5.0 (1)
By: Whirlpool
Part Number: WPW10627711

This is the push-to-start relay switch that engages the dryer motor when the start button is pressed. It also controls the end-of-cycle buzzer signal. Replace this relay if the dryer does not start when you push the start button, if the buzzer no longer sounds at the end of a cycle, or if the switch feels stuck or unresponsive.

More
$31.62

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4
By: Whirlpool
Part Number: W10562713

Fix a dryer that won't start or stop properly with this switch. Common solution for unresponsive controls. Straightforward repair for most models.

More
$44.24

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5
Product photo
5.0 (1)
By: Whirlpool
Part Number: WPW10476828

Dryer stops early on auto cycle but works on timed? The moisture sensor control board monitors dryness levels. DIY-friendly repair, 15-20 minutes.

More
$192.35

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6
Product photo
By: Whirlpool
Part Number: WPW10416486

This rear panel replaces the dryer's back bulkhead to restore the appliance's structural enclosure and help protect internal components from dust and debris. It provides a clean mounting surface for internal parts and improves cabinet integrity. What it does:

  • Replaces a damaged, dented, or corroded rear cabinet panel
  • Protects internal wiring, ducts, and components from external debris
  • Restores proper mounting surfaces for internal assemblies and fasteners
  • Helps maintain correct airflow paths by sealing the dryer cabinet
What's included:
  • One rear panel/back bulkhead
Install notes:
  • Disconnect power (and gas if applicable) before beginning any repair
  • Installation typically requires removing the dryer cabinet and several fasteners; keep hardware for reuse unless damaged
  • Inspect and replace any worn gaskets, seals, or mounting clips while cabinet is open

More
$60.52

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
7
By: Whirlpool
Part Number: W10565805
$95.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
8
Best Seller
Product photo
4.9 (15)
By: Whirlpool
Part Number: WP8312709

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

  • Loose console assembly that is not securely fastened
  • Misaligned or dangling controls that do not sit flush
  • Dislodged console at risk of detaching from housing
  • Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

More
$20.38

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
9
Best Seller
Product photo
5.0 (2)
By: Whirlpool
Part Number: WP693995

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
10
Best Seller
Product photo
5.0 (6)
By: Whirlpool
Part Number: W11778254

Replacement lint screen that traps debris to prevent clogs and maintain airflow. Replace when damaged, torn, or not sealing properly. Confirm fit with your model.

More
$38.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
11
Best Seller
Product photo
4.9 (22)
By: Whirlpool
Part Number: WP8536939

This is a D-shaped knob insert or spring clip that fits inside a control knob and connects it to the control shaft on the dryer's front panel. It ensures the knob grips the shaft properly so you can turn the timer or selector. Replace this insert if your control knob spins freely without engaging the shaft or if the knob feels loose and won't stay in position.

More
$9.63

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
12
By: Whirlpool
Part Number: W10588162
$16.24

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
Product photo
5.0 (5)
By: Whirlpool
Part Number: W11693756

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

More
$12.54

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
14
5.0 (1)
By: Whirlpool
Part Number: W11837893
$14.77

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
15
Best Seller
Product photo
4.6 (8)
By: Whirlpool
Part Number: WP90767

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

  • Loose or wobbly components within the appliance
  • Panels or parts that are not securely attached
  • Rattling or unusual noises due to loose parts
  • Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
16

Top

By: Whirlpool
Part Number: W10513432
$95.30

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
17
Product photo
By: Whirlpool
Part Number: W11213336

Replacement mounting nut secures panels, brackets, and studs in dryers. Restores tight fit for worn, stripped, or missing fastening hardware.

More
$4.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
18
5.0 (3)
By: Whirlpool
Part Number: W11837899
$22.47

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
19
Best Seller
Product photo
5.0 (6)
By: Whirlpool
Part Number: WPW10563095

Dryer won't start when you press the button? This push to start switch initiates the motor and heating element. Simple 5-minute DIY replacement.

More
$63.65

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
20
By: Whirlpool
Part Number: WPW10557259

Fix unresponsive buttons or blank displays with this dryer control panel. Restores complete cycle selection and settings control for your appliance.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21
Product photo
5.0 (1)
By: Whirlpool
Part Number: WPW10519558

Dryer won't start or advance through cycles? This rotary timer controls cycle timing and program advancement, restoring reliable operation. Moderate DIY.

More
$231.55

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
22
By: Whirlpool
Part Number: W10563094

This is a cycle selector switch located on the dryer's control panel that allows you to choose between different drying cycles and settings. It connects to the timer and control circuitry to route power to the correct cycle. Replace this switch if the dryer does not respond when you turn the cycle knob, only works on certain settings, or if the switch feels loose or fails to click into position.

More
$22.65

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
23
Best Seller
Product photo
By: Whirlpool
Part Number: WP688805

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

  • Knob becoming loose or falling off
  • Difficulty turning the knob to adjust settings
  • Knob not staying securely in place
  • Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

More
$9.63

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
24
By: Whirlpool
Part Number: W10492808
$30.62

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
25
By: Whirlpool
Part Number: W10662472
$45.30

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
26
By: Whirlpool
Part Number: W10123956

Sound absorber insulation pad for dryers. Installs inside cabinet to dampen noise and vibration. Replace if torn, compressed, or missing.

More
$22.26

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
