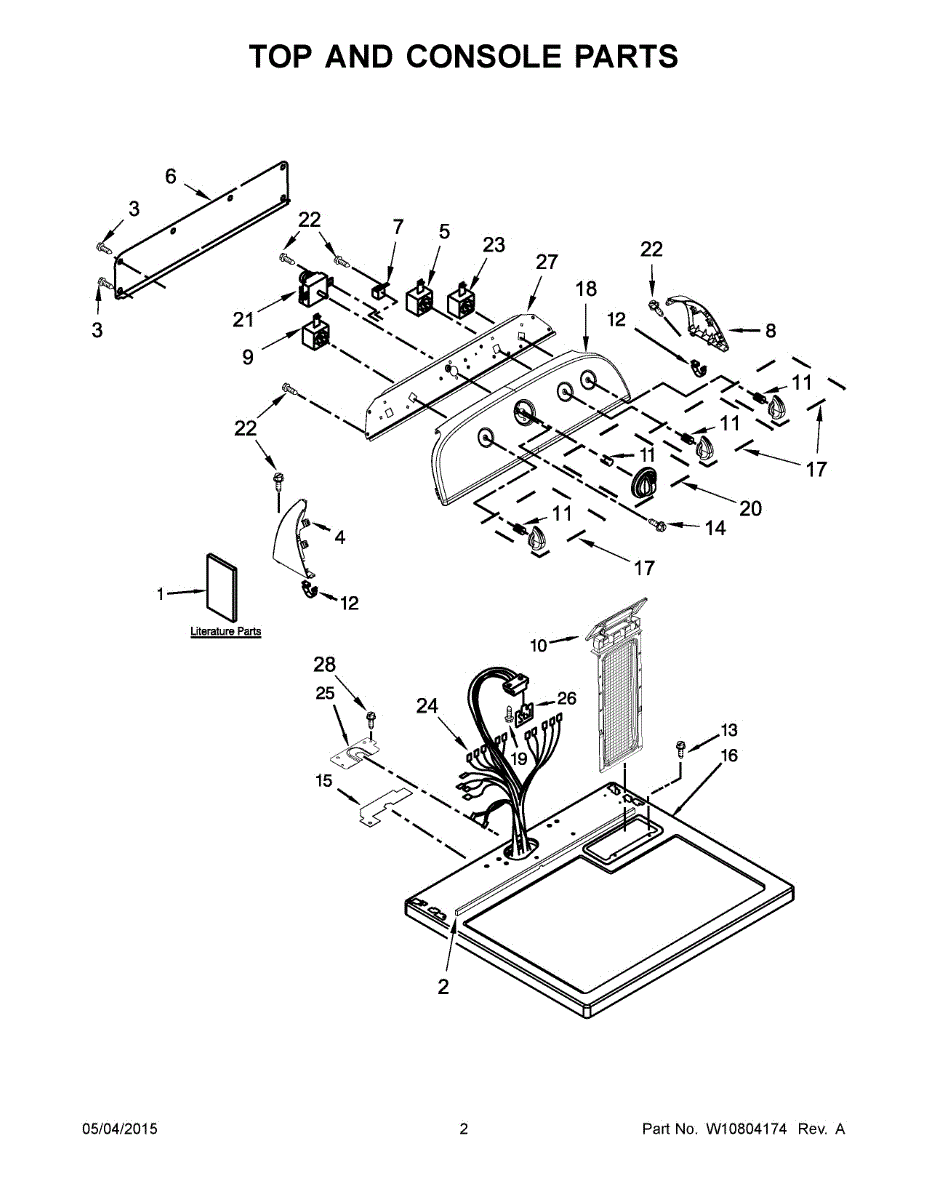

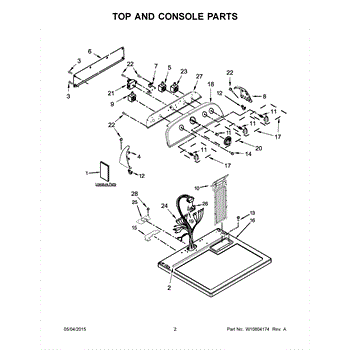

Parts for Whirlpool WED5000DW2: 02 - Top And Console Parts

This is a foam seal that fits along the control panel area of a dryer, creating a barrier against moisture, lint, and air leaks. It helps protect internal control components from heat and debris. Replace this seal if it is cracked, compressed, or missing, which can allow lint buildup near controls or cause air leaks that reduce drying efficiency.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This is the left-side end cap that attaches to the dryer's control panel, providing a finished appearance on the edge of the console. It snaps or screws into place and helps hold the control panel assembly together. Replace this end cap if it is cracked, broken, or missing, which can leave the control panel edges exposed and unsightly.

This rotary on/off switch controls the dryer's Finish Guard (also called Wrinkle Guard/Wrinkle Shield) feature. Replacing it restores proper control of the post-cycle intermittent tumbling that helps reduce wrinkles, preventing the feature from being stuck on or off.

• Provides 2-position on/off selection for the Finish Guard/Wrinkle Guard function
• Failure can cause the feature not to engage or to stay on after the cycle ends
• Knob may feel loose or fail to click when the switch is worn
• Mounts in the control console and interfaces with the external selector knob

• Disconnect power before servicing
• Access through the control console; remove paneling as needed
• Transfer wires one at a time or photograph connections for reference
• Reinstall using the existing knob and mounting hardware

Rear panel for your dryer. Replaces cracked, damaged, or missing back cover. Essential structural component that encloses the dryer cabinet.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This is a white plastic end cap that attaches to the right side of the dryer's control panel console. It provides a finished appearance and helps secure the control panel assembly in place. Replace this end cap if it is cracked, broken, or missing, which can leave the edges of the control panel exposed and cause the console to feel loose.

Dryer not reaching selected temperature or overheating? This rotary temperature switch restores proper heat control. Straightforward DIY repair.

Captures lint during each cycle to maintain airflow and prevent overheating. Replace if torn, warped, or damaged. Verify fit using your model number.

This is a D-shaped knob insert or spring clip that fits inside a control knob and connects it to the control shaft on the dryer's front panel. It ensures the knob grips the shaft properly so you can turn the timer or selector. Replace this insert if your control knob spins freely without engaging the shaft or if the knob feels loose and won't stay in position.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

Fixes loose or wobbly timer controls by securing the timer assembly to its mounting bracket. Simple 5-minute repair restores proper cycle operation.

Main top panel assembly that forms the finished top surface of your dryer. Replace if cracked, discolored, damaged, or worn to restore appearance.

The Knob Kit is an OEM replacement part for Whirlpool washing machines and dryers. Including a set of premium knobs color-matched to the appliance controls, this kit restores complete interfaces whenever old or damaged buttons need replacing. The kit includes 1 timer knob and 3 control knobs.

Causes for replacement involve normal wear from repeated touching during cycles as well as impact damage from falls or button presses gone awry over many years of service.

Symptoms necessitating a new knob kit include:

• Cracked, broken or missing buttons impeding normal operations
• Loosened knobs slipping out of holes or wearing partial turns
• Discolored faded markings obscuring switch positions

This OEM Whirlpool part is also compatible with Maytag, Amana, and other major brands.

Fix loose or unresponsive dryer controls with this control panel and bracket assembly. Restores secure mounting when your console is cracked or misaligned.

Specs: 10-16 x 1/2 inch.

The Timer Knob is an OEM part for Whirlpool washers and dryers. It is located on the control panel that allows you to set and adjust the timer for different wash and dry cycles.

A bad timer knob can be caused by regular use, accidental damage, or wear and tear over time. If you notice cracks, a loose fit, or difficulty in turning the knob, it may indicate a problem with the knob itself.

Symptoms of a bad timer knob include:

• Cracked or damaged knob surface
• Loose or wobbly fit of the knob on the control panel
• Inability to set or adjust the timer accurately

Replace your faulty timer knob with this genuine OEM part to restore your appliance.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Fixes dryers that won't shut off, won't start, or have timers that won't advance. Direct replacement timer control. Most installs take 10-20 minutes.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Dryer won't start when you push the button or stops running when released? This push to start switch fixes both issues. DIY-friendly, 5-15 minute repair.

Fix dryer electrical failures or control issues with this multi-connector wire harness. Restores power routing between modules. Moderate DIY repair.

Dryer stops early on auto cycle but works on timed? The moisture sensor control board monitors dryness levels. DIY-friendly repair, 15-20 minutes.

Replacement screw secures panels, brackets, and internal assemblies. Needed when original hardware is stripped, corroded, or missing to keep parts tight.
