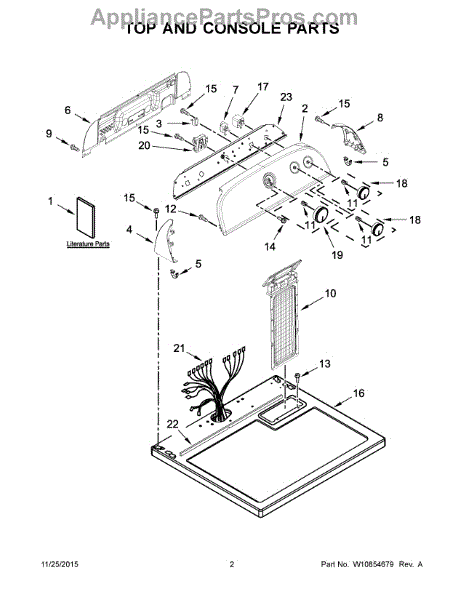

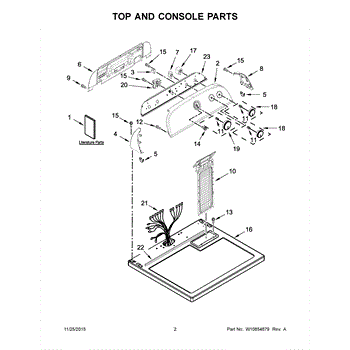

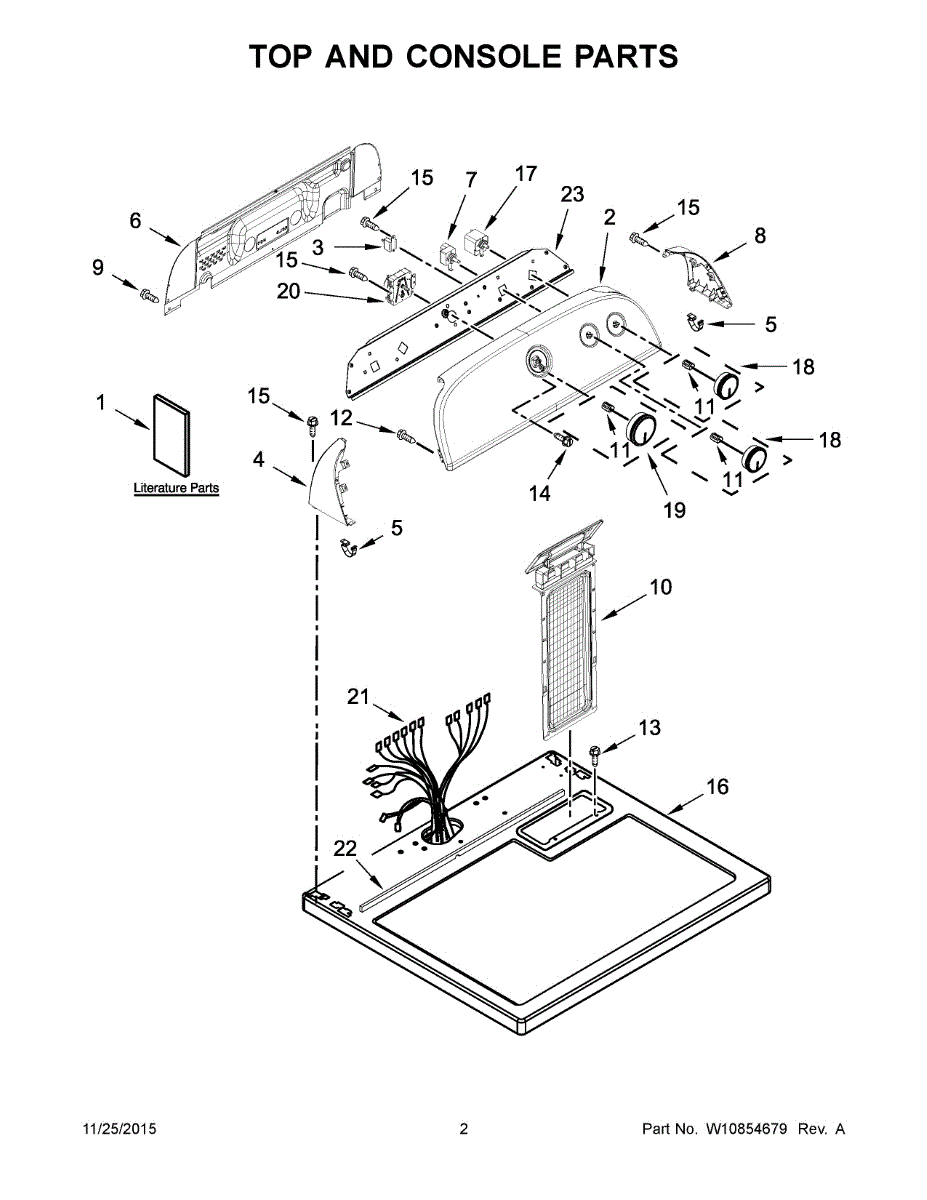

Parts for Whirlpool WGD4985EW0: 02 - Top And Console Parts

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

A replacement control panel that restores the appliance's front surface and provides a secure mounting area for buttons and switches. Replaces a damaged or worn panel to help maintain proper control operation and appearance. What it does:

• Provides the exterior mounting surface for control buttons, knobs, and switches
• Protects internal control components from spills, grease and accidental damage
• Restores a flush, secure fit to the appliance front where the panel was cracked, warped, or dented
• Can reduce issues caused by loose or misaligned controls

• One replacement control panel

• Disconnect power to the appliance before beginning any repairs
• Typically secures with screws and may require removing trim or the main console for access
• Handle carefully to avoid scratching the finish; use appropriate tools and fasteners

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This dryer temperature selector switch lets you choose between four heat settings for proper fabric care. Replacing a worn switch restores accurate temperature selection so loads dry evenly without overdrying delicate items.

• Controls the dryer's heat level across four selectable settings
• Faulty switch can cause incorrect temperatures or only one setting to work
• May lead to poor drying performance or fabric damage if not functioning
• Restores reliable temperature selection and consistent drying results

• Unplug dryer before servicing; shut off gas if applicable
• Pull control knob straight off to access the switch
• Transfer wires one at a time to the new switch to maintain correct positions
• Ensure switch shaft and flat align with the knob during reassembly

This control panel is the exterior console that houses the washer/dryer controls and user interface, restoring a clean, functional front for the appliance. It replaces a damaged or worn panel to improve operation and appearance. What it does:

• Provides the mounting surface and openings for knobs, buttons, and display elements
• Protects internal control components from dust and debris
• Restores correct alignment of user controls and labels for reliable operation
• Helps resolve issues caused by cracked, warped, or cosmetically damaged panels

• One control panel assembly as shown

• Disconnect power (and water if applicable) before starting any repair
• Handle carefully to avoid scratching the finish and damaging clips or mounting tabs
• Some disassembly of the top or front may be required; follow OEM instructions
• If the panel contains attached switches or overlays, verify connectors are secure before reassembly

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small mounting screw secures the appliance's timer to its bracket or control console. It replaces missing or stripped hardware to keep the timer stable, properly aligned, and operating smoothly when you turn the control knob.

• Fastens the timer assembly securely to its mounting bracket or console
• Prevents shifting and vibration that can make the control feel loose or wobbly
• Helps maintain proper alignment of the timer shaft/knob
• Ideal replacement when original hardware is missing or threads are damaged

• Disconnect power before servicing; shut off gas if applicable
• Access the control console and support the timer while removing/reinstalling hardware
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening into plastic or thin metal
• Replace screws one at a time to keep the timer aligned

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is the appliance's main top panel assembly. It restores a clean, sturdy top surface and protects internal components, helping the unit look and function like new after cosmetic or physical damage.

• Forms the finished top surface of the appliance and protects internal wiring/mechanisms
• Provides mounting/attachment points for surface components specific to the model
• Helps maintain proper alignment of surrounding panels and trim
• Common signs it needs replacement: dents, cracks, chips, rust, bowed or loose panel, rattling, or sharp edges

• Disconnect power to the appliance; shut off gas/water if your model requires it.
• Wear cut-resistant gloves and handle carefully to avoid bending or chipping the panel.
• Transfer any reusable brackets, trim, or grommets from the original panel to the new one.
• Reinstall using existing fasteners; avoid overtightening on painted or glass surfaces.

The Push To Start Switch is an OEM part for Whirlpool dryers. It is the interface between the user and the dryer, initiating the drying cycle when pressed. This switch is essential for the safe and efficient operation of the dryer, ensuring that it starts only when the button is deliberately pressed, thereby preventing accidental start-ups.

Causes of a bad Push To Start Switch can include electrical failures within the switch mechanism, wear and tear from repeated use, or damage from spills or moisture exposure.

Symptoms of a bad Push To Start Switch include:

• The dryer not starting when the button is pressed
• The need to press the button multiple times to start the dryer
• The dryer starting without the button being pressed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Knob Kit is an OEM replacement part for Whirlpool washing machines and dryers. Including a set of premium knobs color-matched to the appliance controls, this kit restores complete interfaces whenever old or damaged buttons need replacing. The kit includes 1 timer knob and 3 control knobs.

Causes for replacement involve normal wear from repeated touching during cycles as well as impact damage from falls or button presses gone awry over many years of service.

Symptoms necessitating a new knob kit include:

• Cracked, broken or missing buttons impeding normal operations
• Loosened knobs slipping out of holes or wearing partial turns
• Discolored faded markings obscuring switch positions

This OEM Whirlpool part is also compatible with Maytag, Amana, and other major brands.

The Knob Kit is an OEM replacement part for Whirlpool washing machines and dryers. Including a set of premium knobs color-matched to the appliance controls, this kit restores complete interfaces whenever old or damaged buttons need replacing. The kit includes 1 timer knob and 3 control knobs.

Causes for replacement involve normal wear from repeated touching during cycles as well as impact damage from falls or button presses gone awry over many years of service.

Symptoms necessitating a new knob kit include:

• Cracked, broken or missing buttons impeding normal operations
• Loosened knobs slipping out of holes or wearing partial turns
• Discolored faded markings obscuring switch positions

This OEM Whirlpool part is also compatible with Maytag, Amana, and other major brands.

The Timer Assembly is an OEM part for Whirlpool dryers. It is responsible for controlling and managing the timing and sequence of the various drying cycles and functions.

Causes of a bad timer assembly may include electrical malfunctions, mechanical wear and tear, or physical damage from impact or moisture.

Symptoms of a faulty Timer Assembly include:

• Dryer not advancing through cycles or stopping mid-cycle
• Incorrect cycle times or skipping of certain cycle phases
• Lights or displays indicating incorrect time remaining
• Failure to initiate or start drying cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement refrigerator door gasket seals the door to help keep cold air in and improve temperature stability. It restores the sealing surface so the appliance can cool more efficiently and reduce moisture buildup. What it does

• Replaces a worn, torn, or warped door seal to restore an airtight fit
• Helps prevent warm air leaks that can cause temperature fluctuations
• Reduces frost and condensation buildup around the door opening
• Can improve energy efficiency when the door closes properly

• Disconnect power to the appliance or unplug the refrigerator before beginning work
• Remove the old gasket by loosening retainer screws or pulling out the retainer track as applicable; compare new gasket to ensure correct orientation
• Seat the new gasket evenly into the retainer channel, starting at the top corners and working around; tighten retainers if used
• Allow the gasket to form to the door edge; avoid sharp bends or creases during installation
