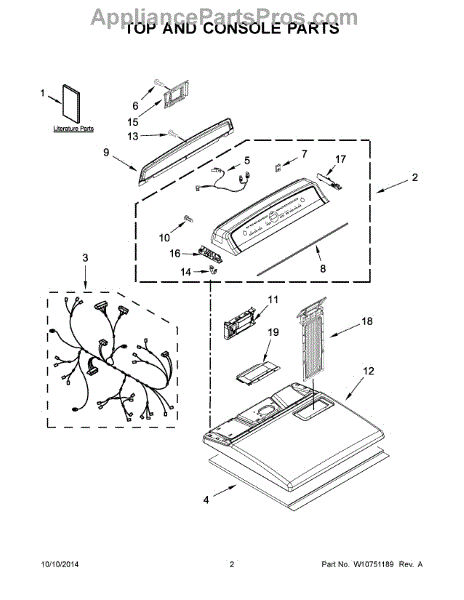

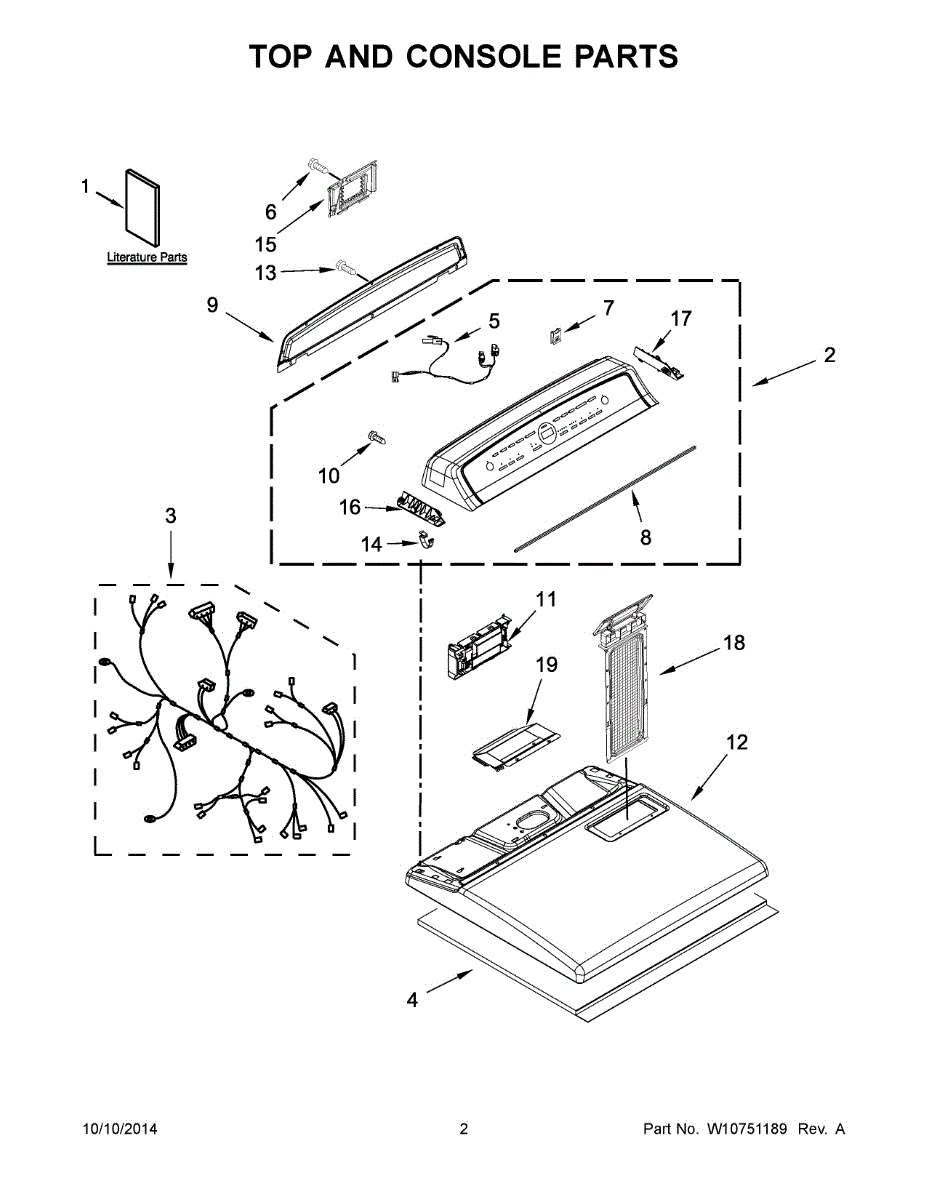

Parts for Whirlpool YWED7300DW0: 02 - Top And Console Parts

This wire harness routes power and control signals between a range of appliance components to restore proper electrical connections and reliable operation. It replaces a damaged or worn harness to help fix intermittent or complete loss of function. What it does:

• Connects control board, motors, switches and sensors so circuits complete and communicate
• Restores power and signal paths that cause intermittent runs, no-starts, or unresponsive controls
• Replaces frayed, burned, or broken wires and damaged connector ends
• Ensures correct routing to avoid pinched or chafed wiring that can lead to shorts

• Disconnect power (unplug or shut off breaker) before beginning any work
• Handle connectors gently; align pins before seating to avoid damage
• Route harness following OEM wire paths and secure with existing clips or ties
• Test appliance operation after installation and re-check connections for tight fit

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Bracket Dryer is an OEM part compatible with Whirlpool dryers. This bracket provides stability and structure by securing the dryer cabinet to the base frame. It is a necessary component that allows for proper mounting and alignment of the dryer.

Causes of a bad bracket can include cracking, bending, or warping over time and use. Exposure to excessive heat or impact can damage the bracket and compromise its integrity.

Symptoms of a bad bracket include:

• Vibrating or noisy dryer
• Loose cabinet that is not firmly mounted
• Difficulty leveling or aligning the dryer
• Stress on other components like doors or panels

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Bracket Dryer is an OEM part compatible with Whirlpool dryers. This bracket provides stability and structure by securing the dryer cabinet to the base frame. It is a necessary component that allows for proper mounting and alignment of the dryer.

Causes of a bad bracket can include cracking, bending, or warping over time and use. Exposure to excessive heat or impact can damage the bracket and compromise its integrity.

Symptoms of a bad bracket include:

• Vibrating or noisy dryer
• Loose cabinet that is not firmly mounted
• Difficulty leveling or aligning the dryer
• Stress on other components like doors or panels

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screen filters debris within your appliance to help protect internal components and maintain proper performance. A clean, intact screen supports consistent flow and reduces the risk of clogs or premature wear.

• Traps debris to help prevent clogs in the designated flow path
• Helps protect downstream parts such as valves, pumps, or passages
• A torn, missing, or clogged screen can contribute to reduced performance, unusual noises, slow flow, or error codes
• Restores proper flow when replaced with a new, clean screen

• Disconnect power and, if applicable, shut off water or gas before servicing
• Access the screen per your model's service information and note its orientation
• Clean the mating area and remove any debris before installing the new screen
• If the original screen used an O-ring or seal, transfer it if reusable or replace as needed; seat fully and check for leaks or proper operation
