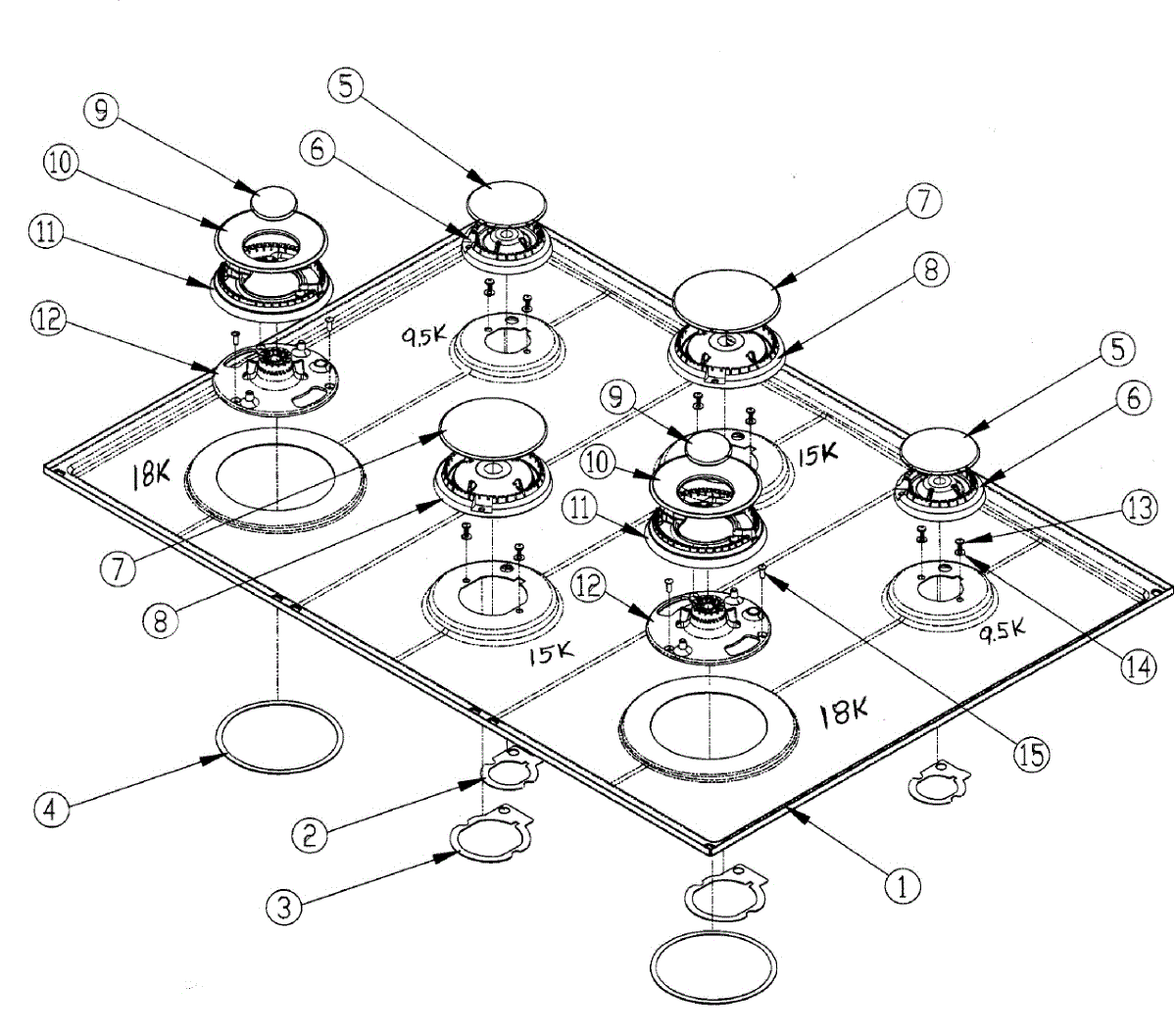

Parts for Dacor ER36GSCHNG: Top Assembly Parts

This burner gasket seals the cooktop burner to help stabilize the burner head and limit debris or soot build-up for more consistent cooking. It's a direct-fit service seal used during burner maintenance or replacement. What it does:

• Provides a tight seal between the burner head and cooktop surface to keep crumbs and spills out of the burner area
• Helps keep the burner seated and stable for consistent heat distribution
• Reduces visible soot and debris accumulation around the burner
• Can improve burner appearance by closing gaps and preventing food intrusion
• Common symptom: visible gap around the burner, excessive soot, or a burner that wobbles

• One burner gasket (single)

• Turn off gas supply and power to the appliance before beginning work
• Remove the burner cap and head per the manufacturer's instructions to access the gasket
• Seat the new gasket evenly around the burner before reassembling components
• After reinstalling, restore power/gas and observe the burner for proper seating and normal flame behavior; stop if you detect unusual gas odor or flame issues

This service burner gasket seals the burner assembly to the cooktop, restoring a proper seal to help stabilize flames and improve ignition reliability. Use it to replace worn or damaged gaskets on compatible Samsung gas cooktops. What it does:

• Seals the burner-to-cooktop gap to help prevent gas leaks and keep burner components aligned.
• Helps maintain consistent flame shape and heat for more even cooking.
• Can reduce symptoms like sputtering or uneven flames, difficulty igniting, or visible gaps around the burner.
• Fits the specified burner assembly and restores intended burner performance when the existing gasket is cracked, torn, or compressed.

• Turn off the appliance and shut off the gas supply before attempting any service.
• Remove the burner cap and head per the appliance's service instructions; seat the gasket fully around the burner base.
• Inspect surrounding components (burner head, screws, mounting surface) and replace any damaged parts.

This dual burner gasket seals the burner assembly to the cooktop surface. Replacing a worn or missing seal helps contain spills, maintain proper airflow for a steady flame, and protect the cooktop from heat and moisture intrusion.

• Creates a tight seal between the dual burner base and the cooktop
• Helps maintain proper air/gas flow for consistent ignition and flame quality
• Helps keep spills and debris out of internal burner compartments
• Replace if the seal is cracked, flattened, brittle, or missing; or if flames lift or yellow around the burner

• Disconnect electrical power and shut off the gas supply before servicing
• Allow the appliance to cool completely before disassembly
• Remove grate, burner cap, and burner head to access the seal; clean mating surfaces before installing
• Seat the gasket flat without stretching; reassemble and verify proper burner operation per manufacturer instructions

This replacement burner cap restores the protective top for a gas cooktop burner, helping maintain proper flame shape and more consistent heat distribution for everyday cooking. Use when a cap is cracked, chipped, or missing. What it does:

• Sits on the burner head to protect the burner and shape the flame for even heat
• Helps promote reliable ignition and steady flame performance
• Replace if the cap is warped, cracked, or causing the flame to burn unevenly
• Matches the OEM service part designed for direct replacement on compatible gas ranges

• Turn off the appliance power and gas supply before servicing.
• Remove grates and lift off the old cap; set the new cap flat on the burner head so it seats evenly.

This replacement burner cap fits the 15K burner to restore proper flame shape and help even heat distribution on compatible Samsung gas ranges. It replaces a damaged or missing cap to improve ignition and burner performance. What it does:

• Covers the burner head and helps direct the gas flow for a stable, even flame.
• Protects burner ports from food debris and corrosion that can disrupt ignition.
• Helps reduce uneven cooking and noisy or sputtering flames caused by a damaged cap.
• Use when the cap is cracked, warped, missing, or no longer seats correctly on the burner head.

• Turn off the stove and allow all components to fully cool before servicing.
• Remove the grates and lift the old cap straight off the burner; seat the new cap squarely over the burner head.
• No special tools are typically required, but avoid forcing the cap into place.

This surface burner ring replaces a damaged or worn gas cooktop burner ring to restore even heat distribution and reliable surface burner operation. It fits single-burner cooktops and helps improve ignition and flame stability. What it does

• Sits around the burner cap to direct and distribute flame for consistent cooking heat.
• Restores proper burner airflow when warped, cracked or corroded, helping improve ignition and steady flame.
• Helps eliminate uneven cooking and sputtering flames caused by damaged burner rings.
• Compatible with liquid propane (LP) 15K burner configurations where this ring is specified.

• One surface burner ring.

• Turn off gas supply and disconnect power to the appliance before starting any repair.
• Remove grate and burner cap, then lift out the old ring and seat the replacement ring in the cooktop recess.
• Check burner cap alignment and ignition after installation; inspect for gas leaks before use.

This inner burner cap for an 18K burner sits over the burner head to shape the flame and shield the ports. Replacing a worn or missing cap restores stable flames, reliable ignition, and consistent cooking performance. What it does

• Positions over the 18K burner head to concentrate and stabilize the flame
• Helps protect burner ports from spills and debris
• Proper seating supports quick, consistent ignition
• Common symptoms of a bad or misaligned cap include uneven or yellow flames, poor simmering, or continuous clicking without ignition

• One inner burner cap

• Turn off gas and power; allow the cooktop to cool completely
• Remove the old cap; clean and dry the burner head and ports
• Set the new inner cap flat and centered on the burner; do not force
• Test ignition and adjust cap position if the flame is uneven or noisy

This outer surface burner cap replaces a damaged or missing cap to protect the burner head and help restore proper flame distribution for consistent cooking. Designed for the outer burner position on compatible Samsung gas ranges and cooktops. What it does:

• Covers the burner head to help shape the flame and protect internal burner components.
• Restores more even heating when the outer cap is cracked, chipped, warped, or missing.
• Helps keep food, grease and spills out of the burner head and igniter area.
• Reduces uneven flames and intermittent ignition caused by a poorly seated or damaged cap.

• Turn off the appliance and gas supply and allow all parts to cool completely before handling.
• Lift the old cap straight up from the burner head; place the replacement cap aligned over the burner post until it sits flat.
• No special tools typically required; inspect the burner head and igniter for debris and clean if needed.

This outer surface burner ring replaces the damaged or worn ring on a gas cooktop, restoring proper gas flow and burner alignment for safer, more even heating. Fits specified Samsung surface burners. What it does:

• Replaces a cracked, warped or corroded outer burner ring to re-establish correct burner geometry
• Helps restore consistent flame pattern and even cooking across the burner
• Can resolve issues like uneven heating or gas flame wandering at the burner edge
• Works with the matching inner burner and cap to form the complete burner assembly

• One outer surface burner ring

• Turn off gas supply and disconnect power to the appliance before servicing
• Allow all components to cool completely; burner parts may have sharp edges—wear gloves
• Remove burner cap and inner components, seat the new outer ring fully before reassembly

This inner burner service ring restores the sealed area around a gas cooktop's inner burner, helping stabilize the burner assembly and improve ignition reliability. Fits as the inner ring component used with the burner cap. What it does:

• Replaces a worn or damaged inner ring that supports the burner cap and burner head
• Helps maintain even gas flow and a stable flame pattern when the ring is intact
• Can reduce ignition issues caused by a warped or cracked inner ring
• Restores proper seating of burner components after service or repair

• One inner burner service ring

• Installation requires removing the burner cap and burner head; follow your appliance's service manual
• Ensure gas supply is off and surface is cool before servicing
• Handle porcelain- or enamel-coated parts carefully to avoid chipping

This is a replacement service screw used to secure panels and small components in compatible Samsung appliances. It restores proper fastening where a worn, damaged, or missing screw leaves parts loose. What it does

• Replaces a missing or stripped M4 x 12 mm machine screw to secure panels, brackets, or assemblies
• Stops rattling or vibration caused by loose fasteners
• Helps maintain proper alignment of small service panels and components
• Suitable where an A2 (stainless) screw is required for corrosion resistance

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread damage
• Disconnect power to the appliance before servicing nearby electrical components
• Keep small parts away from children and collect any dropped screws to avoid damage
