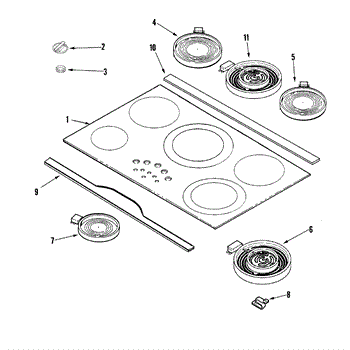

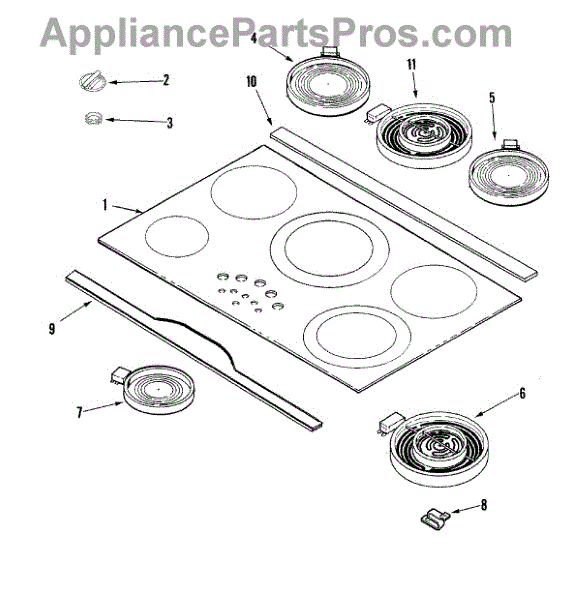

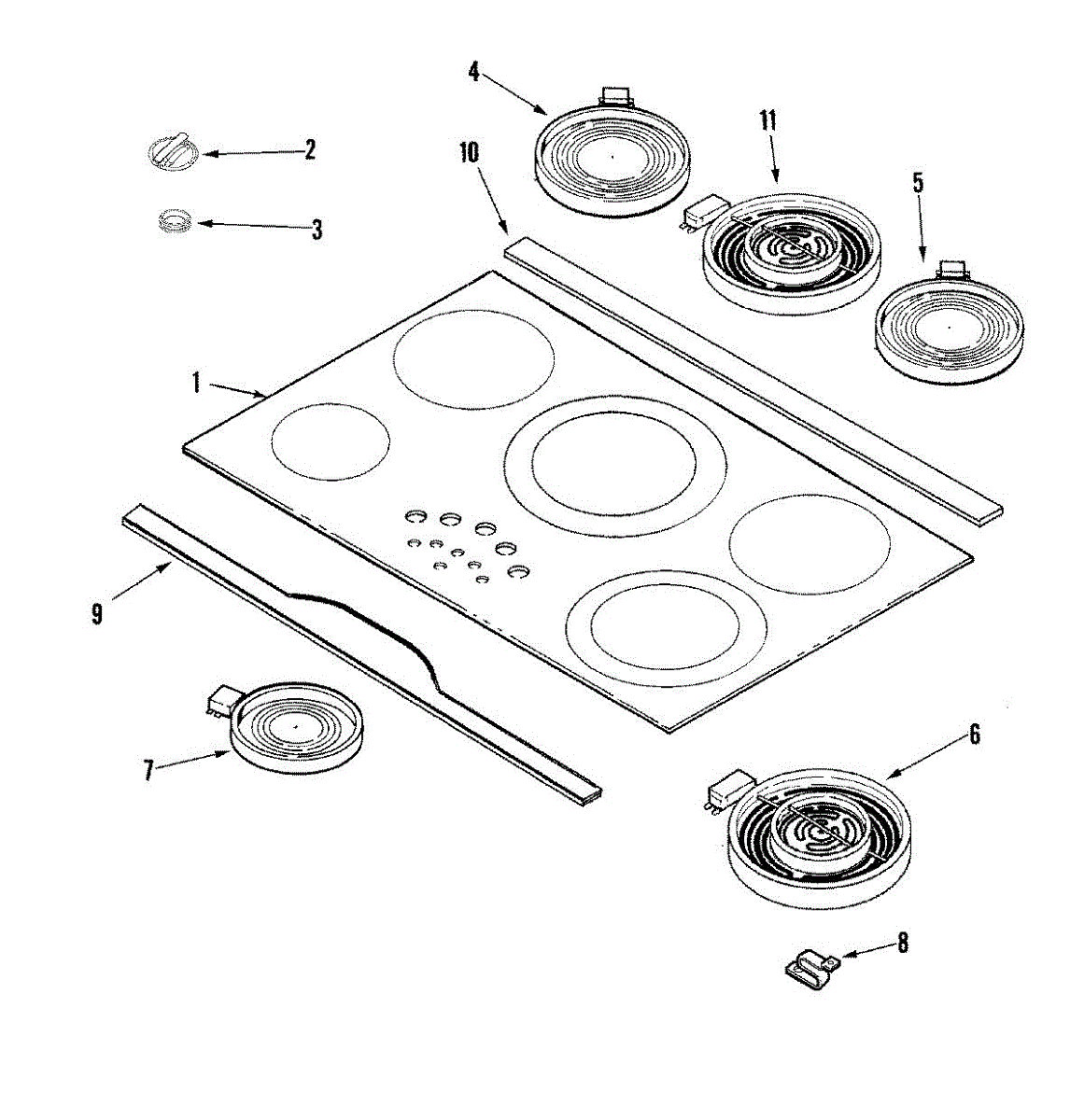

Parts for Jenn-Air JEC9536BDB: 03 - Top Assembly Parts

This adhesive-backed foam tape seals small gaps and cushions mating parts inside your appliance. Replacing worn or missing foam helps reduce noise and vibration while preventing air leaks and condensation that can lead to performance issues.

• Seals joints and gaps to help maintain proper airflow and temperature control
• Cushions panels and components to reduce rattles, buzzing, and vibration
• Helps prevent moisture intrusion that can cause condensation or frost
• Restores secure fit where original foam has compressed, torn, or fallen off

• Disconnect power (and water supply if applicable) before starting
• Remove all old foam/adhesive and clean surfaces; allow to dry fully
• Measure, cut to length, peel backing, and apply without stretching the tape
• Press firmly along the length for good adhesion; keep clear of moving parts and vents

Color: black. Measures about 1-1/2 inches in diameter.

The Surface Element is an OEM replacement part for Whirlpool ranges and cooktops. Specifically designed for the 7" cooktop element, the entire body of the Surface Element measures approximately 8" in diameter. It generates and distributes heat evenly across the cooktop.

Causes of a bad Surface Element can include electrical issues, such as wiring problems or a malfunctioning switch, and physical damage or wear that impairs its heating capability.

Symptoms of a bad Surface Element include:

• Inconsistent heating or failure to heat
• Visible damage to the element, such as burns or breaks
• The element not responding to the control switch
• Uneven cooking results due to fluctuating temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This warming surface element keeps food warm on the cooktop until you're ready to serve. It replaces a failed or weak warming zone so leftover dishes and pans stay at serving temperature. What it does:

• Provides low, steady heat for the designated warming zone on the cooktop
• Replaces an element that no longer heats or maintains warm temperature
• Restores even, consistent warming when the zone is cool or only partially heating
• Works with the cooktop's control switch and wiring to deliver regulated warmth

• Disconnect power to the appliance before inspecting or replacing the element
• Allow the cooktop and element to fully cool before attempting removal
• Replacement typically requires lifting or removing the cooktop; follow your model's service instructions

This surface heating element restores dependable heat to a burner on your range or cooktop. Also called a surface burner or top burner element, it delivers the cooking temperature for that zone when the control sends power. What it does:

• Generates heat for one cooking zone on the cooktop
• Common symptoms: burner won't heat, heats unevenly or only partway, takes too long to heat, or shows visible damage
• Helps isolate a single-burner failure when other surface elements still work
• Replaces a damaged or open element to restore consistent heating

• 1 surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Access the element per your model (remove burner pan or lift the glass top)
• Note/photograph wiring and transfer any brackets or clips; move wires one at a time to matching terminals
• Ensure the element sits flat and all connections are secure before reassembly and testing

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

This is a replacement cooktop trim piece that restores the finished edge around your cooktop for a clean, factory look and helps cover gaps between the cooktop and countertop. Ideal for replacing damaged or bent trim. What it does:

• Replaces worn, dented or scratched cooktop edging to improve appearance
• Covers gaps at the cooktop edge to restore a flush, finished look
• Helps stabilize the cooktop perimeter and reduce rattling or movement
• Matches OEM fit and mount points for a secure replacement

• Disconnect power to the appliance before beginning any work.
• Remove screws or clips securing the old trim; handle edges carefully—parts may be sharp.
• Align new trim to OEM mounting points and secure with original fasteners.

This surface heating element restores dependable heat on your electric range or cooktop. Replace a failed top burner to regain consistent boiling and simmering performance when one position stops heating, heats unevenly, or cycles unpredictably.

• Converts electrical power into heat for cookware on the cooktop
• Replaces a burned-out/open surface burner to restore normal operation
• Helps fix: no heat, intermittent heat, or uneven heating at a burner position
• Matches the original footprint and connections for proper fit and function

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the cooktop to cool completely; wear appropriate hand and eye protection
• Access the element per your service manual; note wire locations and transfer any mounting clips/brackets from the old part if present
• Seat terminals fully and secure the element before reassembly; test on low and high settings
